Digital display DC 10V 55V 40A PWM DC Governor Brush Motor Speed Control Controller Forward Reverse Reversible
- Category: >>>
- Supplier: Shenzhen Setsail Business Co. Ltd.
Share on (60782330948):
Product Overview
Description
DC 10V-55V 12V 24V 36V 48V 60A PWM DC Governor Brush Motor Speed Control Controller Forward Reverse Reversible Digital display
Feature:
Larger current, max current up to 60A, continuous current 40A.
Upgrade the voltage from 30V to 50V, wider range of applications.
Reversing control motor by relay, can withstand higher curren
With brake when the power off or change the rotation of the motor.
The controller with a LED display which can show the duty cycle from 1-100%.
Specifications:
Input voltage: 10V-55V
Output voltage: load linear
Maximum current: 60A
Continuous current: 40A
Speed range: 0% - 100%
Control frequency: 15KHZ
Speed regulation mode: potentiometer (with switch)
Speed regulation type: adjustment
Positive turn reversal: support (no lock switch)
Digital display location: 0-100 (percentage of full speed)
Support motor: DC brushes
Connection Lou type: screw terminal

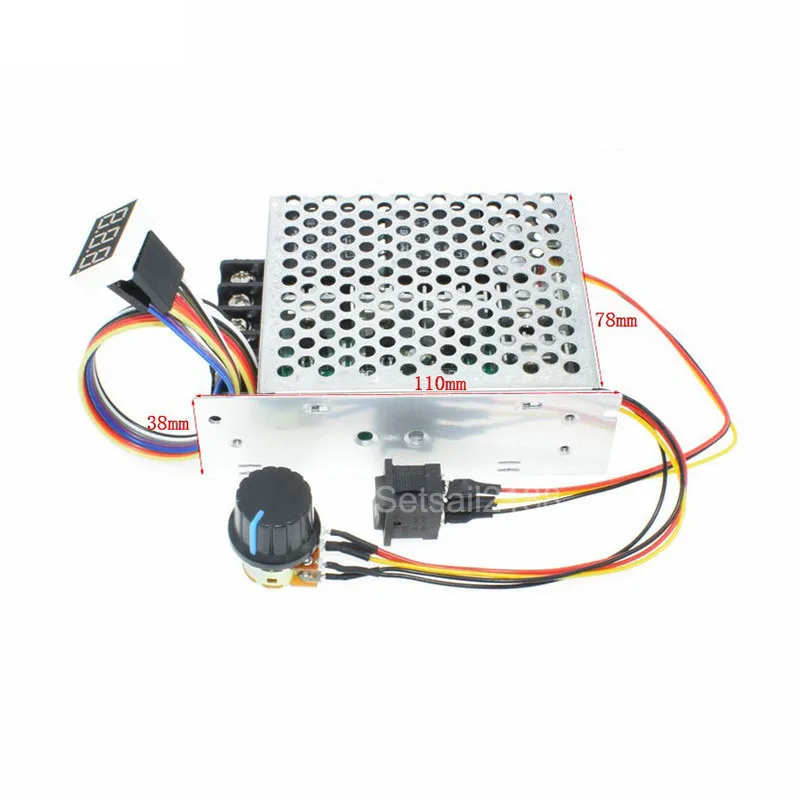

Shell size: long 100*76*28mm
Net product weight: 170g
Note: the digital display only shows 0-100, is the full speed percentage of the motor, not the actual motor speed.
