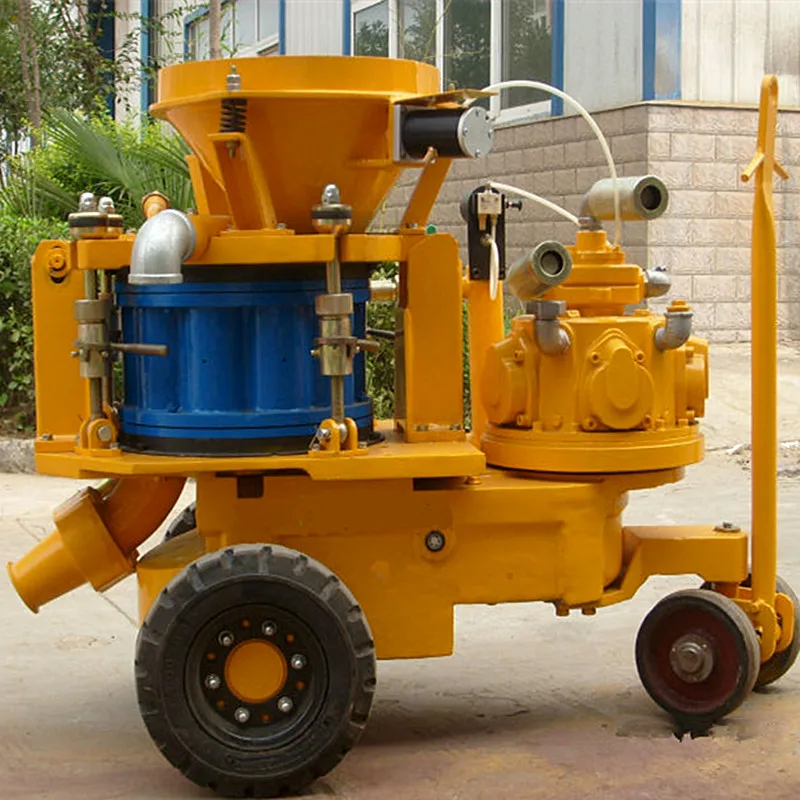

Мини машина Gunite, малая машина Aliva Shotcrete, цена в Индии
- Category: Shotcrete Machine >>>
- Supplier: Zhengzhou Xinyu Machinery Manufacturing Co. Ltd.
Share on (60782392374):
Product Overview
Description
Shotcrete process is to make use of the compressed air to convey the precast concrete through delivery hose to the nozzle to project the material onto the sprayed surface with high velocity, and then to form concrete support layer after the projected material coagulates and hardens. It has the advantage that simple technology can achieve special effect, can effectively reduce costs and enhance economic efficiency, it exhibits higher flexibility and simplicity and high construction efficiency.
| Type | PZ-3 | PZ-5 | PZ-6 | PZ-7 | PZ-9 |
| Capacity | 3m3/h | 5m3/h | 6m3/h | 7m3/h | 9m3/h |
| Max. Convey Distance | 200m | 200m | 200m | 200m | 200m |
| Suitable Mix Ratio | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 | 1:3-5 |
| Water Cement Ration | <0.4 | <0.4 | <0.4 | <0.4 | <0.4 |
| Max. Aggregate. size | 10mm | 15mm | 15mm | 20mm | 20mm |
| Rotor diameter | 350mm | 438mm | 438mm | 480mm | 480mm |
| Operating Pressure | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa | 0.2-0.6MPa |
| Air Consumption | 5-6m3/h | 7-8m3/h | 7-8m3/h | 9-10m3/h | 9-10m3/h |
| Motor Power | 4KW | 5.5KW | 5.5KW | 7.5KW | 7.5KW |
| Voltages | 380V,440V,660V,1140, 50Hz/60Hz | ||||
| Total weight | 400Kg | 700Kg | 700Kg | 800Kg | 900Kg |
| Chassis | Chassis can be assembled into rubber-tyred, slide type, rail wheel. | ||||
Product Details
Accessories
Product Usage
Simple operation; can be used widely.
Widely used in engineering construction, mining tunnels, hydropower projects, underground projects, and coal morains, mines, roadways and so on.
Factory Profile
Zhengzhou Xinyu Machinery Manufacturing Co., Ltd. is a professional concrete equipment manufacture which has thirty years of technology accumulation in China. The company has always paid attention to research and development of self-own brand-JINJIE. Nowadays, our products are exported to more than 30 countries and regions with excellent quality, such as Eastern Europe, Southeast Asia, South America, Africa and Oceania and so on.
Packaging & Shipping
1.how much is the length of delivery rubber hose?
It is 20m.If you need we also have 15m,16m,etc.
2.what is the difference between the wet spray machine and dry shotcrete machine?
Wet shotcrete machine can spray both the wet and dry concrete,while dry shotcrete machine is for dry concrete. But the wet shotcrete machine is small pollution.
3.what is the voltage/phase for this machine?
220v,380v,440v,660v,1140v
4.what is the guarantee?
One year for Motor, Reducer. If problem arrive, if it is not man-made damage, just offer a new one for free to replace.
