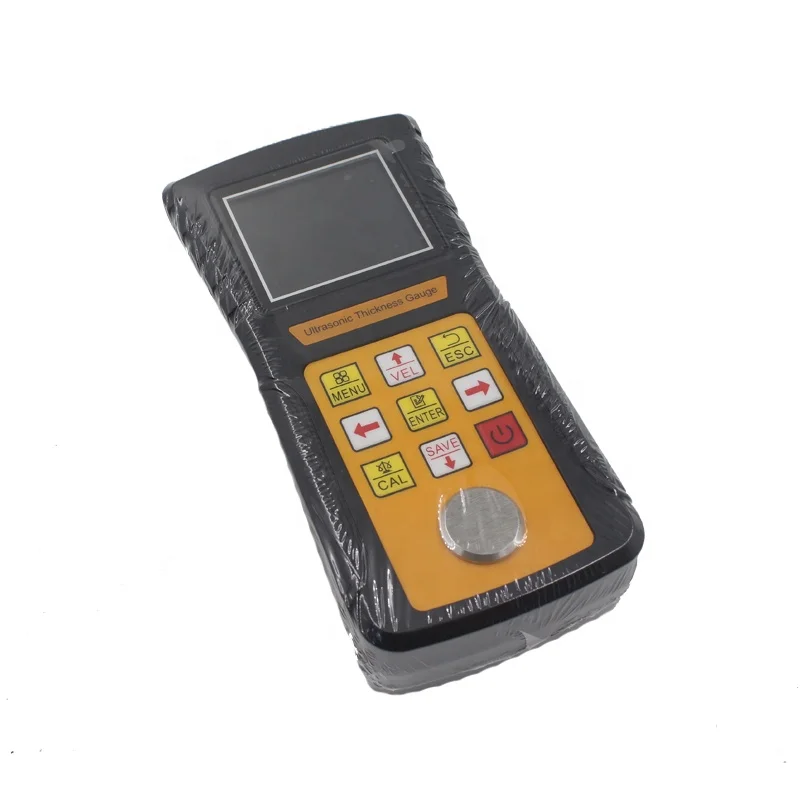

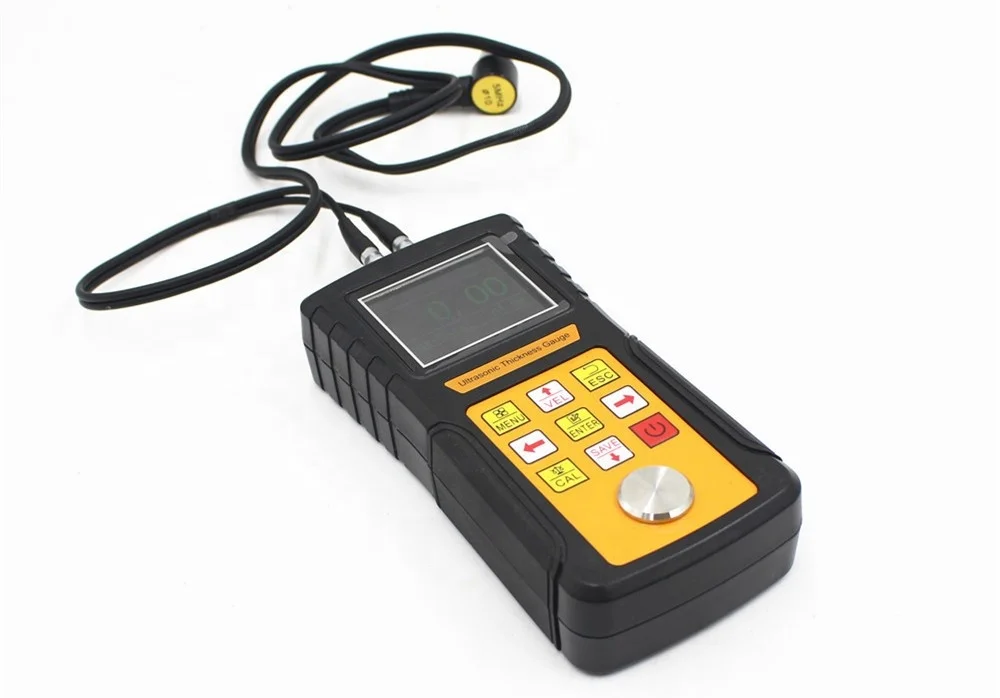

JT160 Thickness Tester
0.75~600mm (0.03~23.6inch) depends on probe
PC connecting and software
Sound velocity range
0.01mm or 0.1mm(lower than 100.0mm)
±(0.5%Thickness+0.04)mm,depends on Materials and conditions
40 values of saved data
2pcs 1.5V AA size,batteries. 100 hours typical operating time(LED back light off)
Continuous working time
more than 50 hours (LED backlight off)
4mm calibration block
AA battery (Non-aviation)
Software for JT160
-Suitable for measuring metal (such as steel, cast iron, aluminum, copper, etc.), plastic, ceramic, glass, glass fiber and other any good conductors of ultrasonic thickness.
-Can be equipped with a variety of different frequency, chip size, double crystal probe use.
-Have probe zero calibration, a two-point calibration function, can be automatically on system error correction.
-Thickness can be known the sound velocity measurement, in order to improve the accuracy of measurement.
-With LED backlight, convenient to use in dark environment.
-With automatic power saving function dormancy, automatic shutdown, etc.
-Small, portable, high accuracy, suitable for bad operating environment, vibration, impact resistance and electromagnetic interference.
