CJTD Series high quality engineering vehicles 10W LED work light for fire engine IP67
- Category: >>>
- Supplier: Jiangyin Changjiang Electric Appliance Co. Ltd.
Share on (60782446025):
Product Overview
Description
Product Overview

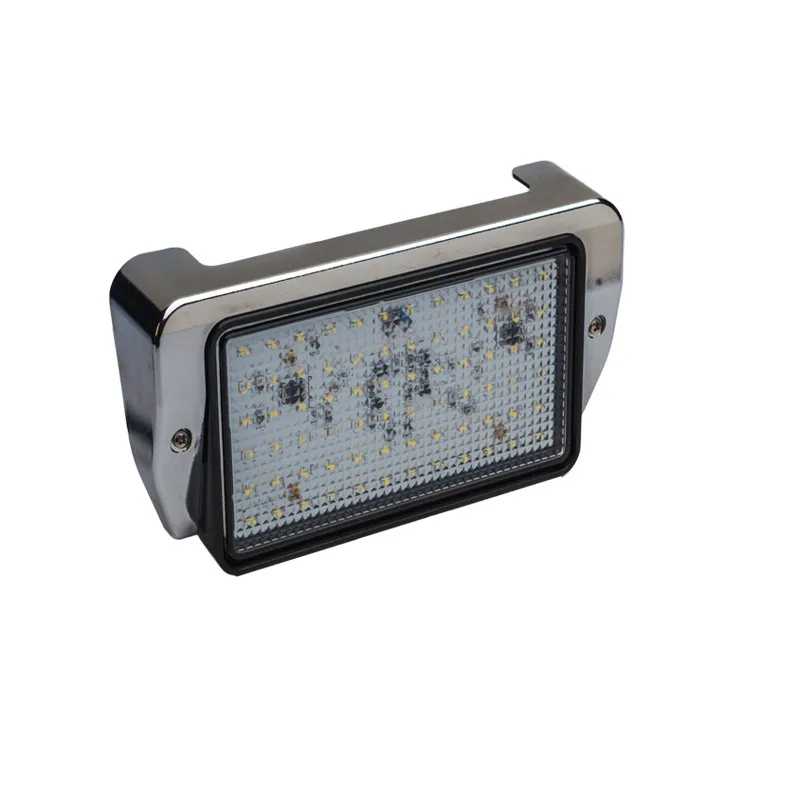

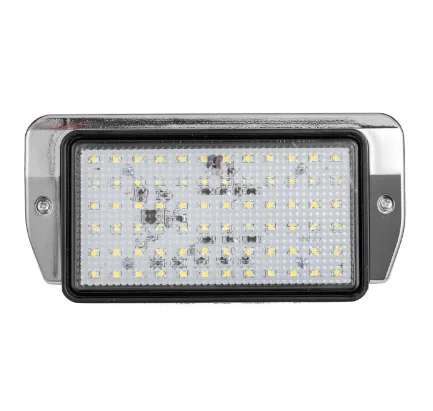

CJTD series CJTD-72W0.2-07 working light
CJTD series LED working lights adopt engineering vehicle lighting technology. Selection of high reliable LED light source, the whole lamp long life, safe operation, can realize maintenance free. The design is compact and light, suitable for all kinds of construction machinery, mining machinery and heavy trucks and other heavy duty industrial lighting places.

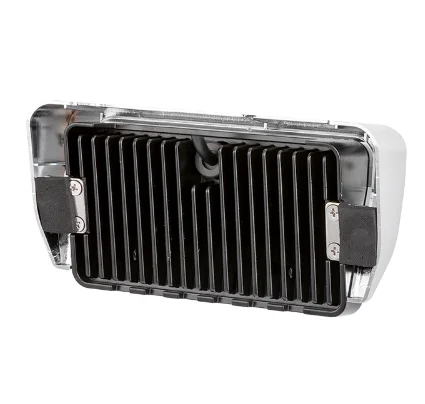

1. Fin-type lamp shell integrated design, strong integrity, full heat dissipation, light weight, good shock resistance
2. Engineering vehicle lighting technology, high reliable and efficient LED light source, high efficiency, long life, energy saving and environmental protection3. Special spraying process, oxidation resistance, corrosion resistance, fully sealed structure, suitable for high salinity coastal areas
4. Lampshade and lens integrated design, with protection and light concentrating effect, to achieve the light type positioning
5. The product is multi-color temperature optional, high color rendering index, good color rendering, eliminate glare and improve visual effect
Product Specification
Product Name | LED working light | ||||
Product Type | CJTD-72W0.2-07 | ||||
Main Technical Parameters | Electrical Parameter | Rated Voltage | DC12V / DC24V | ||
Work Voltage | DC 9-18V/DC18-32V | ||||
Rated Power | 10W | ||||
Surge Handling Capability | IEC61000±500V | ||||
Power Frequency Withstand Voltage | AC 1000V | ||||
Electro Magnetic Compatibility | ISO13766、CISPR15、EN55015 | ||||
Connection Method | Outgoing line | ||||
Mechanical Structure Parameter | Anti-vibration Grade | IEC60068-2-27 30g | |||
Anti-impact Grade | IEC60068-2-27 60g | ||||
IP Grade | ISO20653 IP67 | ||||
IK Grade | IEC62262 IK08 | ||||
Salt Spray Proofing | ISO9277 240H | ||||
Environment Temperature | IEC60068 -40℃～+85℃ | ||||
Air Relative Humidity | ≤98% | ||||
Material | Lamp shade: PC / Base: Aluminum alloy /Decorative frame: ABS | ||||
Weight | 0.58kg | ||||
Installation Method | M4 screw bolt | ||||
Optical Parameter | Light life | ≥30000 hours | |||
Color Temperature | 5000K | ||||
Luminous Flux | ≥1000lm | ||||

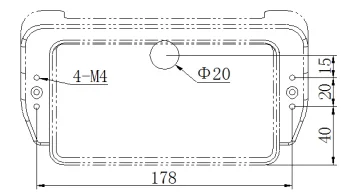

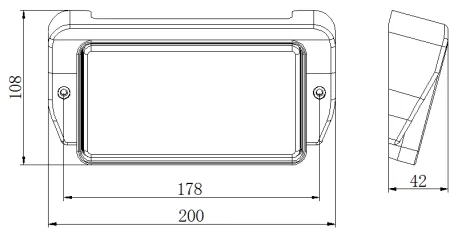

Installation Sketch (mm)
Certifications
Project Case
Excavator
Loader
Forklift Truck
Heavy Truck
Fire-fighting Equipment
Our Company
Company Headquarter
Jiangyin Changjiang Electric Appliance Co., Ltd has become a leading manufacturer of low-voltage electrical appliances and lighting of construction machinery. Our products are widely used in power, machinery, industrial control, elevator, communication, rail transit, new energy and construction machinery. Its novel design and reliable product features have won the unanimous favor of the majority of users.
Workshop
The facotry of Jiangyin Changjiang Electric Appliance covers an area of more than 6,000 square meters,and has several production lines,including signal lamp line,push button line,cam chang-over switch line,transformer line and electrical line.There are 30 excellent R&D staff in technology center and 300 workers in production workshop.Professional design and inspection support our products in best quality and in shortest delivery time.
Product Packaging
Different box size
Professional packaging
Related Products
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory located in Jiangyin City, Jiangsu Province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 10-15 working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment less than USD3000,we prefer the transaction via Alibaba Trade Assurance, 100% payment before delivery, order amount more than USD3000, 30% T/T in advance ,balance before shippment.
A: We are factory located in Jiangyin City, Jiangsu Province.
Q: How long is your delivery time?
A: Order amount less than $3000, or a single model less than 500pcs, delivery time is 10-15 working days after confirmation.
Q: Do you provide samples ? is it free or extra ?
A: Free sample is available, freight collect.
Q: What is your terms of payment ?
A: Payment less than USD3000,we prefer the transaction via Alibaba Trade Assurance, 100% payment before delivery, order amount more than USD3000, 30% T/T in advance ,balance before shippment.
