1.Strong, durable and lightweight virtually stress-free moulding's
2.Design flexibility - small to large, simple or complex
3.Economic start up costs
4.Hollow one piece mouldings, no welds or joints to fail
5.Uniform wall thickness with no thinning at the extremities
6.Thickness and weight can be varied for extra strength requirements
7.Variety of colours and surface finishes available
8.Metal inserts moulded as a integral part
9.Short lead times
10.Cost effective for short runs
11.Environmentally responsible, all products can be recycled by us and we can make products from recycled material
12.UV stabilised to maximise outdoor life
|

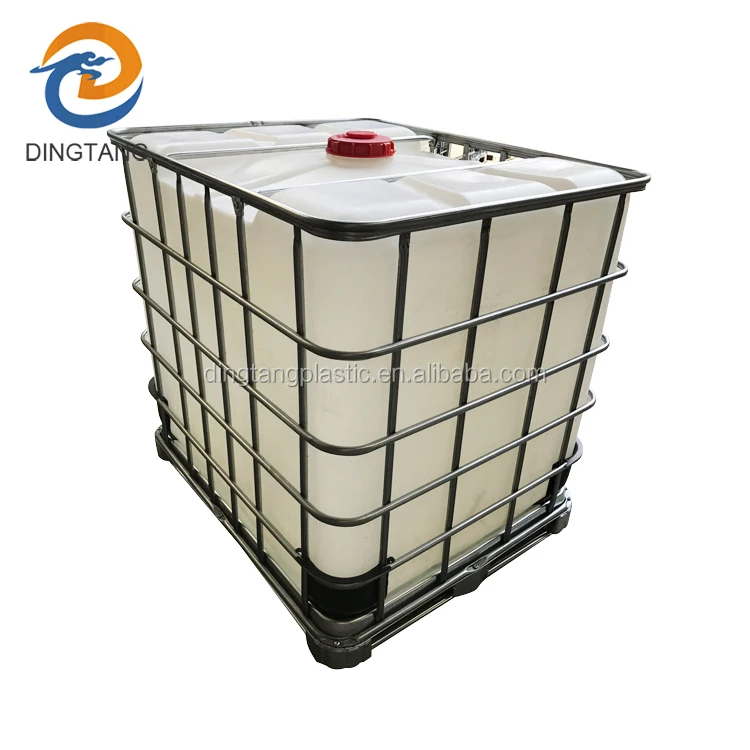

The Technical Data of the IBC Tank |
||
|
Item |
Specification |
Tolerance |
|
Rated Volume(L) |
1000 |
/ |
|
Brimful Volume(L) |
≥1050 |
/ |
|
Overall Dimension(mm) |
1200x1000x1150 |
±5 |
|
Top cap Mouth diameter |
153(diameter of thread SLCS 160mm,Pitch 7mm) |
±2 |
|
Weight for Inner Tank(kg) |
17 |
±0.5 |
|
Weight for IBC Tank(kg) |
59 |
±1 |
|
Valve outside diameter(mm) |
70 |
±1 |
|
Wall Thickness(min) |
≥1.5 |
/ |
|
Outlet Valve(discharge valve) |
DN50 ball valve& butterfly valve |
/ |
|
Height for Pallet(mm) |
120 |
/ |
|
Height for forklift holes(mm) |
90 |
/ |
|
Length for forklift holes(mm) |
900 |
/ |
