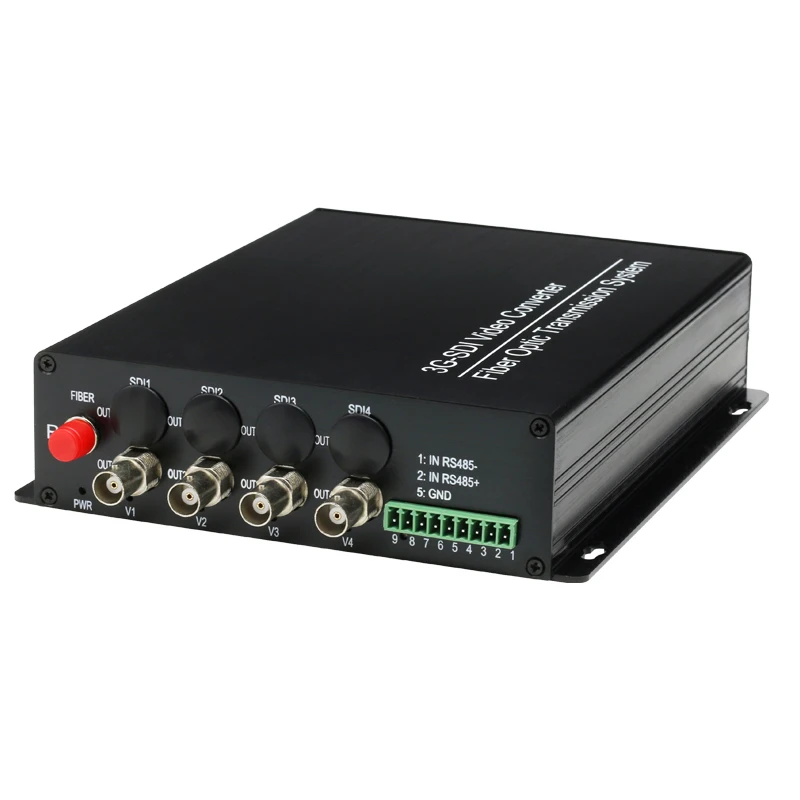

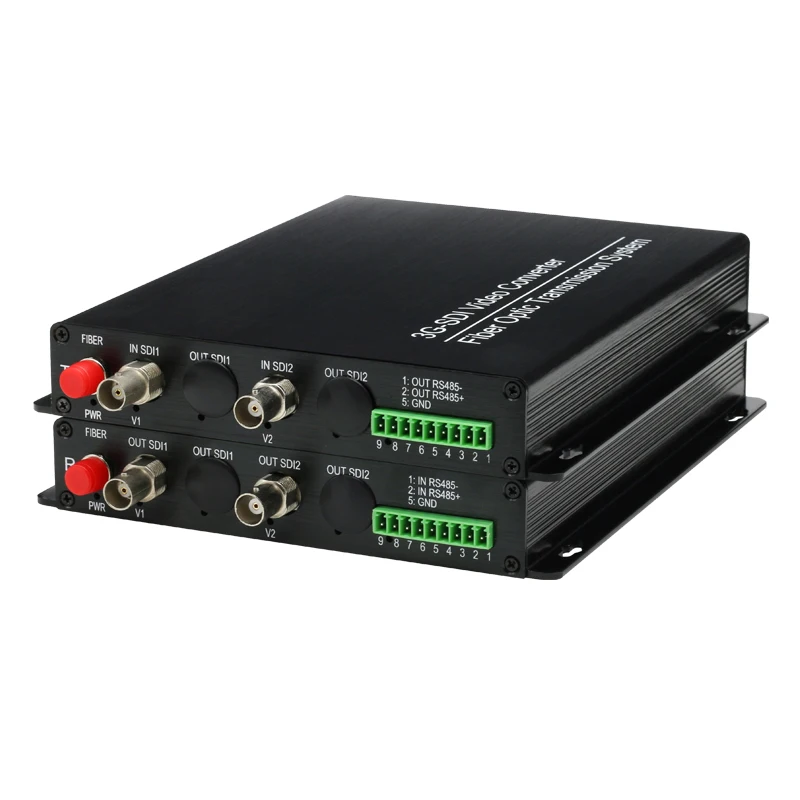

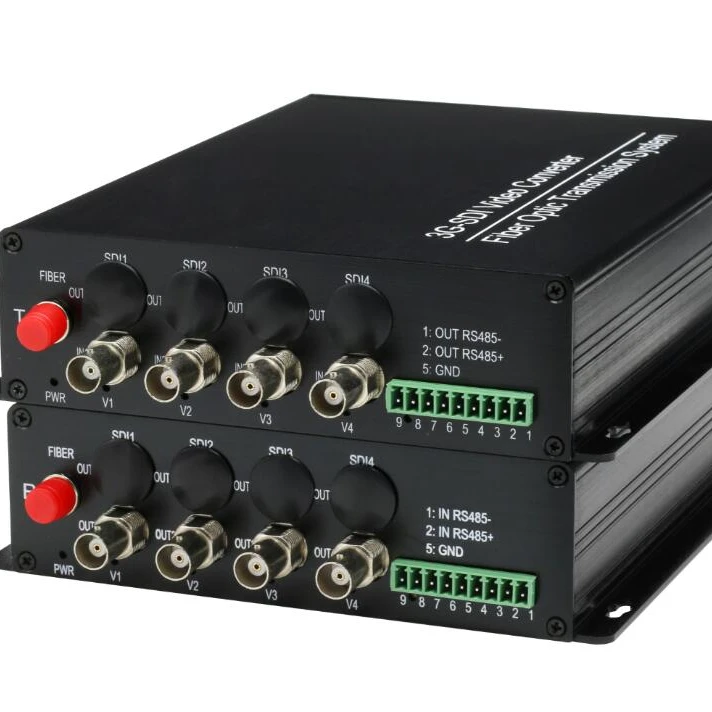

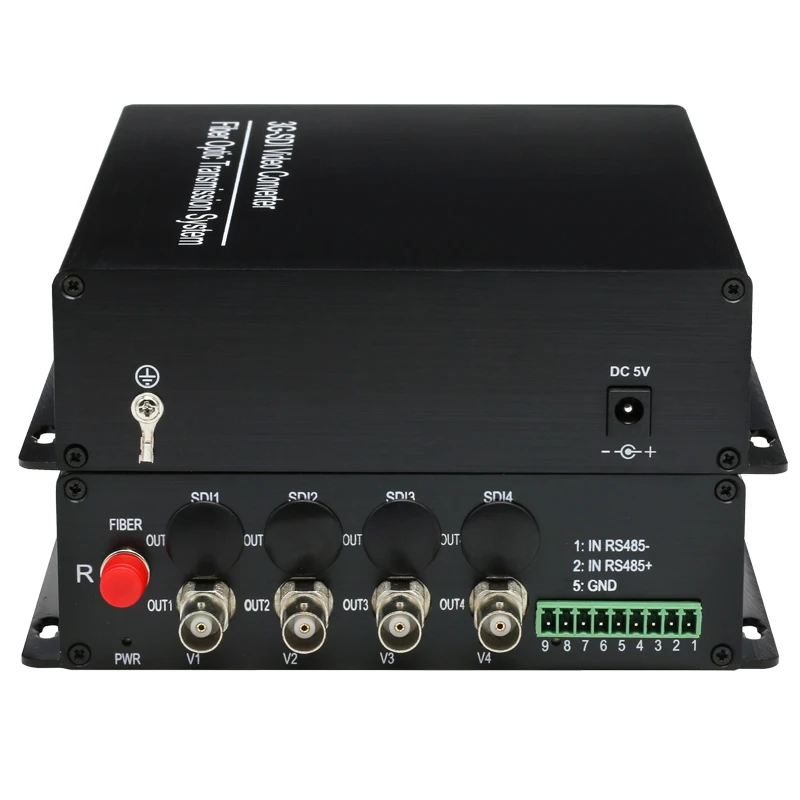

1310nm 1550nm2 Chs Bi directional 3G SDI Video to Fiber Converter SC /UPC Optical connector extender upto 40km

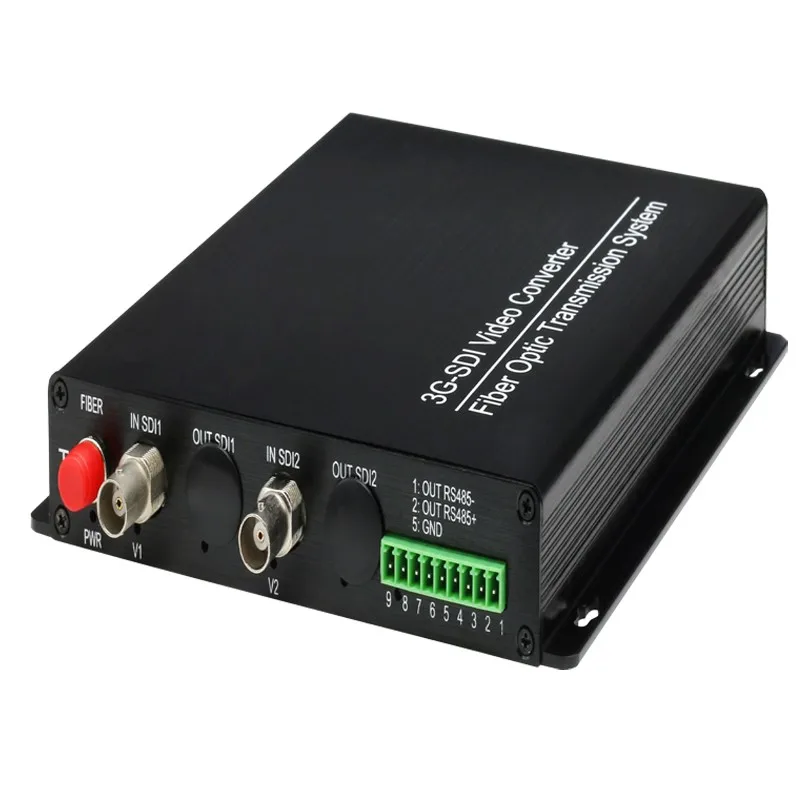

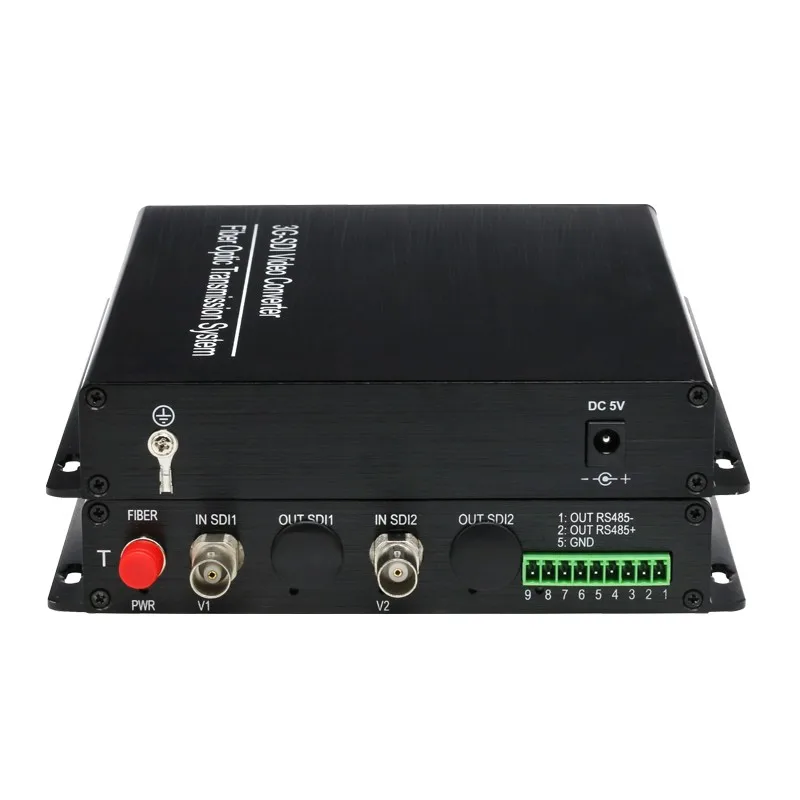

2 Chs Bi-directional 3G-SDI Video to Fiber Converter
System Design
Fiber Optic Video Transmitter & Receiver
SDI series can transmission 2 Chs Bi-directional
3G-SDI video over 1 single core fiber.
Single-Mode
3G-SDI unit is designed to support SC /UPC Optical connector
The Transmission distance Range according to the Optical Budget.
Manufacturer's default standard is single mode 40Km .
Features
• 2 Chs Bi-directional Video of 3G-SDI can be transmitted via 1 single fiber
• The Max rate of work is 3.2Gb/s
• Support SMPTE 292M (2.9Gb/s) clock recovery
• Support standard of 1.485Gbps/M(HD-SDI/ SD-SDI),SMPTE 425M 3Gb/s Mapping(3G-SDI),SMPTE 424M 3Gb/s serial interface(3G-SDI)
• Out wavelength range is 1310nm、1550nm and 16 other kind of CWDM wavelength ( comply with ITU-T G.694.2)
• Automatic cable equalization ,used for all rate below 3.2 Gb/s（Belden 1694A）
• LED Status Indication to monitor the working conditions
• Video transmission system can support many application branches structure
•The SDI video format support：
625/25 PAL
525/29.97 NTSC
525/23.98 NTSC
720p50、720p59.94
1080P 23.98/24/30/50/60
1080i 23/24/30/50/59.94

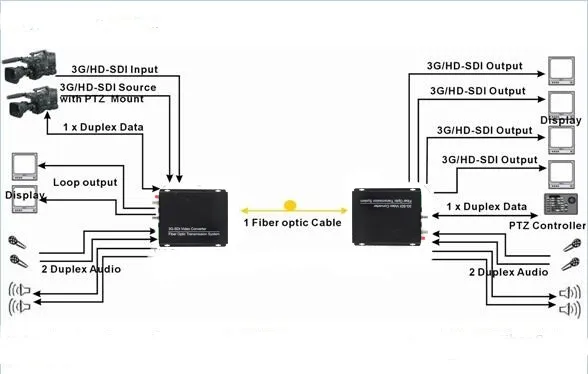

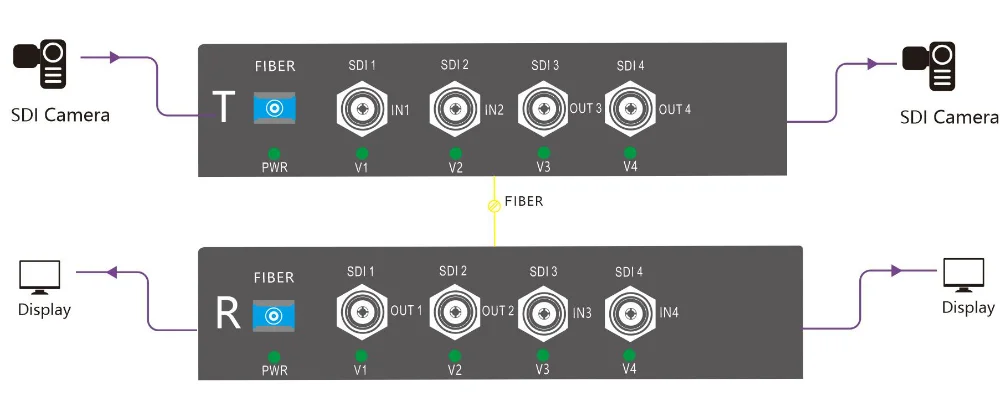

Typical application

Remark:
•The Optical Power Budget fit Single-Mode(9/125 m).
•Optical transmission distance is limited to optical loss of the fiber and any additional loss introduced by connectors, splices and patch panels.
•Maximum transmission distance is also limited by fiber bandwidth.
•Power adapter for stand-alone units is manufactured by third party .Power adapter included US, European, UK or Australian power plug.
•Please feel free to contact factory for any special requirement and customization
Specifications
Video  Number of channels : 2 Chs Bi-directional
Input/out put Connector : BNC 75Ω
Input/output voltage: 1.0 Volt p-p
Video Bits Rate: Max 3.2Gb/s
Video SDI Standards: 270Mbps(SD-SDI)
1.485Gbps/M(HD-SDI)
SMPTE425M3Gb/s Mapping(3G-SDI)
SMPTE424M 3Gb/s serial interface(3G-SDI)
Fiber Optic
Number of Optical port : 1
Connector : Simplex SC
Single-mode 40Km
Single-mode:1310/1550nm (Option)
Connectors Video : BNC 75Ω
Fiber Optical : Simplex SC
Stand-alone power: DC JACK
Rack power: AC line cord
Electrical & Mechanical
Power adaptor : AC 100-240V to DC 5V 2A
Power consumption : <3W
Environmental
Operating Temperature : - 5C~+75 C
Storage Temperature : - 5 C~+85 C
Relative Humidity : 0%~95% (non-condensing)
MTBF : >100,000 hours

With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.

Q1: What about the lead time?
A1:Sample needs 3-5 days,mass production time needs 1-2 weeks for order quantity more than 100 PC.
Q2:How about the payment terms?
A2:We accept T/T, paypal or cash as payment .
Q3:What are your strengths?
A3:Our biggest advantage is the ODM service.
Q4:If we I am not clear about the how to use the products, what should I do?
A4:Each of our products has a manual, you can read it or you may contact with us.
