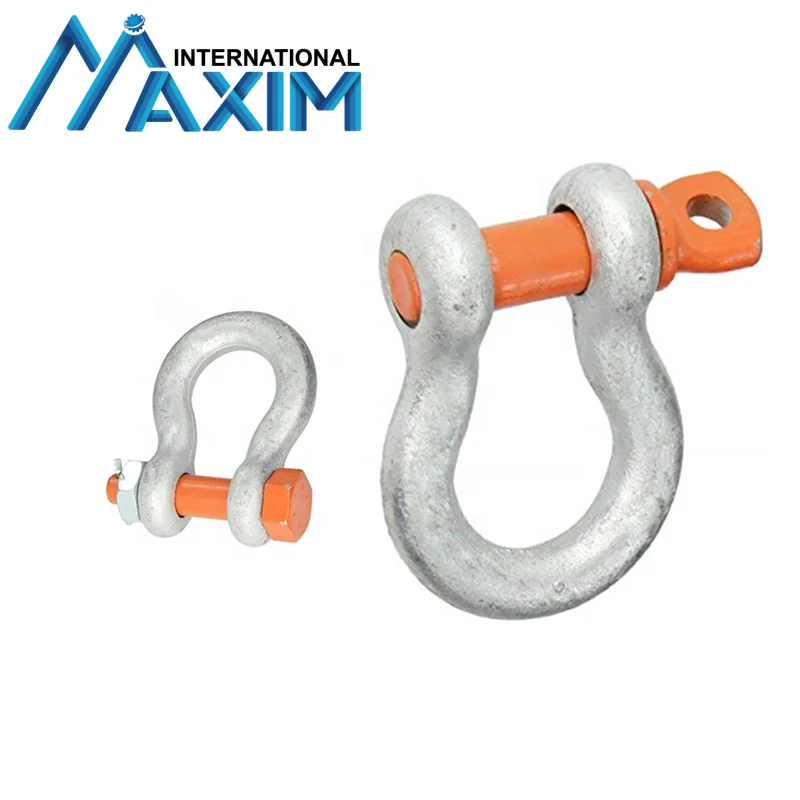

Galvanized High Tensile Bolt Type G80 Alloy Steel Anchor Shackle

Galvanized High Tensile Bolt Type G80 Alloy Steel Anchor Shackle

Category: >>>
Supplier: Qingdao Maxim International Import And Export Co. Ltd.

Price:$2.00 - $3.00

Quantity:

Product Overview

Description

Product Description

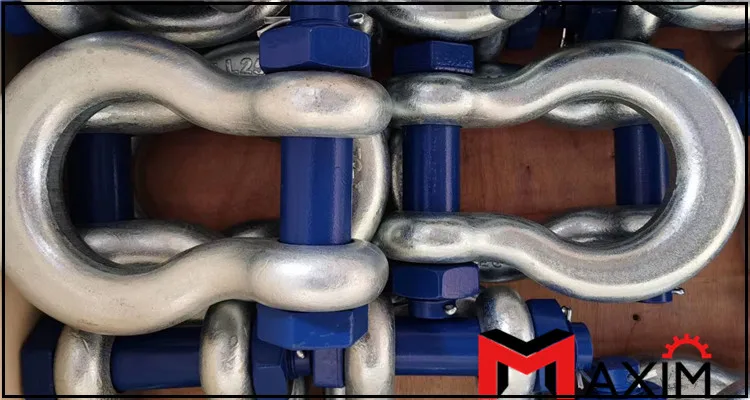

Galvanized High Tensile Bolt Type G80 Alloy Steel Anchor Shackle

Introduction:

g80 alloy steel anchor shackle is closed die forged. Closed die forging produces consistent dimensions. A closed die forged bow allows for an increased cross section that, when coupled with quench and tempering, enhances strength and ductility. Close tolerance holes and concentric pins with good surface finishes are provided and are proven to provide improved fatigue life in actual use. shackles are fatigue rated as well as load rated. Close pin to hole tolerance has been proven to be critical for good fatigue life, particularly with screw pin shackles.

Features:
Widely used in any lifting conditions, trailer conditions

Easier to be connected with chains, wire ropes, hooks,etc

Stronger performance during working

Many sizes can be choosed according to the different daily working

Specifications:
Process: Forging, quenched&tempered

Material: carbon steel/alloy steel
Safety factor: 4:1 & 6:1
W.L.L: 2TON-85TON (we have some type shackles can be made to 400t or more)
Size:3/16-4 inch (we have some type shackles can be made to 7inch or more
Finish: powder coated/galv/hot dip galv/grey and white zinc

Other size can be available.

CAUTION: Do NOT use Breaking Strength for design or rating purposes. Use Working Load Limit instead. It assumes no responsibility for the use, misuse or misapplication of its products. All products are sold with the package understanding that the purchaser and/or user are thoroughly familiar with their proper use.

SPECIFICATION FOR g80 alloy steel anchor shackle
CODE	SIZE(INCH)	W.L.L(ton)	WEIGHT(LBS)
MG801	1	2	0.31
MG802	1 1/12	2 2/3	0.33
MG803	2	3 1/3	0.63
MG804	3 1/4	5	1.35
MG805	4 3/4	7	2.35
MG806	6 1/2	9 1/2	3.51
MG807	8 1/2	12 1/2	5.32
MG808	9 1/2	15	7.25
MG809	12	18	9.88
MG810	13 1/2	21	13.25
..	..	..	..
MG817	35	35	45
MG818	55	55	70
MG819	85	85	85.75
MG820	120	120	120
MG821	150	150	153
..		..	..

cutting materials

heating material

hot die forging

cutting the forging edge

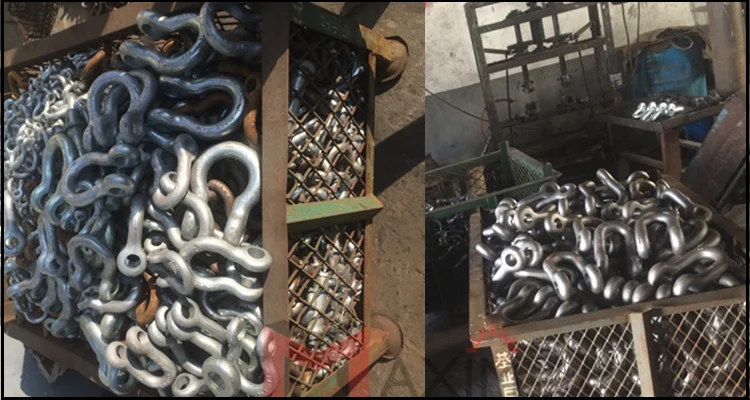

half-finished bulk

sand blasting in machine

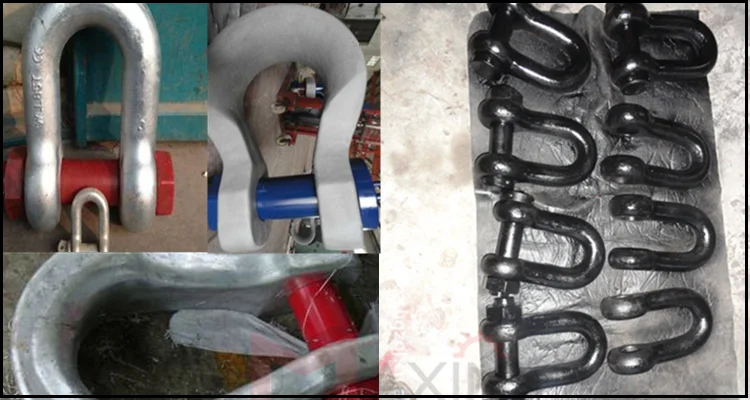

Detailed Images

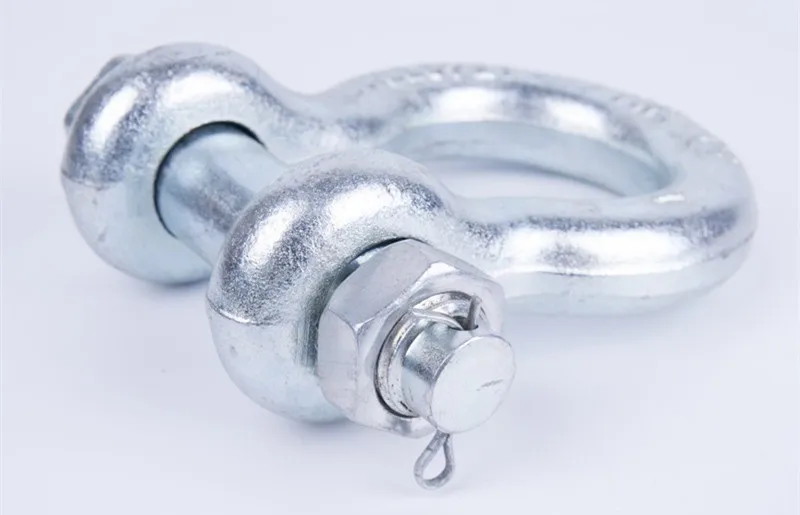

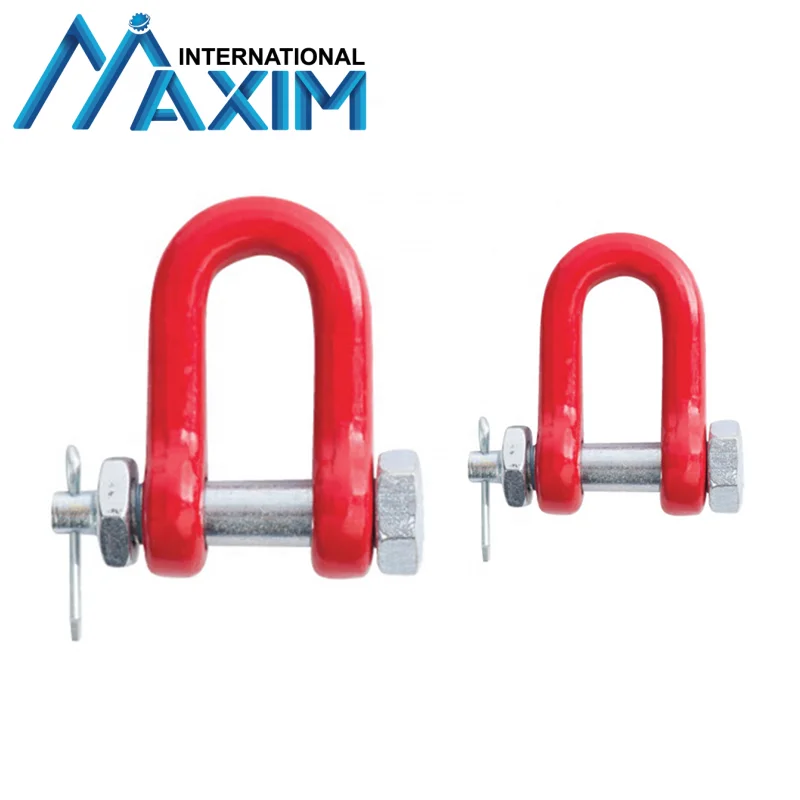

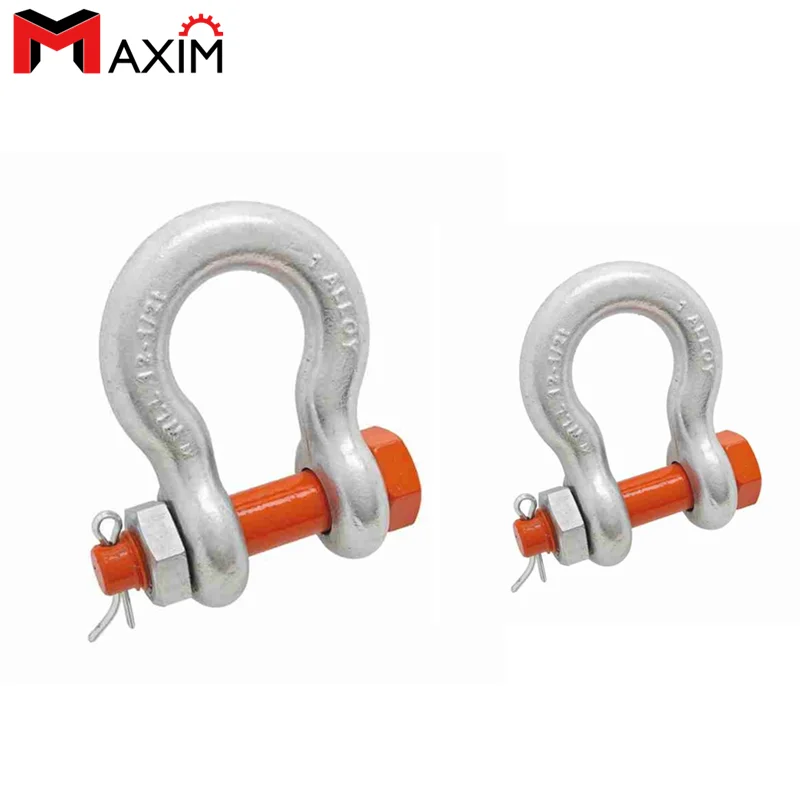

bolt type pin with clip

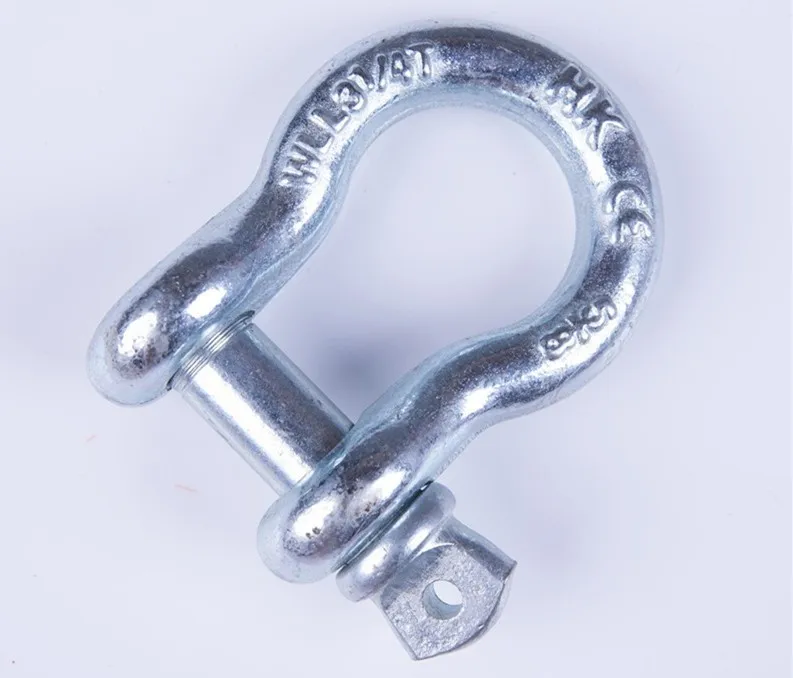

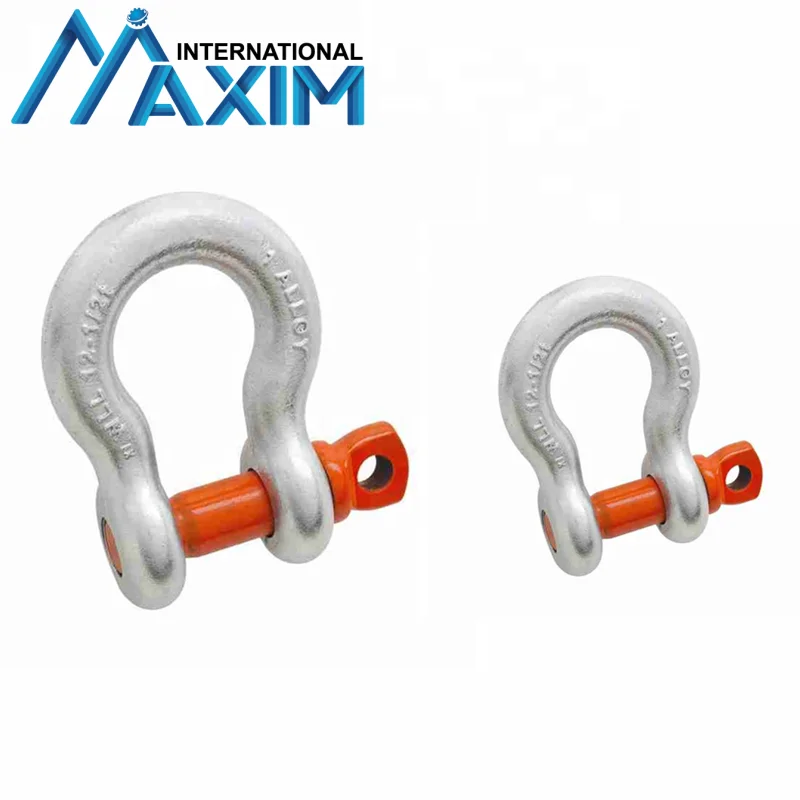

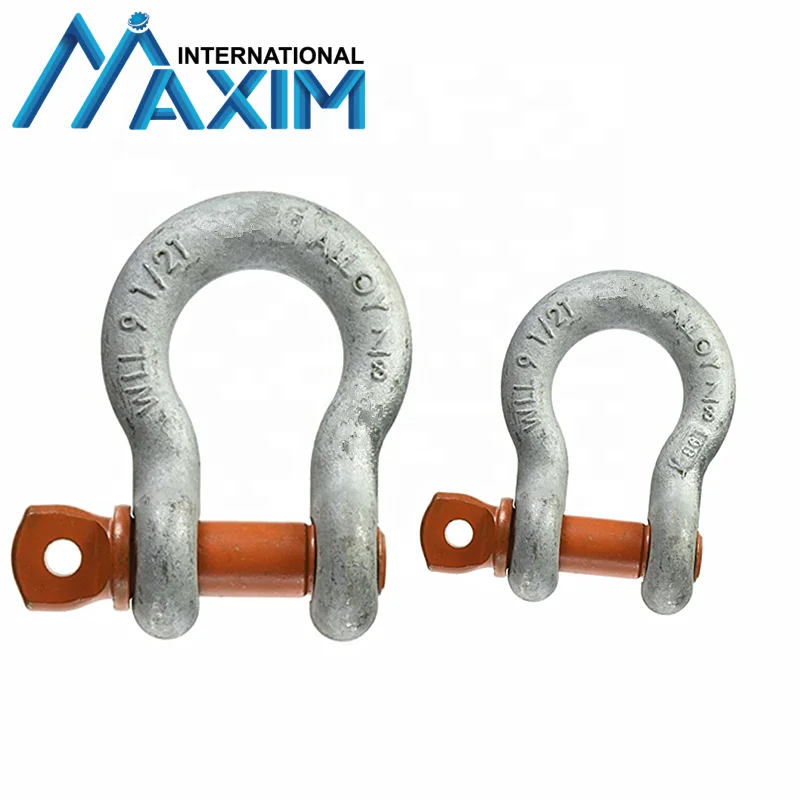

screw type pin with tight thread

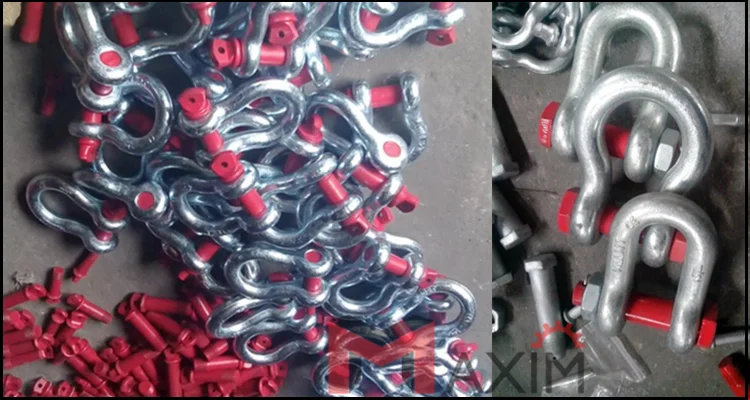

forged heavier shackle body and assemblings

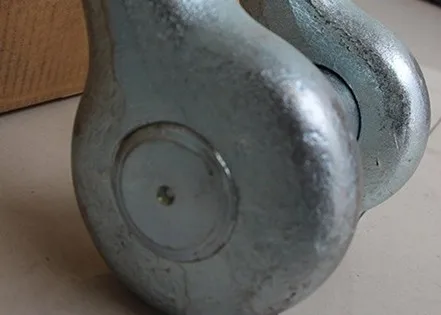

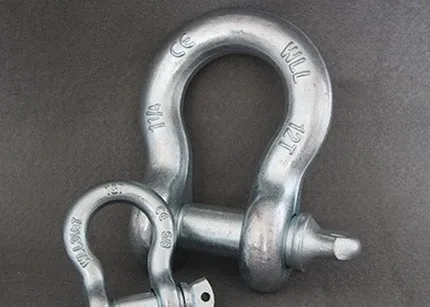

clear embossing with CE,W.L.L and size or logo

Typical questions asked about products:

- - Is the item durable?

Dear customer, Yes, they are. The whole body were forged and quenched&tempered, and material is steel, alloy steel. Each parts were forged overall.

- - Is this item easy to use?

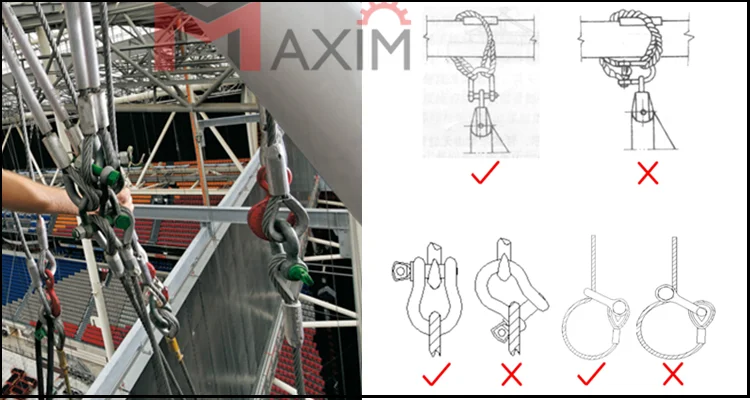

Dear customer, Yes, they are. Just thread the shackles pins, and make the wire rope or chains or other rigging hardware inside, then screw the pins and connected them well in correct lifting direction.

- Can I just buy 1 set? As I only need one set for now.

dear, MOQ of this products is 100pcs, if we have them in stock, that can ship 1 or small order for you.

Packing & Delivery

Packaging

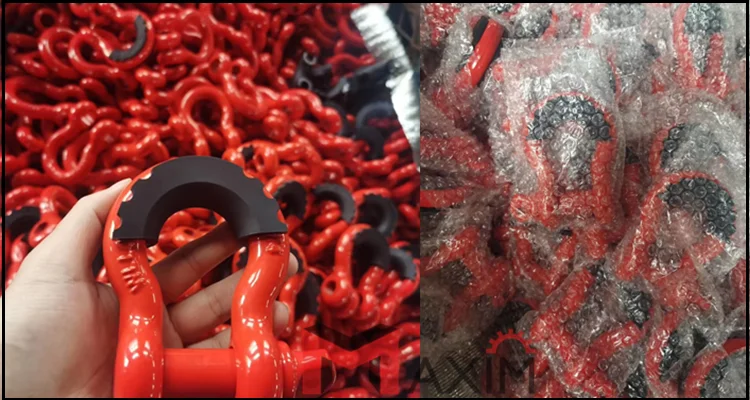

Packaging Details	1. g80 allot anchor shackle with screw pin is packaged by bag /carton with pallet. 2can also ship the bulk directly into wooden case . 3.customized package is available.

Shipment
Shipping Details	1.CIF price is also competitive through our old shipping agents. 2.Shipment to your door address is available. 3.15 days can be shipped in usual. 4.Ocean, air, train all is no problem.

Our Company

About US

Lifting Equipment,Trailer Equipment and Industrial Supplies, Qingdao Maxim International Import And Export Co.,ltd, has been servicing all industries including manufacturing industry,oil mining,port&road construction, marine, machinery,ocean projects,logistic,car&truck industry and other engineering requirements since 2003.Independently owned and operated the company has had substantial growth and has become one of the largest suppliers of industry equipment in China.

We are factory for rigging and trailer parts in past years, based on over 15 years' products experience and supplier resources in domestic markets, we found the best and high efficiency service way for customers gradually------one-stop service station,so Maxim International was borned. We are an "Industrial Warehouse", with all your requirements catered for and speedy deliveries to global customers.

Be honest, be sincere ,be your best consultant and supplier. Providing the most suitable Chinese products as you required.

*over 15 years production experience *products exporting in the past 11years *24hours online service *Qualified quality gurantee *Acceptable price * stronger QC and sales team * very good relationship with other old professional lifting factories in lifting&trailer industry.

Our Service

One-stop service station for your whole industry.

Dear customer,
you can find almost all lifting& trailer products you need in we Maxim International, you can buy and ship all of them from us for only one time , we will update the order processing of all to you on time. So, we are pleasure to be your warehouse and purchase office in China .

Providing the most suitable Chinese products as you required quickly.

Dear customers,
there are many Chinese suppliers of each item in website, you don't need to inquiry over 3 or more suppliers of each, just tell us your requirements: quality level, purchase budget, brand, package, details, we will match the most suitable products for you based on our domestic and industry resources.

Qualified Quality is the first condition for business.

Dear customers,
Higher or superior top quality depends on your different truth daily-working requirements, what the basic step we have to do is to make the products qualified first.
-----Be honest, be sincere ,be your best consultant and supplier. We do the best as what we can, we tell you the truth what we can't reach, and providing sincere advice for you.
