SMT PCB IC X-ray machine weld x ray testing equipment X6600

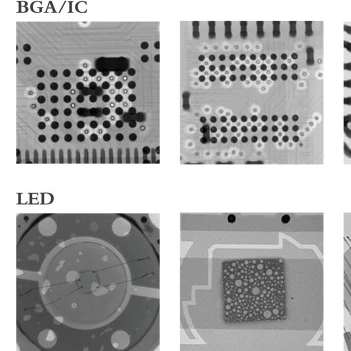

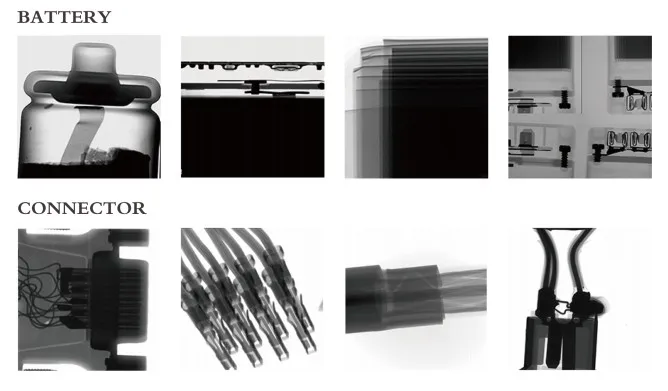

Seamark X-7600 X-ray inspection system has been widely applied to Circuit Board Inspection, Semi-Conductor Inspection and Other Applications. (Offline X - Ray series) widely used in offline detection, defect analysis, 3D reconstruction, used for PCBA, packaging, ceramics, plastics, LED, and so on.
X6600 X-ray inspection machine Video Link:
https://youtu.be/IUGLT_xeS1Q
https://youtu.be/0krZkxgzlNg
X-ray detection technology for the SMT production testing means brought new changes, it can be said that it is the desire to further improve the level of production technology to improve the quality of production, and will soon find the circuit assembly failure as a breakthrough. It's the best selection for the manufacturer.

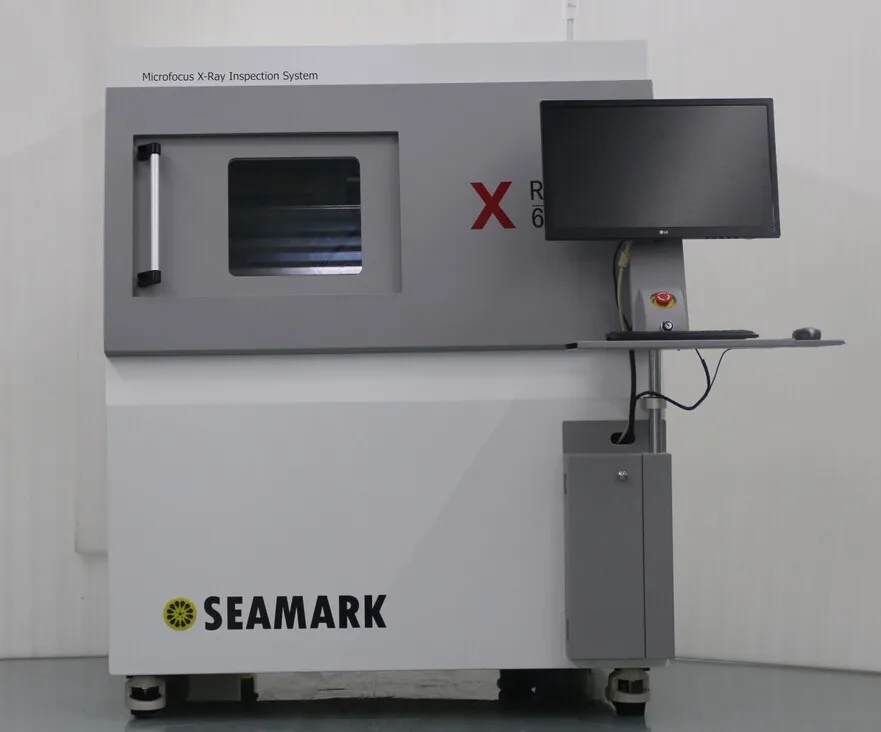

Specification for Seamark X6600 X-ray inspection system
Mainly Functions weld x ray testing equipment
FunctionsBGA voids inspection
Advantages
X-ray tube and detector can be moved along the Z axis
can be detected the Defects less than 2.5μm
Software setting voltage and current
Easy maintenance, with long life
Can control the speed in X-Y direction
Eeasy operation, Traning time just need 15minutes
Editable detecting procedures
Suitable for the large batch detecting
Detectors maximum inclination 70 °
Semiautomatic to identify OK / NG in Products
Large navigation windowr, mouse clicks canl move the stage to a position that you need.
High accuracy detection
Can meet the size for kinds of samples
allows a unique perspective to detect sample
Technical Parameters BGA voids inspection
BGA voids inspection
BGA voids inspection
ItemsBGA voids inspection
Contents
ModelBGA voids inspection
X-6600

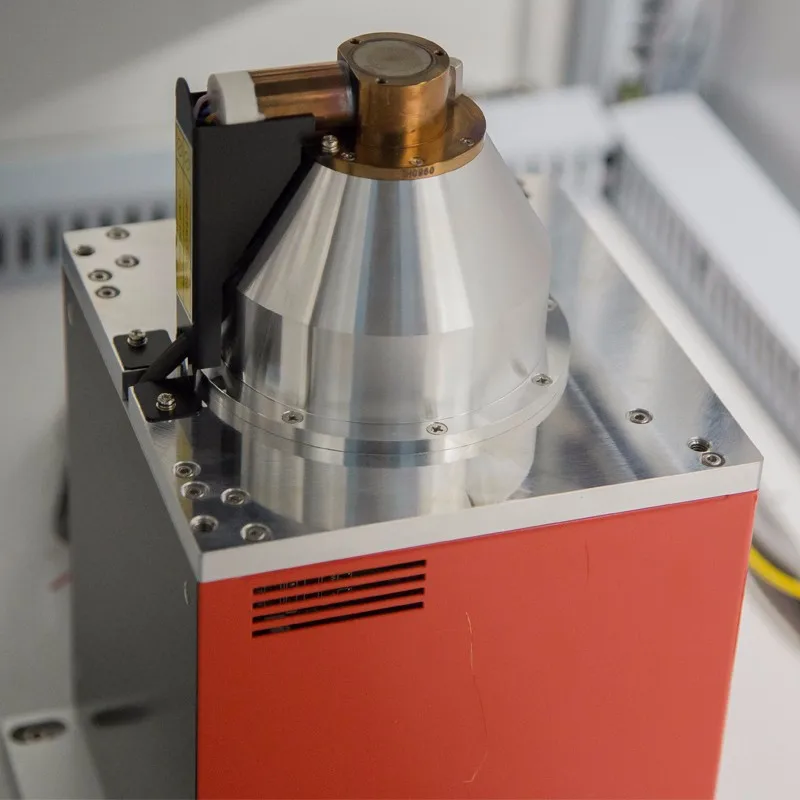

X-RAY launching tube
Tube Type
Sealed type X-ray Tube
Maximum tube voltage
90kV
Maximum tube current
0.12mA
Focal size
5um
Magnification
Geometric magnification:150X System magnification:1000X
Detector
Image Speed
30 fps
Resolution
1000*1000
Tilt angle
Detector60°Tilting
Cabinet Specifications
Stage size
640mm*540mm
Dimension
L:1360mm,W:1360mm,H:1650mm
Net weight
900kg
Input voltage
AC 110-220V (+10%)(international general power supply)
X-ray leakage amount
≤1 u Sv/h
Operation System
Windows 7
Total power
1.5Kw
Standard configurationweld x ray testing equipment
Items
Quatity
Unit
Remark
90KV-5umSealed type X ray Tube
1
PCS
Stage
1
PCS
Size:640mm*540mm
Flat Panel Detector
1
PCS
High definition
Image processor CPU
1
PCS
Full-featured
LCD Monitor
1
PCS
24"
X-ray Inspecting Features:
(1) Coverage of process defects up to 97%. Inspectible defects include: Empty solder, Bridge, Solder shortage, voids, components missing, and so on. In particular, the BGA, CSP and other solder joint devices can also be checked by X-Ray.weld x ray testing equipment
(2) Higher test coverage. It can check where the naked eye and the online test can not be checked. Such as PCBA was judged fault, suspected PCB inner trace break, X-ray can be quickly checked.weld x ray testing equipment
(3) The test preparation time is greatly reduced.weld x ray testing equipment
(4) It can observe other means of detection can not be reliably detected defects, such as: Empty soldering, air holes and poor molding and so on.weld x ray testing equipment
(5) Double layers board and multi-layer boards only one check (with layered function).
(6) Can provide relevant measurement information, used to evaluate the production process. Such as solder paste thickness, solder joints under the amount of solder.
Most Zhuoao photoelectric X-RAY system supports all kinds of X-RAY tube, X-ray detector and image processor. We can provide different configuration of the shell, X-ray tube control, enhanced screen and image processing functions according to the needs of customers.
Packaging & Shipping
Company Information
ZhuoMao Technology is an National High-Tech enterprise in Shenzhen, China, We are manufacturer with 12 years experience in the SMT Equipment field. All material is of high quality under inspection and control. All SMT PCB Conveyor is approved by CE and ISO Certification. Zhuomao also get the certification of "Seamark" Brand Registation ,Software copyright, and machine design patent.etc. High Quality Assurance is our task and also what we are doing now.
Customer Visiting
In order to meet the international market demand and customer customization requirement, we keep developing and researching different level of machines for different customer choice.
Nearly every day some customers from home and abroad come to visit our factory, we arrange the technician to show the PCB X-ray machine operation. Free training is available, many oversea customer train in our factory. Warmly welcome you to visit our factory !
FAQ
1. How about the package? Is it safe during the delivery? All PCB X-ray machine is packed by standard strong wooden carton.It is safe when shipping.
SMT PCB IC X-ray machine weld x ray testing equipment X6600 2. What is the delivery way? How many days will the machine arrrive us? We will ship the machine by DHL,Fedex, UPS,etc (Door to Door Service), around 5 days to arrive. Or by Air to your airport (Door to Airport Service ), around 3 days to arrive. Or by Sea to the seaport, Minium CBM requirement : 1 CBM, around 30days to arrive. SMT PCB IC X-ray machine weld x ray testing equipment X6600 3. Do you provide the Warranty? How about the after sales service? 1 year warranty free for spare parts, Whole life technicial support. We have professional after sales team, if any question, assistant videos are also provided in after-sale service. SMT PCB IC X-ray machine weld x ray testing equipment X6600
4. If we come to your factory, if you will provide the free training? Yes, warmly welcome you to visit our factory, we will arrange the free training for you. SMT PCB IC X-ray machine weld x ray testing equipment X6600 5. What is the payment way? We accept the payment terms: Bank transfer, WesterUnion, Moneygram, etc.
SMT PCB IC X-ray machine weld x ray testing equipment X6600
For more details of SMT industrial weld x ray testing equipment x6600 bga inspecting machine. Looking forward to your inquiry
