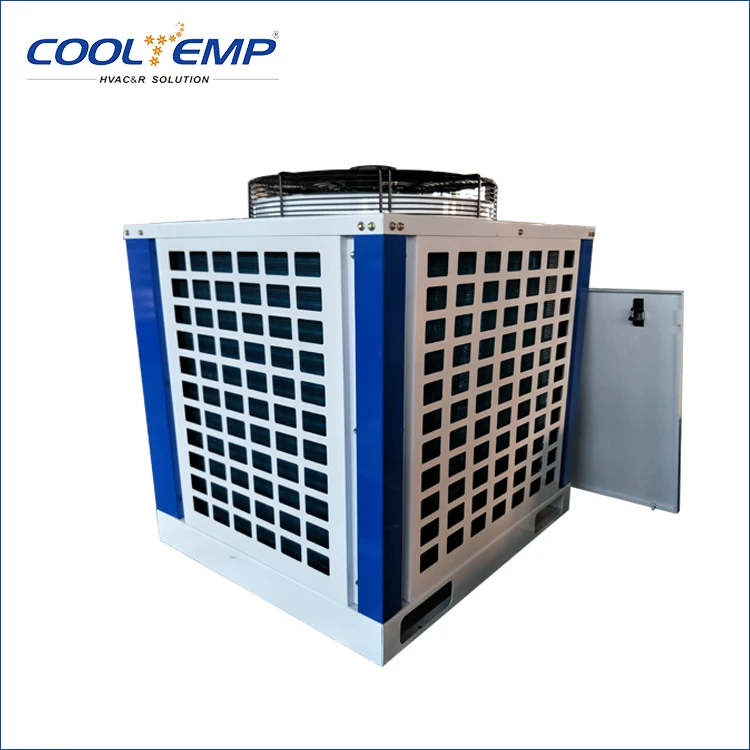

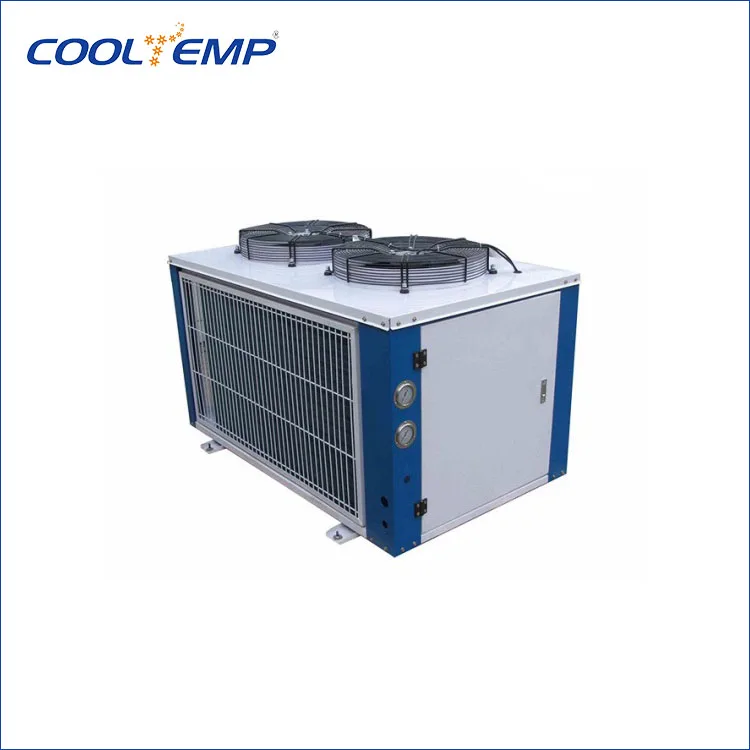

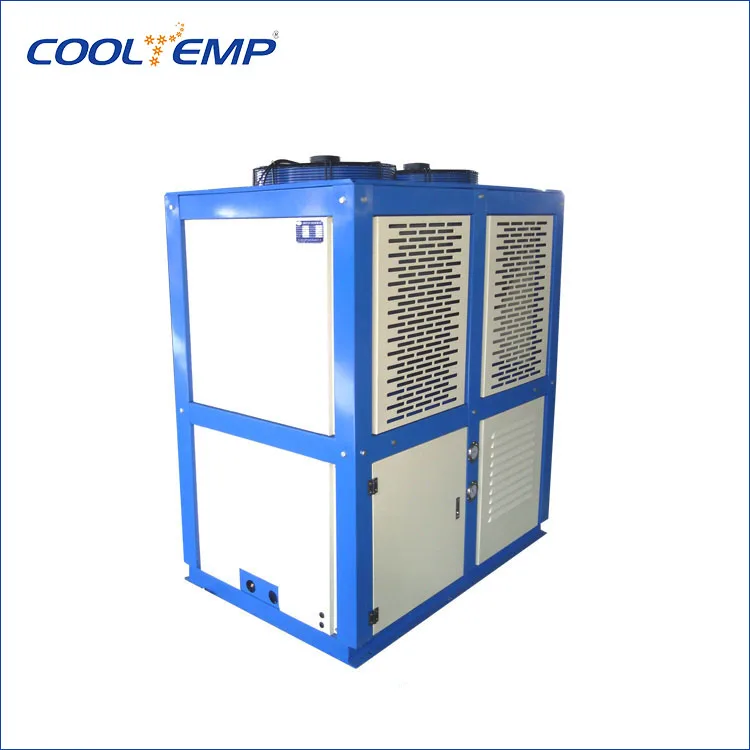

AC 20 Tons Cold Storage Condenser Units

Product Overview

Description

1.Compact box type structure,with good looking;

2.Scientific design,steady air flow, can fully exert heat transfer capacity of the unit;

3.Rational performance design,high energy efficiency;

4.With axial fan,which is good-looking and low level noise;

5.Convenient design for maintain casing can be easily disassembly.

6.Various brand of compressors for your choice.

7.Suitalbe for R134a,R4040A,R507A,R22 etc refrigerant.

Medium&Low Temperature Unit:

Model	Nominal cooling Capacity(W)	Compressor	Nominal power of compressor (HP)	Heat transfer area	Power supply	Fan Of Condenser			Liquid Receiver	Suction    mm	Outlet    mm
						QTY	DIA mm	Air Flow m3/h
LK-AV08L/60	15250	4TCS-8.2	8	60	380V 50HZ 3PH	1	500	7000	8	35	16
LK-AV10L/80	17700	4PCS-10.2	10	80		1	600	10000	10	35	16
LK-AV12L/100	20850	4NCS-12.2	12	100		2	450	10000	12	35	16
LK-AV15L/120	26800	4H-15.2	15	120		2	500	14000	15	42	16
LK-AV20L/160	30950	4G0.2	20	160		2	600	20000	20	54	19
LK-AV25L/200	40250	6H5.2	25	200		3	600	20000	25	54	22
LK-AV30L/240	46500	6G-30.2	30	240		3	500	21000	35	54	22
LK-AV40L/300	55600	6F-40.2	40	300		3	600	30000	45	54	25

Note:1.Nominal cooling capacity means it's at the condition of R22,condensing temperature is 50℃,evaporation temperature is -15℃.

         2.When evaporation temperature is below 0℃,should consider to use additional cooling or limit aspiratory temperature, maximum aspiratory overheating is 20K.

Medium&High temperature unit:

Model	Nominal cooling Capacity(W)	Compresser	Nominal power of compressor (HP)	Heat transfer area	Power supply	Fan of condenser			Liquid Receiver	Suction   mm	Outlet  mm
						QTY	DIA mm	Air Flow m3/h
LK-AV06H/60	11850	4EC-6.2	6	60	380V 50HZ 3PH	1	500	7000	6	28	12
LK-AV09H/80	17500	4CC-9.2	9	80		1	600	10000	10	28	16
LK-AV10H/100	19200	4VCS-10.2	10	100		2	450	10000	10	28	16
LK-AV12H/120	23150	4TCS-12.2	12	120		2	500	14000	12	35	16
LK-AV15H/160	27700	4PCS-15.2	15	160		2	600	20000	15	42	16
LK-AV20H/200	32150	4NCS0.2	20	200		2	600	20000	20	42	22
LK-AV25H/240	41950	4H5.2	25	240		3	500	21000	25	54	22
LK-AV30H/270	48100	4G-30.2	30	270		3	550	25500	30	54	22
LK-AV35H/300	63000	6H35.2	35	300		3	600	30000	35	54	22

Unit Dimensions:

UNIT MODEL	A	B	C	D	E	F	Installing hole
LK-AV08L/60	1050	750	700	850	1380	1480	4-Φ13
LK-AV06H/60
LK-AV10L/80	1150	880	830	950	1500	1600
LK-AV09H/80
LK-AV12L/100	1450	880	830	1250	1500	1600
LK-AV10H/100
LK-AV15L/120	1550	950	900	1350	1500	1600
LK-AV12H/120
LK-AV20L/160	1750	950	900	1550	1500	1600
LK-AV15H/160
LK-AV25L/200	1750	950	900	1550	1500	1600
LK-AV20H/200
LK-AV30L/240	2120	1110	1050	1920	1580	1680
LK-AV25H/240
LK-AV30H/270	2300	1110	1050	2100	1580	1680
LK-AV40M/300	2450	1100	1050	2250	1580	1680
LK-AV35H/300
