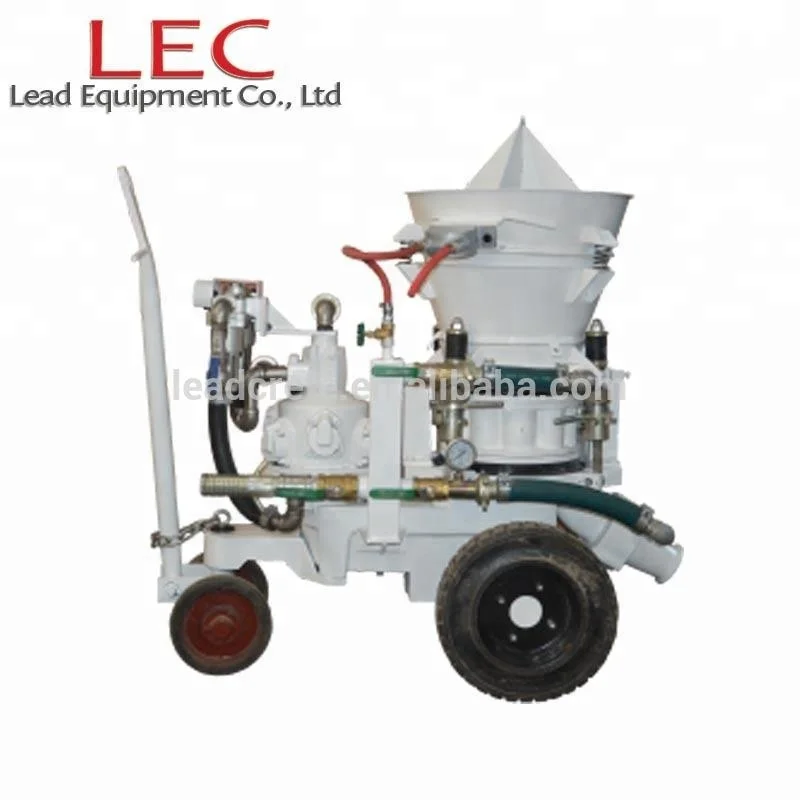

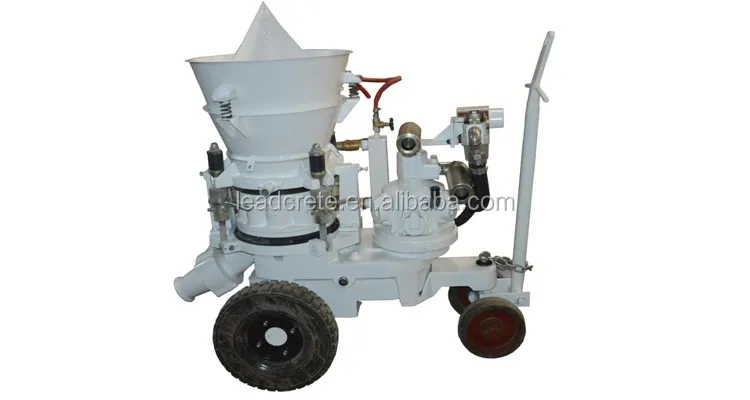

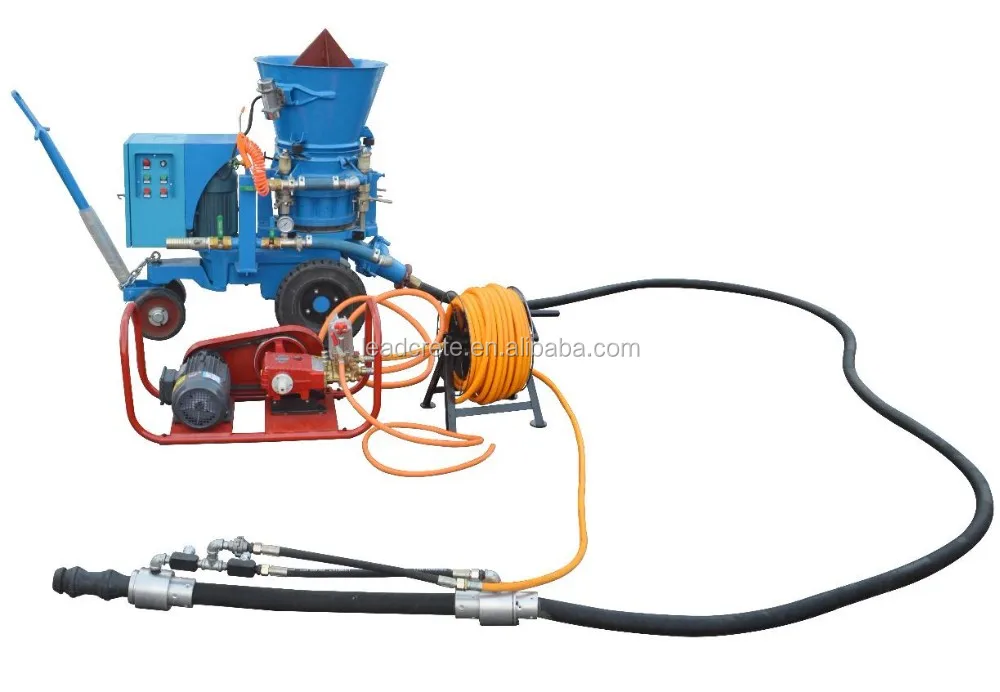

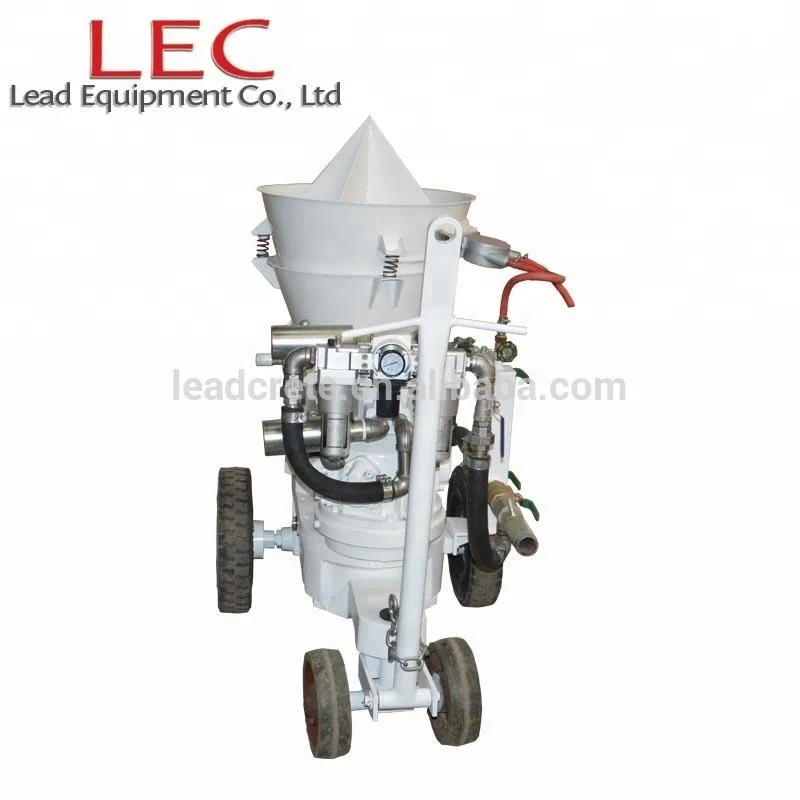

1.LZ-3AR manufacturer customized refractory spraying concrete machine is specifically designed for refractory dry-mix shotcrete gunning applications with air motor drive.
2.With this LZ-3AR, you can get low dust, low bound and high performance spraying flow in nozzle.

air motor is 5 cylinder with big torque
Bag Cutter and Flat Hopper with Vibrator
Collect Dust Bag
Clean Dust Gun for LZ-3A-R refractory gunite machine
Heavy-duty Solid Wheels for LZ-3A-R refractory gunite machine
Coupling and clamp
The Coupling and Clamp made of Aluminum with light weight, compact size and resisting
rust.

1. Low rebound, low dust.
2. Reduce additive water amount.
3. Improve refractory compactness and strength.

Rated Output | 1-3m3 /h (2-6 ton/h) |
Max. Horizontal Conveying Distance | 200m |
Max. Aggregate Size | Φ10 mm |

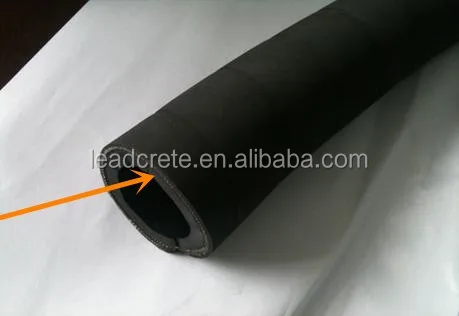

Conveying Hose Inner Diameter | 38mm |
Operating air Pressure | 0.2-0.4MPa(29-58PSI) |
Air Consumption | 10-11m3/min |
Engine | 4kw |
Material Charging Height | 1.1m |
Rotor Speed | 13.2r/min |
Overall Dimension(L×W×H) | 1.13×0.54×1.1m |
Weight | 430kg |










With this LZ-3ER, you can get low dust and high performance spraying flow in nozzle.
LZ-5ER is straight chamber rotor type refractory gunning machine.
LRM refractory pan mixer is specially designed for mixing refractory, castables materials etc.
