manufacturing Size M30 WLL 6T Lifting Point Lifting Equipment UNC Thread hoist ring
Description:
Name
Forged Hoist Rings/Lifting Points
WLL
0.3tons to 60tons
Material
Forged super alloy steel to Quenched Tempered
Load Testing
Individually proof test at 2.5 times Working Load Limit
Fatigue Tested
Fatigue tested at 1.5 times Working Load Limit for 2000 cycles
Breakage Test
Breakage test magnaflux crack detection
Function
With spring inside for better pivoting control
Feature
Rated at 100% at any angle
allibaba com SWIVEL LIFITING POINT ACCESSORIES / ROTATING EYEBOLT WITH RING G80 / HEAVY LIFT SWIVEL HOIST RING
Applications:
Yiyun hoist rings are trusted and used every day when loads are required to be lifted with high quality hoist rings. As the leading manufacturer of hoist rings and safety lifting devices in China, many of sectors of the economy trust and apply our products such as:Aerospace,Defense,Manufacturing,Stamping and Injection Molding,Power Generation (nuclear, hydro, wind),Construction,Mining,Concrete and Precast.Towers...
allibaba com SWIVEL LIFITING POINT ACCESSORIES / ROTATING EYEBOLT WITH RING G80 / HEAVY LIFT SWIVEL HOIST RING

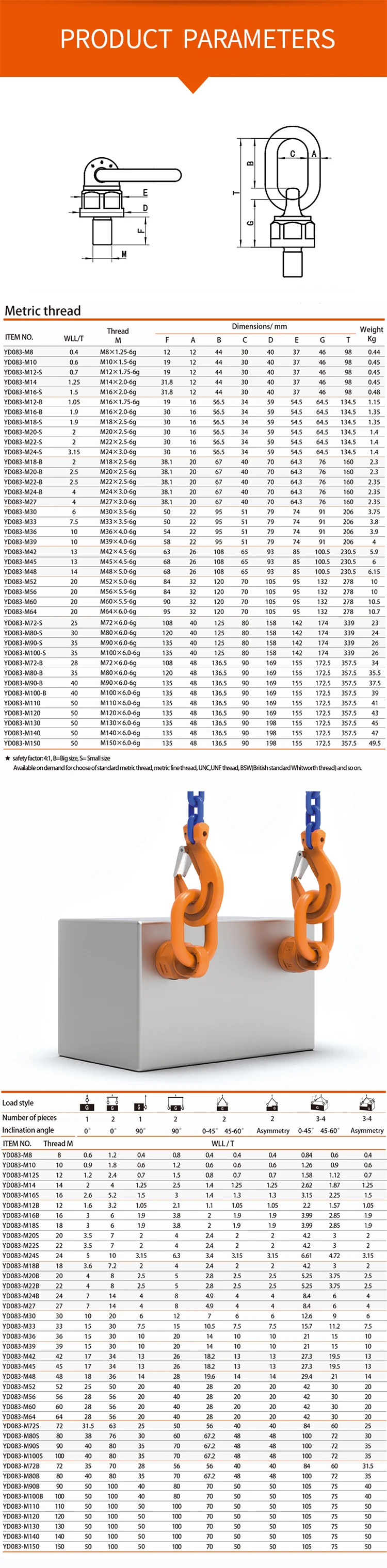

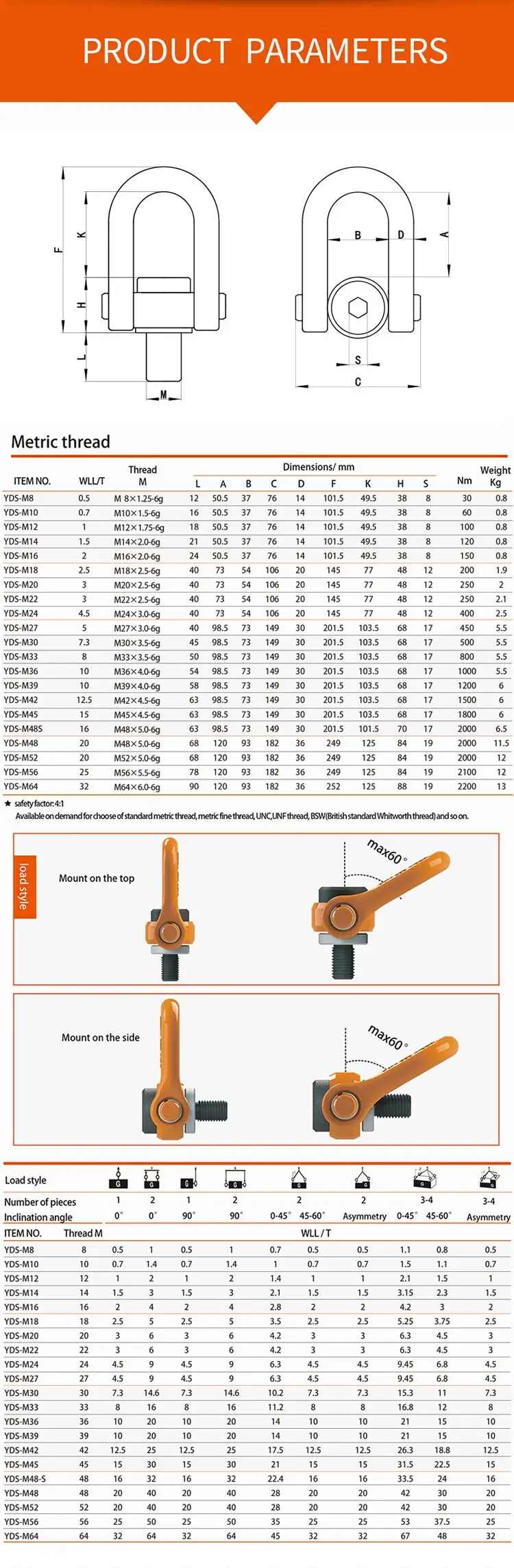

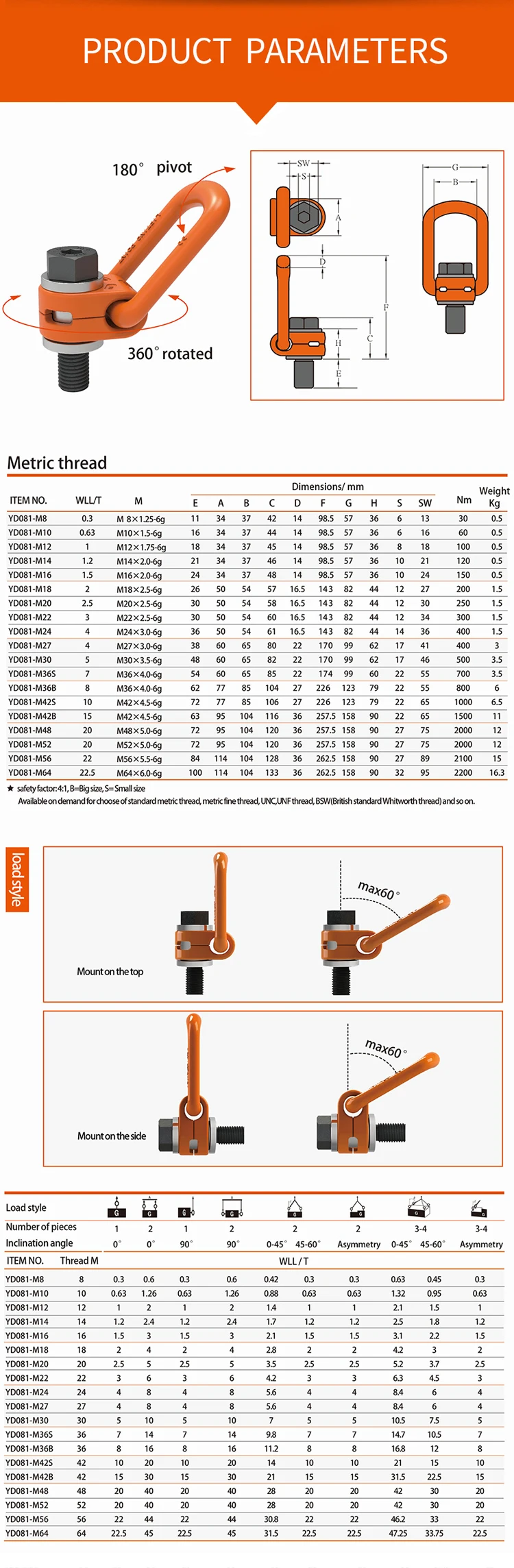

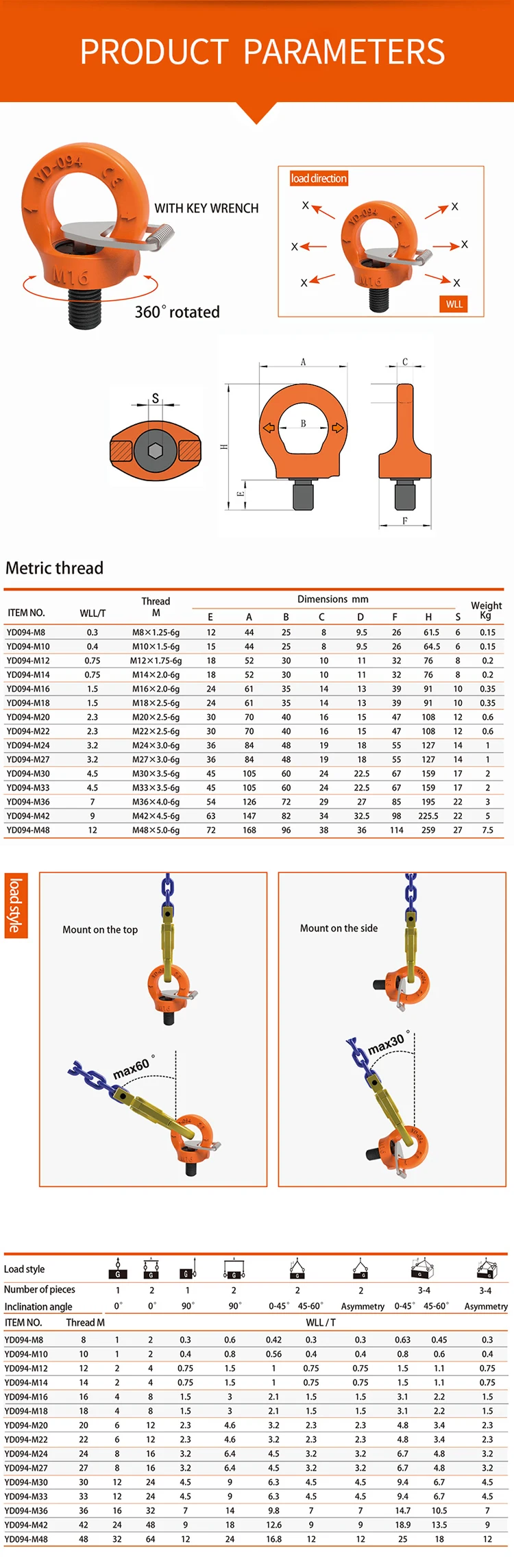

Specifications:

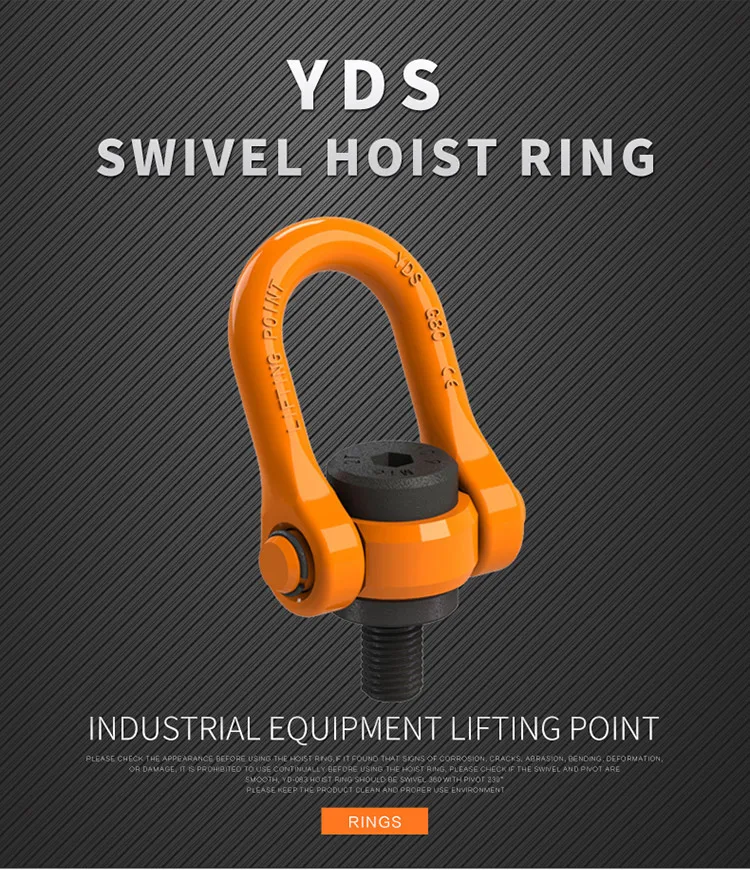

Forged Swivel Hoist Rings/Lifting Points
Code
Hoist Rings Category
Thread Size(mm)
WLL Range( tons)
Icon
YDS
Universal Swivel Shackle
M8 to M100
0.5 to 32
YD081
Side Pull/Side Load
M8 to M56
0.3 to 22
YD082
Heavy Load Side
M56 to M125
22 to 50
YD083
Bolt to on Attachment Swivel
M6 to M100
0.3 to 50
YD084
Swivel Eye bolts
M8 to M48
0.3 to 12
1.)Bolts length available to meet specific application requirement
2.)All dimensions approximate – variations do not effect use or design factor.
allibaba com SWIVEL LIFITING POINT ACCESSORIES / ROTATING EYEBOLT WITH RING G80 / HEAVY LIFT SWIVEL HOIST RING
allibaba com SWIVEL LIFITING POINT ACCESSORIES / ROTATING EYEBOLT WITH RING G80 / HEAVY LIFT SWIVEL HOIST RING
manufacturing Size M30 WLL 6T Lifting Point Lifting Equipment UNC Thread hoist ring
manufacturing Size M30 WLL 6T Lifting Point Lifting Equipment UNC Thread hoist ring
manufacturing Size M30 WLL 6T Lifting Point Lifting Equipment UNC Thread hoist ring
Competitive Advantage:
Compact and light in design&structure;
Swivels may changed on all sides,turning 360°;
Link’s rotation radius max.180°;
Secured four times against breakage in all load directions;
Able to rotation under load;
Marine Supplies swivel eye bolt Makeup G80 hoist ring Key eye point
High Quality Lifting Eyes & Hoist Rings YD083 M8 to M100, WLL 0.4T to 49T - China High Quality Lifting Eyes & Hoist Rings YD083 M8 to M100, WLL 0.4T to 49T Supplier,Factory –Yiyun Rigging
Eyebolts have been around for over 100 years and have been doing a good job when used properly. Properly means the direction of the load must be at zero degree. If the load shifts or the direction of loading on eyebolt is as much as 10 degrees off the zero line of force, the result is a bent broken eyebolt, When you bend the eyebolt, it means broken!
You can’t break most ot the time. If you examine the bent area using X-ray, you will find the damage. This will lead to failure if the eyebolt is used any longer.

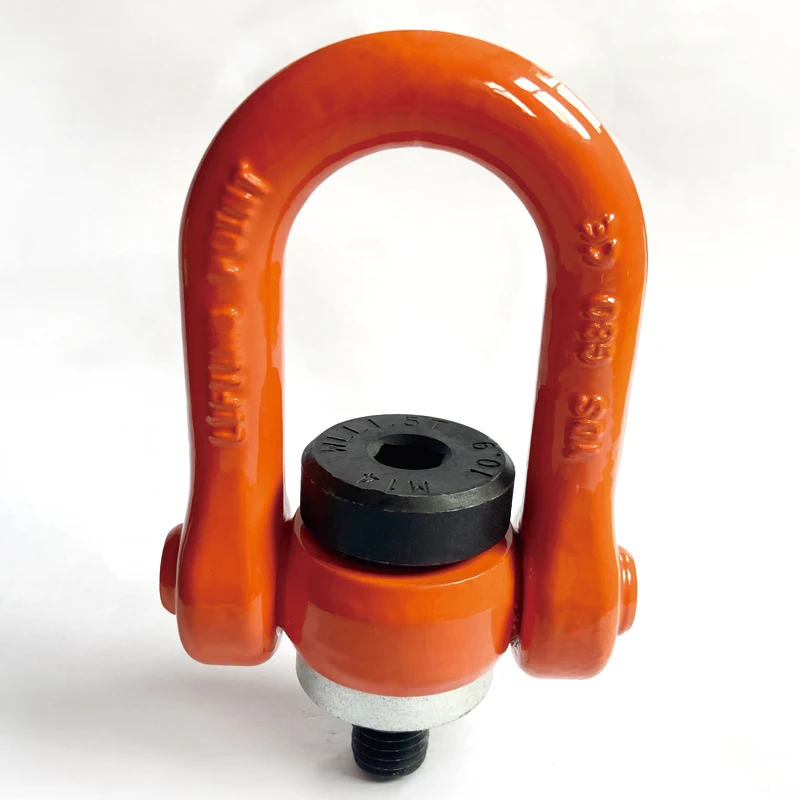

Swivel Hoist Rings are designed for lifting at any angle because the can swivel 360° and pivot 180°. Therefore, the rated load remains the same, regardless of the angle of force.
Q: Can I get a hoist ring with a shorter or longer bolt length?
A: Definitely! Most of our hoist rings can be supplied with either a shorter or longer bolt length.contact us for a quotation and delivery time.
Q: Can I get a hoist ring with other thread types?
A: Sure! We stock most fine thread sizes, and can get other thread types as well. Contact us for more information.
Q: Do you have any hoist rings that offer corrosion resistance?
A: Yes, we offer stainless steel hoist ring.We also have alloy hoist rings that can be electroless nickel plated, cadmium plated and zinc plated and epoxy plated..
Q: Do you proof-load test your hoist rings?
A: Yes, our hoist rings are proof-load tested and come with certification.
Q: Can you custom design a hoist ring to meet a specific application?
A: Yes, we can customize or design a hoist ring to meet your specific needs.contact us for a quotation and delivery time.
