Products Description

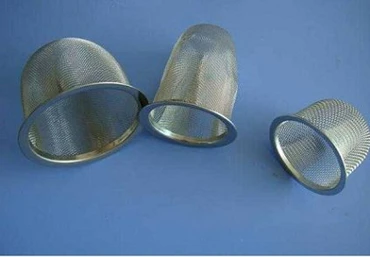

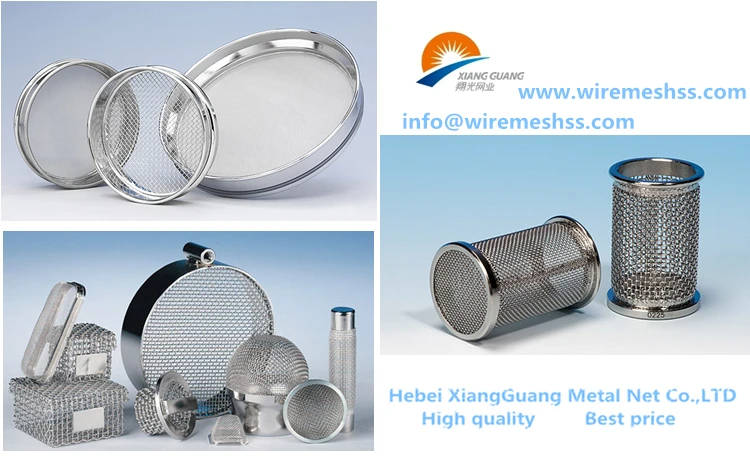

These reusable baskets provide liquid straining and filtering at various levels of mesh and micron requirement,Fully welded construction assures that no particle bypass occures around the welded seam of the mesh or micron lining.The lining is supported by the wire mesh or perforated outer wall of the basket,making it extremely durable.Ideally suited for high temperature applications and or aggressive serivce.

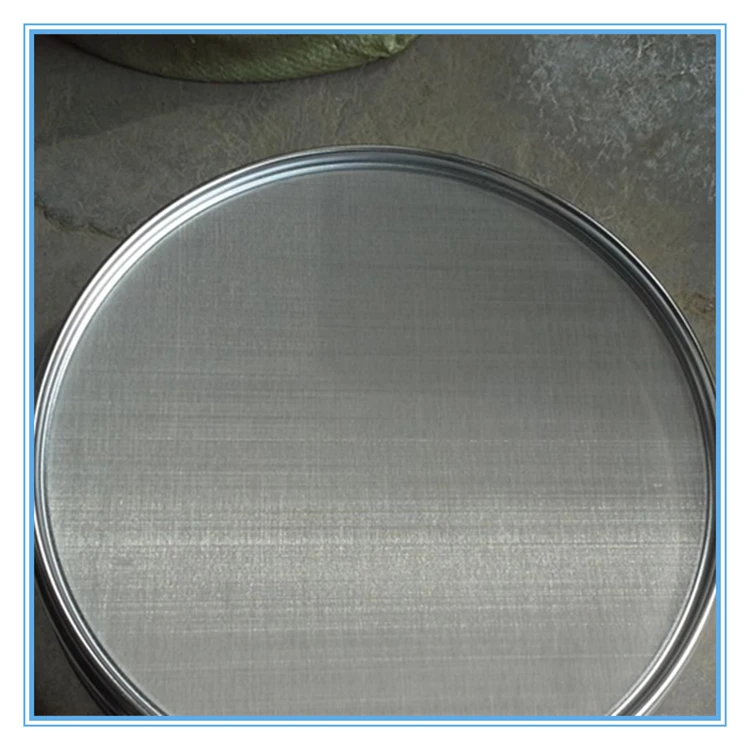

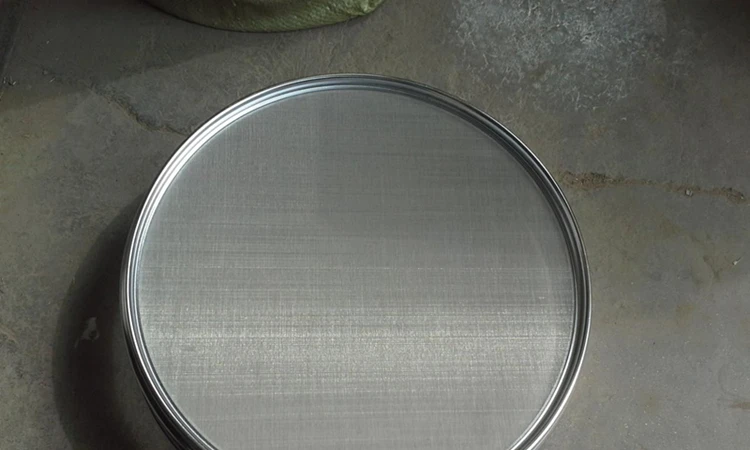

Product name | woven wire cloth filters discs for customized |
Filter rating | 1-200um |
Material | SS201/202/304/304L/316/316L,brass,galvanized steel,aluminum,etc |
Specification | 10-500mesh or according to require |
Thickness | 0.6-1.8mm |
Wire dia. | 0.01-6.00mm |
Diameter | Can be customized |

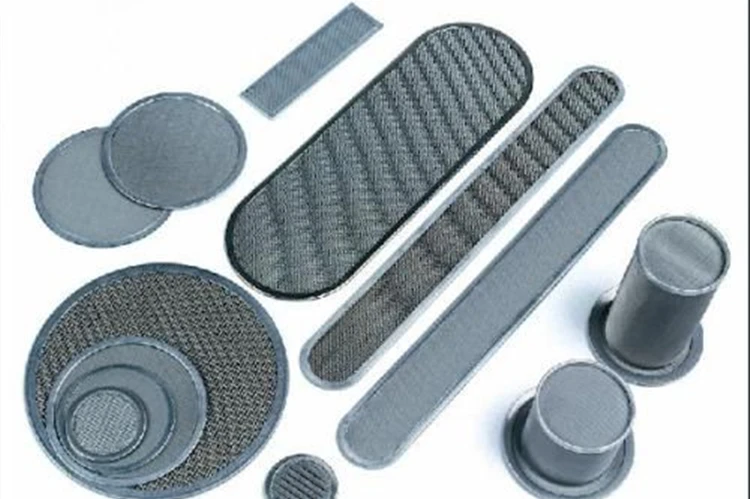

Filter shape | Round,oblong,oval,etc |
Weaving type | Plain weave,twilled weave,dutch weave,plain dutch,twilled dutch,etc. |
Layers | Single layer or multiple layers |
Edge processing methods | Spot welding,wrapping edge or no edge processing |
Edge processing methods | Stainless steel,copper,aluminum,rubber,etc |
Loading Port | Tianjin Xingang |
Payment | T/T,L/C,etc |
Package | Inside with bubble wrapping paper,total packaged in wooden boxes,or carton box Or according to customer |
Delivery Time | 15days |






Product Detail

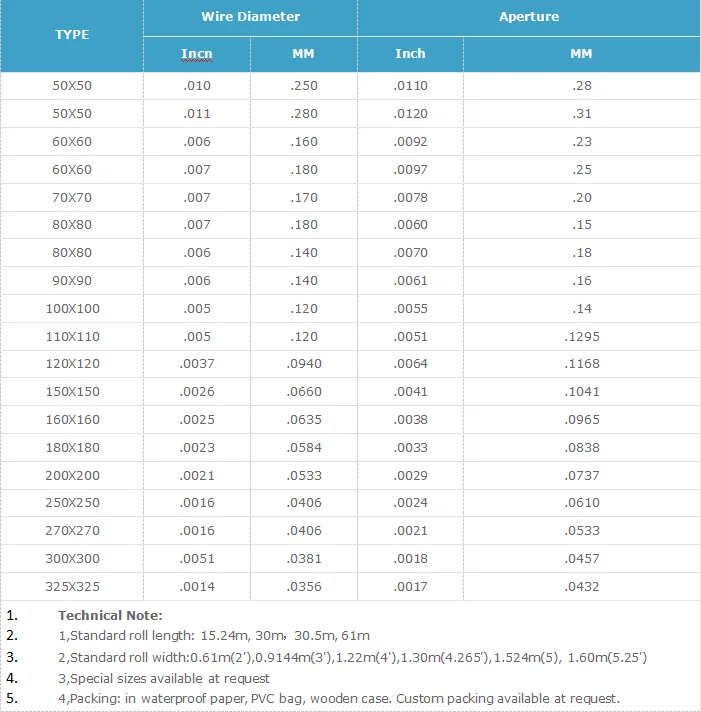

Standard Screen Filter Specification | |||
SS Mesh | Wire Dia. mm | Aperture Size mm | Open Area |
10 X 10 | 0.711 | 1.829 MM | 51.8 |
14 X 14 | 0.457 | 1.357 MM | 55.9 |
16 X 16 | 0.457 | 1.131 MM | 50.7 |
20 X 20 | 0.457 | 0.813 MM | 41.0 |
24 X 24 | 0.376 | 0.682 MM | 41.4 |
30 X 30 | 0.376 | 0.531 MM | 34.2 |
30 X 30 | 0.310 | 0.536 MM | 40.0 |
40 X 40 | 0.274 | 0.361 MM | 32.3 |
50 X 50 | 0.193 | 0.335 MM | 43.6 |
60 X 60 | 0.193 | 0.230 MM | 29.8 |
80 X 80 | 0.122 | 0.196 MM | 37.9 |
100 X 100 | 0.102 | 0.152 MM | 36.0 |
120 X 120 | 0.091 | 0.120 MM | 31.8 |
150 X 150 | 0.071 | 0.088 MM | 29.6 |
200 X 200 | 0.050 | 0.077 MM | 36.76 |
300 X 300 | 0.040 | 0.045 MM | 27.83 |
325 X 325 | 0.035 | 0.043 MM | 30.49 |



Certifications

Packaging & Shipping

Company Information

Hebei Xiangguang Metal Products Co., Limited Established in 1990, is professional at manufacturing high quality stainless steel screen mesh, aperture varied from1/2” to 20 micron. With strictly Quality Control System,.
In order to meet the market requirement, our company has expanded products range to Stainless Steel Screens, Steel Gratings, Window & Door Screens, Aluminum Wire Mesh, Steel Security Fence, Security Screen Mesh, Gabions, Perforated Metal Mesh, Weld Wire Mesh, Chicken Wire Mesh, Corner Beads, Barbecue Wire Mesh, etc.
Any questions please advise, we are glad to help and will come back to you within 24 hours.


FAQ
Q: Are you trading company or manufacture?
A: We are manufacturer.
Q: Do you provide samples?is it free or extra?
A: Yes,we could offer the sample for tree charge but do not pay the cost of fteight.
Q: What is your term of payment?
A: Usually 30% as deposit, 70% against BL copy by T/T,western unoin acceptable for small account and L/C acceptable for large amount.
Q: What items is needed for a quotation?
A: Mesh,size,width,length,wire diameter and weight,or different product for no same of item.
Q: What size can be order requirement for stainless steel wire mesh?
A: No,you can order any size wire mesh that you need.
