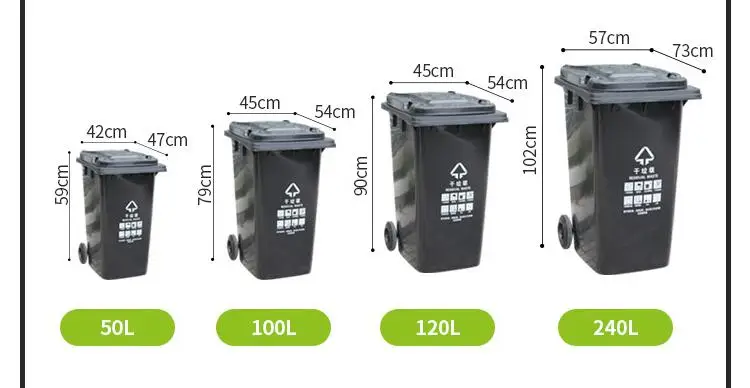

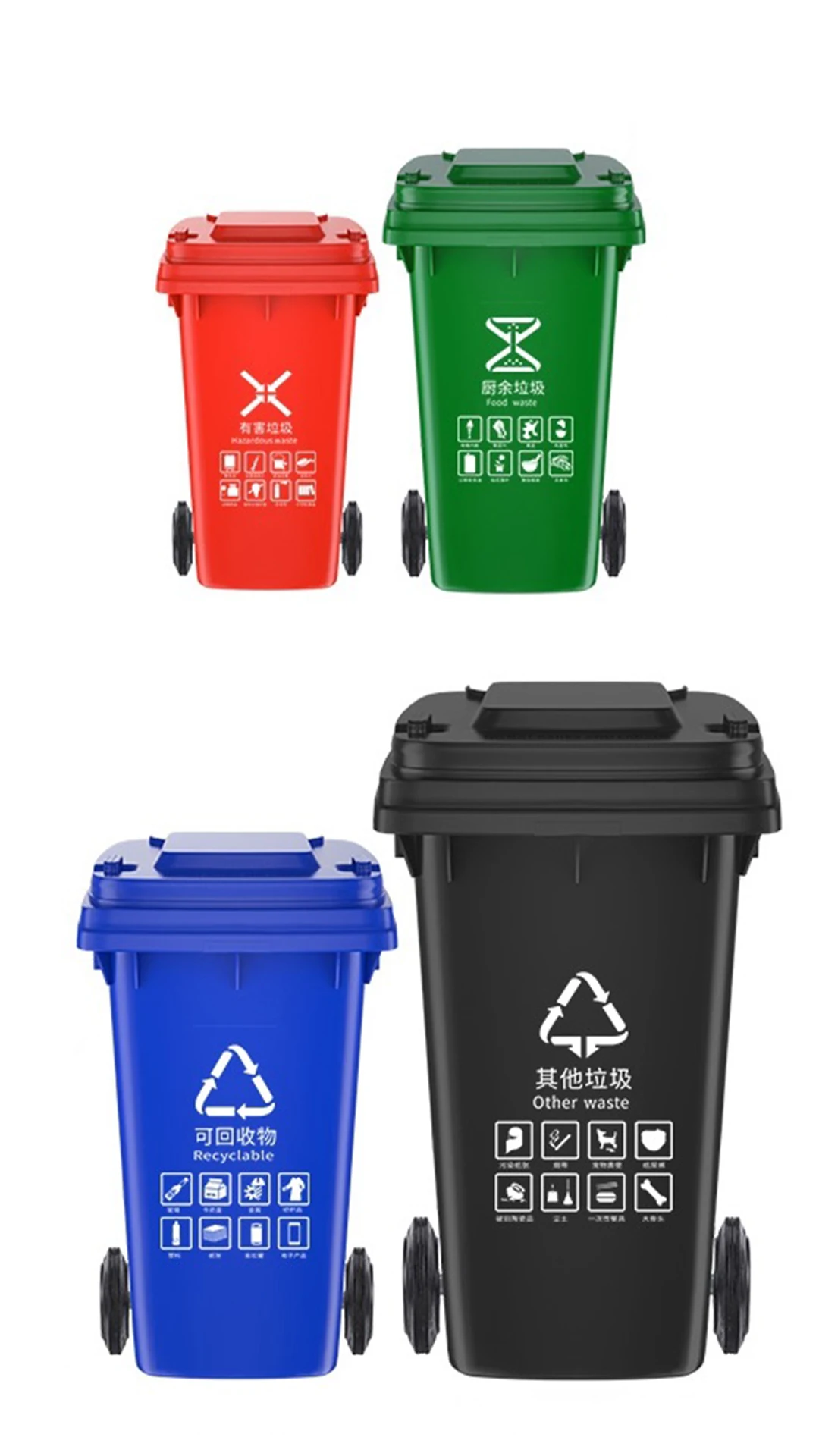

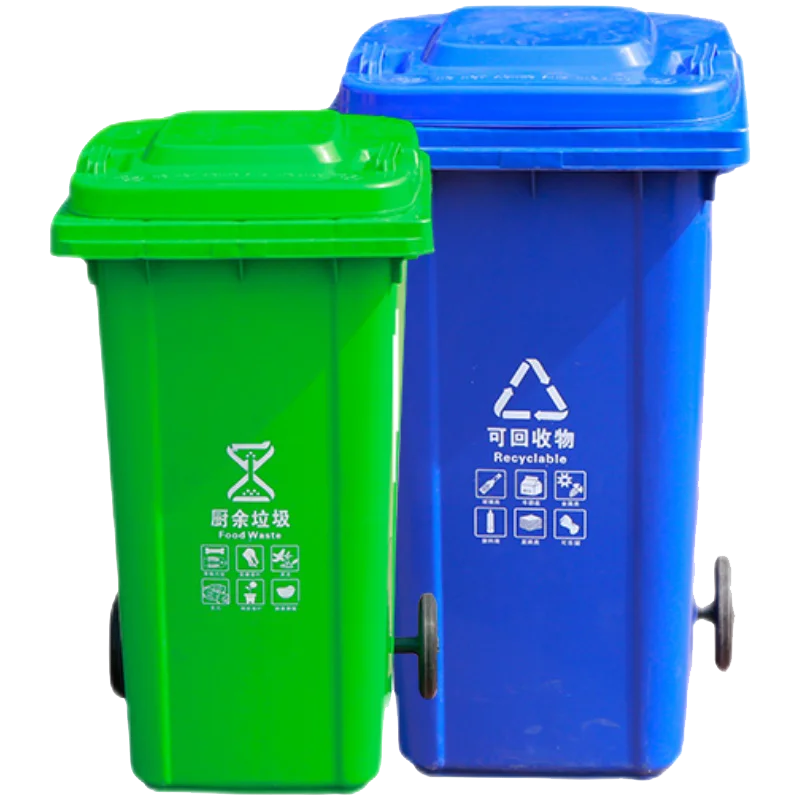

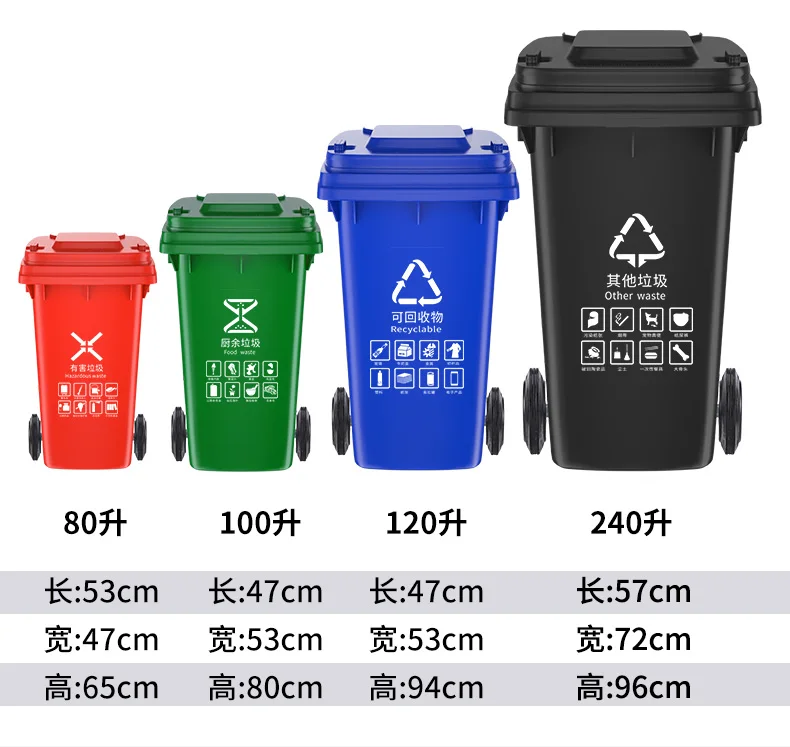

120L 240L plastic dustbin trash bin garbage can waste container injection molding machine
- Category: >>>
- Supplier: Zhangjiagang Ostar Machinery Co. Ltd.
Share on (60782595290):
Product Overview
Description
Fast delivery plastic file folder making machine equipment dustbin
Machine advantage :
Modularized enery conservation High response oil-way system
Modularized enery conservation high response oil-way system could improve the speed of the complete machine and also save enery consumption
High-capacity injection system
Much more bigger capacity of the charging barrel , more reasonable for the screw diameter ratio .
Optimal design of high -strength precision clamping structure
It adopts finite element design with higher strength and more precise operation

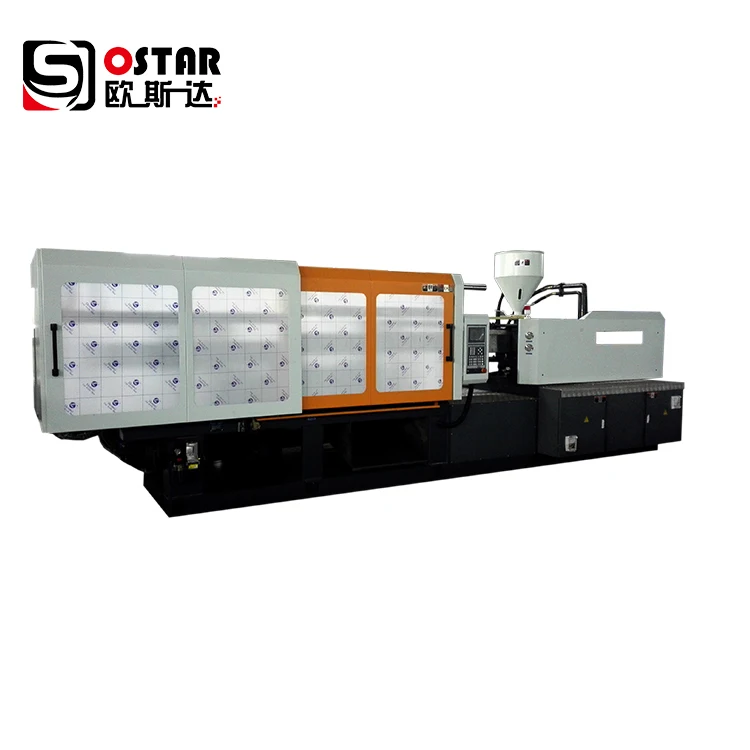

MACHINE MODEL | UNIT | OST-200 | ||
INJECTION DEVICE |
| |||
SCREW DIAMETER | MM | 45 | 48 | 52 |
SCREW DOAMETER RATIO | L/D | 21.5 | 20.2 | 18.6 |
THEORETICAL SHOT VOLUME | CM3 | 373 | 425 | 498 |
INJECTION WEIGHT ( PS) | G | 340 | 387 | 453 |
INJECTION RATE ( PS) | G/S | 142 | 162 | 190 |
INJECTION PRESSURE | MPA | 188 | 165 | 140 |
PLASTICIZING CAPACITY( PS) | G/S | 20 | 22.3 | 24 |
SCREW SPEED | RPM | 215 | ||
CLAMPING UNIT |
| |||
CLAMPING FORCE | KN | 2000 | ||
TOGGLE STROKE | MM | 436 | ||
SPACE BETWEEN TIE-BARS | MM | 460X460 | ||
MIN-MAX MOULD THICKNESS | MM | 180-500 | ||
EJETION STROKE | MM | 140 | ||
EJECTING FORCE | KN | 70 | ||
EJECTOR NUMBER | PC | 5 | ||
OTHER |
| |||
MAXIMUM SYSTEM PRESSURE | MPA | 16 | ||
OIL PUMP MOTOR POWER | KW | 18.5( 22) | ||
HEATER POWER | KW | 14.1 | ||
OIL TANK CAPACITY | KG | 300 | ||
OVERALL DIMENSION (ROUGH ) | MM | 5200X1457X2036 | ||
MACHINE WEIGHT ( ROUGH ) | TONS | 5.7 | ||
