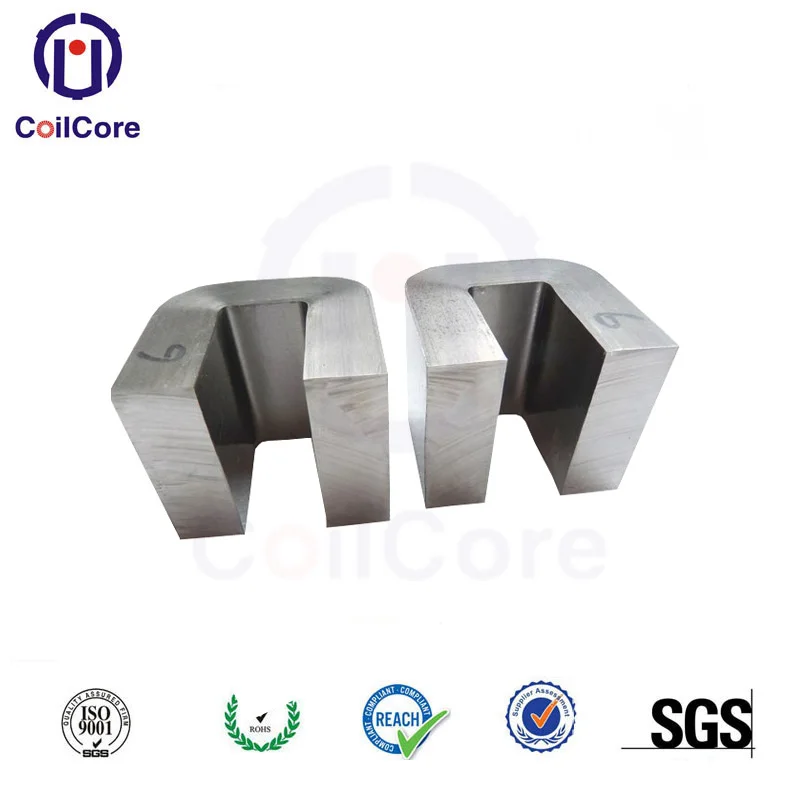

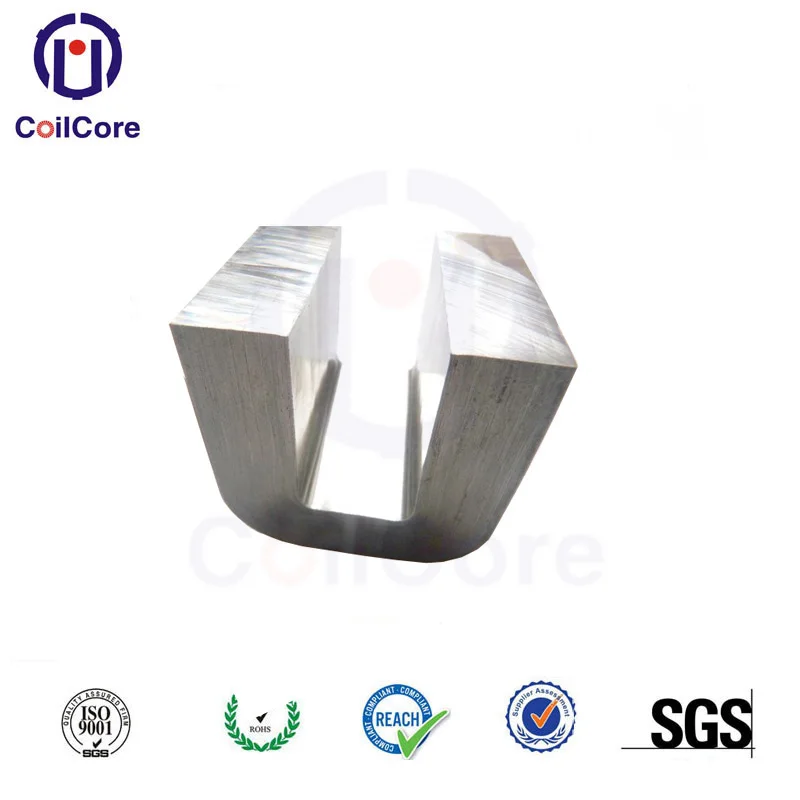

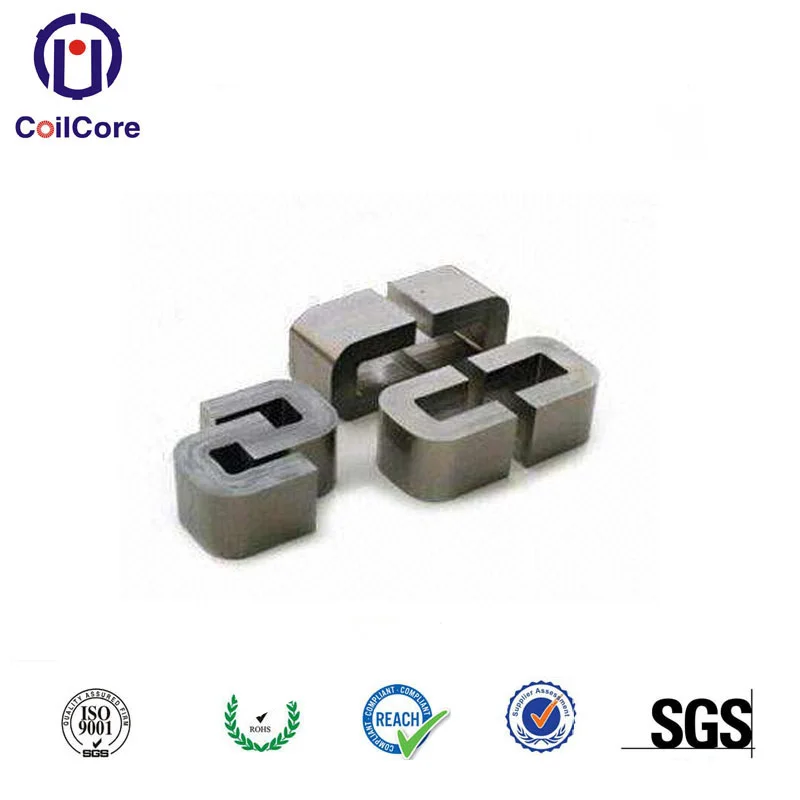

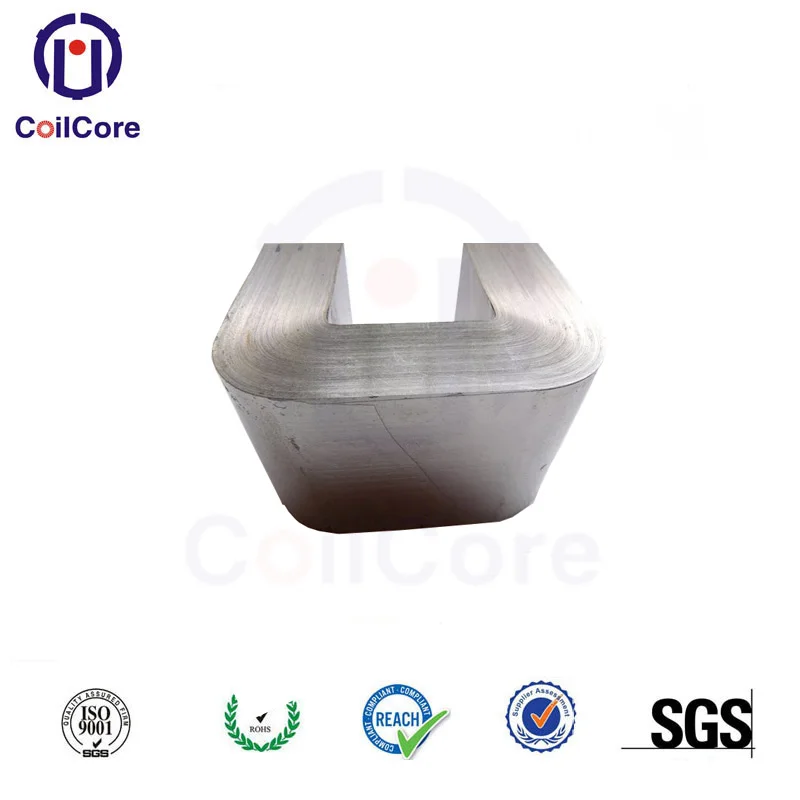

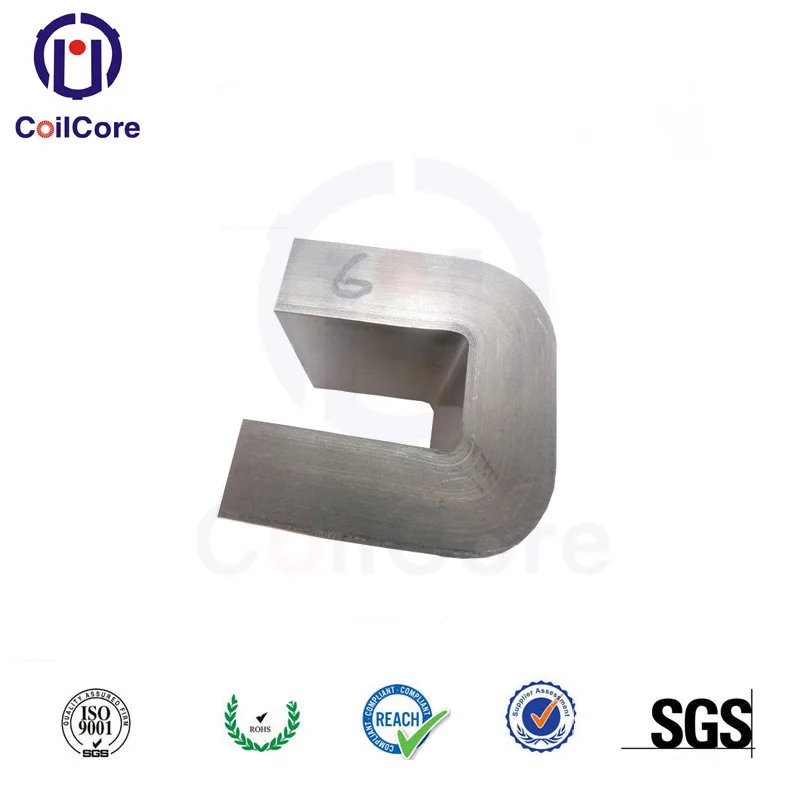

Magnet Amorphous C Core AMCC6.3 For Choke Coil
- Category: >>>
- Supplier: Guangzhou Amorphous Electronic Technology Co. Ltd.
Share on (60782599415):
Product Overview
Description
Kindly note on this page you'll buy AMCC6.3 Amorphous Core, AMCC6.3 details sa below:
| Core Mo. | Core Dimension | Perfromance Parameters | |||||||||||||
| a(mm) | ± | b(mm) ref* | c(mm) ref* | d(mm) | ± | e(mm) | ± | f(mm) | ± | Im (cm) | Ac (cm2) | Wa (cm2) | Ap (cm4) | Mass (g) | |
| AMCC-6.3 | 10.0 | 0.50 | 11.0 | 33.00 | 20.0 | 0.50 | 31.0 | 1.00 | 53.00 | 2.00 | 12.80 | 1.60 | 3.60 | 6.00 | 154 |
| Note: Customized is available. | |||||||||||||||
Key Propertis:
· High Saturation Flux Density (1.56 T)
· Low Profile - enables weight and volume reductions of up to 50%
· Low Temperature Rise - enabling smaller compact designs,working temperature -55°C~130°C.
· Low Core Loss - resulting from micro-thin amorphous ribbon (20-30µm)
Loss Test | |
Magnetical Induction Density | B=0.037T |
Frequency | f=16KHz |
Test Equipment | 2010SA AC Soft Magnetic Tester |
Iron Loss | pFe “≤ 1.2 W/kg |
AL Test | |
| |
Note: | |
Fexible Design:
1. Other AMCC Series Amorphous C Core as below:
2. We produce from Amorphous Cut Core to Choke
3. We do Amorphous Cut Core based on Clients’ request
Main Application:
· UPS and SMPS Power Factor Correction Chokes
· UPS Harmonic Filter Inductors
· High-Power Outdoor Industrial Ballasts
· Welding Power Supplies
· High-Speed Rail Power Systems
· Choke coil for DC/DC converter
· Normal mode choke coil
· Choke coil for adapter and battery charger
· PFC choke cil
Coilcore - Guangzhou Amorphous Electronic Technology Co.,ltd., established in 2009, our core competence is Nanocrystalline Core & Amorphous Core & Ferrite Core.
It has been a major manufacturer in Current Transformer & Sensor Industry. The certification to ISO9001:2015, SGS, FTA ensures that rigorous procedures are followed in all areas of operations. Like clients ABB,ALCE, ESITAS, SIGMA, RITZ, you can get our service of quickly service, stable quality, affordable cost, fast delivery.
It has been a major manufacturer in Current Transformer & Sensor Industry. The certification to ISO9001:2015, SGS, FTA ensures that rigorous procedures are followed in all areas of operations. Like clients ABB,ALCE, ESITAS, SIGMA, RITZ, you can get our service of quickly service, stable quality, affordable cost, fast delivery.
