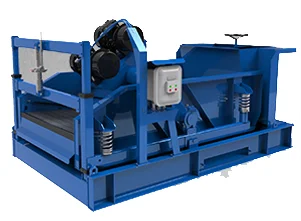

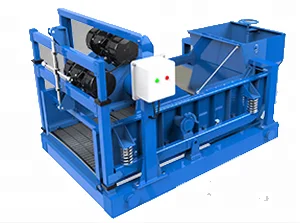

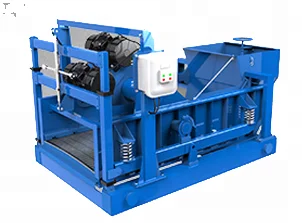

Drilling Mud Shale Shaker for Oilfield

Usage and Applicability

Drilling fluid shale shaker is the primary solids control equipment in the drilling fluid solids control system.

The shale shaker sreens the drilling fluid with great amount cuttings,separates the large-size solid particles ,and sent the drilling fluid to the next seperating equipments

JZSseriesshale shaker has the advantages of simple structure,reliable performance,large disposal capacity,long service life,and simple maintenance.

 Product features:

1.Can be used with plate-type screen or wavy screen according to the customers requirements,for different drilling conditions.

2.Easy to change the screens,unsnatching the hook plate by releasing the hook plate bolts and can change the screens rapidly.

3.Adjusting the screen box angle between -2°~+6° by rotating the control hand wheel in the cases without stop.

4.Installed with splash baffle, scalable reeled splash cloth,compact structure,and has a good splash effect.

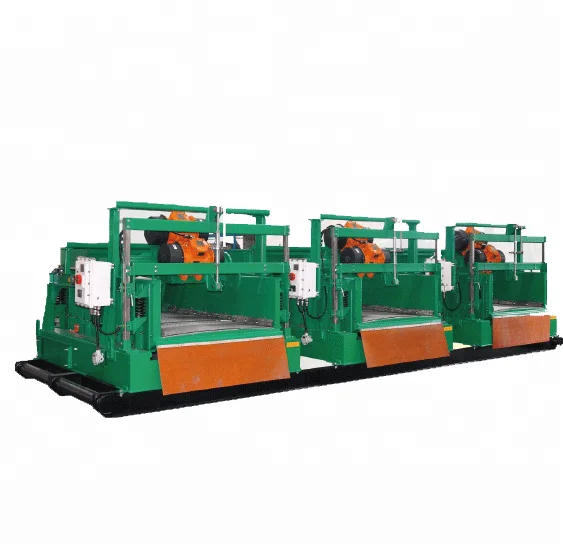

5.Can be used as single shale shaker or several combined shakers.

 Packing:Wooden case

Shipping:Sea transportation

Dongying Lianhui Petroleum Technology Co., Ltd. is located in Dongying city, Shandong province.

The products we can supply including drilling equipment, workover equipment, well control equipment, solid control equipment, wellhead tools & down-hole tools, drill pipe, drill collar, tubing,casing & coupling, tubular goods, oil production equipment and special equipment used in oil field,etc. We have an integral quality management system, all supplied petroleum products and equipment strictly comply with international standards and API specifications.

Now our products are not only widely used in Shengli oil field and other domestic markets, but also exported to Central Asia, Middle East, South-east Asia, North America, South America and other countries in the world.

1.How do you transport the goods?
 We transport the goods by container. we possesses long term cooperation with ship agency which can provide you lowest shipping fee. For samples we can send by express.

2.Can you satisfy my special requirement?
 Definitely! we have strong design capacity and R&D capacity!

3.Which shipment terms can you accept?

EXW FOB CNF CIF DDU DDP
