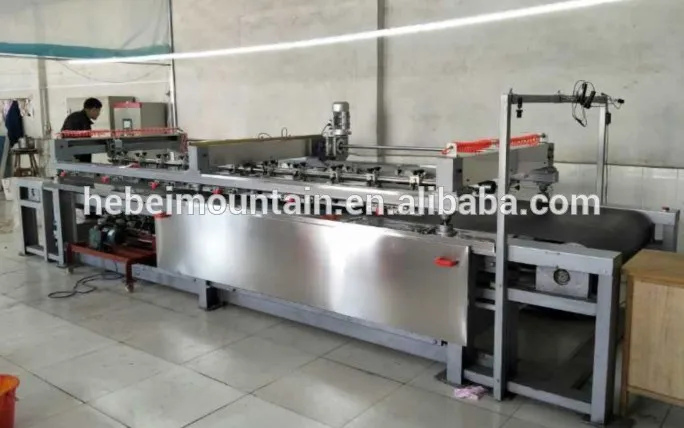

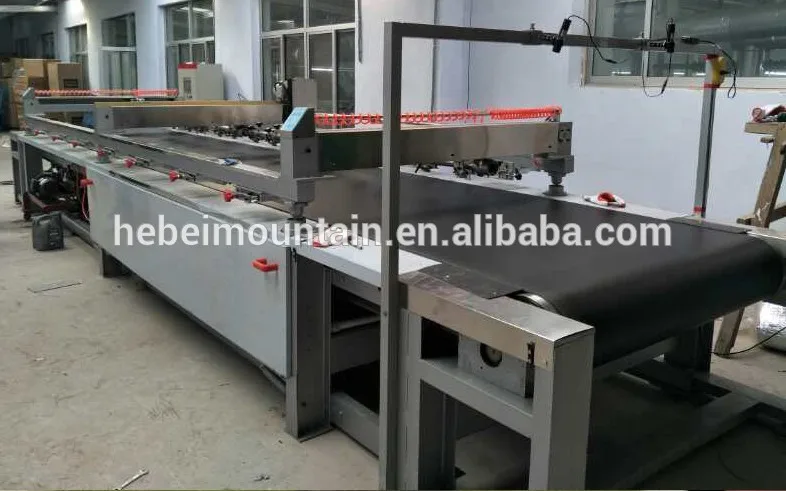

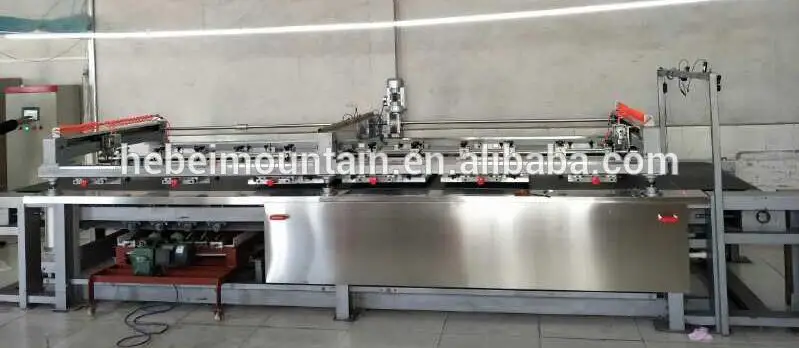

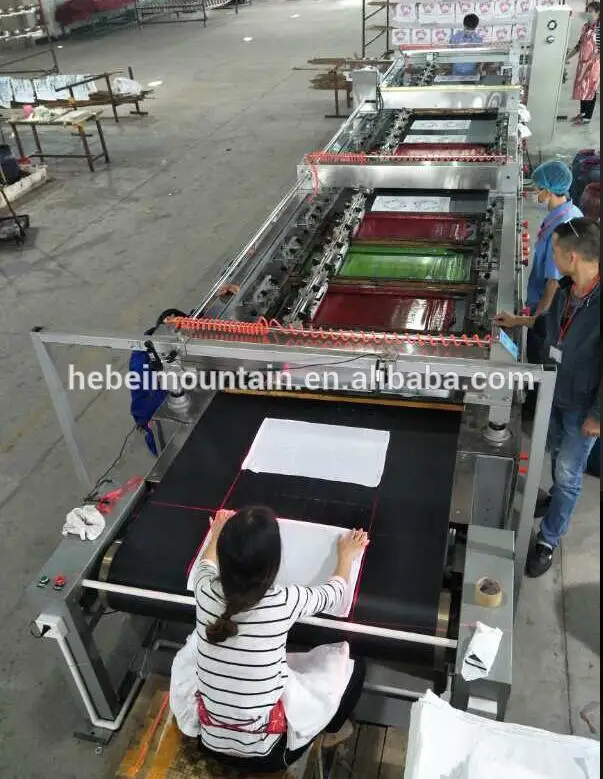

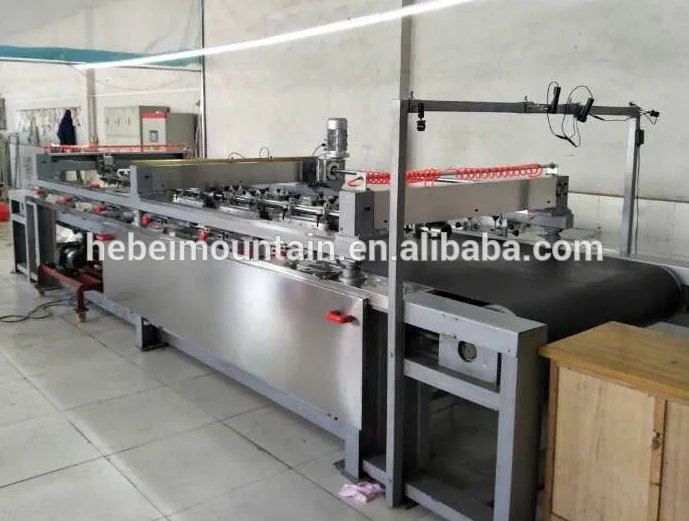

High quality garment flat screen printer Tshirt printing machine for bed sheet and towel printing machine with reasonable price

Product Overview

Description

Factory Price Automatic Non-woven bags Textile flat Screen Printer for Curtain/Bed sheet/Towel /T Shirt Screen Printing machine







Usage:



MAIN TECHNICAL PARAMETERS OF AUTOMATIC T-SHIRT Towel SCREEN PRINTING MACHINE
TYPE	MT-06PMT	MT-08PMT	MT-12PMT	MT-16PMT
Printing Color number	6 colors	8 colors	12 colors	16 colors
Max. Printing Size	1800*900mm
Max. Screen   Frame Size	2200*1100mm
Normal   Pringting Size	800*400mm
Fabric Weight	30g/ m² ~ 1000 g/m²
Normal Screen Frame Size	1300*500mm
Machine Length	6000mm	7800mm	9500mm	11000 mm
Machine Width	1700mm
Machine Height	1400mm
Machine Weight	3000kgs	3500kgs	4000kgs	4500kgs
Power	6kw	7kw	8kw	9kw
Overprint Registration	±0.1mm
Driving Model	Servo driving
Machine Type	Left/right hand machine
Water Supply	Water pressure is not less than 0.3Mpa
Air Pressure Specification	0.6MPa/0.8MPa, 1m3/min
Power Supply Parameters	220/380V, 50/60Hz
Production Capacity	1500pcs/hour
Machine Structure	Fabric entry,printing unit,fabric exit







Product Advantage:



1. Firm printing effect – this printing machine improving the production efficiency and increase the fastness of printing greatly.



2. High efficiency and capacity –one machine can not only print multicolor mucilage,but also be used as several production lines; Only needs 2-3 people to operate, save the manpower,and improve efficiency greatly to replace the traditional manual screen printing.



3. Without being limited by the screen frame size—small or big size both are available; large cutting piece or ready-made garment both apply to being printed.



4. Stable printing and long lifetime—the unique transport of Guide belt ,increase the stability of the equipment and extend the lifetime of the equipment.



5. More convenient operation—the unique fixed form of screen frame which don′t need to take down the frame to clean it,to ensure the stability of registration



6. Eco-friendly and low energy consumption—the printing machine only need half the gas consumption of normal machine;  suitable for any printing size.





Main Features:



1.Full automatic printing.



2.Only need 2-3 people to operate.



3.Each color can be printed individually.



4.Can adjust the height and speed automatically.



5.Steel frame base, more durable and stronger.



6.Proper positioning mechanism design, high registration.
