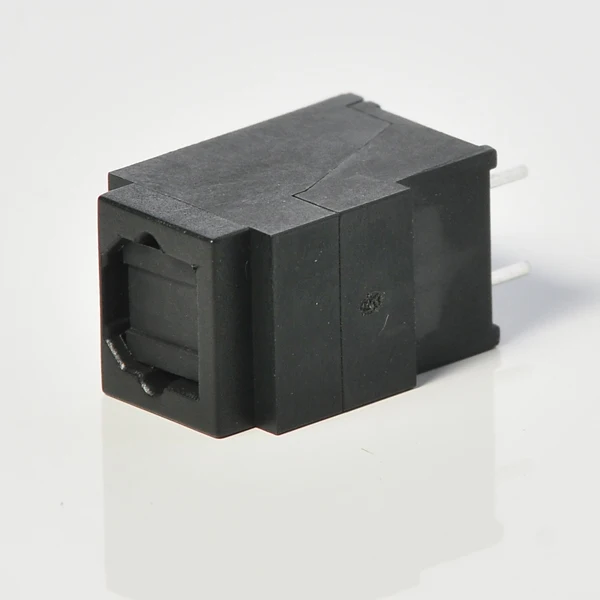

AX DLR21D0 25M Optical Toslink receiver shutter

Product Overview

Description

Features

High PD sensitivity for red light

High speed up to 25 Mbps

Low power consumption and current dissipation

+3~+5V power source

Descriptions

The light receiving unit is a standard-package product with connector and opto-electric component packaged with PD and I/V amplifier IC. The function of unit changes the light signal into electric signal.

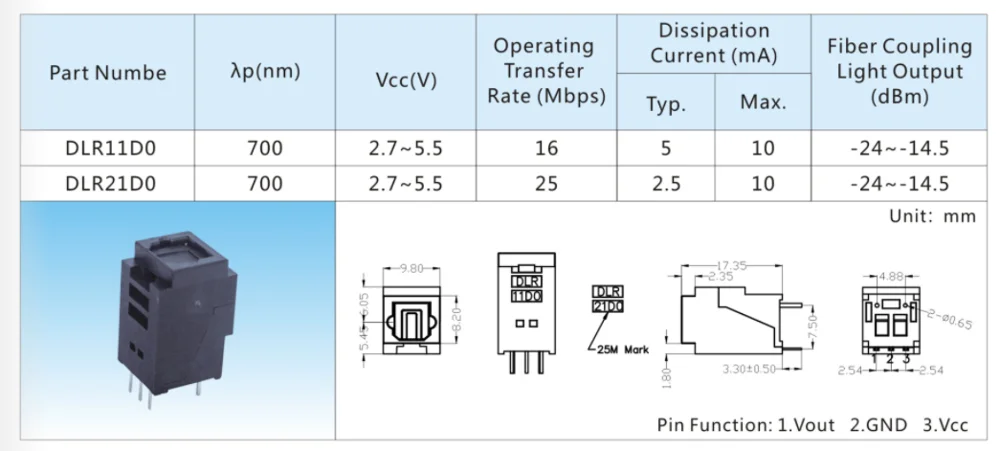

The unit is operated at +3~+5V and the input signal is TTL compatible. The DLR21D0 has a maximum operating speed of 25 Mbps.

Applications

· Audio equipment

· Digital optical data link

· MD

· Sound card

Optical Fiber Connector Receiver
