6. Equipment down to the ground 500mm, the control box signal device alarm, ensured the safety of operator and surrounding personal optional.
7. Pneumatic control lock device.
8. Platforms can extension for lifting long vehicles.
9. 115% dynamic and 150% static loading test passed.
10. CE approved.
Product Parameter
Model
GH5L110
Lifting capacity
3000kg
Lifting height
1830mm
Mini height
110mm
Lifting time
50s
Overall length for platform
1450-2050mm
Overall width for platform
660mm
Motor power
2.2kw
Power supply
220v/380v/415v
Oil pressure
20MPa
Air supply pressure
6-8bar
Weight
900kg
Overall size
1620x680x340mm/560x450x1150mm
Product Details

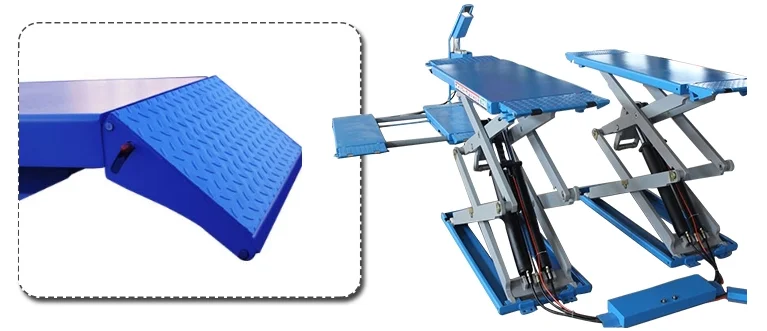

1.Extensible bridge board to serve more cars.

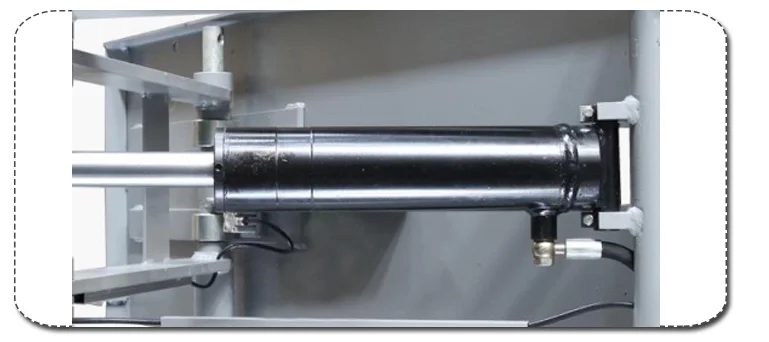

2.Hydraulic cylinders and cross beams are designed with thickening design. The lifting force is stronger and the operation is safer.
3.The metal bearing roller skating design is adopted at the bottom to ensure the smoothness of lifting.

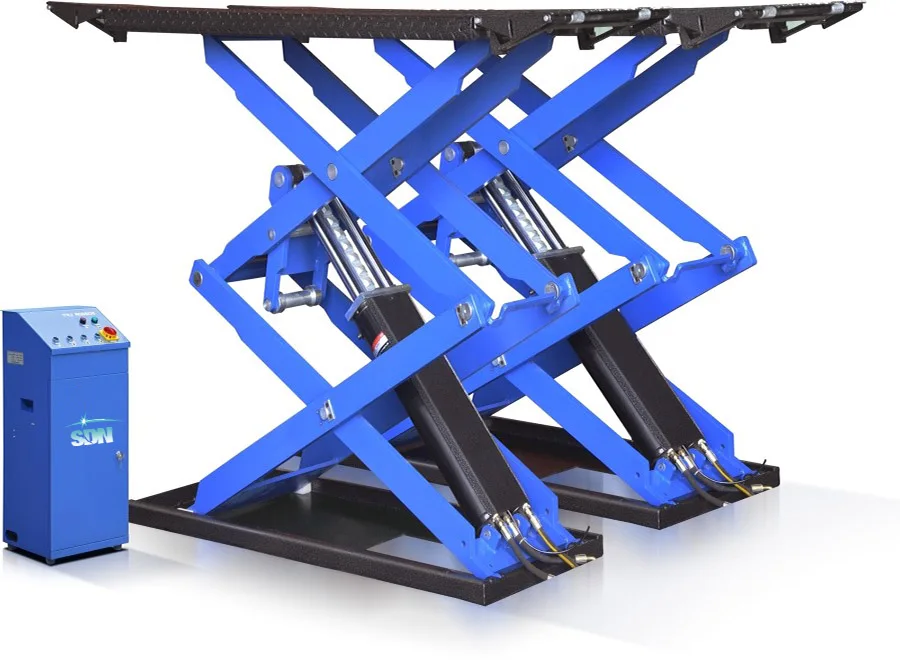

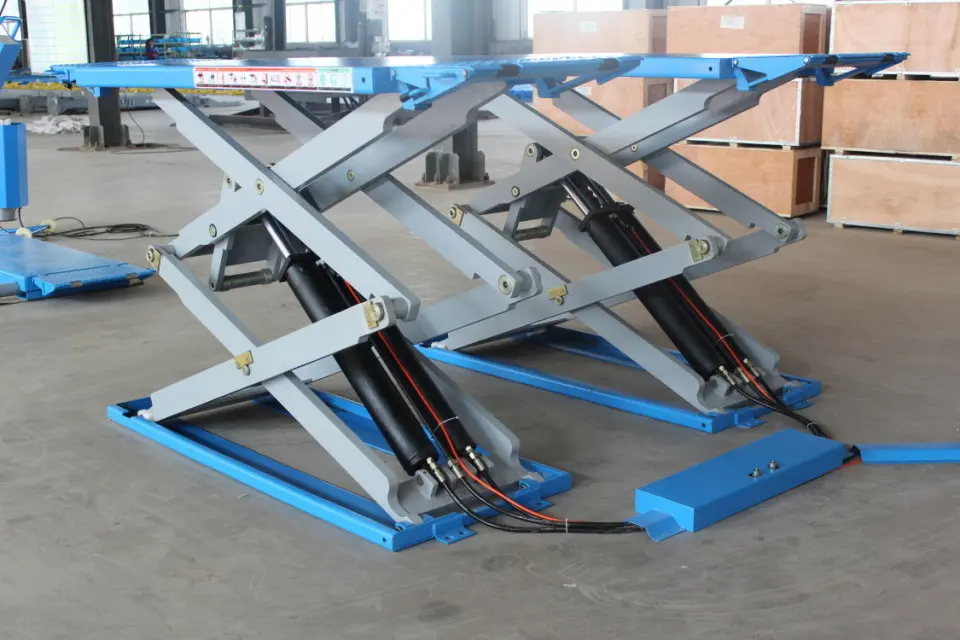

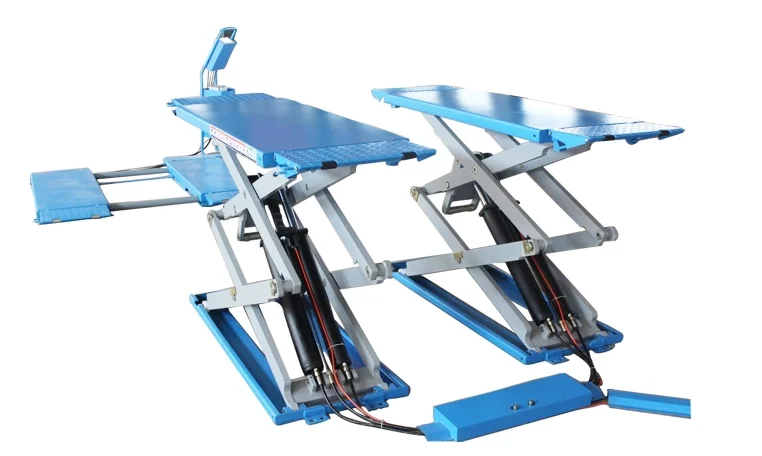

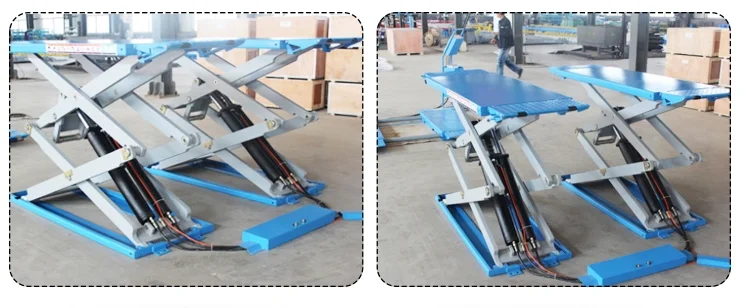

Product display
Packing & Shiping
About Us
Qingdao YiHeng Special Hand Truck Co.,Ltd was founded in 2005,we have been in metal industry over 10 years.With large CNC equipment,forging and stamping equipment,laser cutting,welding equipment,powder coating equipment,the YIHENG line of products includes Tool carts,Metal furniture,Farm equipment and different kinds of spare parts.
FAQ
1.Do you have your own factory?
Yes,we have.Our factory located in Qingdao city,Shandong Province.
2.Could you print our company LOGO on the nameplate and packages?
Yes,we accept OEM orders.
3.How about the delivery time?
This depends on the product.Typically standard products are delivered within 20 days.
4.What is the term of payment?
1)T/T Payment 2)L/C 3)cash 4)escrow
5.Are samples available?
Yes,we can send some sections of samples for your reference by express.
6.May I know the status of my orders?
Of course,You will get the latest information in time.
