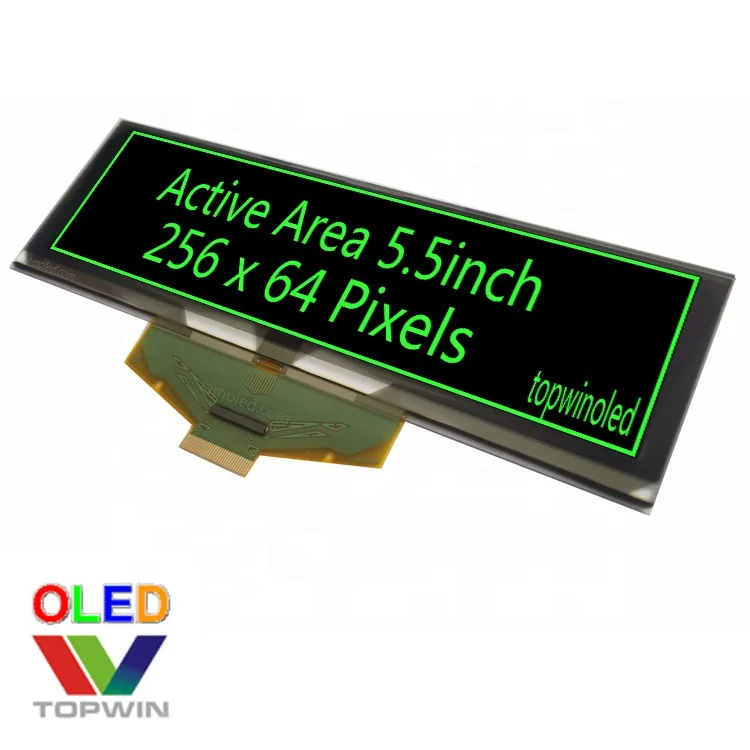

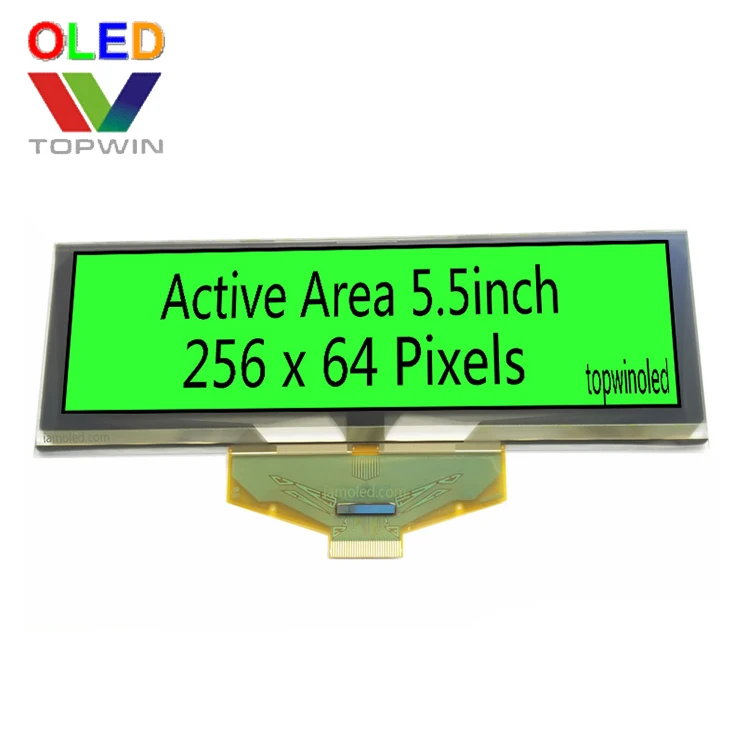

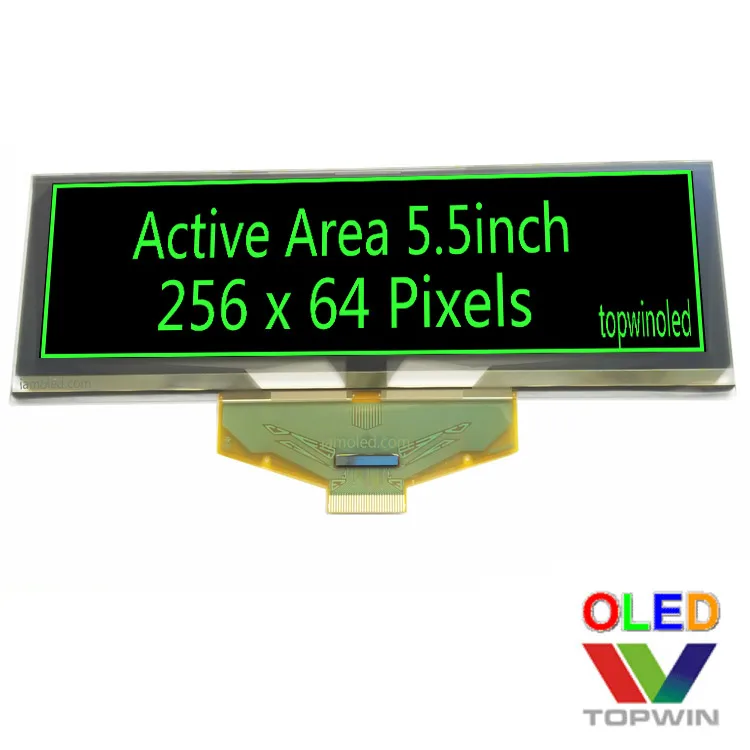

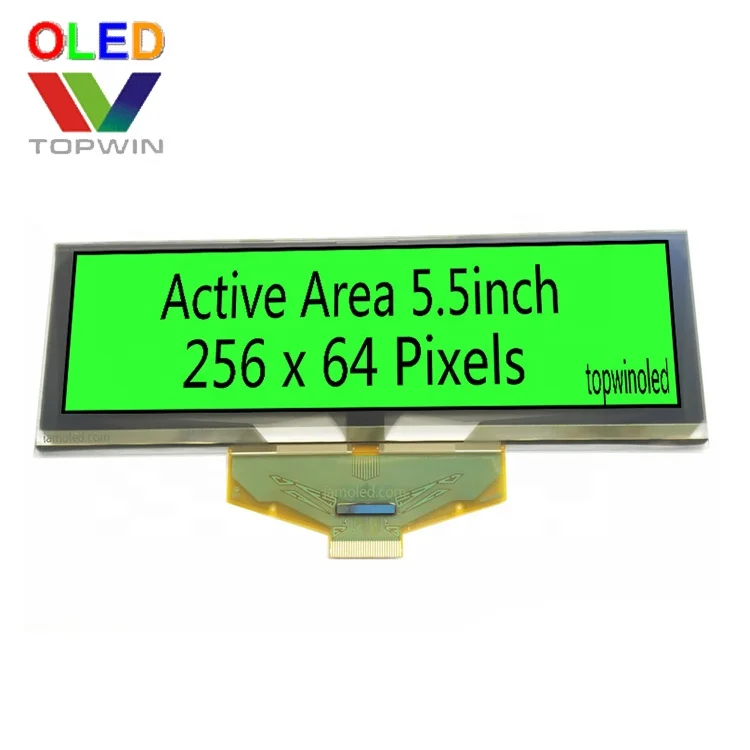

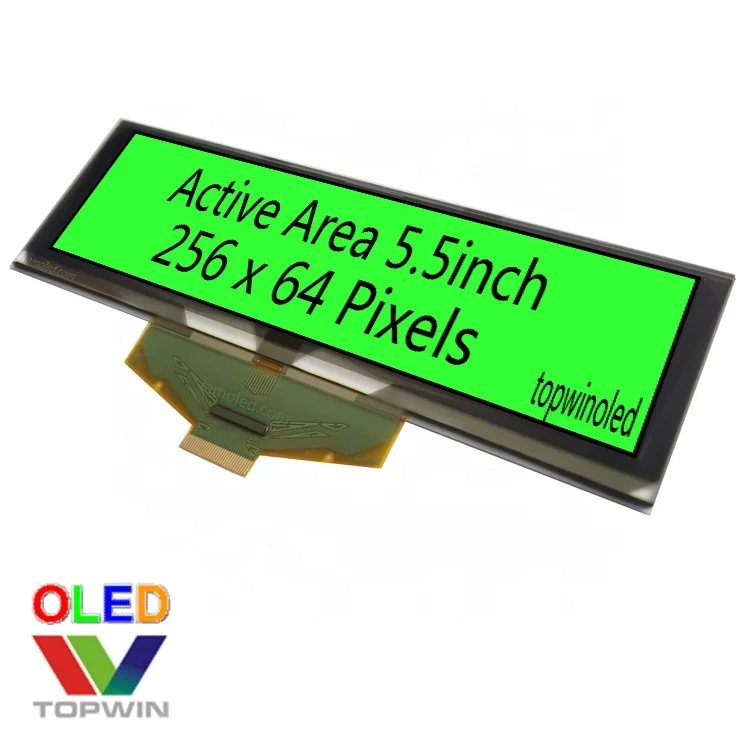

5.5' 5.5inch 5.5 inch 256x64 pixels green 30 pin 16 gray scales oled display UG 5664ASGGF01 I2C SPI parallel Interface ssd1322
- Category: >>>
- Supplier: Shenzhen Topwin Xingye Technology Limited
Share on (60782736056):
Product Overview
Description
Product Description
| Display Type: | oled display |
| Display Mode: | Passive Matrix |
| Model Number: | UG-5664ASGGF01 |
| Diagonal Screen size: | 5.5 inch |
| Interface: | Parallel, 3-/4-wire SPI |
| Drive Duty: | 1/64 Duty |
| Number of Pixels: | 256 x 64 |

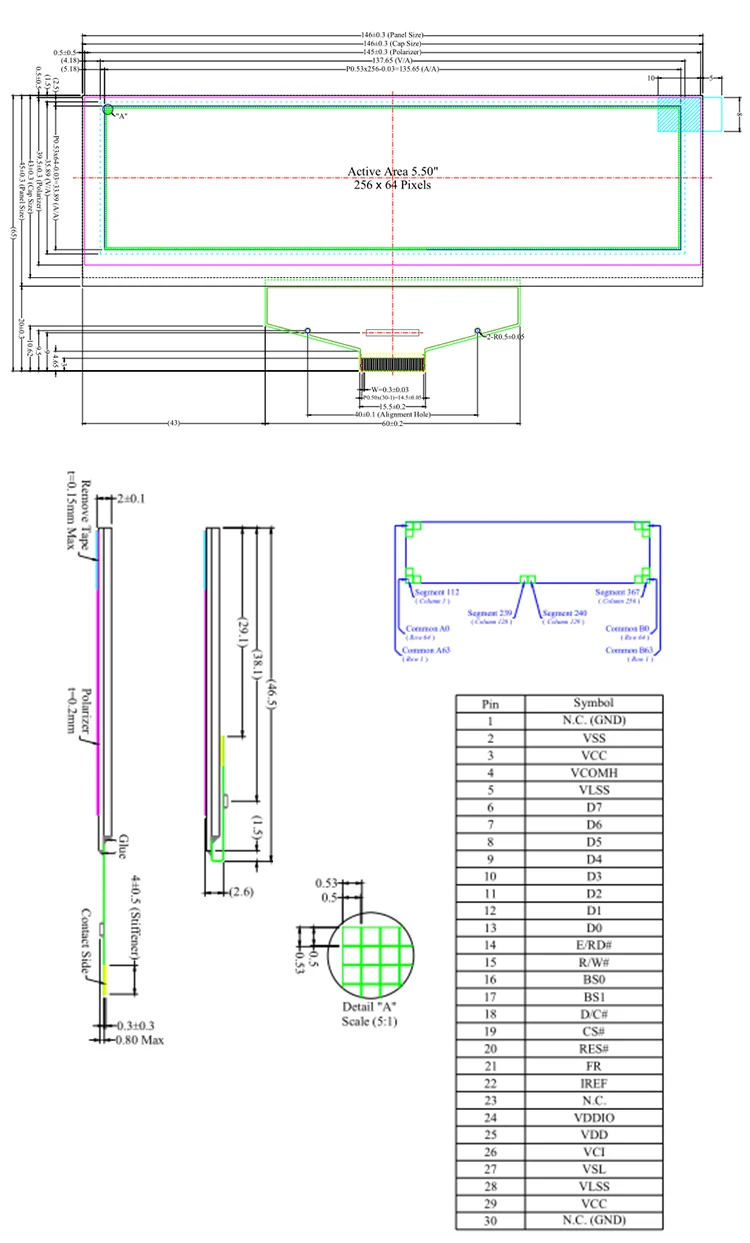

| Panel Size: | 146.00 x 45.00 x 2.00 (mm) |
| Driver IC: | SSD1322 |
| Active Area: | 135.65 x 33.89 (mm) |
| Pixel Pitch: | 0.53 x 0.53 (mm) |
| Pixel Size: | 0.50 x 0.50 (mm) |
Weight: | 27.1 (g) |
Operating Temperature: | -30~85° |
Please click here to see more our products.
Hot Products
Company Introduction
In 2001 Top Win international Corp. Ltd. was established in Hong Kong , ShenZhen Topwin Xingye technology limited Was founded in 2005. We actively grasp the most advanced display technology trend, is committed to promote the most advanced OLED and high-end TFT LCM products. while providing customers with the corresponding flat panel display solutions.
Our products range, transparent TOLED, PM OLED, flexible OLED and AM OLED series are now widely used in MP3, mobile phone, smart devices (band and watch) , consumer digital products, medical equipment, automotive electronics, smart home products, household appliances, instruments and meters , etc.
Application
♦ Samples:
small box :175x115x65mm
large box :210x110x140mm
♦ Batch packaging:
standard small carton :470*310*130mm
large carton :470* 310*480mm, 4 cartons in 1
♦ PCB Module packing:400*340*70mm
♦ Standard export port: Shenzhen,HongKong,Guangzhou
♦ Payment Information: T/T Paypal
FAQ
1. Q: What’s the shipping terms?
A: All quotations not including shipping costs and customs duties of the importing country,FOBSZ/FOBHK/FOBGZ.
2. Q: What is the delivery method?
A: UPS/DHL/TNT/SF/FedEx. Customer provides courier company and account number.
3. Q: What is the payment method?
A: T/T in advance.
4. Q: How long is the delivery time?
A: 2 working days for samples.
5. Q: Is there a MOQ?
A: No.
6. Q: Is it possible to customize?
A: Accept customization.
7. Q: Is there technical support?
A: We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
A: All quotations not including shipping costs and customs duties of the importing country,FOBSZ/FOBHK/FOBGZ.
2. Q: What is the delivery method?
A: UPS/DHL/TNT/SF/FedEx. Customer provides courier company and account number.
3. Q: What is the payment method?
A: T/T in advance.
4. Q: How long is the delivery time?
A: 2 working days for samples.
5. Q: Is there a MOQ?
A: No.
6. Q: Is it possible to customize?
A: Accept customization.
7. Q: Is there technical support?
A: We will sent full specification,drawing and user guide. Our professional engineers will provide services at anytime.
