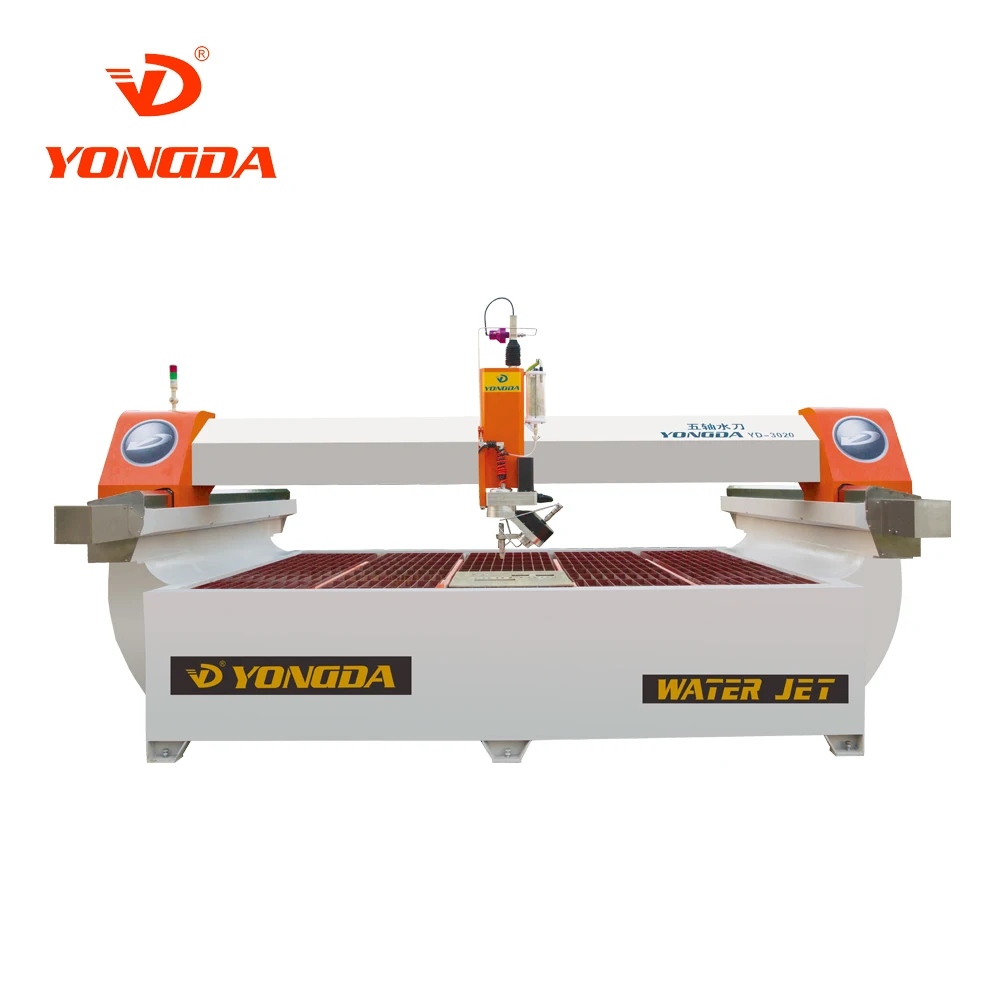

YONGDA YD4020 AC 5 Axis ceramic/porcelain/stone water jet cutting machine 45 degree angled cutting long life easy to control
- Category: >>>
- Supplier: Foshan Yongshengda Machinery Co. Ltd.
Share on (60782747778):
Product Overview
Description
| PRODUCT RECOMMENDED |
 |
|
 |
|
 |
|
 |
|
Product Description
| PRODUCT SPECIFICATIONS |

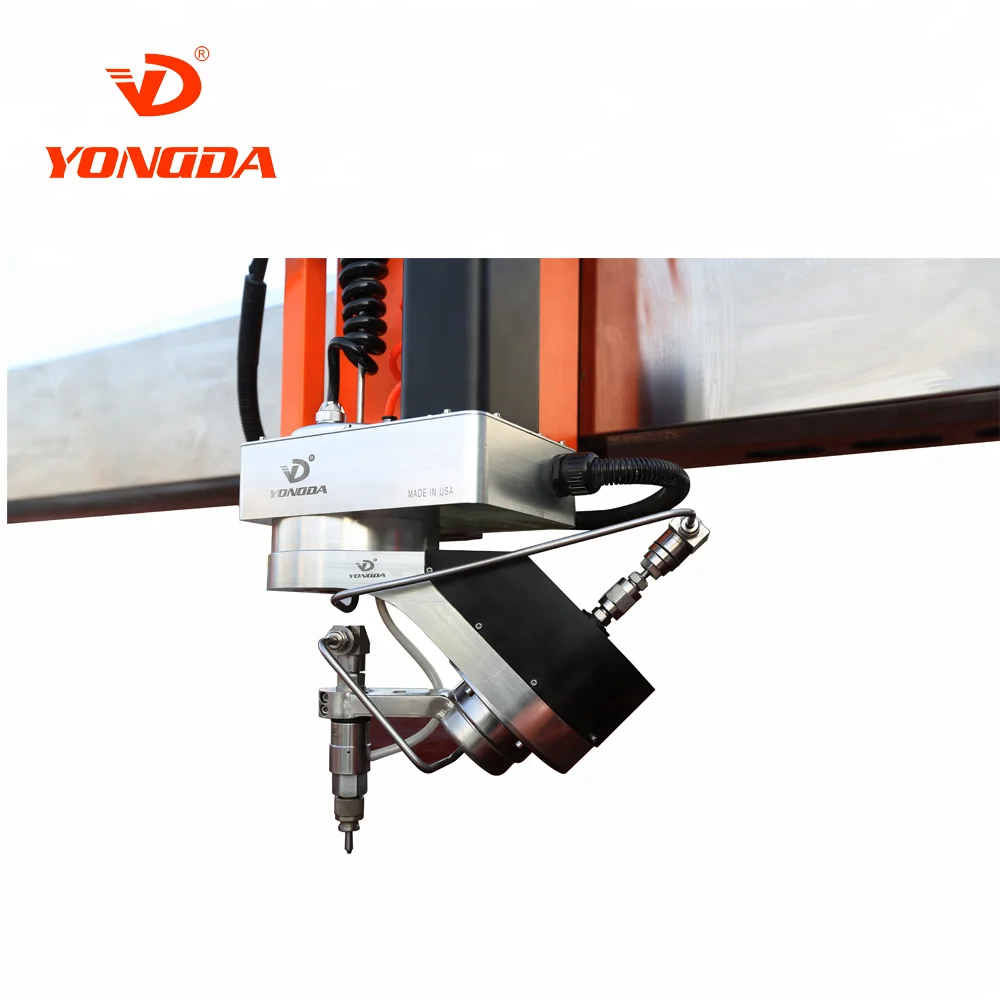

| YONGDA AC 5 AXIS water jet has a high cost performance in the North American market, a new generation water jet improved on the basis of AB 5 AXIS with 15 years manufacture experience, a high-end brand water jet which launched into the market successfully and mutually. YONGDA AC 5 AXIS head is another solution for the high accuracy requirement of the water cutting, it can realize plane cutting and 3D cutting on 3 axis table and make sure meet the design requirement in one time processing. It easily achieved arc plate cutting, cylinder cutting, spiral leaf cutting ... make impossible possible. AC 5 AXIS water jet cutting head can cut arbitrary curve and arbitrary angle, curve and angle changing is controlled by computer which make it more stable. |
| Model | YD-1212 | YD-2015 | YD-2515 | YD-3015 | YD-3020 | YD-4020 | |
| Structure | Flying-arm | Flying-arm | Flying-arm | Flying-arm | Bridge | Bridge | |
| Cutting table size | 1300×1300mm | 2100×1600mm | 2600×1600mm | 3100×1600mm | 3100×2100mm | 4100×2100mm | |
| Stroke | X-axis | 1200mm | 2000mm | 2500mm | 3000mm | 3000mm | 4000mm |
| Y-axis | 1200mm | 1500mm | 1500mm | 1500mm | 2000mm | 2000mm | |
| Z-axis | 120mm | ||||||
| A-axis | ±45° | ||||||
| C-axis | Limitless rotation | ||||||

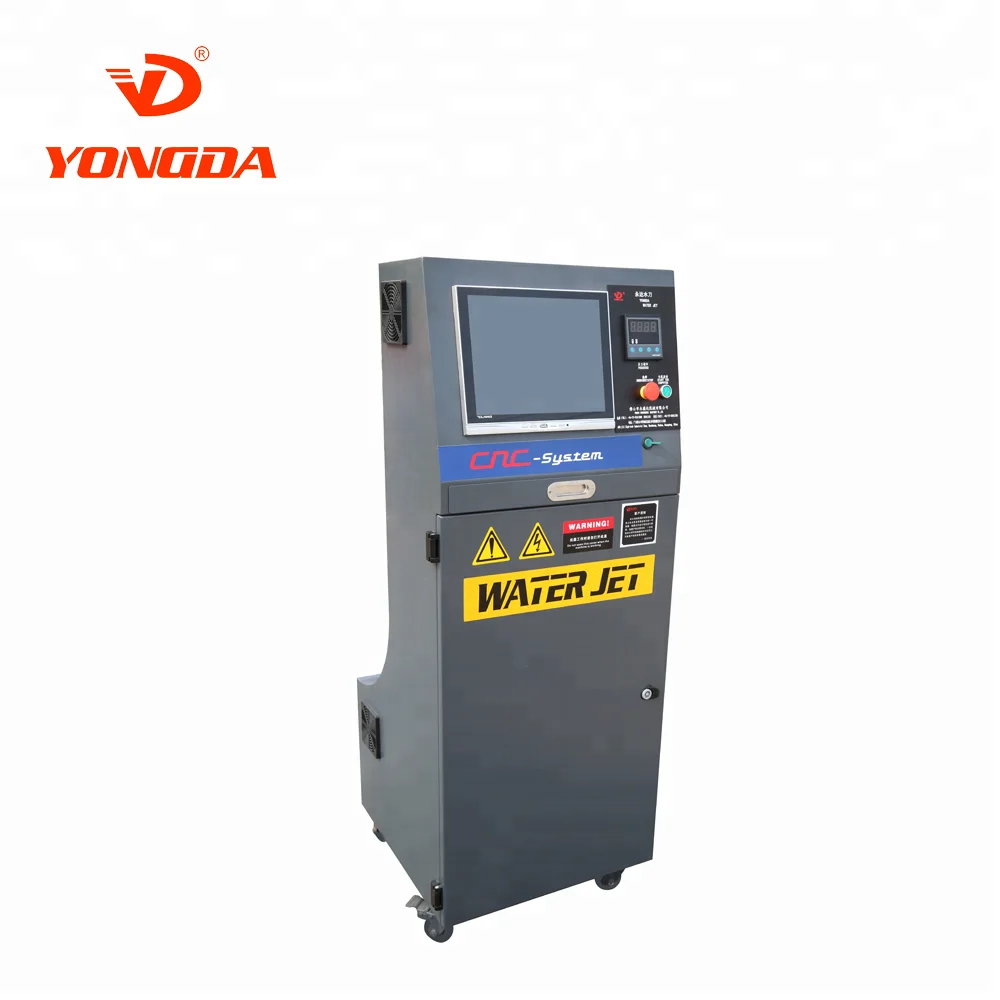

| CNC controller | AC servo system | ||||||
| Accuracy | Cutting | ±0.1mm | |||||
| Repeatability | ±0.05mm | ||||||
| Traverse speed | 6000/15000mm/min | ||||||
| Power supply | 220V/380V/415VAC--50/60HZ | ||||||
 |
| PRODUCT ADVANTAGES |
 |
| 3D cutting | Arbitrary curve and arbitrary angle | 5 axis linkage |
 |
| Long life and low maintenance | High-precision machining center processing | Servo drive, higher control accuracy |
 |
Apply unique oil immersion lubrication | All accessories go through the three-dimensional testing center |
| CUTTING EFFECT |
 |
