Woodworking Machinery Plywood Engineer block Wood Planer Veneer Slicer Machine

Product Overview

Description

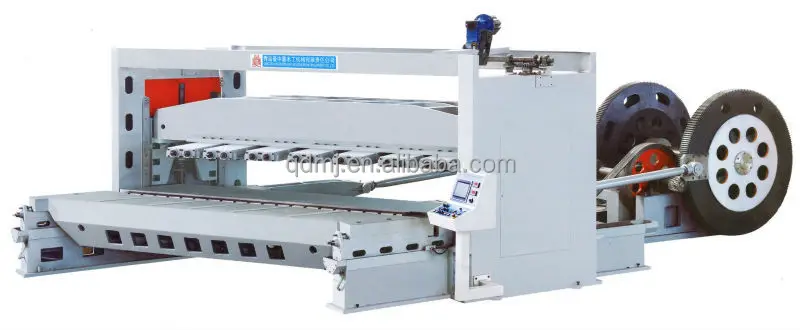

We supply high quality veneer slicer machine



Model	BB1135B
Max cutting size	2600x1300x850mm
Blade size	3500x200x24mm
Veneer thickness	0.1-2mm
Cut speed	5-26pcs/min
Clamping methods	Manual
Wood clamping unit	5 units
Main motor power	37kw
Feed motor	4.2kw(servo motor)
Conveyer motor	0.55kw
Overall size	9800x5800x2850mm
Weight	24T
Voltage	380V 50Hz 3Phase
Delivery	40HQ container



Fuction
It is mainly for slicing solid wood,engineer wood and other composite board,working efficientcy is high,and veneer thickness is uniform.it is widely adopt in decorative veneer of plywood,furniture,flooring,construction,industry and so on
characteristic
Double V-chutes are used for both sides the machine,with high parallel;special polymer wear-resistant material coated on the surface.machine runsin higher stability and with less friction.
ALL swith buttons are gathered in a cabinet single person can operate the machine avoiding the dangerous caused by fault.
Special designed big size driving gear runs smoothil with a low noise when it runs in a high speed

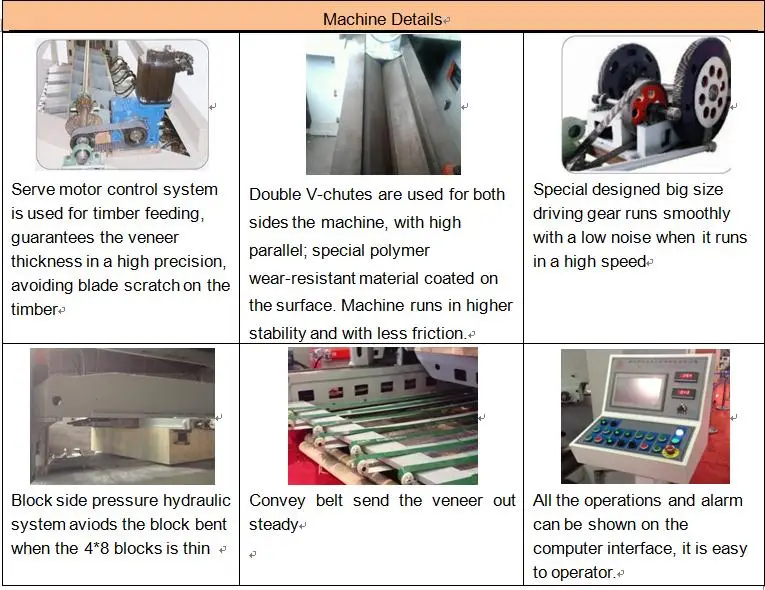

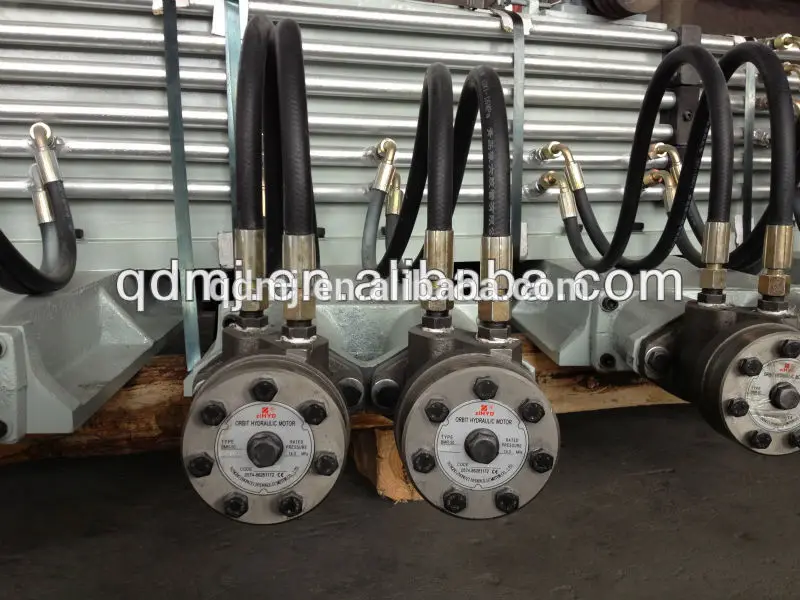

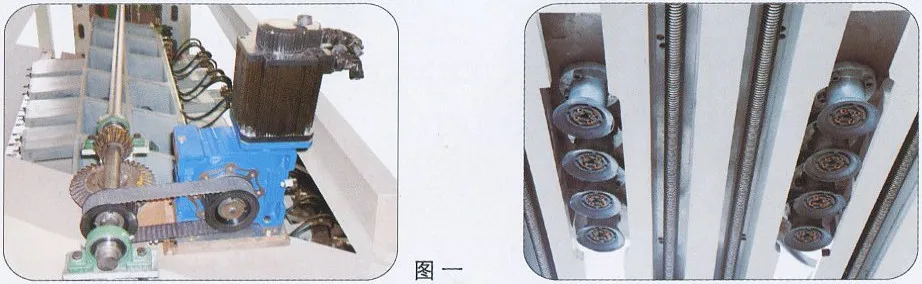

Details image

Samples

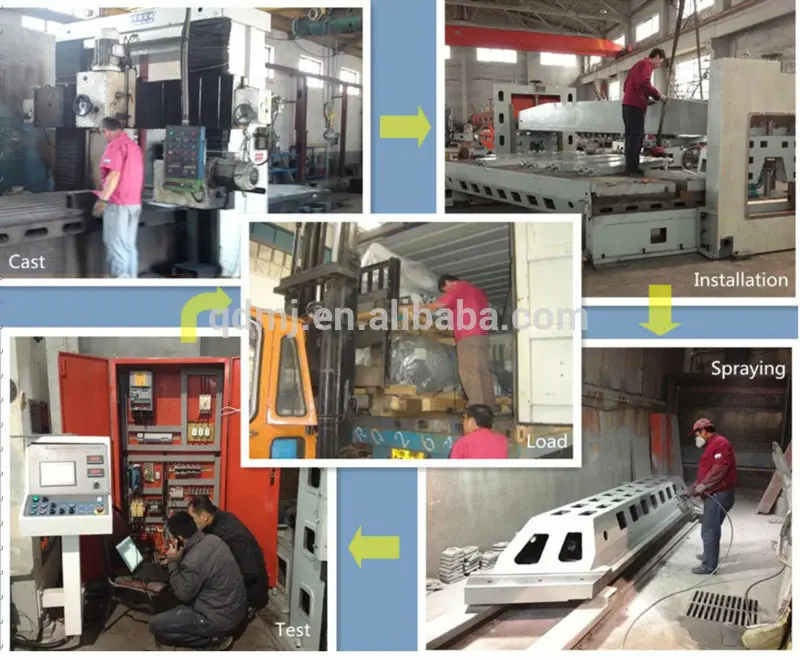

Company information

1.we have  two factories,and it have sixty years history since 1958.so,we have abundant experiences more than sixty years
2.12 months warranty for the whole machine.give you the best service after sale
3 Engineer available to service machinery overseas.
4.we professional production veneer slicer machine and sanding machine.







Our certifications



FAQ

What is the Warranty of machine?
Machine supplied quality guarantee period: one year for mechanical parts and three months for electrical parts. Warranty is counting from the date of B/L.

Why choose HAOZHONGHAO?
1,Professional: We have more than ten years experiences in exporting high quality woodworking machinery, especially Sanding Machine, Panel Saw, Veneer Slicer and Grinder.
2,Excellent: Established in 1958, ISO9001 certificated, CE certificate
3,Economial: We offer the good price with great quality because we do high-volume production manufacturer.
4 Location: One hour reach Qingdao sea port
