1.5 CBM self loading concrete mixer china

            Product Application  for  CMT1500 self loading concrete mixer

CMT3500R  Self Loading Concrete Mixer is  a kind of multifunctional machinery which combines the transit mixer, concrete mixer and wheel loader together. It can automatically load, measure, mix and discharge concrete mixture. Equipped with powerful YUNNEI ,55 kW Diesel engine and 4 wheel  drive plus 2 wheel steering,  the self loading concrete mixer is just like a truck and the operator can drive it to where it needs to go. It is very convenient for loading material, such as cement, aggregate, stone. Thanks to its Bottom Hydraulic Lifting Mechanism, the raw material inside the mixing drum could be discharged more thoroughly by drum reversing operation.

The drum slewing function is optional upon request.

The the Geometric Volume of Mixing Drum is 2.3 m³. Concrete output is 1.5 m³  per Batch.  The wide cabin windscreen and the specially designed loading arms dramatically improve visibility during casting operations. This high-productivity self loading concrete mixer is price-worth, easy to use, features excellent daily performance (it may reach even 48 m³ of concrete) and reliability. As a result of  these characteristics, it is the ideal solution for rental purposes and for maintenance operations.

Main Features

3) Rear Location of Big Water Tank

4)  500 Liter Teeth Fitted Shovel completed with Hydraulic Opening Gate

5) Air-conditioner as standard configuration

6) Panoramic Color Monitor safeguard your driving

7) Spacious Driver’s Cab with Savety Hammer and Fire Extinguisher inside

China TOP Brand YUNNEI Diesel Engine as standard Power, Cummins Engine is Optional

Bottom Hydraulic Lifting Mechanism

Two pcs of hydraulic cylinder are fixed at the bottom of mixing drum. The hydraulic cylinder will lift the dum up to 19° while the drum is reversing for material discharge, which could make the material be discharged more complete. The residue left in the drum

 is very few.

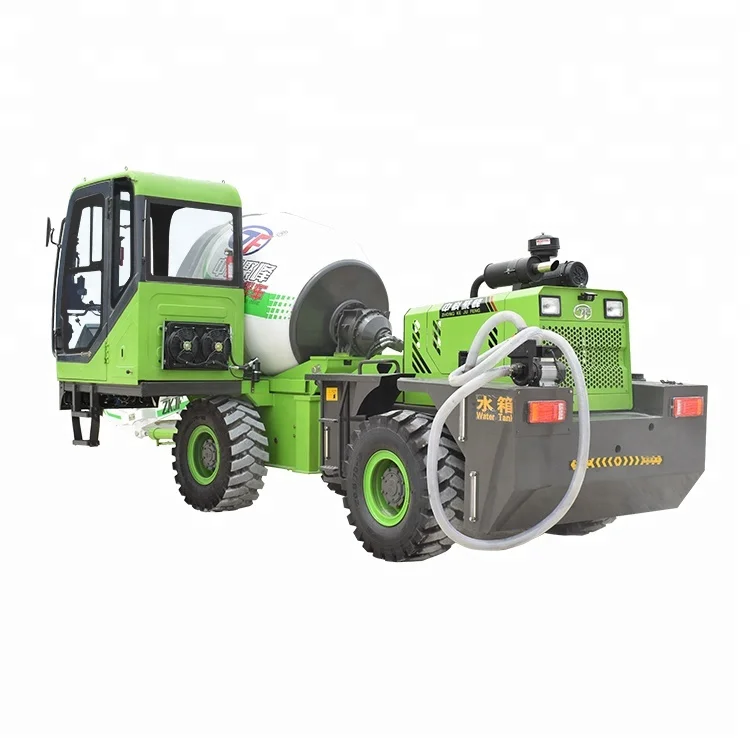

Rear Location of Water Tank

Two Sets of Water tank are positioned opposite each other at the rear of machine, with total volume of 400 Liter. The electric water pump is mounted on the top of water tank, which is beneficial  to suck water from water tank easily.

500 Liter Teeth Fitted Shovel

The volume of front loading shovel is 500 Liter and is fitted with steel teeth, inner cutting blade and hydraulic opening gate.

Air-conditioner is available

The Air-conditioner is just standard configuration for this self loading concrete mixer. The working condition inside the driver's cab is much more pleasant and comfortable than that only equipped with electric fan.

Panoramic Color Monitor

.

Excavator Style Spacious Driver’s Cab

Our driver's cab is much more spacious than other's. It is a kind of crawler excavator style cab. Two sets of joystick control system are situated on the two sides of driver's seat. Fire Extinguisher and Safety Hammer are also equipped inside the cab.

Off Road Industrial Wide Tyre

The machine is equipped with Off Road Industrial Tyre with model of 20.5/70-16. The drive means is 4x4 .The Wide tyre could ensure the machine work safe on muddy and bumpy road.

Q1.: Are you trading Company or Factory?

A:  We are factory. We have been engaged in the production of  self loading concrete mixer

   for more than 27 years.

Q 2: How about the quality of your products?
A: We are factory with more than 27 years of construction machinery manufacturing experience. All of our machines are manufactured strictly according to the national and international standards, and we take a test on each equipment before delivery. You can also use Trade Assurance by Alibaba for product quality protection, on-time shipment protection and payment protection.

Q3: How about the price?
A: We are factory, not dealer, so we can give you a lower price than those trade companies can.

Q 4: Do you provide after-sale service?
A: Yes. The warranty period of our machines is one year, and we have a professional after-sale service team to promptly and thoroughly solve your problems.

Q5 : Do you provide equipment operation training?
A: Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training.

Q6.: How long is your delivery time
A: Generally it is around 7 days if the goods in stock. If there is no goods in stock,

it will be about 20 days, subject to the quantity you ordered.

Q7.:  What is your acceptable payment terms.

  A: By T/T. 30% deposit in advance, balance to be paid before delivery.

   or By irrocable LC at Sight.
