2 ton big capacity cheese homogenization machine / system / line for high speed plant

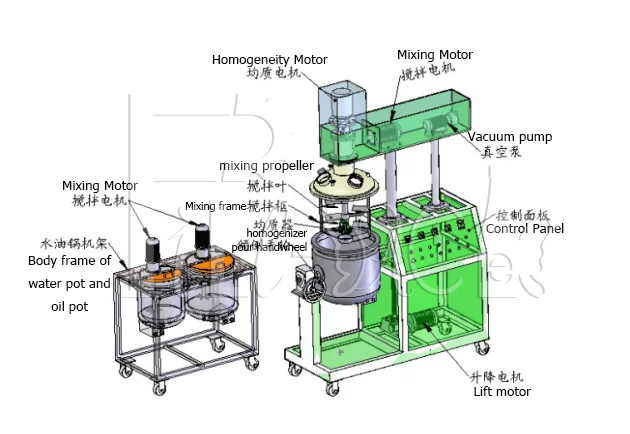

Structure:

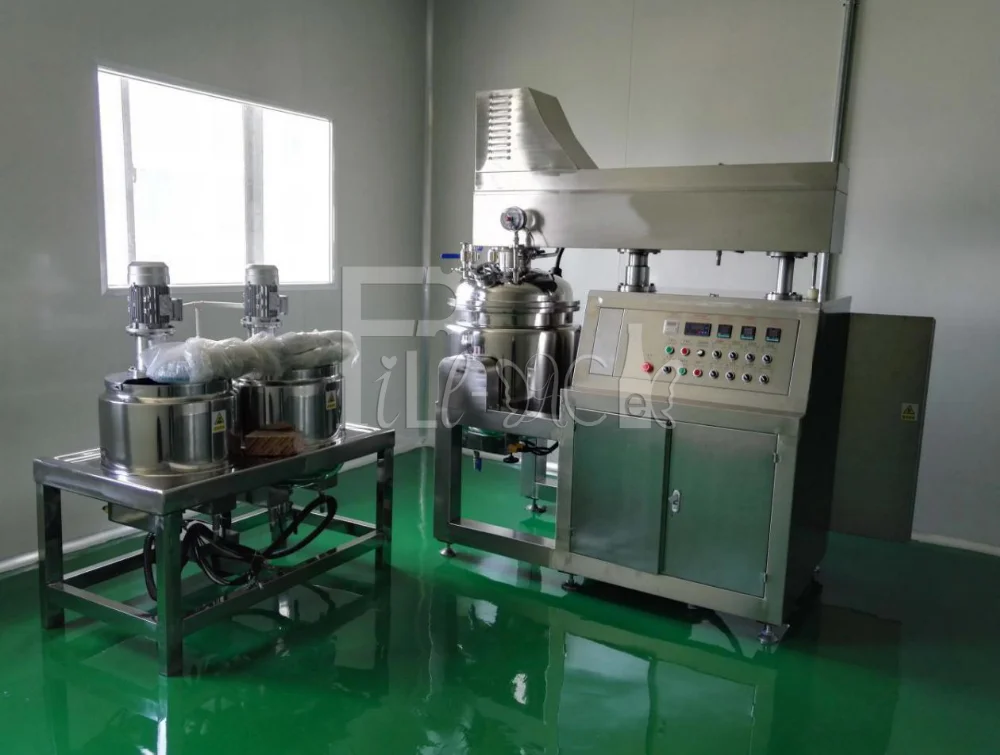

The cheese homogenization system is divided into main pot, oil pot, water pot, electrical control system, vacuum system and frame.

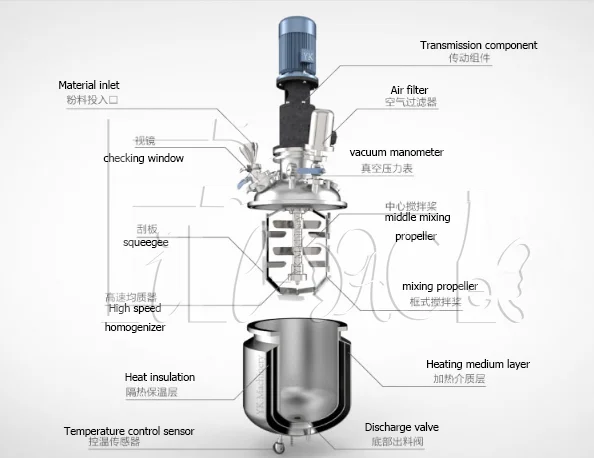

The main pot is composed of a homogeneous stirring pot, a homogenizing mechanism, a stirring mechanism and so on.

Principle:
First, the material is preheated and stirred in the water and oil pot, and then through the pipeline, cheese homogenization system can be directly inhaled in the homogeneous pot under the vacuum condition.
Materials in the homogeneous pot by stirring the pot on the Teflon scraper (scraper always meet the pot body, sweeping the wall sticky material), continue to produce a new interface, and then through the blender shear, compression, folding, So that it is stirred, mixed and down to the homogenizer below the pot body, and then through the high-speed rotation of the rotor and the stator produced between the strong shear, impact, turbulence and other processes in the shear material is cut , Quickly broken into 200nm ~ 2μm particles. Material particles, emulsification, mixing, mix thoroughly, dispersed, etc. can be completed in a short time. As the homogeneous pot is in a vacuum state, the bubbles generated during the mixing process are promptly removed. After the homogenization finish, the material inside could be discharged by titling the pot by handwheel aside.
Homogeneous pot heating temperature through the control panel temperature controller settings adjustment; homogeneous mixing and blade mixing can be used separately; Homogeneous mixing time can be set according to the different material property.

1.1, Emulsitying pot heating with 3 layers

1, motor: three phase asynchronous motor, 380V, 50Hz (custom motor), power 1.5KW;
2, transmission: reducer and special gear structure transmission;
3, frequency converter: digital display, stepless speed regulation;

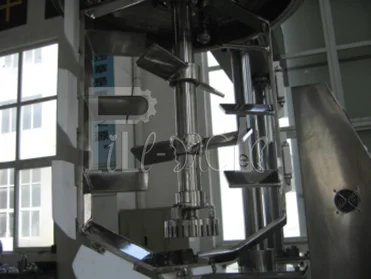

4. stirer:
Clockwise frame stirer (with PTFE scraping wall), reverse clockwise multi-layer impeller stirer, two-way stirring interference movement;
Scraping the wall always fit the pot wall, clean the pot wall stick material, new interface, produces no dead ends, and improve the heat transfer efficiency;
Two low speed stirring shaft and high speed emulsified axis are concentric three axis design.
5. Speed:
Clockwise frame type stirer speed 0~80rpm/min;
Reverse clockwise multi-layer impeller stirer speed 0~80rpm/min;
Frequency conversion stepless speed control, digital display;

Emulsification part:
1, motor: three phase asynchronous motor, 380V, 50Hz (custom motor), power 3KW;
2. Emulsifying homogenizer:
The new generation of emulsified homogenizer, spiral propeller rotor, more powerful;
A pair of rotor stator precision coordination, high machining precision, shear emulsification effect is good;
The emulsion shaft is tested by static and static balance, and the stability is good.
3, speed: rotor speed 2860rpm/min;

Main shaft seal:
Mechanical seal and lip seal of rotating shaft

Feeding and discharging:
1, feed: the material can be directly inhaled in the emulsified pot by the water phase pot and the oil phase pot in the vacuum state through the conveying pipe.
2, discharging: the discharge valve of the bottom of the emulsification pot can be directly discharged (pressurized or pumped), and can also turn over the pot body to pour out the material.

Parameter

1.2, Water pot:

Pot body structure:
(standard design is a double layer structure, if the heat preservation function is required, the design is three layers structure, the cost is increased)
1, the design volume of the pot body 1200 L, the top flat cover, the lower head structure, the normal pressure use;
The 2, three layer structure, with the jacket, from the inner to the outer thickness is 4/3/3mm (electric heating);
The inner jacket can heat the heat medium, so as to heat the material.
The jacket is opened with an inlet and outlet, which can import heat conduction medium.
The outer jacket is asbestos insulation layer, the heat preservation effect is good, and it can prevent the scald workers and ensure the safety of the operation.
3, with stainless steel seal flat cover, half open cover, with handle, convenient for feeding;
4. The bottom of the pot is equipped with a temperature sensor and an electric heating box.
5. The center of the pan is provided with a material outlet, which is connected with the main pot through a pipe.
6. The polishing treatment of the inside and outside of the pan, the equipment is clean and sanitary, which meets the requirements of GMP.

Mixing part:
Motor: three phase asynchronous motor, 380V, 60Hz (custom motor), power 750W;
stirer: customizable dispersed disk, paddle, Trifolium propeller and other stirers

Parameter

1. the cheese homogenization system is packed by wooden case.
2. The delivery date of cheese homogenization system is within 30 days after payment.

Customer's service:
1. FILL-PACK company can provide turn-key project for you, only you have any idea to start beverage factory plant.

2. FILL-PACK company have professional design team, our engineer can draw bottle samples and flow chart ofworkshop for you .

3. FILL-PACK company give you the best quotation for all kinds of beverage production, only you can tell me whichkind of drink you want to product, what is your capacity(how many bottles one hour) what is you bottle material, pet or glass,etc

After service:

1. We send the engineers to help installing, commissioning and training, the engineers start from our factory area.

2. We supply below necessary documents with the machine:
    a. Machine layout
    b. Electricity diagram
    c. Machine certificate
    d. General manual book/maintenance book

3. After one year guarantee, the seller provides payable spare parts and technician's VISITING maintenance service.

1.Why do you choose our factory?
There are many foreign guests cooperate with our company.We have enough experience and fund to provide you the high-quality products with the best price.

2.How long can you delivery?
About 30 days after we received the deposit(30%T/T in advance,70%T/T before shipment.)

3.How about your after-sale service?
One year repair for free Seller responsible for arrange engineer for installation and guide the workers of buyer how to operate and necessary repair,and give buyer a turnkey project.

4.How long can you finished the installation?
About 10-15 days.If the water and electricity is ready.If you have any questions,please do not hasitate to contact me.
