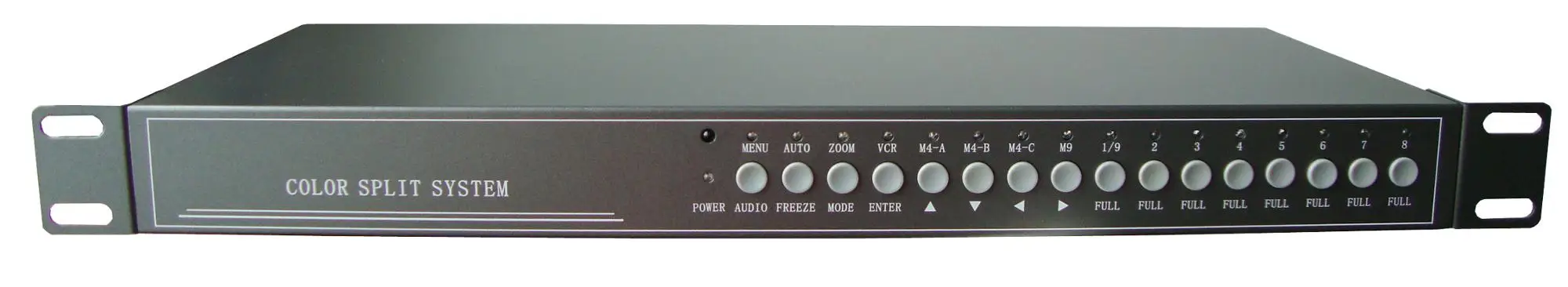

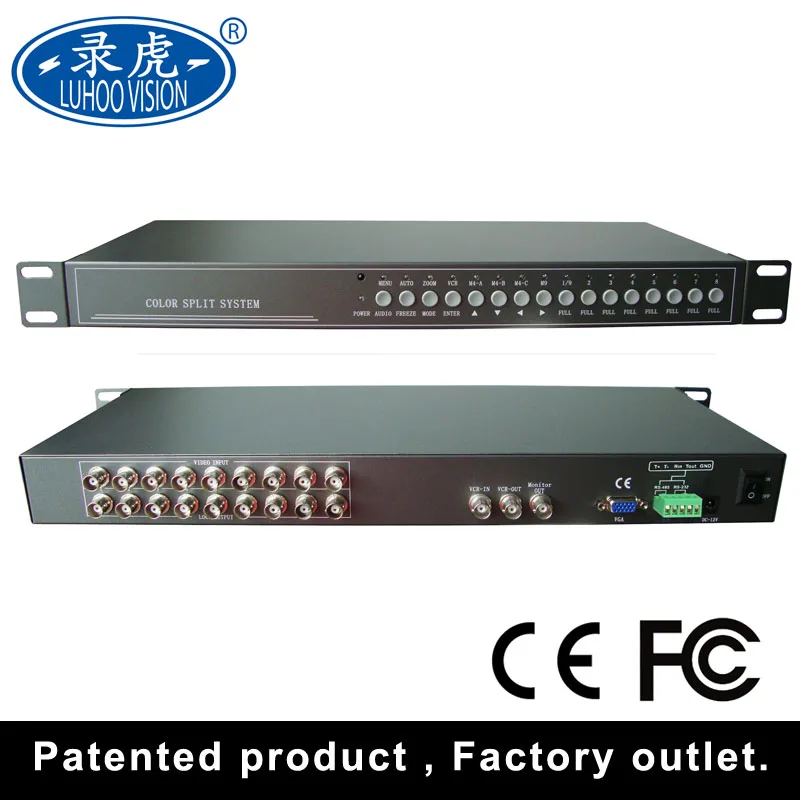

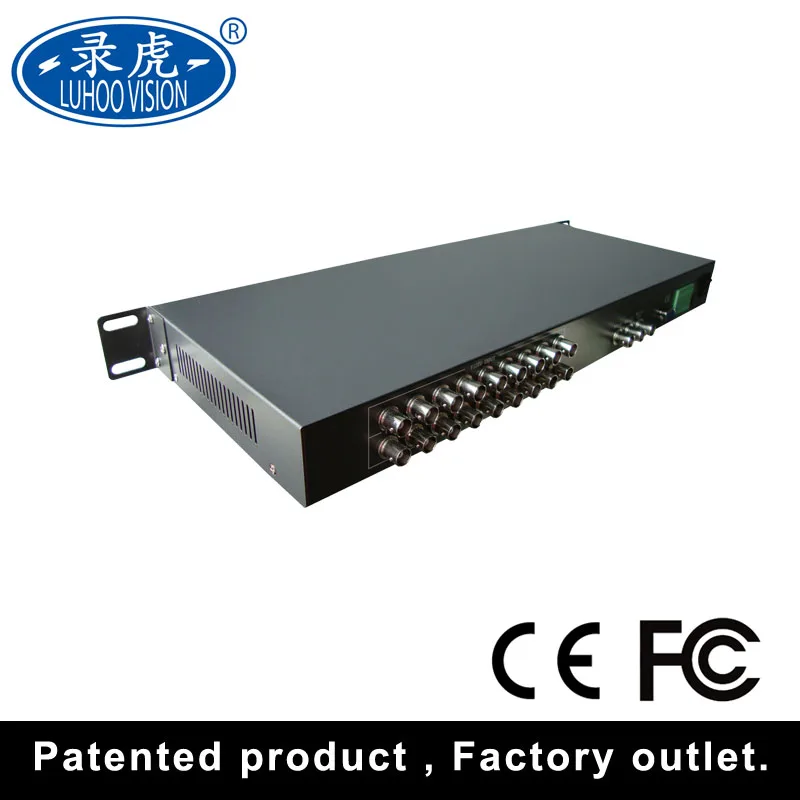

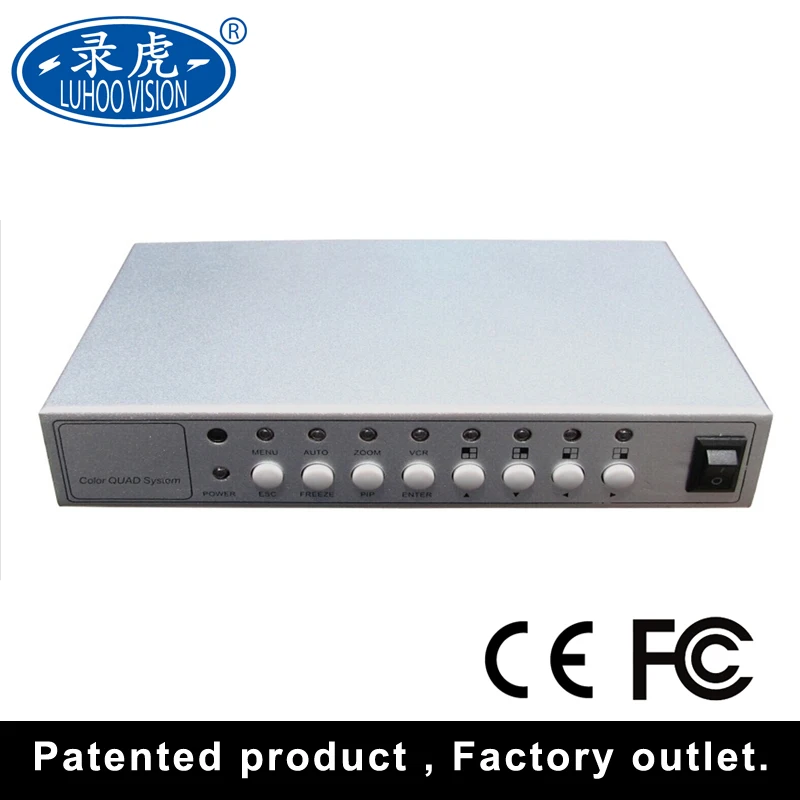

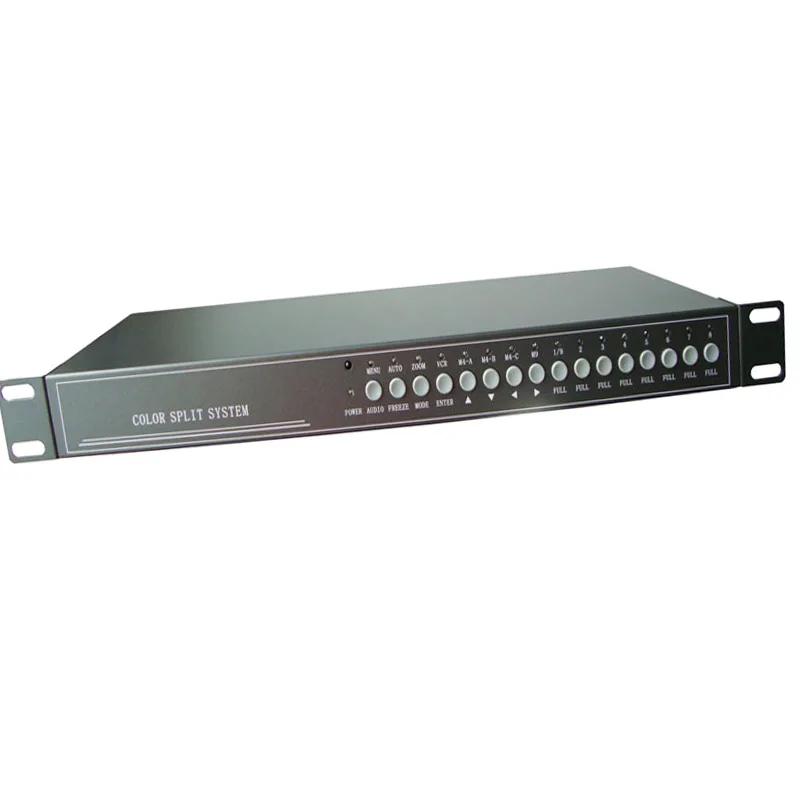

Sunta Cheap Rack-Mounted Full Real Time 9 Channel Color Quad Processor Split System
High-resolution picture quality, nine-way picture display in real time. NTSC/PAL dual video format. Support VGA high definition output display Support infrared remote control operation
Screen loss alarm function
9 channel Full Real Time Color Video Quad Splitter Processor main function:
High-resolution picture quality. NTSC/PAL dual video system. English language menu. Nine pictures, four pictures, picture-in-picture, two-picture display. Nine pictures full real time. The channel quality can be adjusted independently. Automatic screen switching function. Two picture-in-picture functions, one picture-in-picture display, adjustable position, and adjustable channel. Two-screen function, adjustable display position, and adjustable channel. ZOOM electronic zoom function, select any zoom area. The high-quality picture freeze function supports the simultaneous freezing of multiple channel picture functions under multi-picture display. Mobile reconnaissance alarm; screen lost alarm function. 60 sets of incident records (mobile reconnaissance and screen loss alarm records). You can freely edit the channel number. The screen position can be adjusted and the alarm time can be set. Supports infrared remote control operation.

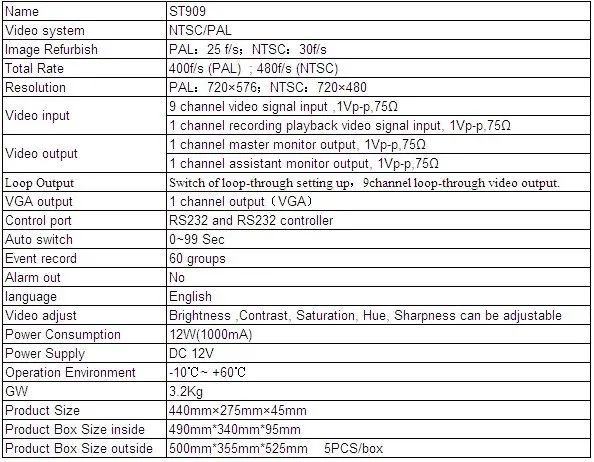

Cheap Rack-Mounted Full Real Time 9 Channel Color Quad Processor Split System Specification:
Name
Sunta 9 CH Rack-Mounted Color Split System
Full Real time
YES
Image refurbish rate
PAL: 25f/s; NTSC: 30f/s
Video standard
PAL:720×576,25f/s; NTSC:720×480,25f/s
Total Resource
PAL: 150*4 f/s; NTSC: 180*4 f/s
Language
Chinese/english

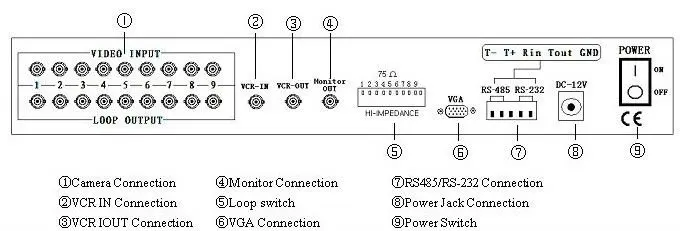

Video input
9 channel video signal input,apex:1Vp-p,impedance:75Ω / I channel video playback video signal input,apex:1Vp-p,impedance:75Ω
VCR connector
BNC connector.one input one output
Loop through
9 channel loop through
Video output
one channel BNC main minitor output.apex:1Vp-p,impedance:75Ω /one channel BNC assistant monitor output,apex:1Vp-p,impedance:75Ω /one channel VGA main monitor output(optional)
Audio
No
Communication
RS485 Cradle head,RS232 controlled
Keyboard control
Support,Work bitspersecond :9600bps
Auto switch time
0~99 second
Video Adjustment
Brightness,contrast,saturation,Hue,Sharpness can be adjusted
Event recorder
support 60 groups
Operation manner
Front panel,remote controller,computer,keyboard control
