Good Quality Stone Cutting Machine Bridge Saw Sigma Tile Cutter

Good Quality Stone Cutting Machine Bridge Saw Sigma Tile Cutter

Product Description:

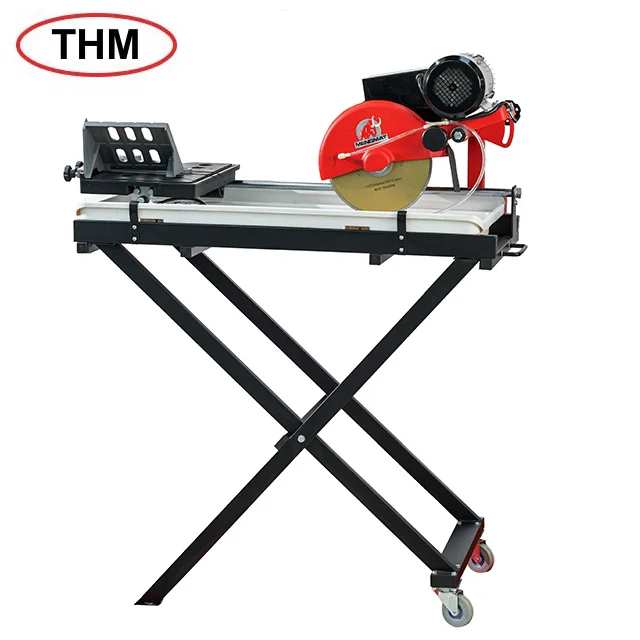

Model No. TS250A

Motor 120V-/60HZ

Power 1500W

Motor No-load speed 3450rpm

Blade No-load speed 2700rpm

Blade size

Outer Diameter: 10''(250mm)

Bore 5/8''(15.9mm)

Length of Cut

Rip Cut 24''(610mm)

Diagonal cut 16''(406mm)

Depth of Cut 3''(75mm)

Table Size(w/ext.table) 265×405mm

Packing Size

Saw Body 1045×600×385mm

Stand 1200×535×120mm

Gross/Net Weight

Saw Body 43/40kgs

Stand 9/8kgs

Loading Amount

20'container 90pcs/180cartons

40'container 190pcs/380cartons

Approvals CSA

Features:

>> Driven by extra powerful single phase motor for effortless cutting.

>>  Ideal for wet cutting of tiles,marbles,slate,stone and pavers.

>>  High blade speed for fi ne and effi cient and precise cutting.

>>  24''extra large cutting capacities.

>>  Unique heavy duty die casting aIuminum column and cutting head.

>>  Robust structure ensures the most stable,precise cutting for life time.

>>  Precision linear guide bar system with dust proof alloy aluminum cover.

>>  Automatic thermaI overload protection.

>>  Blade shaft lock makes blade easy change.

>>  Durable plastic water tray with designing can be easily removed for cleaning.

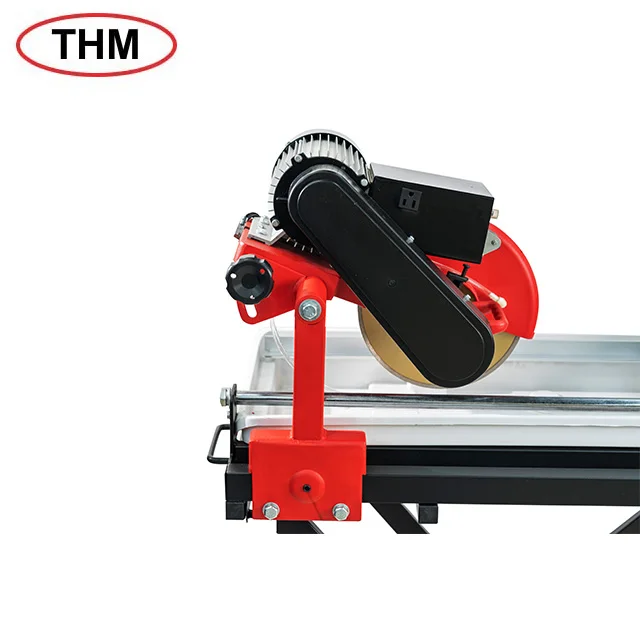

>>  Two-position cutting head for covenience of cutting all size tile and marbles.

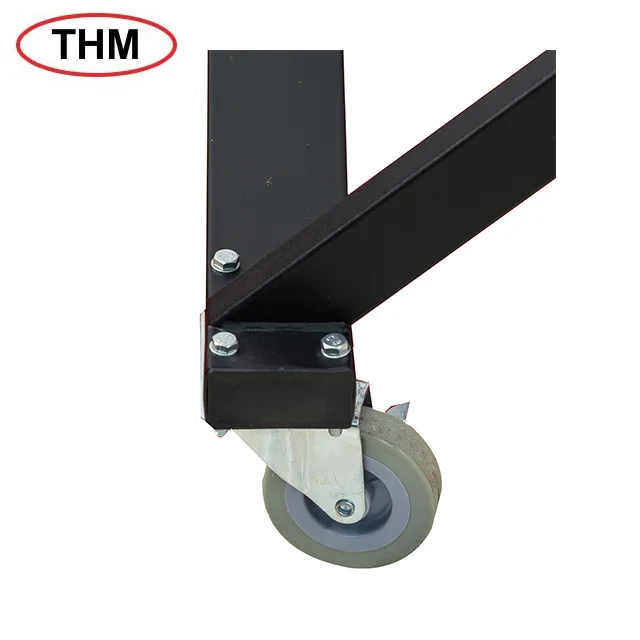

>>  Carrying handles for ease in transporting and optional saw stand on wheels makes for simple one-man moving.

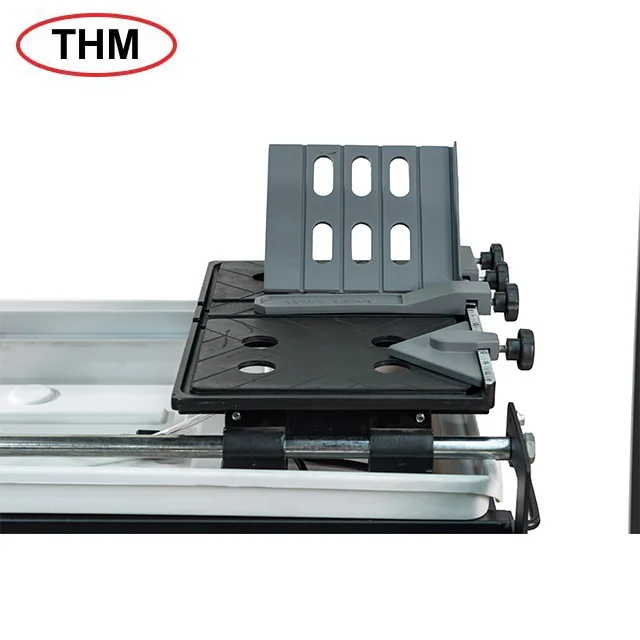

>>  Water pump,45 degree miter block,90 degree and 45 degree rip guide incIuded.

>> Got CSA approvals

>> We can produce the machine according to your requirements about brand and color.
