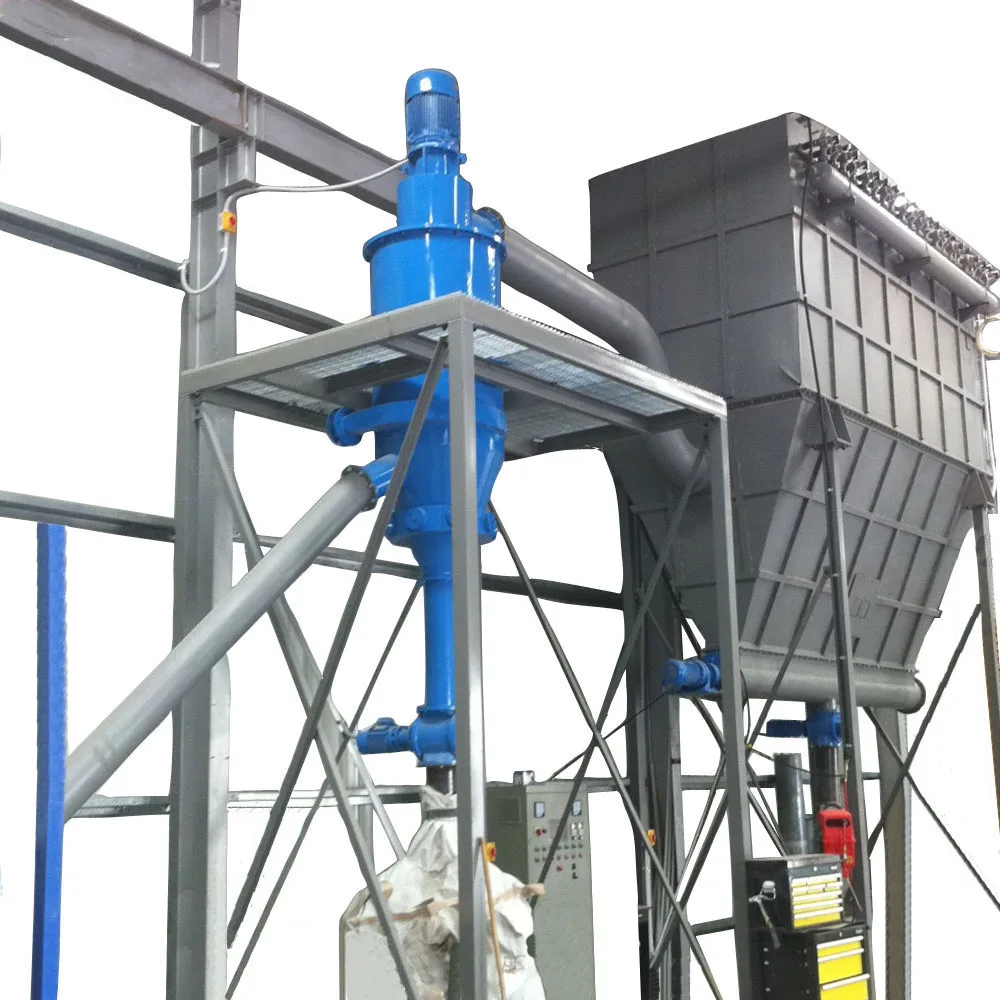

ITC Series High Efficiency Powder Air Classifier With Cyclone Separator
Product Description

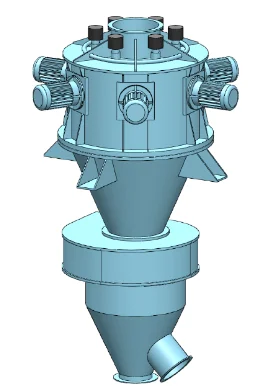

ITS air classifier is designed for fine classification in the range of 8 to 150 micron.
The feed is transported by the primary air stream into the classifying chamber.
The secondary air stream enters the classifier to a ring of guide vanes.

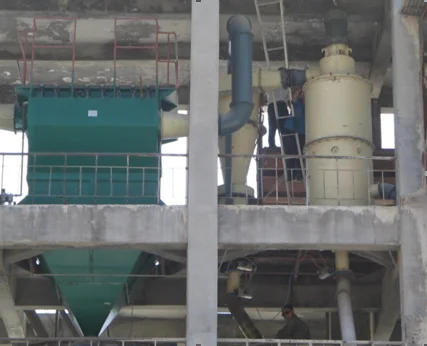

Mainly the classifier is integrated in a grinding-classifying circuit.
For this application a high feed rate with a good yield is assured.
The materials of construction are selected for highest strength during production.

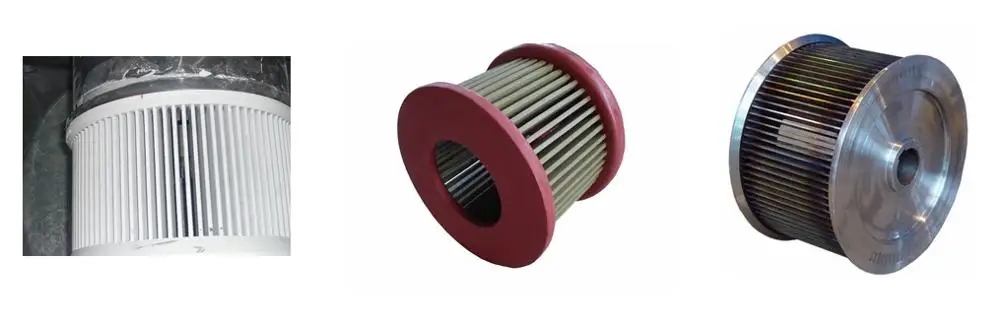

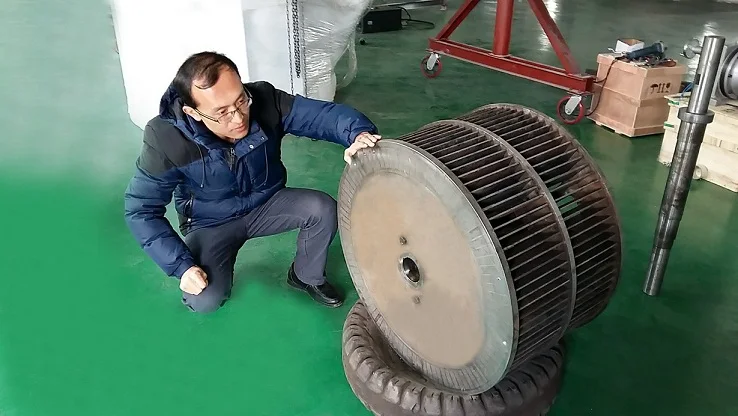

The wheel is placed in a vertical position to get a good dispersion of the feed product..
Features
- Fine classification with high performance
- Direct and belt drive available
- Feed tangential in the classifying zone
- Lower speed rates required
- Adjustment of cut point by variable rotor speed via frequency converter
- Construction material can be mild steel, stainless steel or wear protected
- Low maintenance costs and low investment
Technical Data
Model | ITC-0 | ITC-1 | ITC-2 | ITC-3 | ITC-4 | ITC-5 | ITC-6 |
Drive Powder (KW) | 4/5.5 | 7.5/11 | 15/18.5 | 22/30 | 37/45 | 55/75 | 90/110 |
Product Fineness (d97: micron) | 6-75 | 6-75 | 8-75 | 9-75 | 10-75 | 15-75 | 20-75 |
Throughput (Tons/Hour) | 0.2 - 1 | 0.3 - 2 | 1 - 3 | 1.5 - 6 | 2.2 - 9 | 3 - 15 | 7 - 30 |
Note: the throughput or production capacity depends heavily on raw material fineness, density, moisture
and flow-ability. The data above is just for your reference.
Application
This kind of classifier is widely used in different fields as follows:
- Mineral fillers
- Ceramic fillers
- Animal food
- Chemical products
- Food
- Surface treatment, coating
Packaging & Shipping
Customer Visit
Company Information
Certifications
Contact Us
Noted: Due to the machine are customized, So the price will vary depending on the raw materials, product
fineness, production rate, etc.
