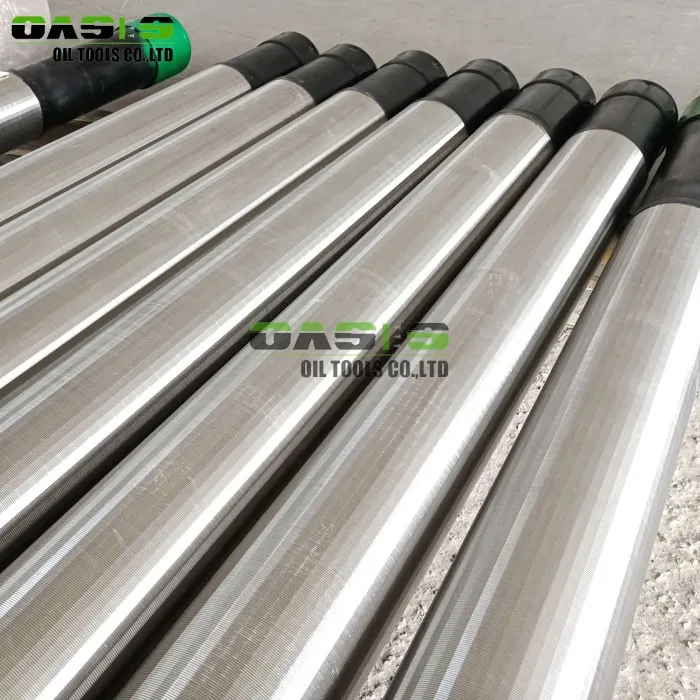

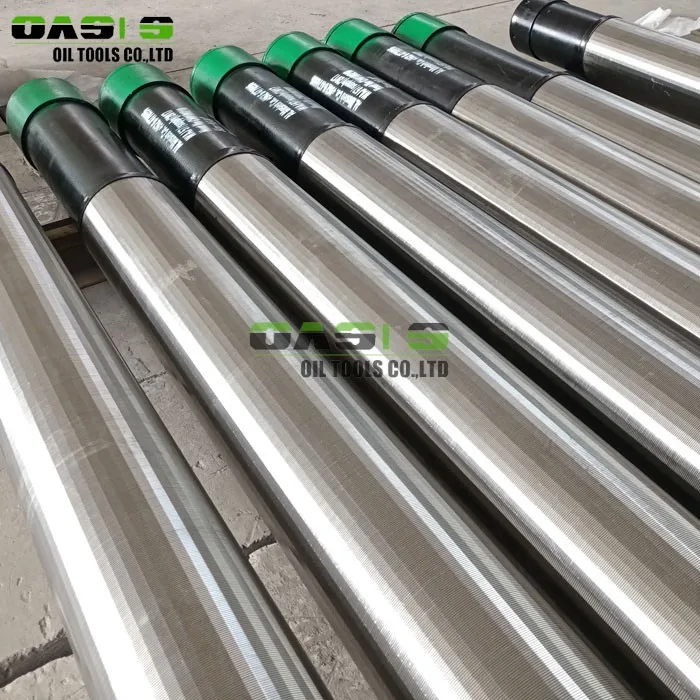

Manufacturer of Stainless steel Pipe base screen for well drilling

Product Overview

Description

 Manufacturer of Stainless steel Pipe base screens for well drilling



Company Introduction:



Oasis Oil Tools Co.,LTD, located in the industrial park of high-tech enterprises in Fengquan District, Xinxiang City, covers more than 20000 square meters with total RMB 15 million investment. Oasis now has more than 150 staff, among them 6 persons are senior engineer. Since founded, OASIS always adhere to the "development on innovation, development on efficiency and treat customers with honesty" business philosophy. After many years' efforts, now OASIS has developed into a famous manufacturer which integrates the research and development, design, manufacture and sell water well screens/johnson screens, oil well screens and sand control well screens, bridge slotted well screens, pipe based well screens, perforated pipe (base pipe), gravel pre-packed well screens, wedge wire screens,  passive water intake screens etc. water, oil and gas well filtering products as well steel tubes and pipes and industrial parts.



Certifications:



Project:

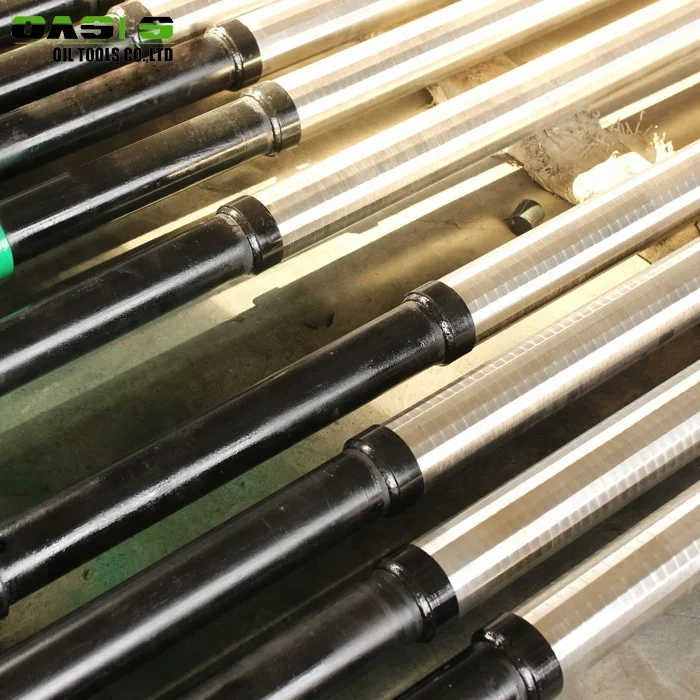

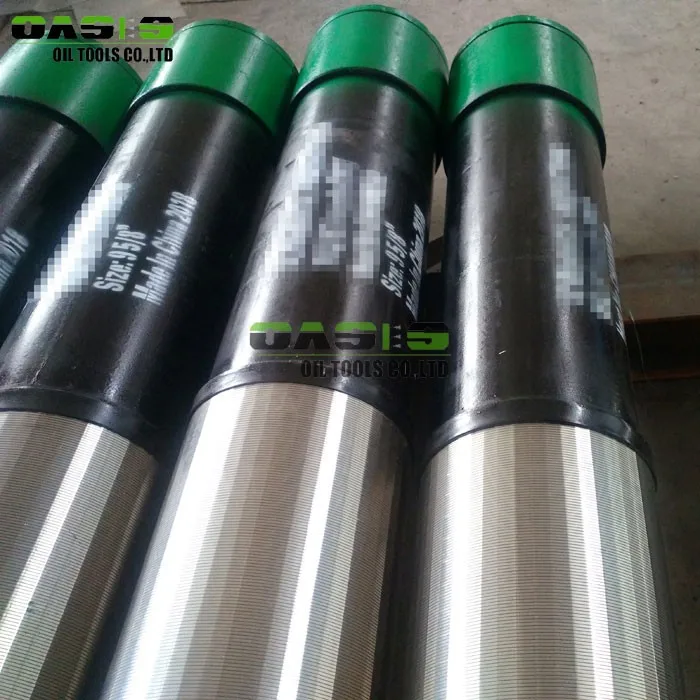

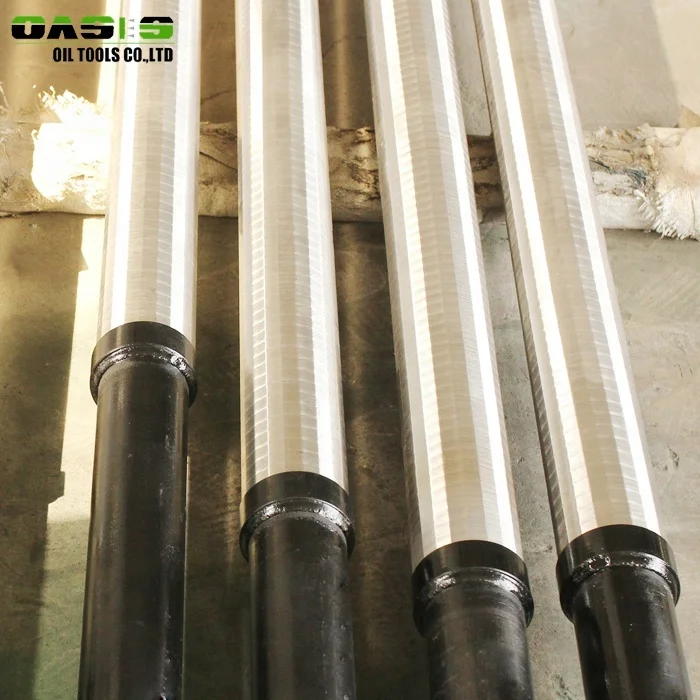

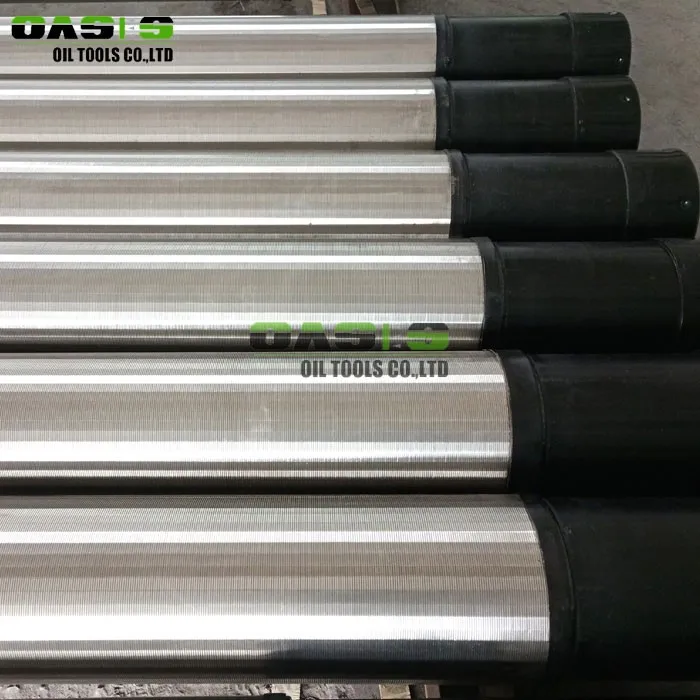

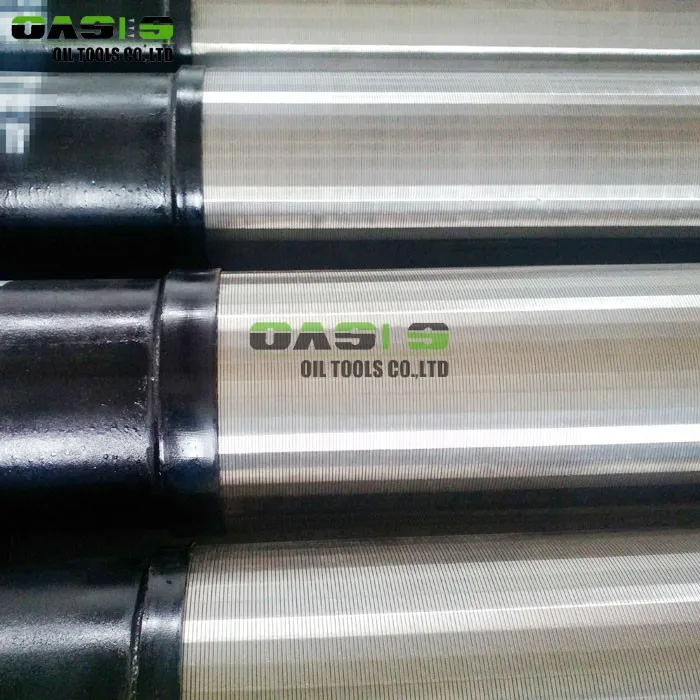

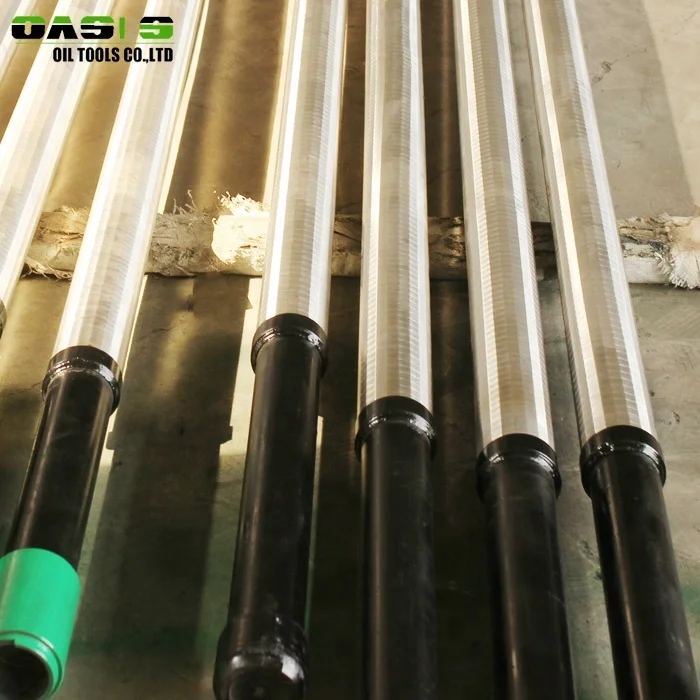

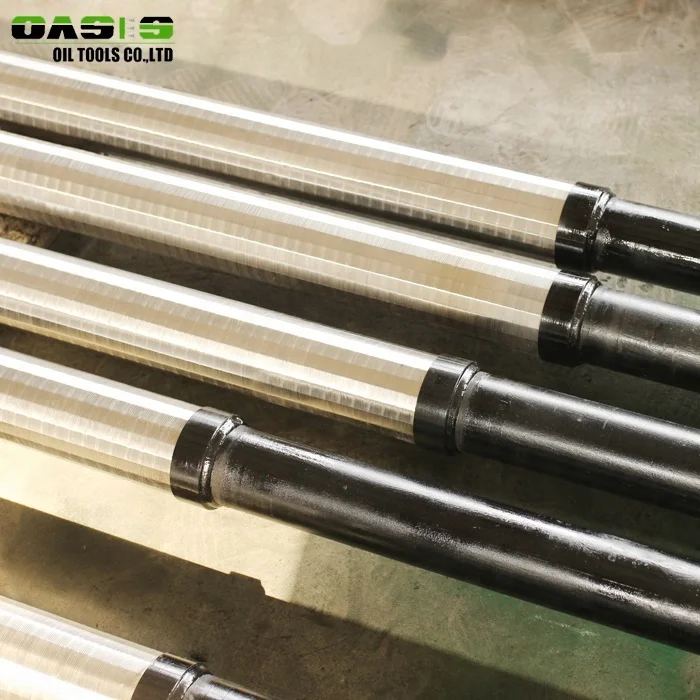

Pipe based well screens consist of V-shape profile wire and longitudinal support rods. Each intersecting point of these wires is fusion welded. So Johnson screen pipe has sturdy constriction and good mechanical property. The V-shape section plane can avoid blockage, and make sure of the unimpeded water. The continuous slot have more open area, and it can reduce the speed of the water entering to avoid the sand entering the screen under the great pressure, so water well screen pipe can filter sand better. Meanwhile, the slot size can be changed according to the real condition of the earth.



Wedge Wire	Width(mm): 1.50 1.80 2.30 3.00 3.30 3.70 Height(mm): 2.20 2.50 2.70 3.60 4.30 4.70 5.60 6.30 7.00
Support Rod	Width(mm): 2.30 3.00 3.30 3.70 Height(mm): 2.70 3.60 4.70 5.60 6.30
Round	From 2.50mm to 6.0mm
Note	other specifications available as per request
Slot Size	0.10, 0.15, 0.20, 0.25, 0.30…… 6.00mm also achieved upon request
Material	galvanized low carton (LCG), stainless steel (304,316 etc.)
Length	up to 6 meters.
Diameter	from 25mm to 1200mm.
End Connection	Plain beveled ends, flanged or threaded couplings
Application	water wells, mining & Mineral Processing, municipal water supply, refining & petrochemical, water treatment, architecture and construction, etc.



Characteristics:

1. Grade: SUS 304 SUS304L, SUS316, SUS316L, or carbon steel

2. Slot Size: 0.02mm~15mm

3. Standard: DIN AISI ASTM

4. Certification: ISO9001, API

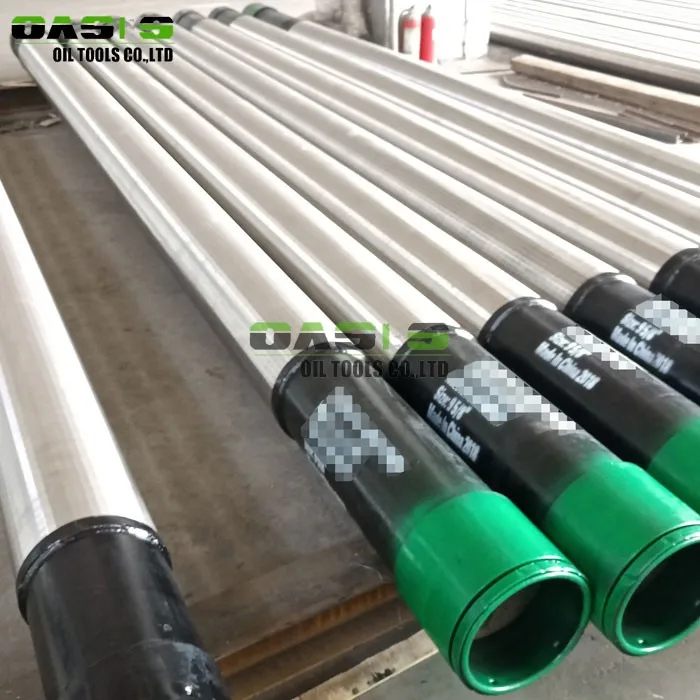

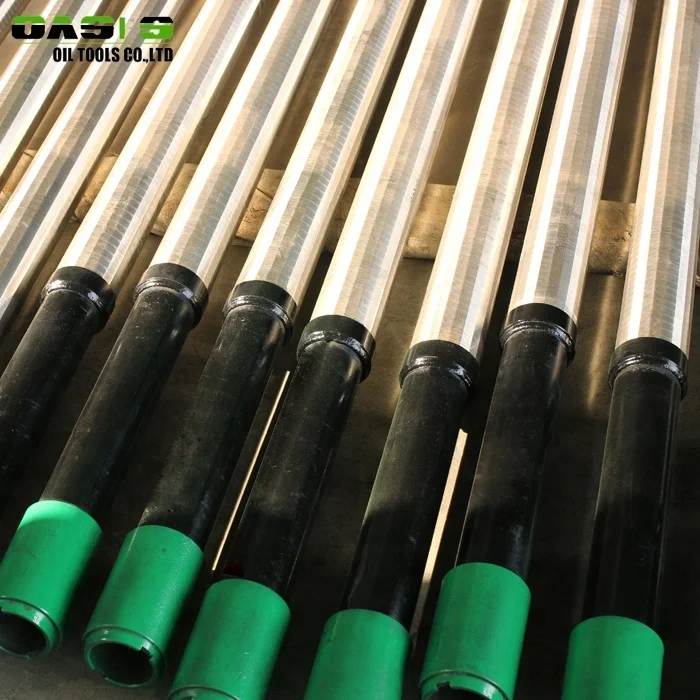

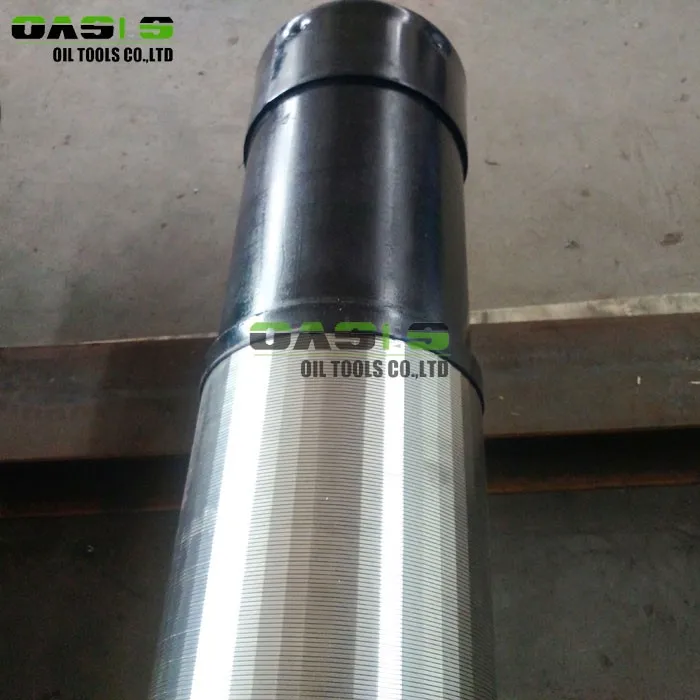

5.Pipe based well screens consist of base pipe,all-welded wedge wire screen and supporting rod.The base pipe is perforated or slotted API casing pipe,the base pipe can be stainless steel or carbon steel API 5CT casing.The all-welded wedge wire screens are welded together with base pipe by supporting rod.



Features of Pipe Based Well Screens:

1.Higher filtering accuracy:All-welded wedge wire screens as screen jacket with vee opening design makes the filtering accuracy higher,which can control sand better.



2.Excellent strength and resistance to deformation:The base pipe inside,the outside can be protected with the protection jacket added according to requirement, the integrated strength of the perforated base pipe only decreases 2~3% compared with the standard casing/oil tubing, so the pipe based well screens have enough integrated strength to resist to the pressure caused by strata.Even if some part of the well screens deformed, the slot of this part will not be widened, which makes higher sand control reliability.



3.More choices:The material of screen jacket can be stainless steel or carbon steel, the material can be chosen according to customers' requirements.



4.The smaller slot will increase the oil and gas production.



5.The excellent technique makes the mass production with high efficiency and low cost available.



6.The specifications can be customized according to customers' requirements.







Single with bubble bags and then in wooden case.

Each case  is clearly marked with:

Batch number

Date of manufacture

Safe heating & application temperature









High Quality, Small Oder Acceptable, Great Service, Promptly Delivery
