High quality Vertical Blast Hot Air Dry Oven

Product Overview

Description

High-quality Vertical Blast Hot Air Dry Oven

Application:
DO-GFL Series Blast Dry Oven is suitable for electrical, electronics, instrumentation, materials, scientific research, production units; mainly used for drying items, baking, heat treatment, sterilization, curing, thermal insulation.

Features:
1, Vertical style streamlined shape lateral, laboratory space saving;

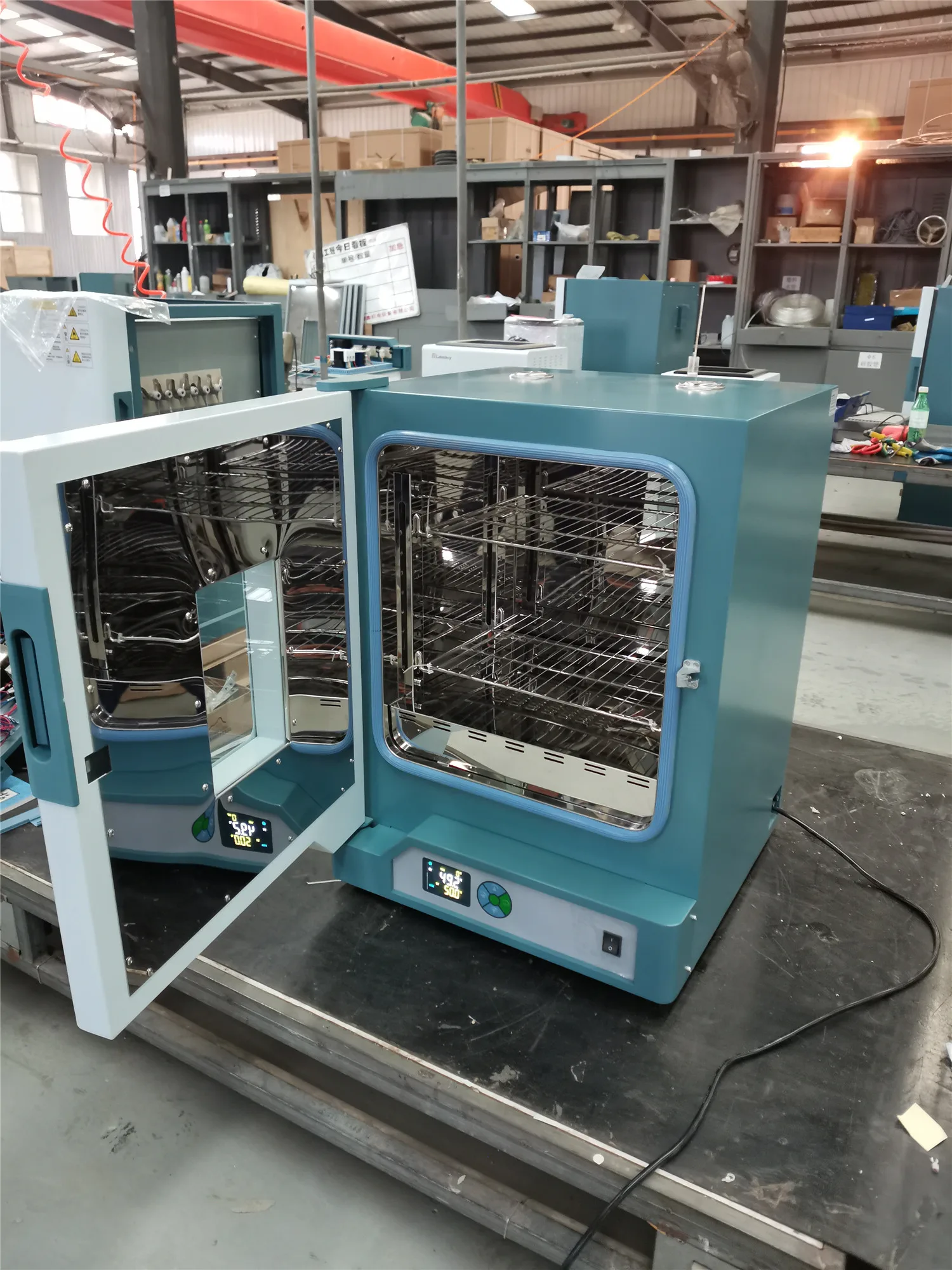

2, High-quality stainless steel mirror chamber;
3, Double layer glass windows;

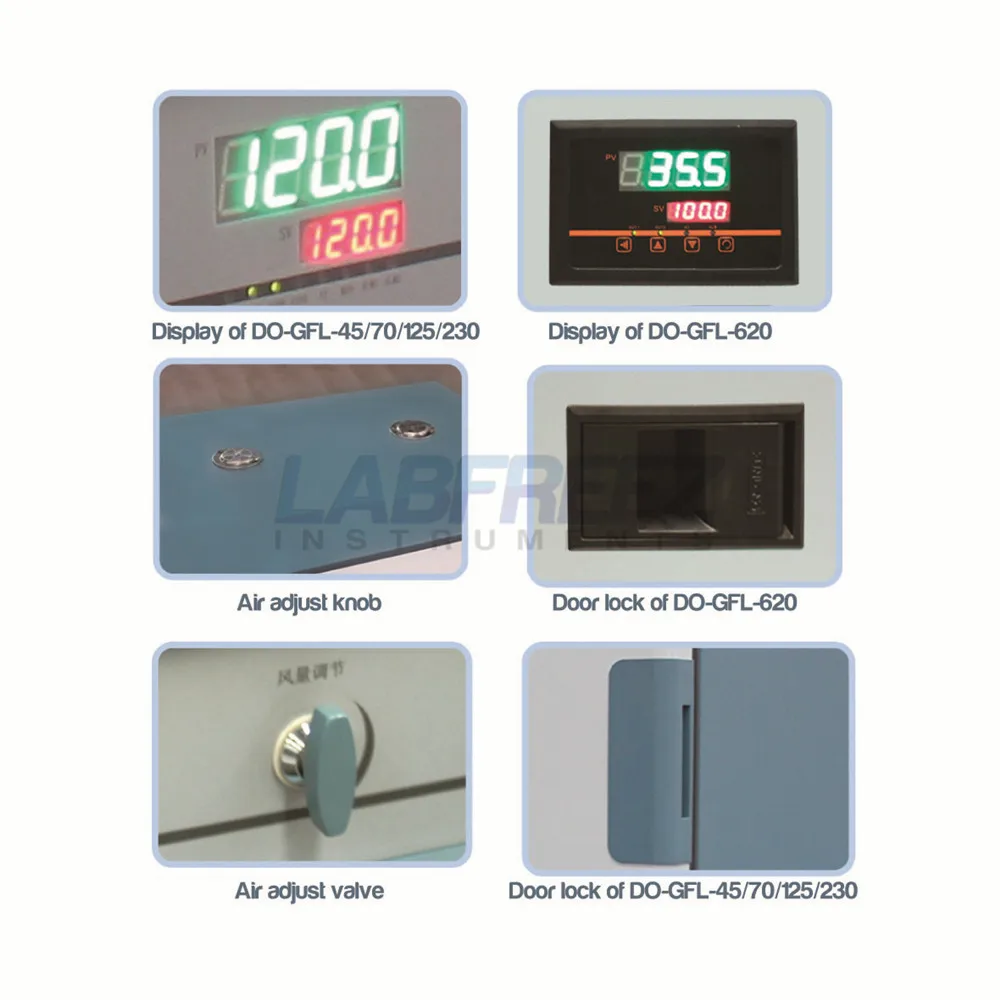

4, Unique fan speed control function;
5, Backside Horizontal air supply;
6, Stainless steel heating pipe to improve efficiency;
7, High-clear digital display;
8, Touch elastic adjustable invisible door lock;
9, PID microcomputer control system, reservation power on/off;
10, Timer, parameter memory, sound and light alarm over-temperature and etc.



Main Parameters:

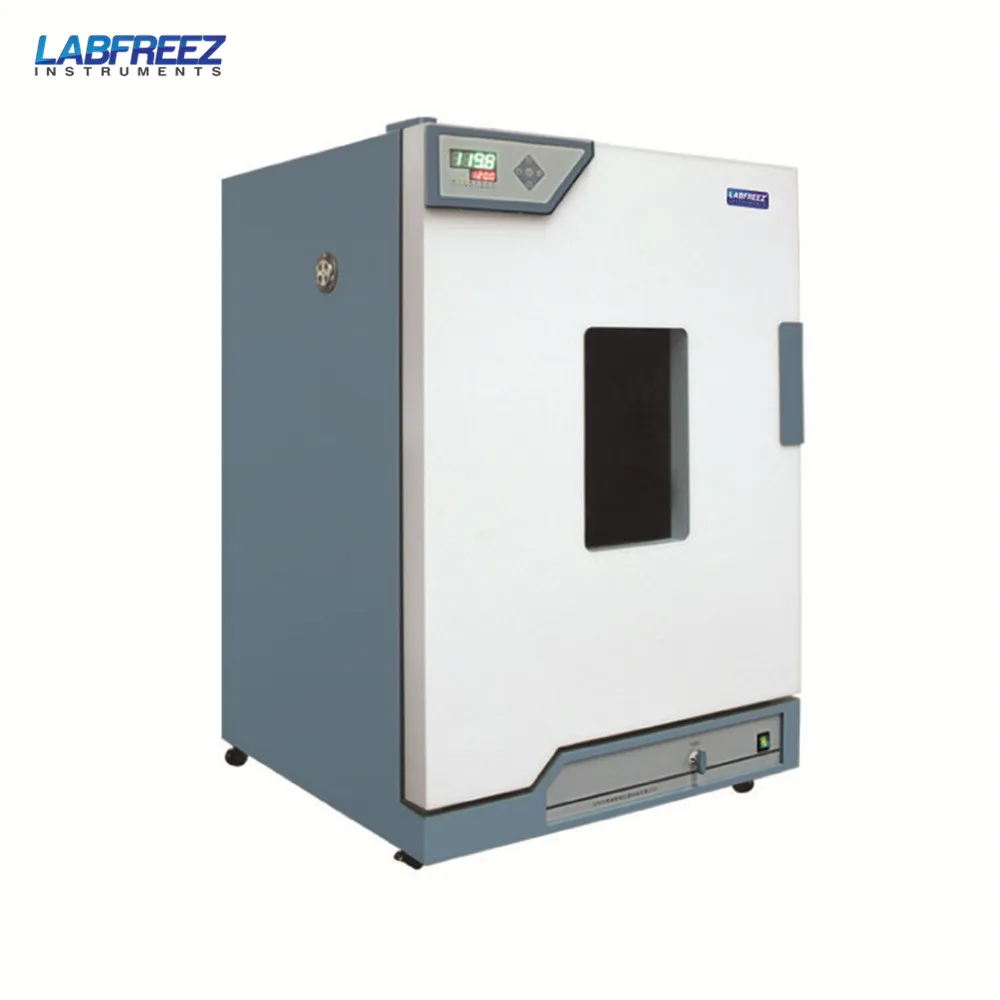

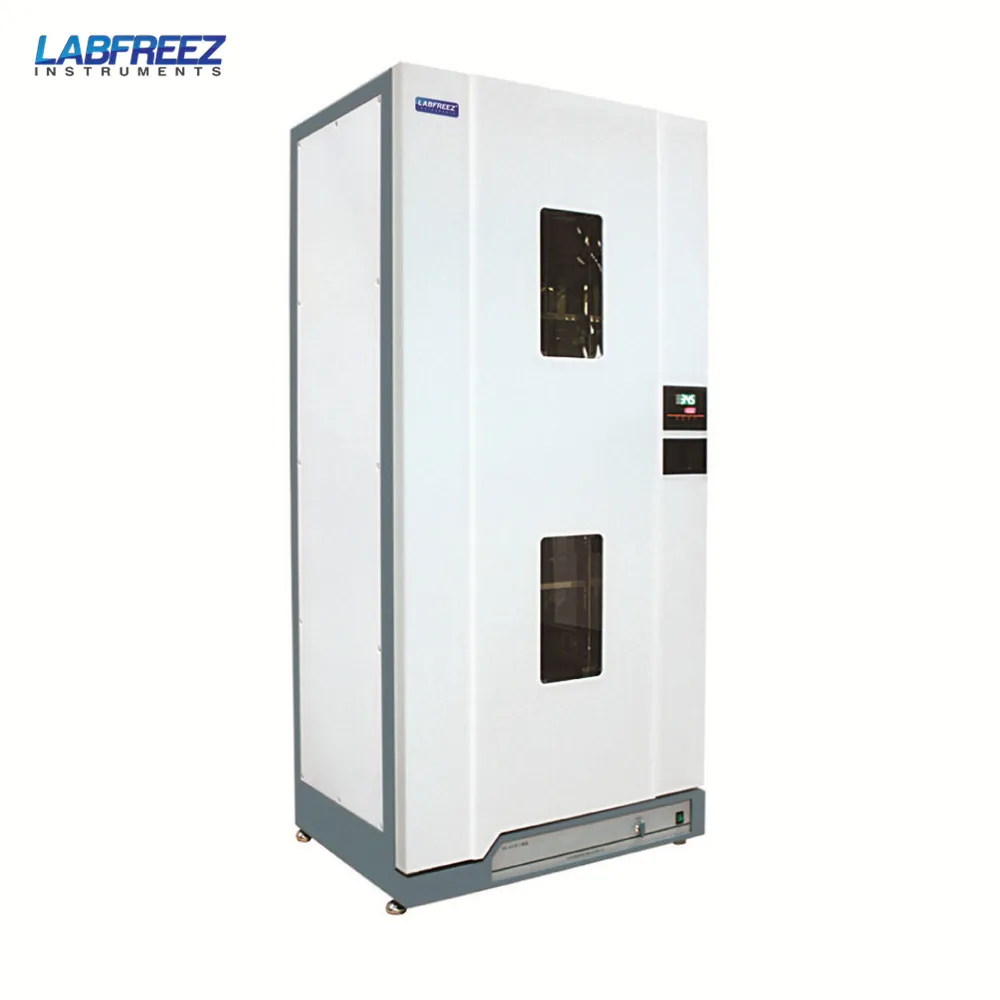

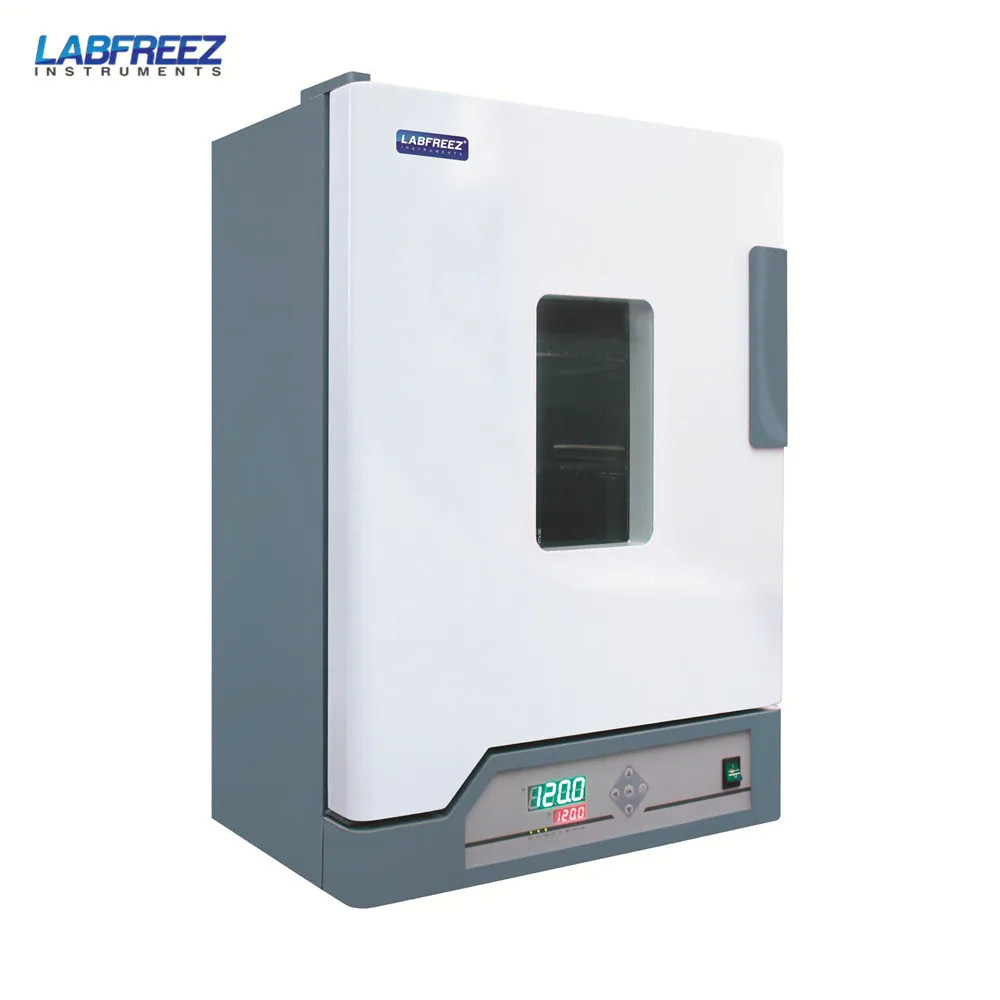

Model	DO-GFL-45	DO-GFL-70	DO-GFL-125	DO-GFL-230	DO-GFL-620
Power supply	220V/50HZ
Temp. range (℃)	RT+5-300
Temp. resolution (℃)	0.1
Temp. fluctuation (℃)	±1
Heating power(KW)	1	1.55	2	3	4
Chamber size (mm)	350*300*400	420*350*460	500*400*630	600*500*750	800*500*1555
Dimensions (mm)	480*525*695	550*575*755	630*625*925	730*750*1100	965*750*1870
Packing size (mm)	595*600*810	665*650*870	745*700*1040	855*860*1230	1080*820*2050
Shelf/load	2pcs, 15kg/pc
Timer	1-9999 min
Ambient temperature	5 ~ 40℃
NW/GW (kg)	36/42	47/54	60/68	87/118	210/254



Optional:

Items	Function
LCD display
Independent temperature limit controller	Temperature controlling& alarm when main controller fault.
RS485 interface	To be connected with computer
Bench-top printer
Multi stage programmed temperature control
