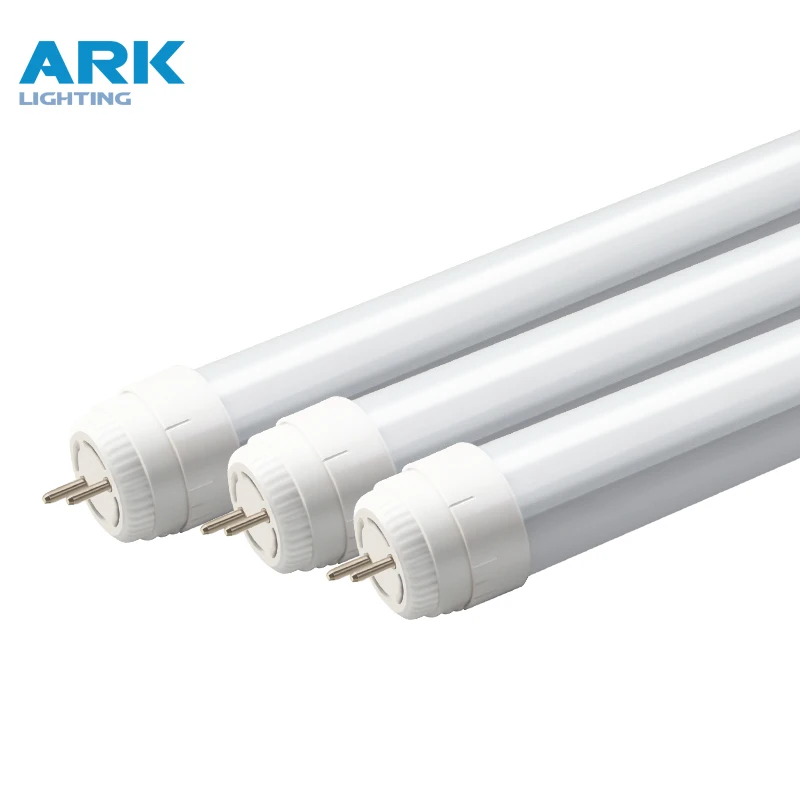

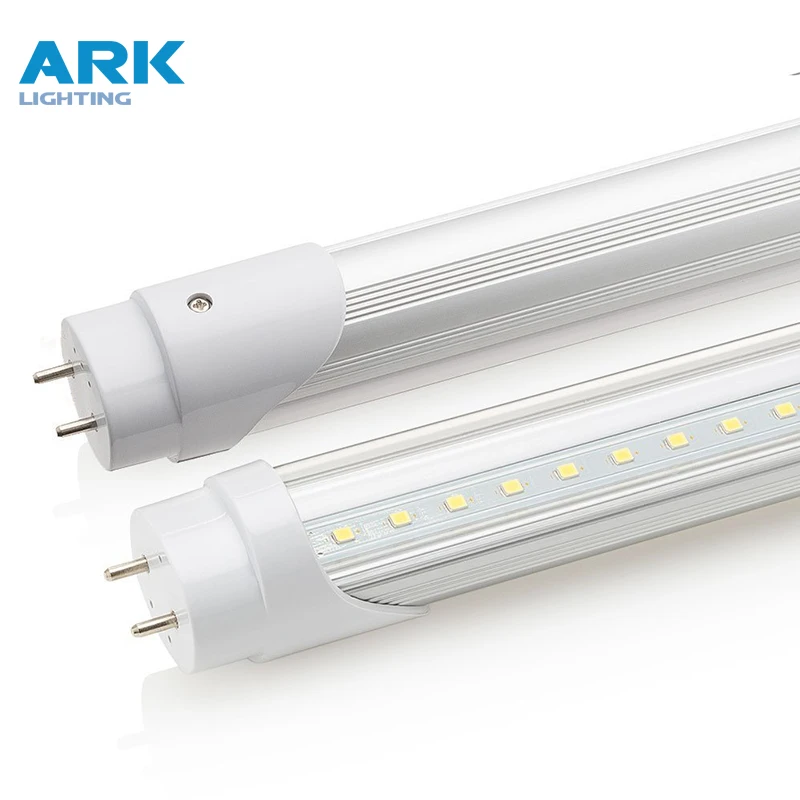

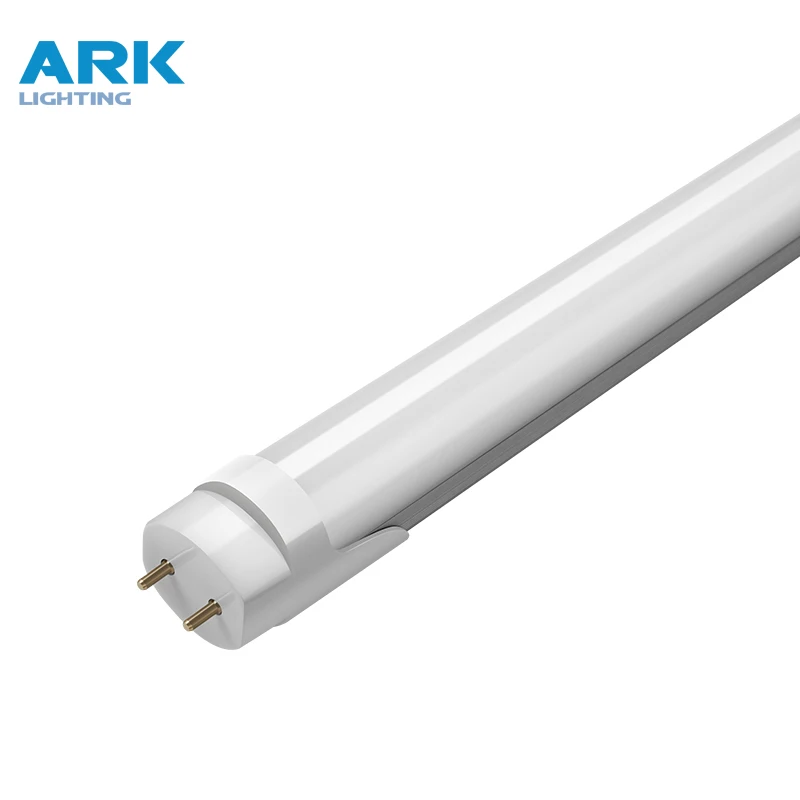

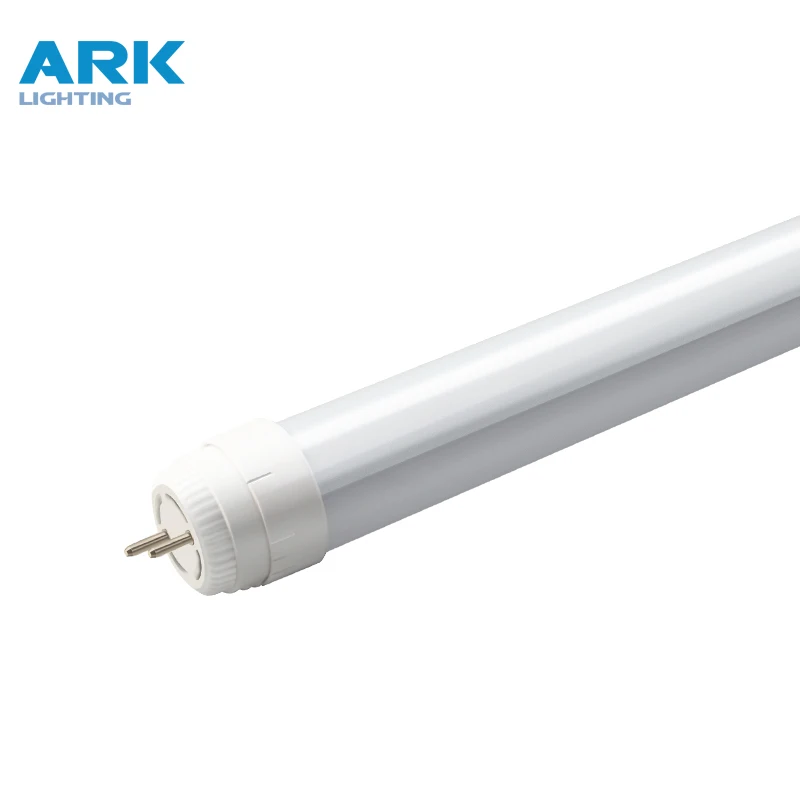

T8 LED 8 Foot 36W 40W Lamp Fa8 Single Pin 4,500 Lumens G13 FA8 R17D
- Category: >>>
- Supplier: Ark Lighting (shenzhen) Co. Ltd.
Share on (60782943772):
Product Overview
Description
Product Description
Description of T8 LED 8 Foot 36W 40W Lamp Fa8 Single Pin 4,500 Lumens G13 FA8 R17D
parameter of T8 LED 8 Foot 36W 40W Lamp Fa8 Single Pin 4,500 Lumens G13 FA8 R17D
Tech Data |
| |
Model | ARK/DB/XXX24 | |
LED Type | Epistar 2835 smd LEDs | |
LED Power | 36W/40w | |
LED Color | 3000K/3500K/4000K/4500K/5000K | |
Input Voltage | AC100-277V | |
Frequency Range | 50Hz – 60Hz | |
Power Factor | >95% | |
Power Efficiency | >90% | |
Luminous Efficiency | 110LM/W | |
Dimension | L1198mm x D25mm | |
Color Temperature | WW | 2700-3500K |
PW | 4000-5500K | |
CW | 6000-7000K | |
CRI | WW | Ra>80 |
PW / CW | Ra>83 | |
Lumens Output | WW | 110lm/w |
PW | 110lm/w | |
CW | 110lm/w | |
Beam Angle | >180° | |
PC Housing | Frosted/clear | |
Working Temperature | -20°C ~ +40°C | |
Storage Temperature | -25°C ~ +65°C(25°Cbest) | |
Life span | 35000~50000hrs | |
Certification | DLC, CE, RoHS, FCC,TUV | |
Net Weight | 0.65Kg | |
package | 126*21*21cm (25pcs/box) 8.0kgs | |
ARK lighting

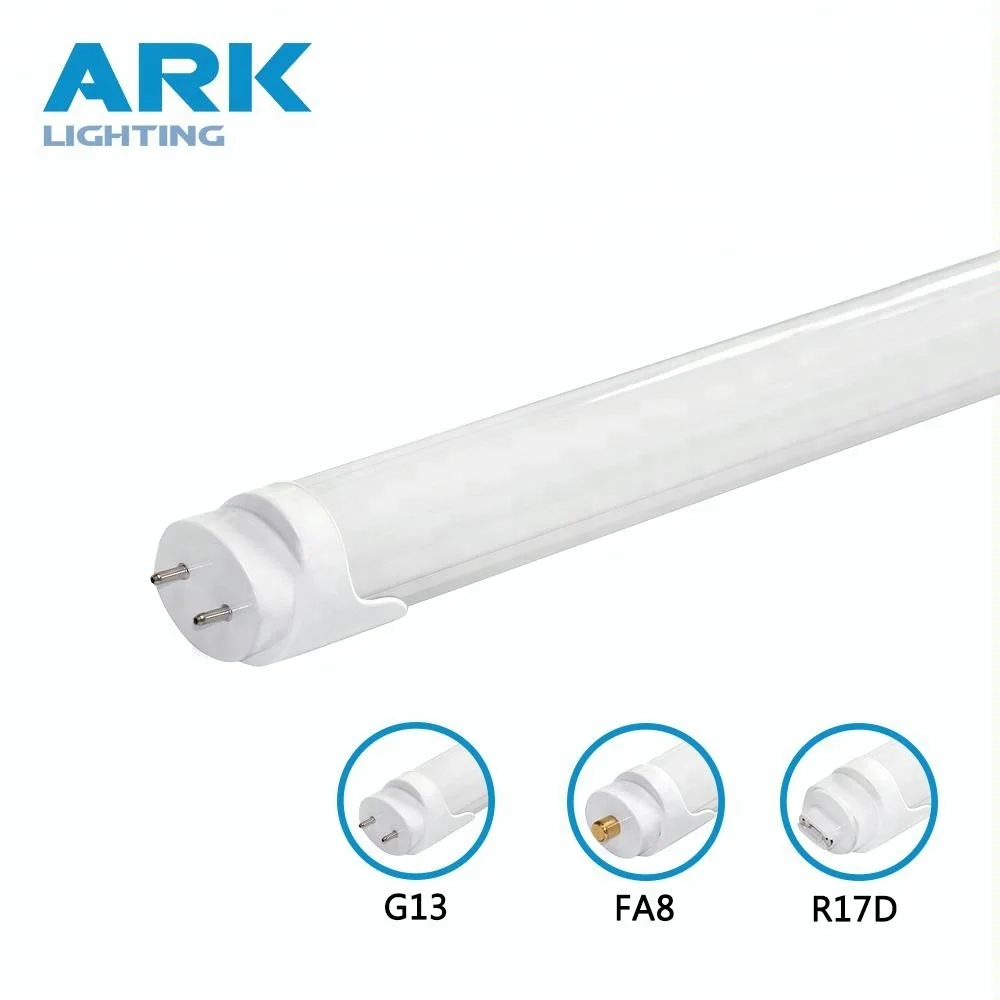

varied end cap for choice!
ADVANTAGE:
1.Patent end cap design,removeable design,save the laber cost!
2.Direct wire to AC 100-277V power without ballast, even if ballast fails, ARK led tube still work well.
Detailed drawing of DLC Listed AL+PC T8 led tube 110lm/w 4ft 18w
Advantages of DLC AL+PC T8 led tube 110lm/w
1,A series LED tube can work well with single tube with Magnetic ballast.
2,AC Power 100-277Vdirectly by one end.
3,Specialized PC cover design for optimal light distribution and smooth visual effect.
4,Highly energy efficiency, meet the requirement of ERP and DLC.
5,Power factor:same as ballast in use,usually>0.95.
6,High-tech optical design.
Application of T8 LED 8 Foot 36W 40W Lamp Fa8 Single Pin 4,500 Lumens G13 FA8 R17D
- School/universities/hospital
- Conference/meeting room, show room
- Commercial complex
- Factories/offices
- Supermarkets
- Residential/institution buildings
Installation of T8 LED 8 Foot 36W 40W Lamp Fa8 Single Pin 4,500 Lumens G13 FA8 R17D
a,work with magnetic ballast
b,If ballast broken, can rewiring AC100-277V connect directly
a.Connect with Magnetic ballast( one side power input):
1,Turn off the power
2,Take out the flurescent tube
3,Install ARK led tube
4,Turn on the power
c.AC100-277V Connect Directly(one side power input):
1,Turn off the power
2,Take out the ballast and starter,rewiring
3,AC 100-277V connect directly
4,Turn on the light.
Certification of DLC Listed AL+PC T8 led tube 110lm/w 4ft 18w
DLC certificate:
More info about DLC,you please search at //www.designlights.org/,type our company's
name ARK Lighting(shenzhen)co.,LTD to find it!
Packaging & Shipping
1. By Express: such as DHL, UPS, TNT, FEDEX etc. The dispatch time is about 3-5 days.
2. Air Freight: when your order more than 100kgs which will be more economical than express.
3. Sea Freight: we will update sea freight once we know your sea port where goods will be delivered.
4. Agent designated by client: please tell us the contact detail of your shipping agent and we will arrange
to deliver the items.
Our Services
1. Provide solutions and high quality products with reasonable price
2. Streamline the buying and paying processes
3. Deliver the goods to our customers all over the world with speed and precision
4. Protection of your sale area, ideas of design and all your private information
5. Warranty: 5 years
Company Information
ARK lighting established in 2007, focus on developing,manufacturing and marking high quality
LED lighting products. With excellent R&D team and over three years’ experience in the filed
of LED source----high power LEDs,we have the leading technology on achieving highest
luminous efficiency LED lighting products.Main product is LED tube which is VDE, TUV, ERP,
CE,ROHS,DLC, lighting facts, FCC, PSE approve for different market.Under the current
sales circumstance, ARK lighting is exploiting the new path which is featured as advanced
technology and outstanding R&D team, stable function and excellent product. What is more,
ARK is always reducing cost through technological innovation,increasing cost performance
and providing sincere service to customers.
2018 ARK Lighting Lighting Fair information:
"HK Lighting Fair"(Spring Edition 2018);6-9th APRIL ,2018,Booth No.:1C-E33
Chicago LFI 2018 :8-10th May 2018,Booth No.2479
certification:
we got VDE, TUV, ERP, CE,ROHS,DLC, lighting facts, FCC, PSE approve for different market.
FAQ
Is the led tube heat disspation good?
yes
1,we use the high quality Epistar smd2835 leds,good quality and high power efficiency,
that the heat are reduce more!
2,The PCB bored,we use the aluminum meterial ,it easy for heat disspation!
3,Big aluminun outside for the heat disspation.
Is the led tube safety when shipping?
Yes
1,we use the strong bubblepak safe packing for evey tube!
2,For 25 CTNs ,we put them in a pallet to protect it!
Why chose us?
1, we have 8 years experience in US market for the led tube!
2, All of our led tube for US market with certificate ,DLC
How many years warranty do you have for LED tubes ?In case something
goes wrong and we need to use warranty, what is procedure for getting new lamps?
1,we offer 5 years warranty
2,We have our warranty letter, in warranty period, in case of any our product is found to be defective
in materials or workmanship,we will send replacement or rearing the defect and return back to you!
More documents(IES file, integrating sphere test report, DLC cert) or samples
required,please contact me!
