Product Overview
Description
Hotsell cheap and high precision
ACZ-8 magnetometer detector
mineral detector proton magnetometer
Product Description
Technical parameters of ACZ-8 magnetometer detector/mineral detector proton magnetometer:
ACZ-8 magnetometer detector/mineral detector proton magnetometer which bases on the principle of the free precession of the magnetic moment of hydrogen proton in magnetic field. This mineral detector could be vastly used in weakly magnetic mineral prospecting &metal detection with high resolution of ±0.5nT in the global area without any parameter modification.Besides,ACZ-8 mineral detector has some amazing advantages such as built-in GPS,coordinate record ,navigation lights etc.
| Measuring range | 20,000nt~100,000nt |
| Measurement Accuracy | ±1nT |
| Resolution | ±0.1nT |
| Allowed gradient | ≤8,000nT/m |
| GPS positioning accuracy | ≤2.5m |
| Screen | 320x240 graphic LCD with backlight |
| Input keyboard | 16 keys |
| Working temperature | -10°C~+50°C |
| Data transport | USB |
| Data interface | USB2.0 |
| supply power | Built-in big capacity recharge lithium battery |
| Weight | 2.3kg |
Features of ACZ-8 magnetometer detector/mineral detector proton magnetometer:
1. Full intellectual property
2. High-tech product
3. Efficient, easy to operation
4. High accuracy, wide frequency range
5. Built-in GPS, coordinate record, navigation lights, and the connection is more simple, and the instrument is more reliable.
6. Full-scale automatic tuning or artificial manual tuning. Built-in precision clock, GPS timing to ensure the clock of base stations and mobile stations is accurate synchronization.
7. Each point is stored with the information of the magnetic field result, point coordinate time and temperature etc., directly output all the data with a U disk.
8. English interface, and automatically displays the magnetic field value curve, the operation is more easier and convenient.
9. Portable and light, one person can finish all the work.
10. Equipped with the software to do the diurnal correction and create the contour map and profile map.

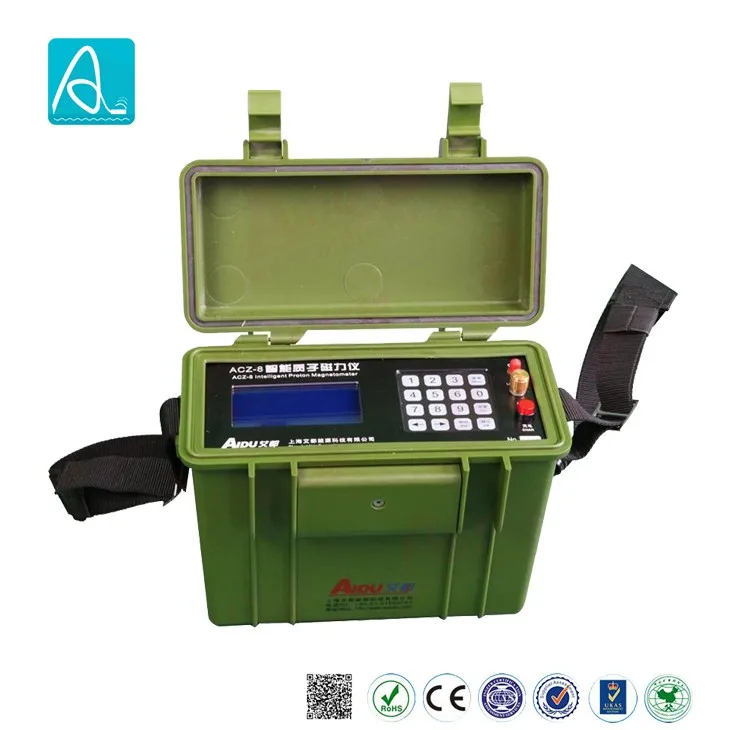

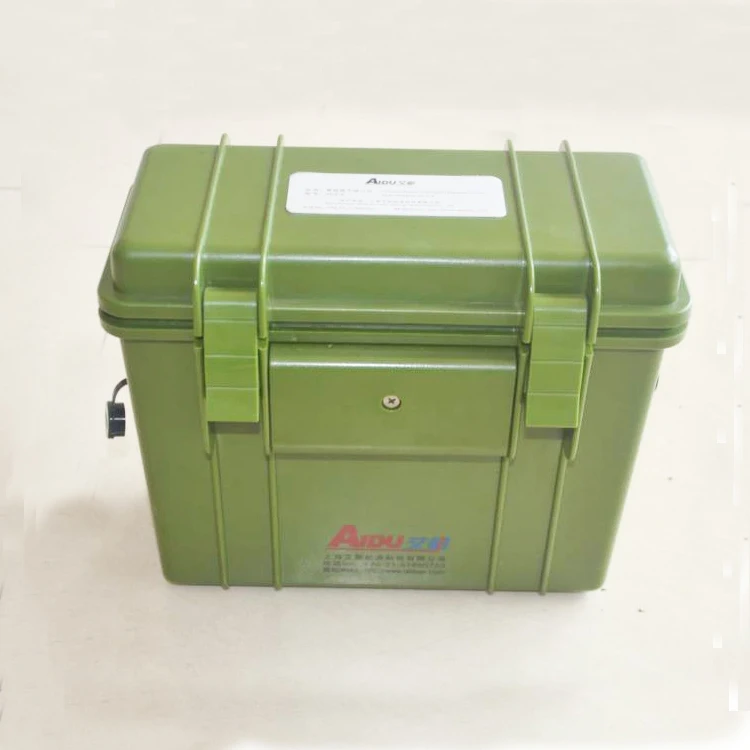

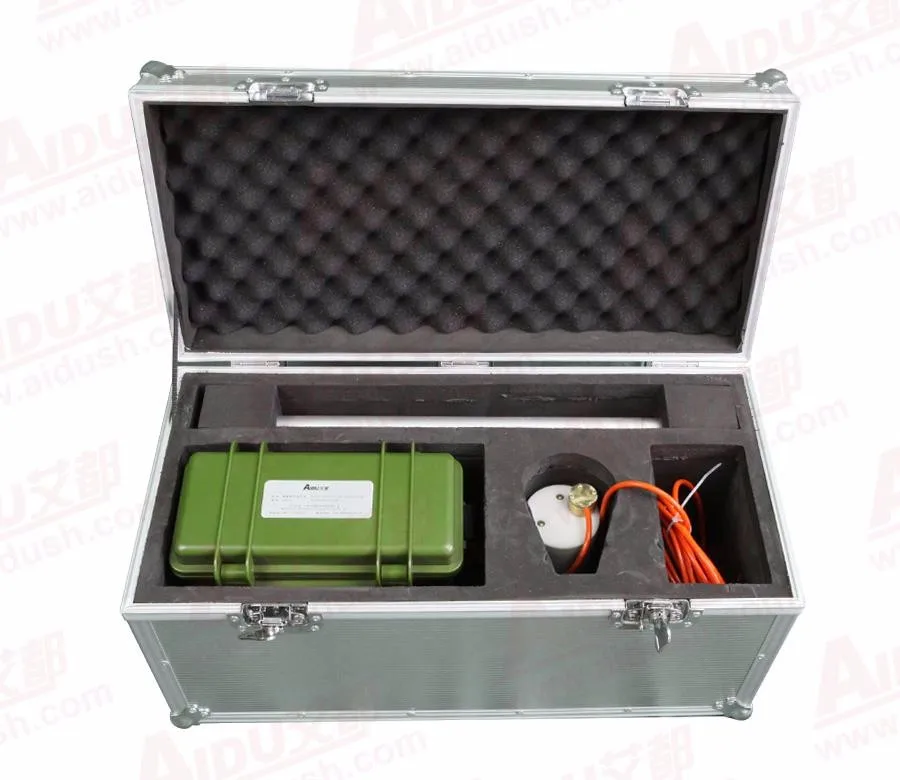

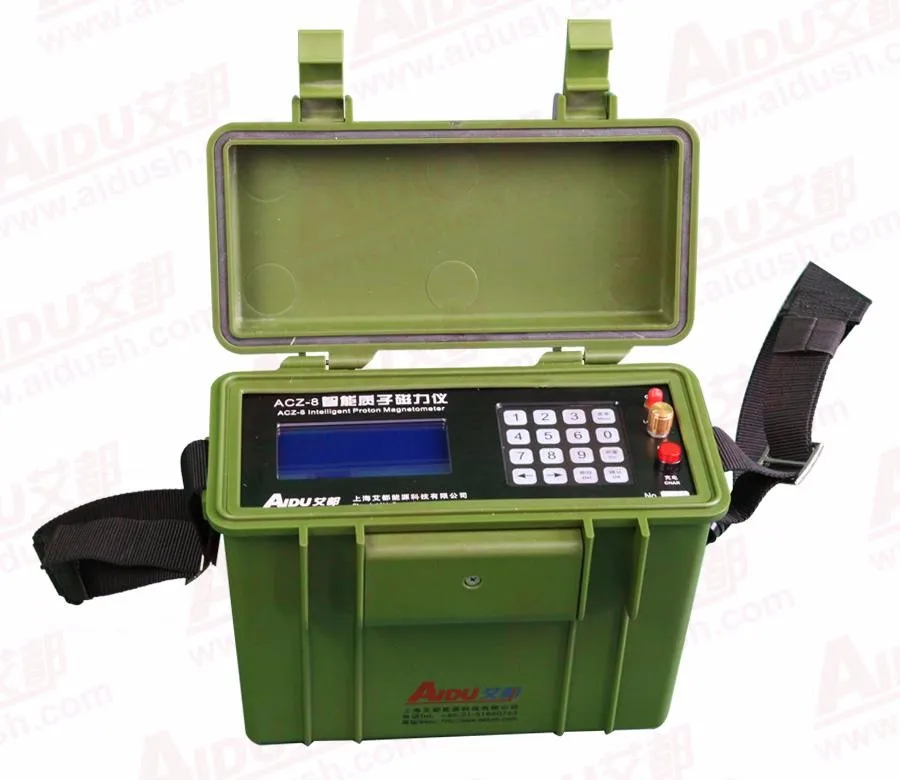

Pictures of ACZ-8 magnetometer detector/mineral detector proton magnetometer:
The Principle of ACZ-8 magnetometer detector/mineral detector proton magnetometer:
The principle of ACZ-8 magnetometer detector/mineral detector proton magnetometer is that the magnetic moment of hydrogen proton will make free preccession in magnetic field,which could be used to measure the abnormal magnetic change generated by the ground geological substance.we can estimate underground geological formation nature (ground water) and mineral conditions like location, buried depth, shape and volume etc. after doing interpretation to abnormity.
Main Application of ACZ-8 magnetometer detector/mineral detector proton magnetometer:
1. Widely used in mineral exploration(such as iron ore, lead and zinc, copper etc.).
2. With mining exploration, research the ore body’s buried depth, occurrence and continuity, and study the shape and size of the ore body, estimate the deposit, oil and natural gas exploration,
research the geological structure and tectonics of oil and gas etc..
3. The diurnal correction of aviation and marine ground magnetic survey, fault location, archaeologic, engineering exploration, such as pipeline detection, earthquake precursor monitoring, and
volcano observatory, as well as other environmental and disaster geological work.

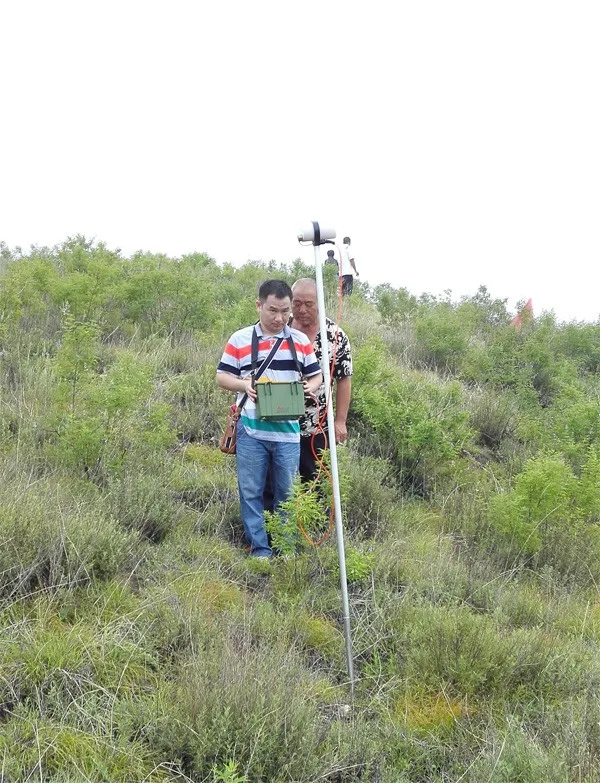

Successful Cases-ACZ-8 magnetometer detector/mineral detector proton magnetometer:
Product Categories
Company Information
Certifications
Why Choose us
Payment and Shipping
Contact us
Q:Is it difficult to operate?
A:The instrument is easy to operate, we can share how-to video with you and we will send you the detailed operation manual. via email. If you have some basis of computer operating, generally it only need 2hour to manage it.
Q:What’s your delivery port?
A:Shanghai or other main port of China.
Q:What’s your packing?
A:Aluminum specialized box or carton.
Q:Can we place OEM orders?
A:Yes, OEM orders are acceptable, We can manufacture machines according to your requirements:such as design, logo, color, material or brand information.
Q:Does machines have warranty period?
A:Yes, our machine with one year warranty period for main parts, quick parts are excluded.
