Product Overview


Product Description

Automatic BLDC stator linear winder  coil winding machine


Linear winder Introduction:

The stator winding machine is suitable for BLDC Linear stator coil winding, the coil winder adopts servo motor control the winding.

During the coil winding process,It can achieve auto winding, auto wire acrossing, auto tapping, auto wire arraying, the winding speed can be set on the HMI.

The linear winder has self-diagnosis and remote diagnosis function, the output can be stored inside the HMI.

The linear winding machine is easy to operate and high in efficiency, which greatly improves work efficiency and reduces labor costs.


Linear winder Specification:

Production name :BLDC stator linear winder
Wire diameter :0.5-1.3mm
Stator O.D. :60-260mm
Stator stack length :6-50mm
Winding speed :500-3000 R.P.M
Spindle No. :4 spindles
Voltage :380V 50/60Hz
Weight :about 400kg
Dimension :1000*1300*1500mm

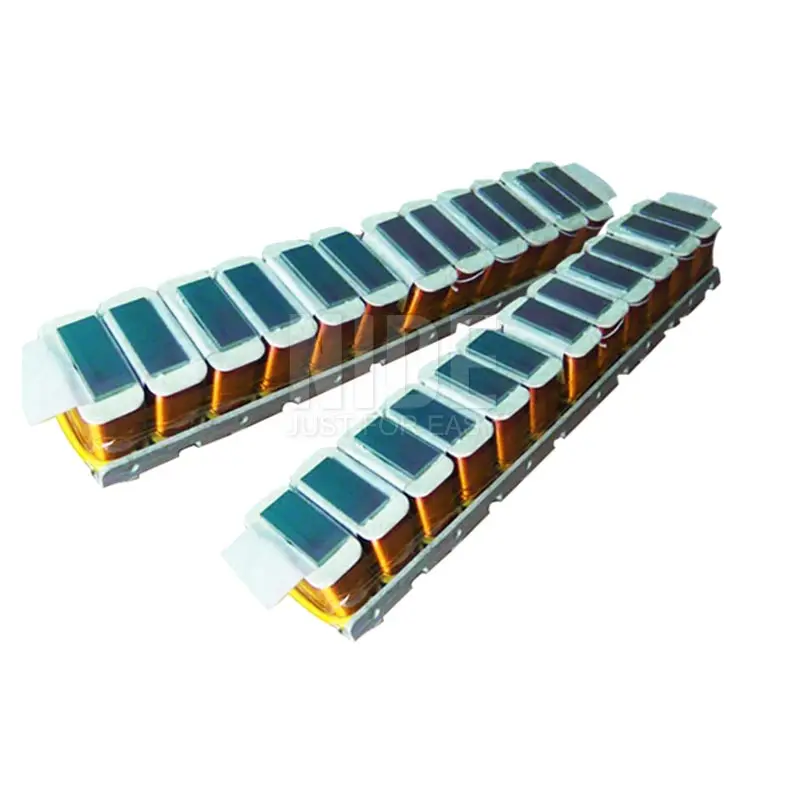

The BLDC stator completed by linear winder winding






provide our customers with full package of optimized solution to motor manufacturing.




More Information


Established in 2007, Nide is a company devoted in the field of electric motors manufacturing, providing one-stop service for its customers.
Nide has three main business divisions.

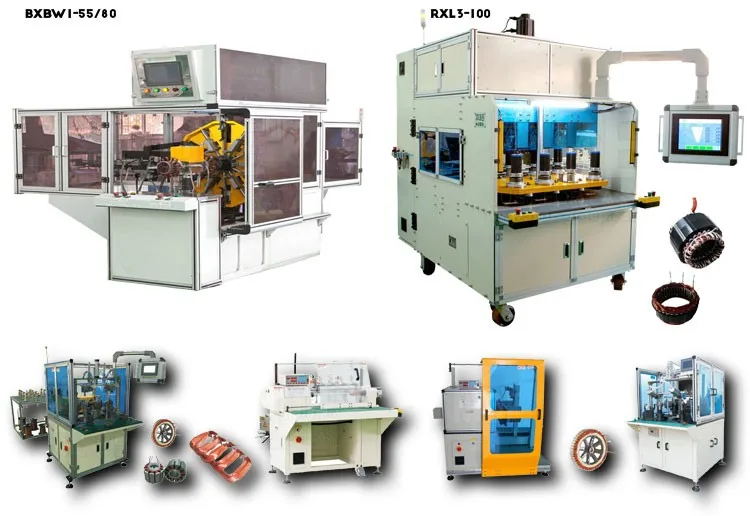

The first division is to provide different kinds of motor manufacturing machinery, it is our Main business, including stand along machine, fully-auto complete line for armature and stator production, and the motor assembly line.
The second division is to supply the full range of motor components such as commutator, ball bearing, carbon brush, insulation paper, shaft, magnet, fan, motor cover,etc.
The third division is to provide technical support and consulting, project support and turn-key service for some motor manufacturing.

Our machines are mainly applied to induction motors, BLDC motor, universal motor, three phase motor, single phase motor, AC motor, DC motor, such as washing machine motor, air conditioner motor, pump motor, cooler motor, alternator motor, fan motor, ceiling fan motor, compressor motor, power tool motor, vacuum cleaner motor, mixer motor,  series motor, electrical car motor, wheel hub motor, electric toothbrush motor, hair dryer motor, electric shaver motor,etc.



With good service, unique philosophy, professional team and reliable quality, we win the worldwide customers' confidence gradually. We directly and indirectly supply our products to more than 50 countries such as Germany, U.K, Spain, Italy, Turkey, Brazil, Argentina, Mexico,  etc. Among the customers, many of them are the world-renown companies.


Customerized service1. Customized product design and manufacturing
2. Customized tranning
3.Technical suggestions
After-sales service1. Warranty Period: 12 month usually
2. Overseas service center available
3. Engineers available to service overseas
