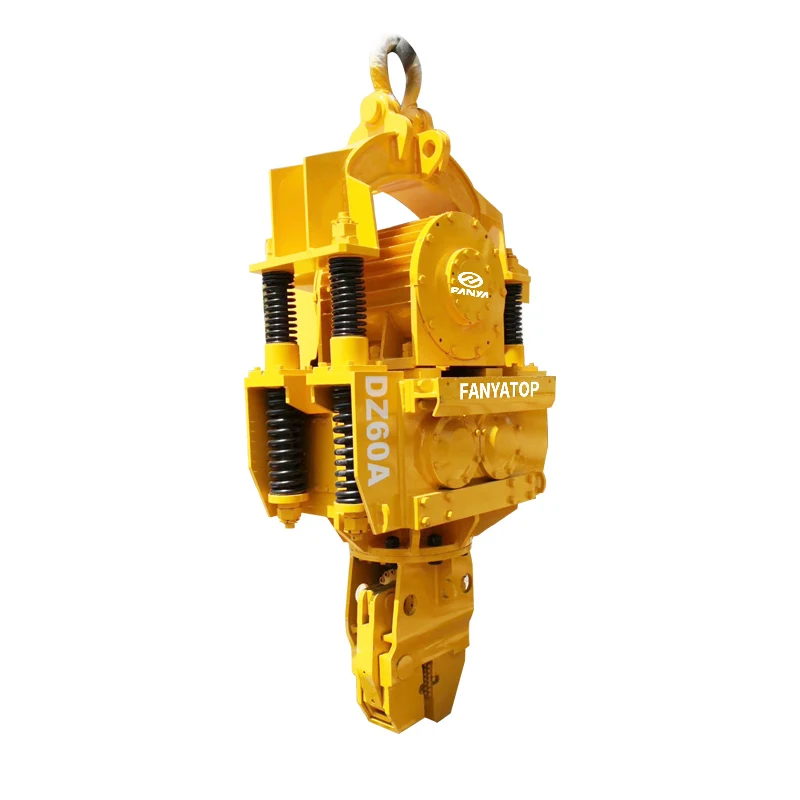

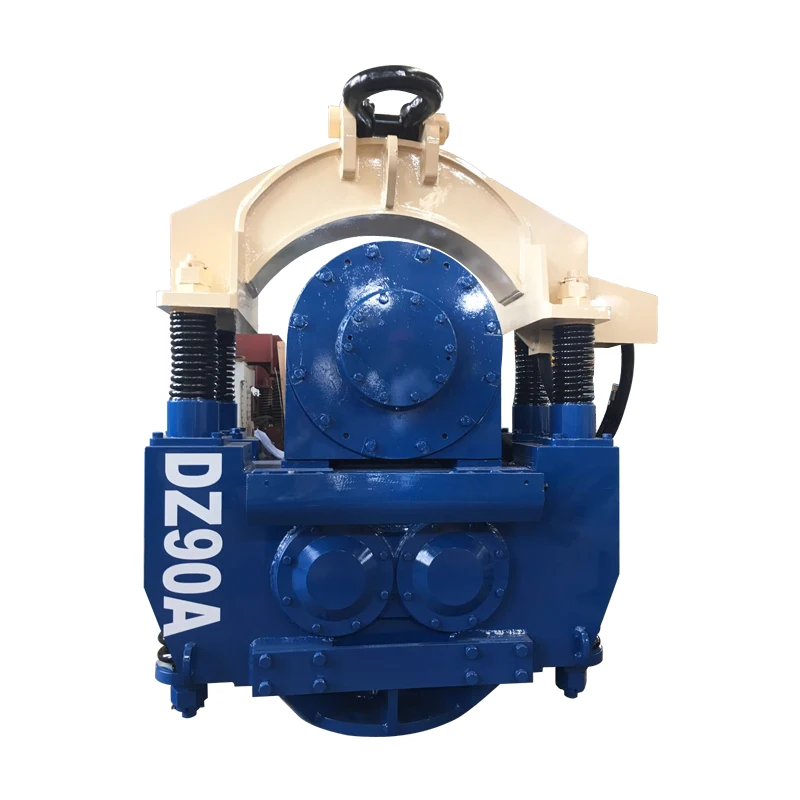

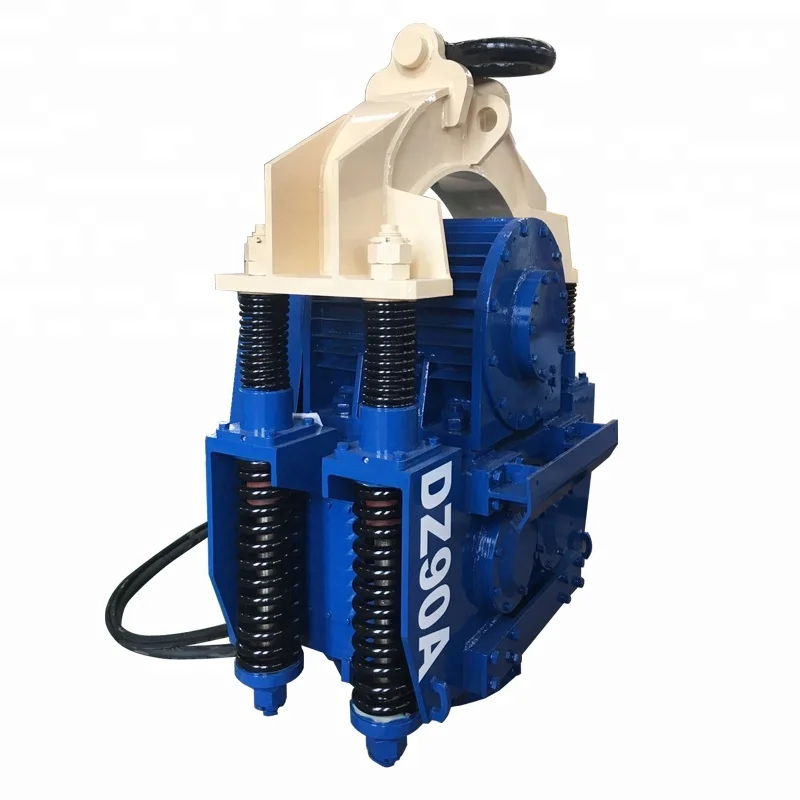

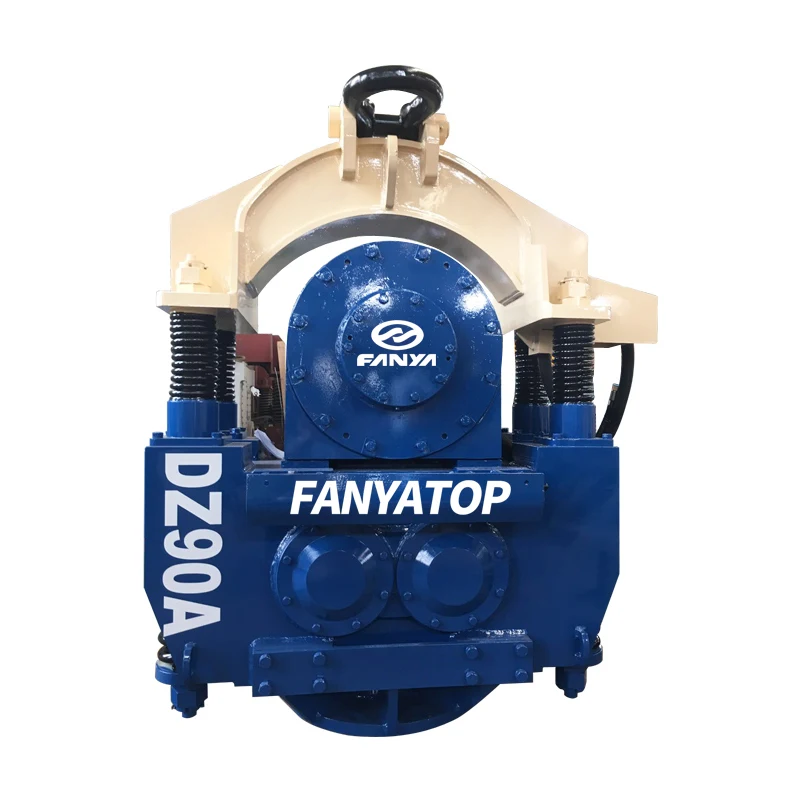

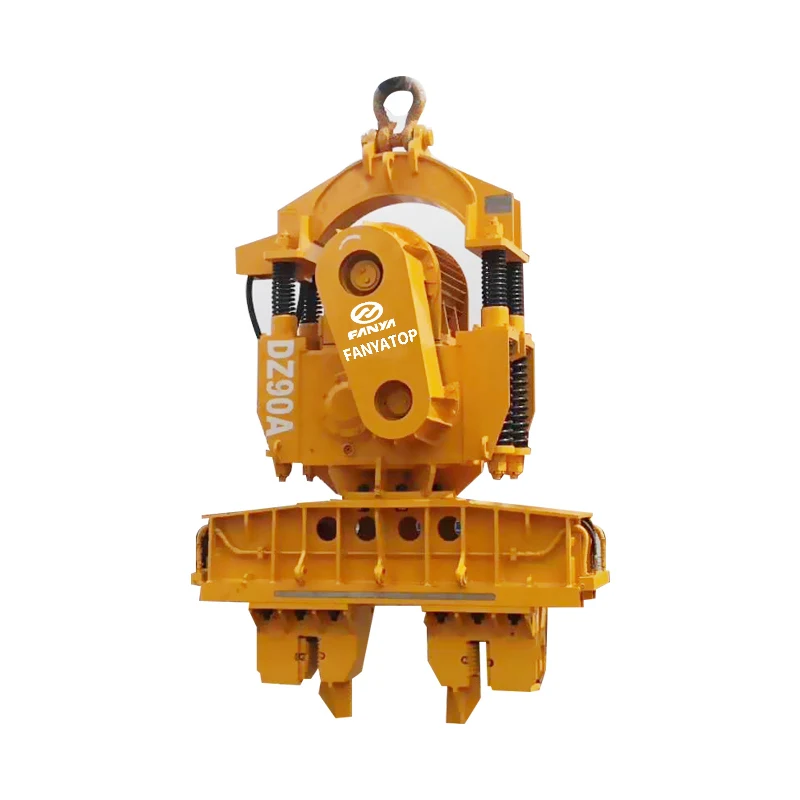

DZ60A electric vibro pile hammer for sheet pile

Product Overview

Description

DZ60A electric vibro pile hammer for sheet pile/pile  driving



 Advantage Of electrical vibro hammer
1. High effiency of piling and pulling pile
2. Wide Applications
3. Environment-friendly product
4. Easy operation and maintenance
5. High Quality Components
6. Long lifespan

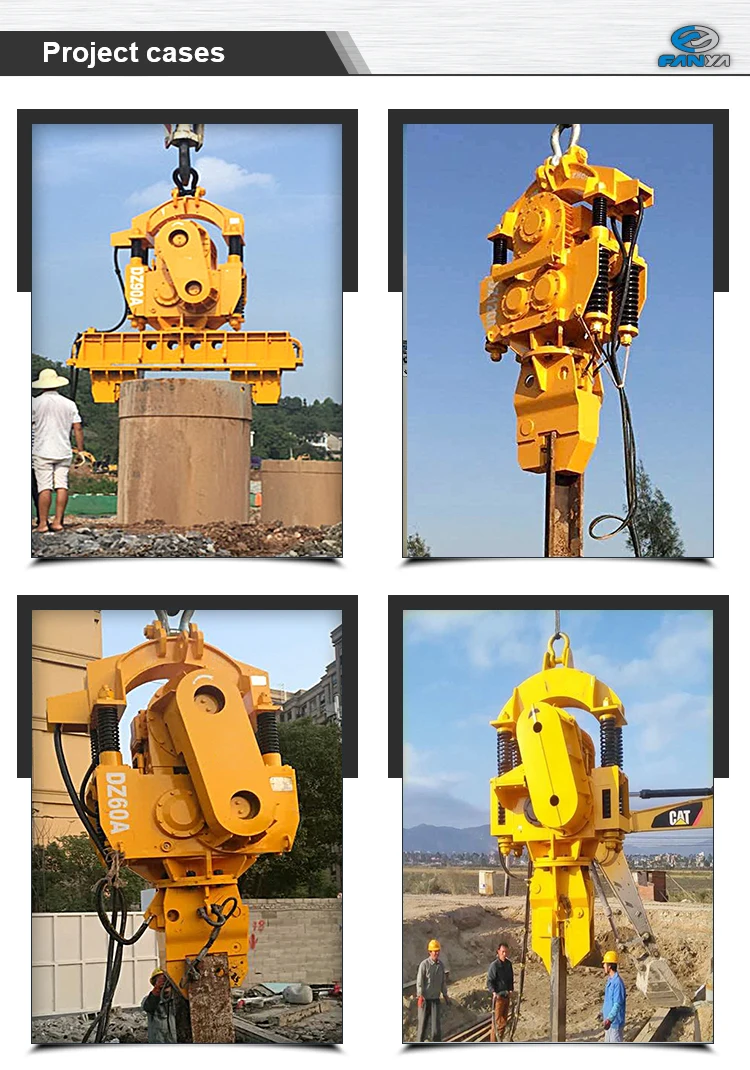

Scope Of Vibratory Hammers Application
Concrete pile, steel pipe pile, steel sheet pile, etc.

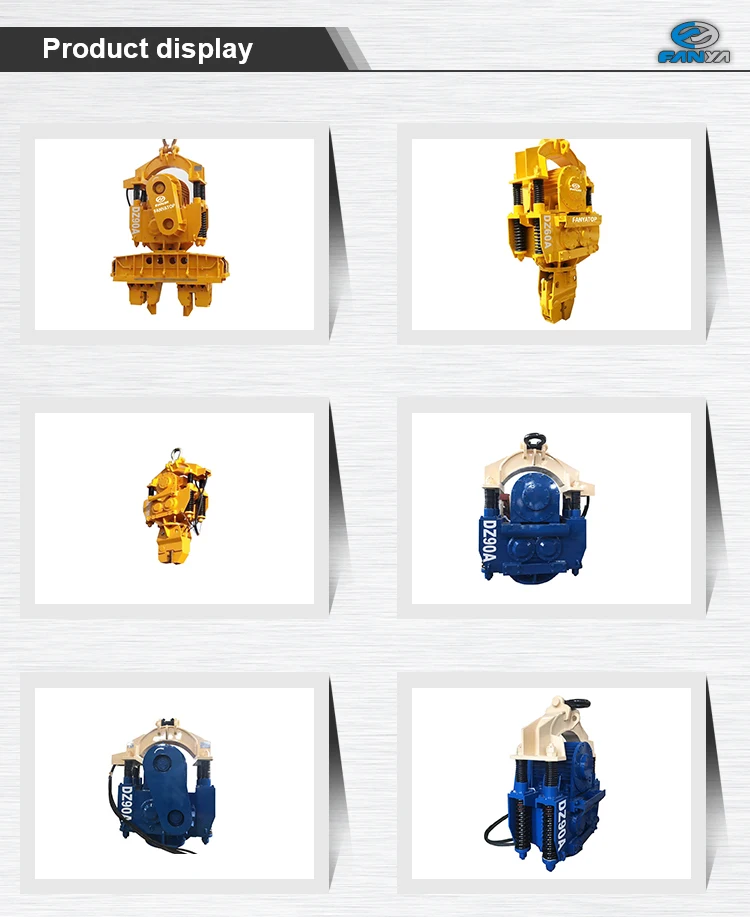

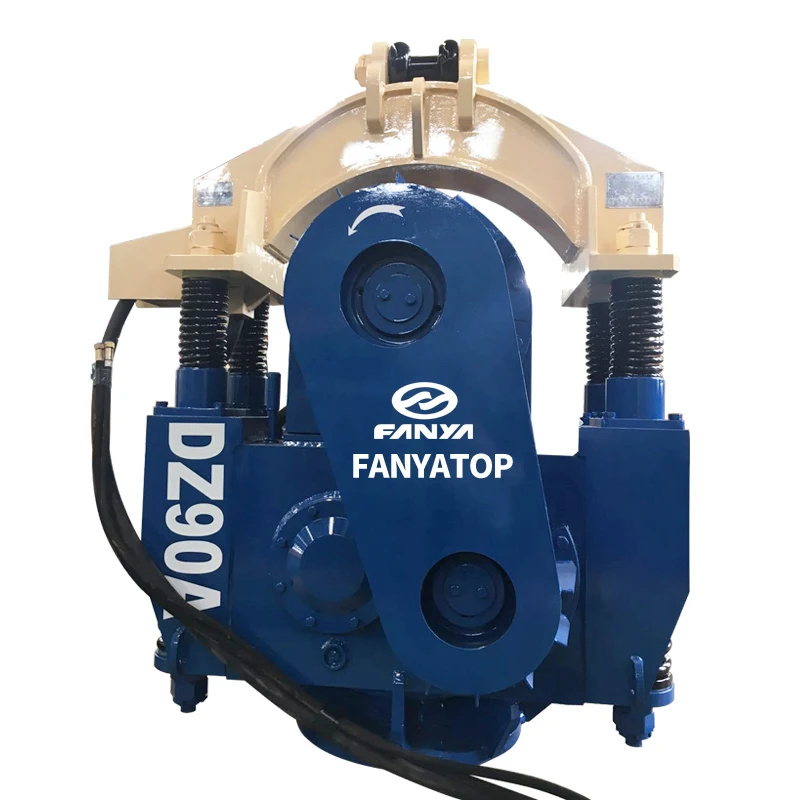

The models of FANTATOP brand electric vibratory hammer include DZ30A, DZ45A, DZ60A, DZ90A, DZ120A, DZ135A, DZ150A, DZ200A, mainly used for piling and pulling concrete piles, steel pipe piles, steel sheet piles, etc.



Its performance index has reached the international advanced level of similar products. It has the characteristics of strong pouring force, good quality of sinking pile, strong and durable, few failures, convenient use and maintenance, strong power adaptability, low noise, etc .; after matching with pile frame, it can sink concrete pouring pile, concrete bottom pile, lime pile, Sand piles and gravel piles; after being equipped with pile clamps, precast concrete piles and various steel piles can be drawn. Models are 40kw to 200kw and so on. They are ideal equipment for basic constructions such as highways, bridges, airports, and buildings.



What are the main characteristics of the electric vibration hammer?

The main characteristics of the electric vibration hammer during operation:

1. Both pile sinking and pile pulling are possible. Because the vibratory hammer achieves the goal of sinking the pile by reducing the frictional resistance between the pile and the raw soil, in a situation where the frictional resistance between the pile and the raw soil is reduced, a force slightly larger than the weight of the pile and the hammer Pile up. Because of this, the electric vibratory hammer is not only suitable for sinking piles, but also suitable for pulling piles.

2. The construction operation is more convenient. The electric vibratory hammer does not need to be provided with a guide pile frame during the construction, as long as it can be lifted by a crane to operate, but it requires sufficient power supply.

3. With environmental protection function. The electric hammer has low noise during operation, no harmful gas is generated, no damage to the pile head, fast operation speed, convenient operation, simple protection, and low construction cost.









MODEL	DZ60A
Motor Power	60kW
Frequency	1000r/min
Eccentric moment	360Nm
Centrifugal force	450kN
Amplitude	9.6/10mm
Max.Extraction Force	200kN
Overall Dimensions H	2.24m
Overall Dimensions L	1.21m
Overall Dimensions W	1.37m
Total Weight	4320kg
Wire cable	35mm2
Clamp	Single
Diameter of the pile	/
Generator capacity	≥200kW
Min crane capacity	≥35t
