Truck spray booth TARGET Manufacturer 15m Truck spray booth with factory price industrial painting oven spraybooth
- Category: >>>
- Supplier: Yantai Target Electromechanical Equipment Co. Ltd.
Share on (60782977671):
Product Overview
Description

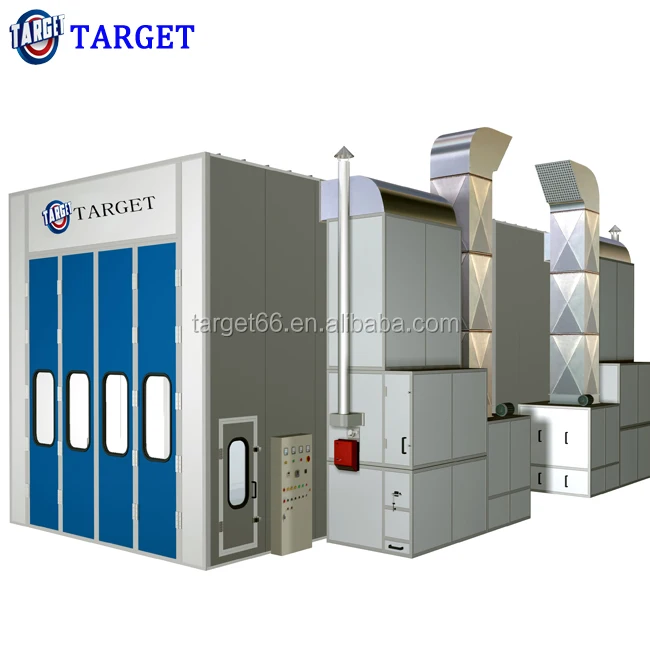

15m Truck spray booth with factory price/industrial painting oven
Specifications:
Spray Booth 15m Truck Diesel Burner TG-15-50 | |
Inside dimension | 15000x5000x5000mm(L×W×H) |
Outside dimension | 15144x6896x5600mm(L×W×H) |
Wall panel | Profiled bar beams in the roof to strengthen the room body,Wall panel thickness: 70mm, width: 710mm, tongue and groove interlock structure, with Polystyrene(EPS) insulation inside, colour: white. |
Doors | Folding door, 4 -folds, 4000×4500 mm(WxH), galvanized steel cover frame, with polystyrene(EPS) inside, colour: blue.Escape door: 2 units, 800×2000mm(WxH)/PC, colour: white. |
Basement | without basement. 2 rows of pits in the ground for exhaust air, dimension of each pit is12650x760mm(LxW), with galvanized grilles made by twisted steel and flat bar above. |
Intake air system | 4x7.5KW double-intake centrifugal fansfor intake air, Total air capacity is 84000M3/h. |
Exhaust air system | 2x11KW double-intake centrifugal fansfor exhaust air, with motor outside, belt-drive, total air capacity is 72000 M3/h. |
Damper actuates | Equip pneumatic dampers actuates from spraying to baking cycle, manual dampers for exhaust air. |
Heating system | 2units RIELLO RG5S diesel burners,Stainless steel heat exchanger. Max. Heating productivity:520000Kcal/h. Max. Working temperature: 80℃. |
Filter system | Pre-filter, ceiling filter, exhaust fiberglass filter, activated carbon filter. |
Filtering area | 44M2 |
Lighting system | Ceiling lights: 18units x 4 pcs=72pcs x 36W, Side lights:: 22units x 4pcs=88pcs x 36W, up and down interleaving installation. with electronic ballasts. |
Control system | Spraying, heat spraying, baking, time setting, lighting switch, failure indicator, thermostat, power supply switch, emergency stop, ampere meter, voltmeter, hour meter, temperature limit controller, pressure gauge, exhaust reduction voltage motor start. |
Total power | 60Kw |

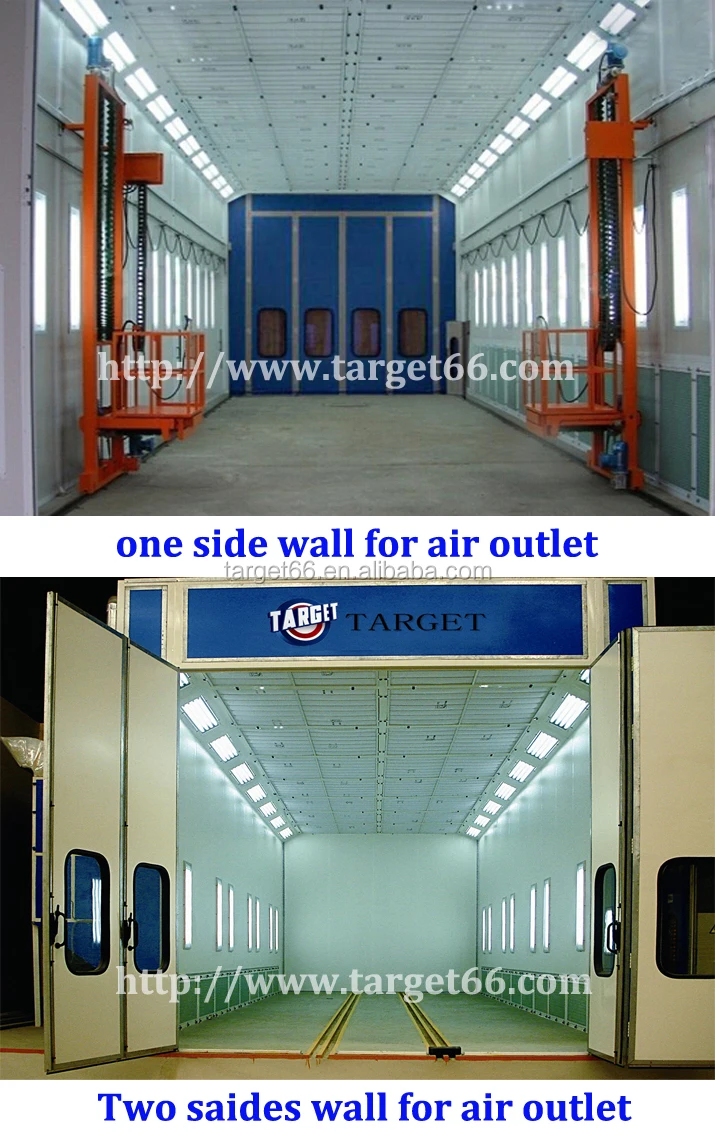

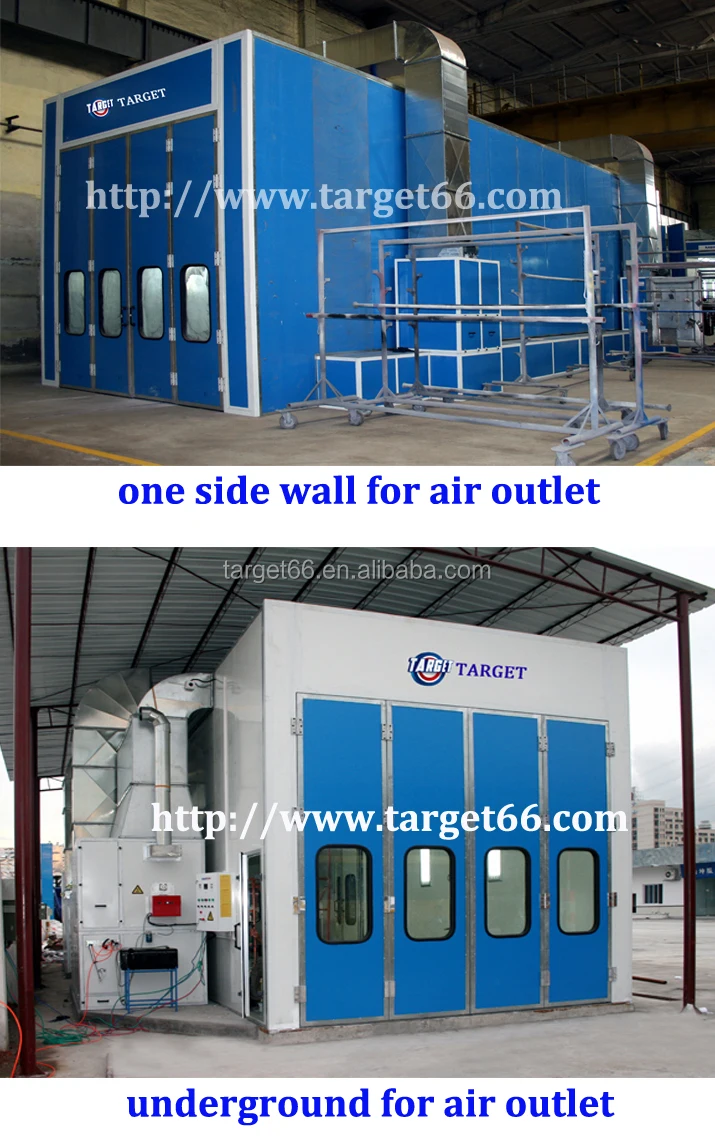

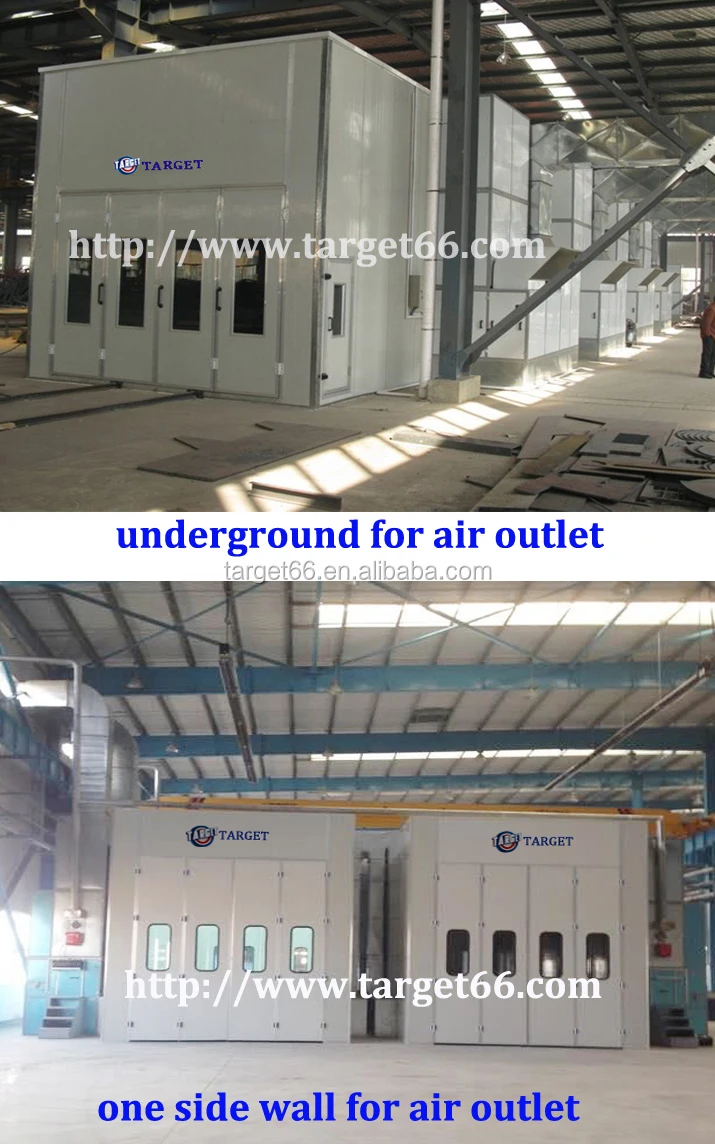

Customers Workshop :

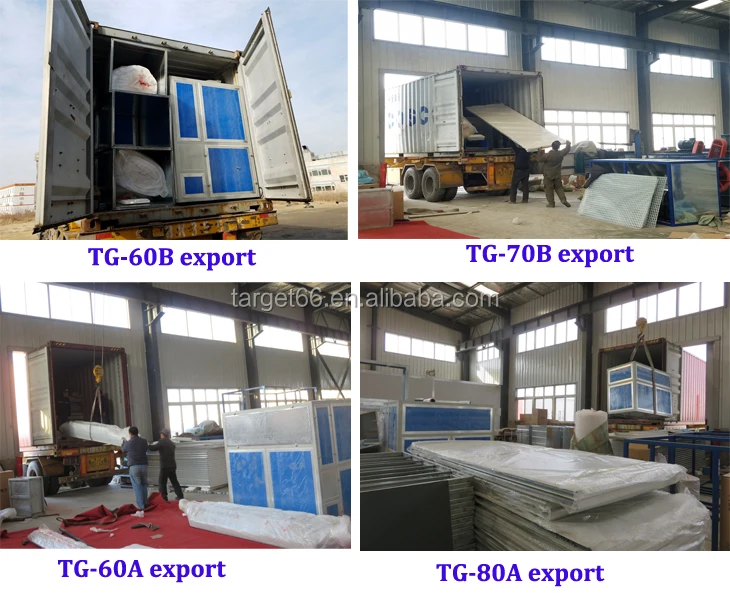

Factory & Packaging :
1. Can you make the machine according to request ?
Yes, we can customize the machine color and size accoriding to clients' requirements.
2. What’s the Min. order for your company machine ?
1 set. Normally one standard model need 7 workdays .
3. OEM is available ?
Yes, we can put your logo on the machine .And make the machine structure as your design request.
4. What’s the advantage of your company ?
We have exported our machine to more than 50 countries. And have a professional team service for yo.We guarantee give feedback within 24 hours . Oversea service will supply uopn requests.
TARGET Equipment Will Supply Oversea Service !
Contact Information
Whatsapp: +86 15615082593
Skype : anna1983_export
Trademanager : target66
Contact Person : Mrs.Anna Pang
