Product Overview

Description


Product Description

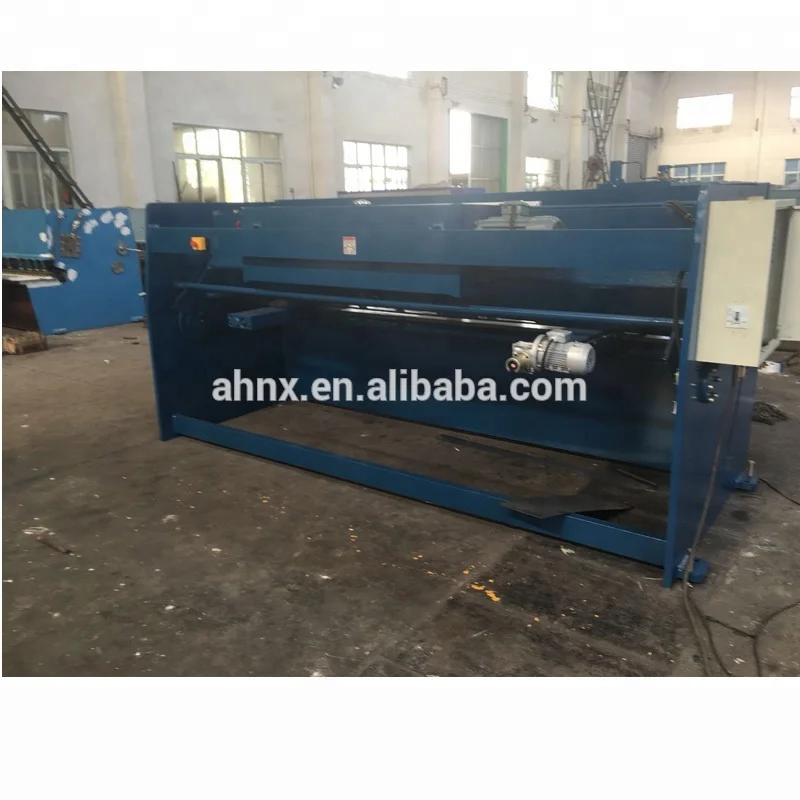

Anhui Nanxai Hydraulic shearing machine --QC12Y-10x6000


NC shearing machine is also called NC cutting machine ,hydraulic NC shearing machine ,guillotine shearing machine ,plate shearing machine ,metal sheet shearing machine,steel sheet cutting machine ,steel sheet shearing machine which is mainly used for cutting and shearing sheet .


\t
QC12Y-10x6000
\t
shear size
\t
10*6000
\t
mm
\t
remark
\t
 Shear Angle
\t
1°30′
\t
degree
\t
\t
The Times of Stroke
\t
7
\t
Min-1
\t
\t
Height of Table
\t
910
\t
mm
\t
\t
The Max of Back gauge
\t
700
\t
mm
\t
\t
Distance between Housings
\t
6205
\t
mm
\t
\t
Overall Dimension
\t
L
\t
6800
\t
mm
\t
W
\t
2550
\t
mm
\t
H
\t
2200
\t
mm
\t
Main Motor

\t
Model
\t
Y200L1-6
\t
\t
Power
\t
18.5
\t
KW
\t
Rotation Speed
\t
970
\t
r/min

Main Features:

※ Totally European design ,streamlined,looking,monoblock, welded steel frame rigid to deflection moment and high tensile with ST44 A1 material.

※ As the cutting beam had been designed in inner-incliner structure ,it is easy for plates to fall down and the accuracy of products can also be guaranteed.

※ High accuracy ,high efficiency ,simple,and convenient operation,good performance,favorable price and best service.

※ The machine by the European Union CE certification and ISO quality system certification.


Certifications
Detailed Images

Machine Part


Name: Value group
Brand:Nanxia Shearing Machine
Original: China
adjustable and control switch .and have release pressure function.

Main Features

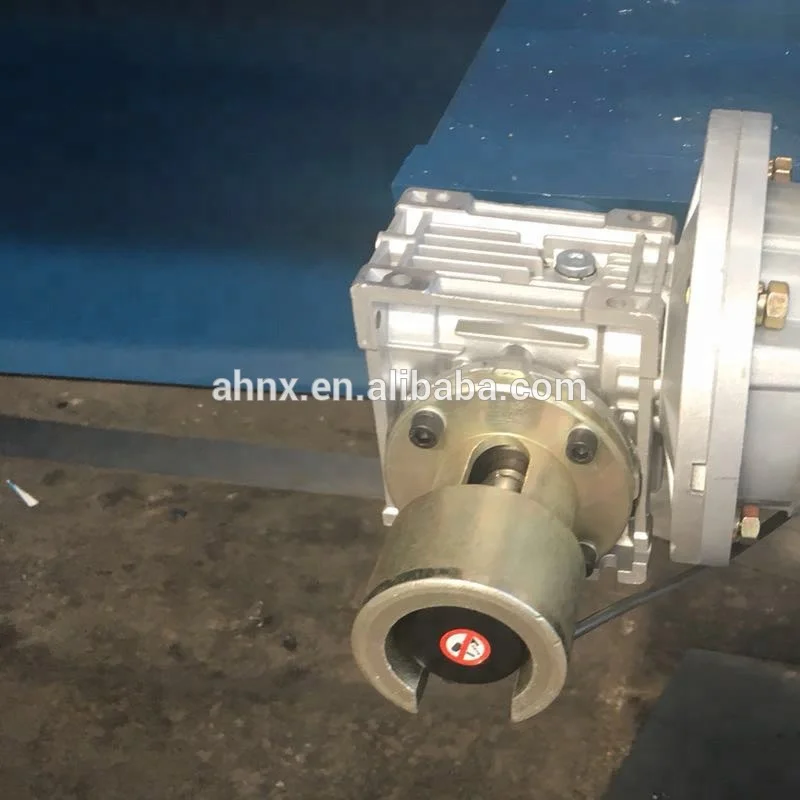

Name: Motor
Brand: Siemens/Schnider
Original: France
mainly Motor is france Schnider/Siemens system, and it is NC system Shearing Machine

Machine Parts


Name: Backgauge
Brand: Nanxia Shearing Machine
Original: China

Backgauge automatically concede function and Backgauge automatically lift funtions.



Main Features

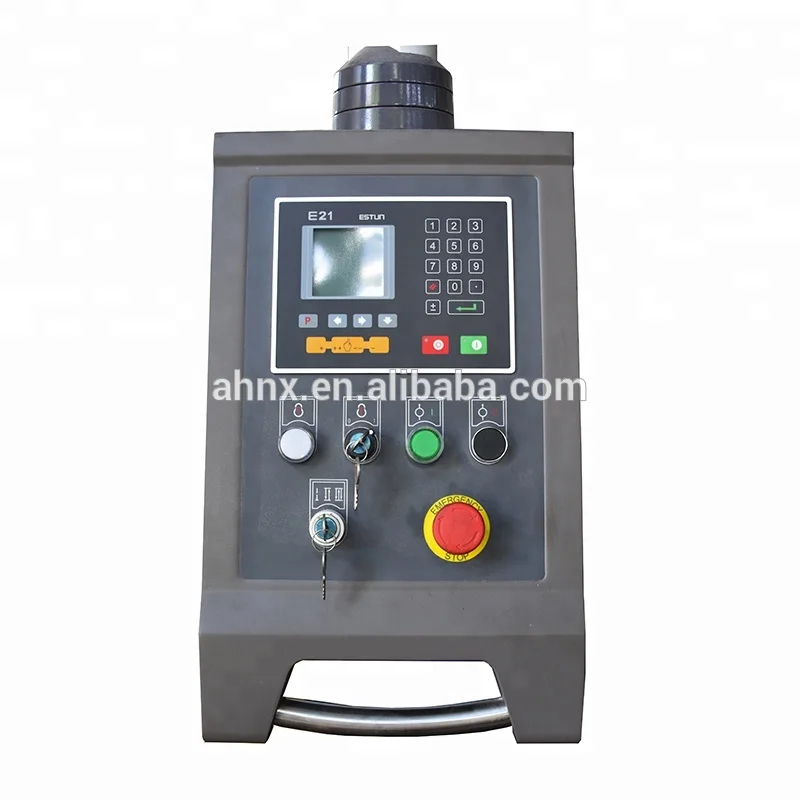

Name: E21 system
Brand: Estun
Original: China Shearing Machine
ESTUN have high- performance AC servo motor and drive.and it is our standard configuration,40 procedures,25 work steps in each program.
panel type installation,backgauge control and stop link control,power-off protection.


Our Factory


1.Installation Service

Installation Services are available with all Accurl machines. We dispatch technician to customer's factory for installation and preoperation of machines. ( Customers only need to pay the airfare and hotel )


   2.Training Service

 Our technician is available to your factory and offer training of how to   use our machines. As well, you may send your technician to our   company to learn how to operate machines.

Packing & Delivery
\t
delivery
\t
Size
\t
QC12Y-10x6000
\t
Weight
\t
22.44T
\t



remark
\t


Delivery time is 25 days

30% in advance and the rest before delivery time .

The valid time is one month.

The price is FOB shanghai port
\t
Packaging
\t
Size
\t
123 (L) * 456 (W) * 789 (D)
\t
Weight
\t
22.44 T
\t



Packaging Details
\t
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
