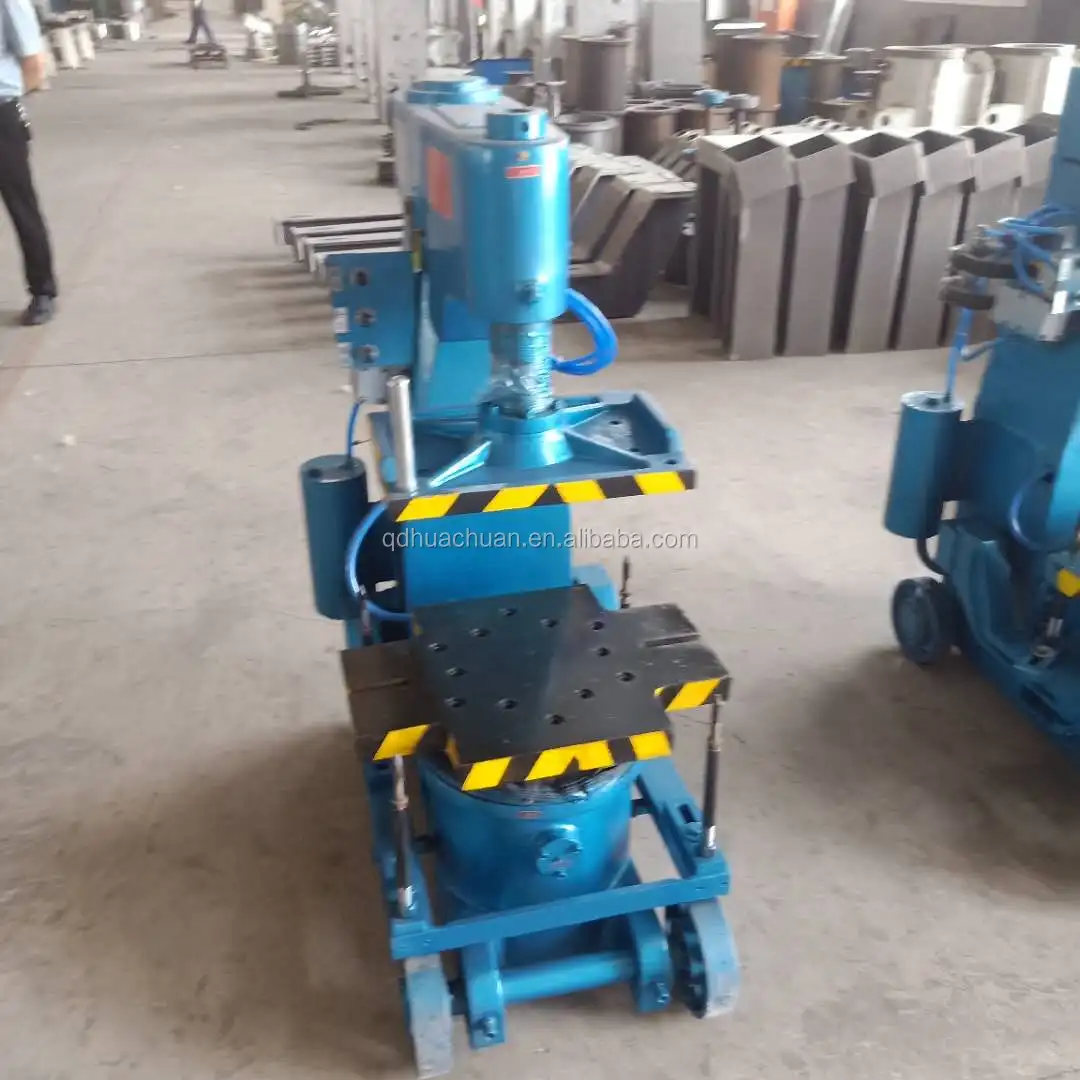

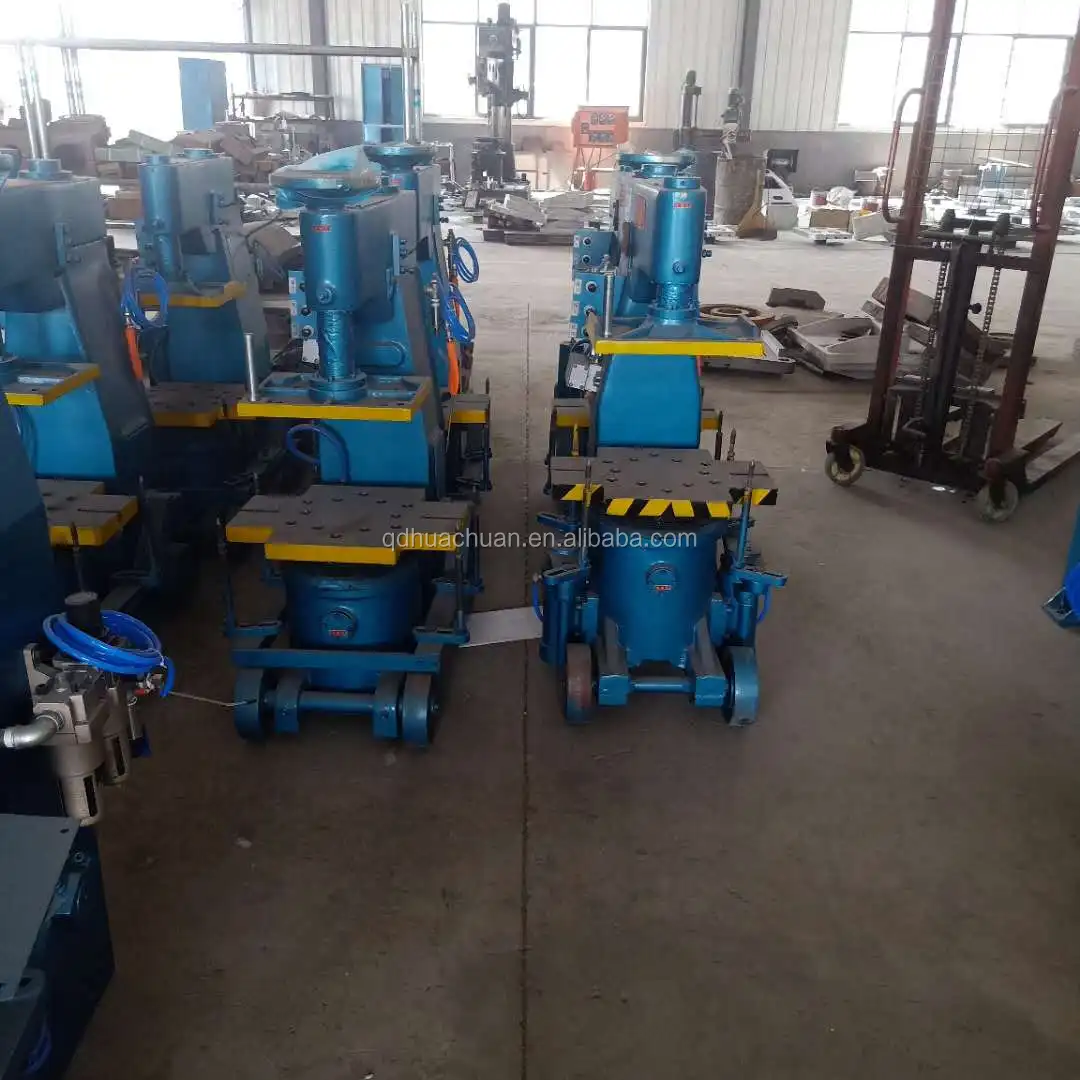

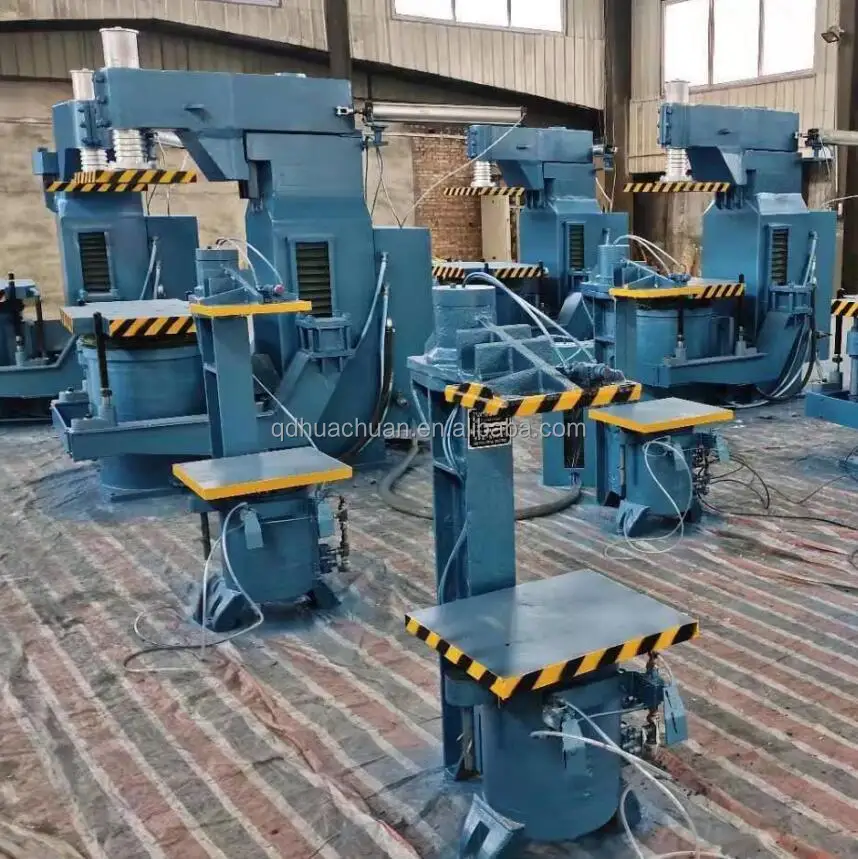

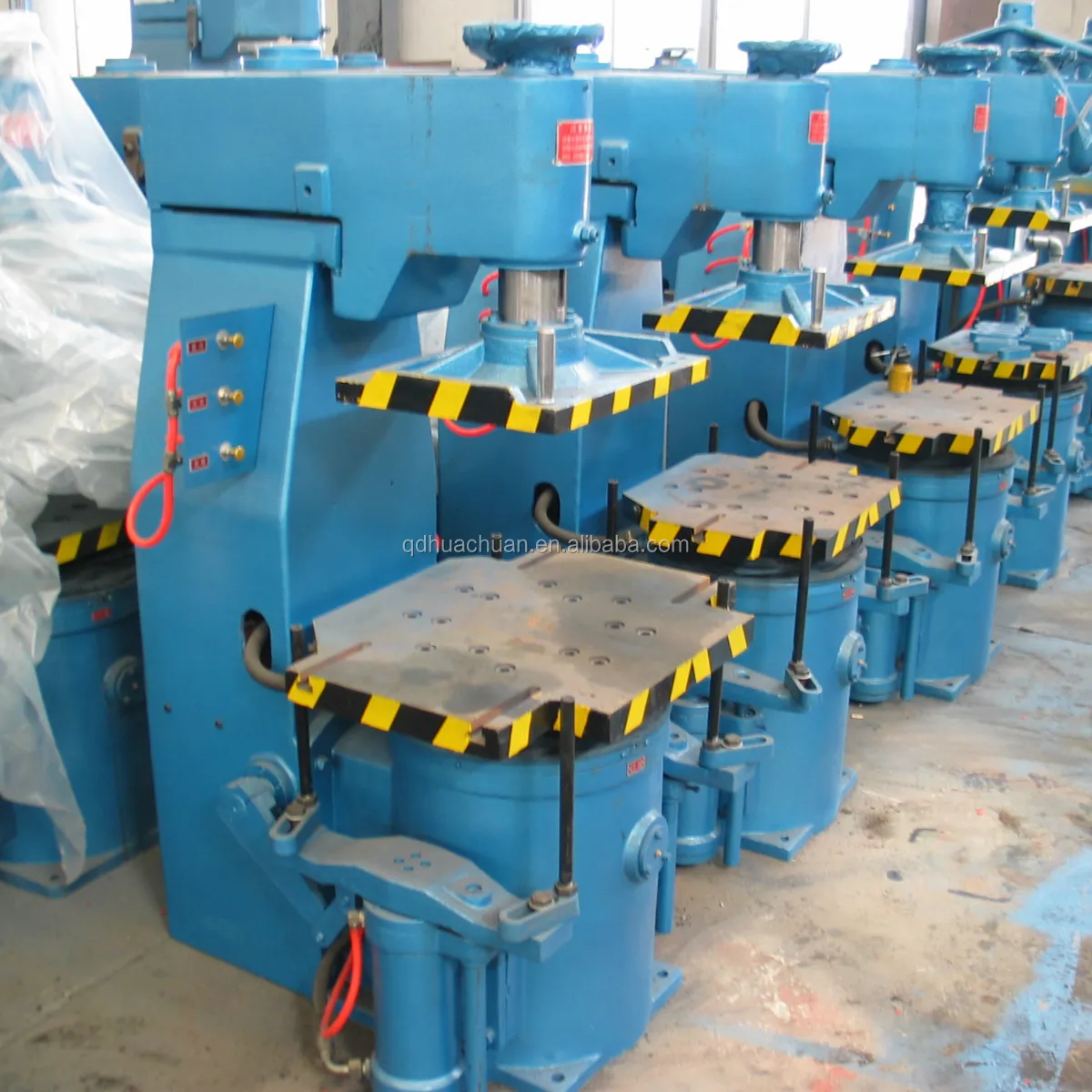

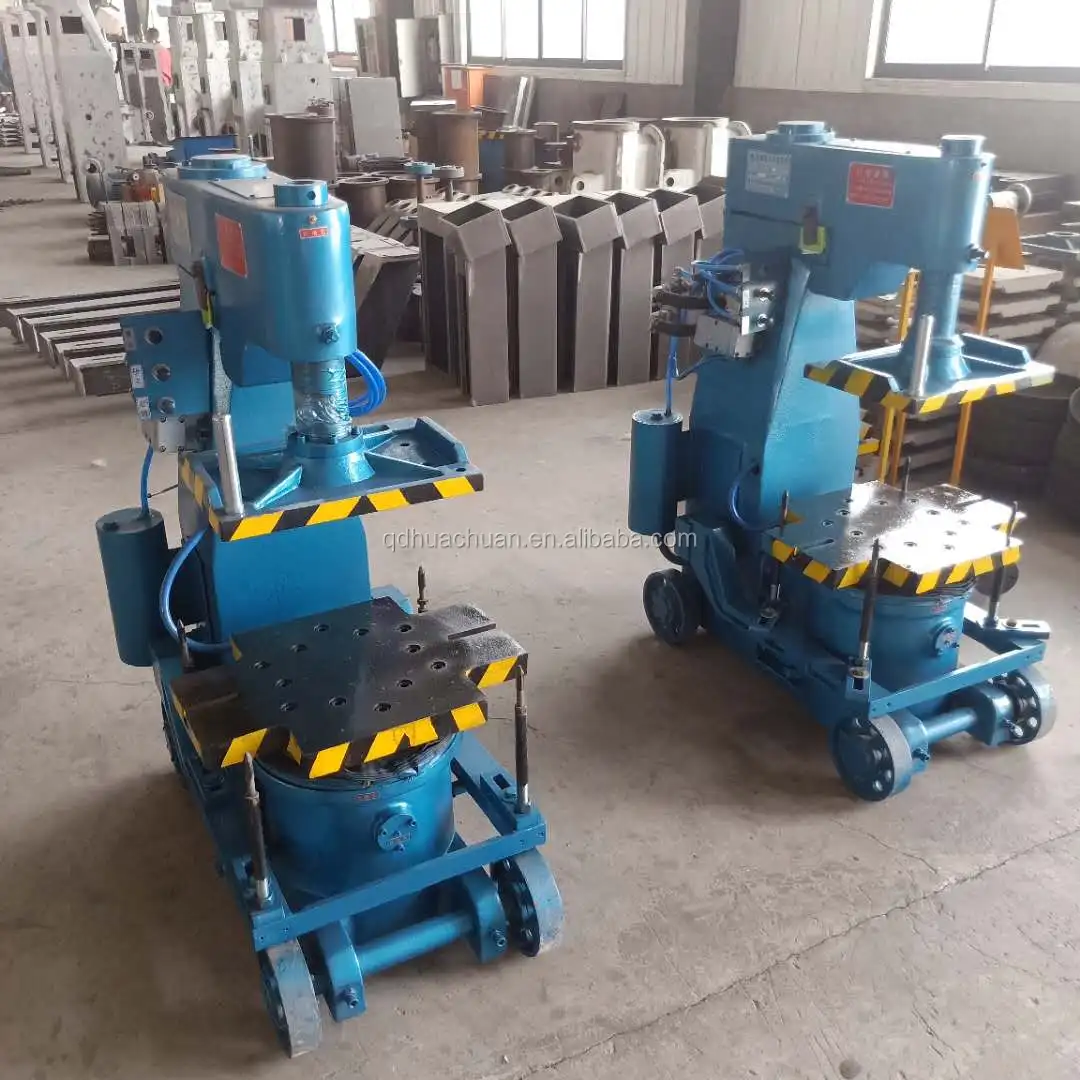

         Foundry brake pads production jolt squeeze moulding machine Z145



The Jolt Squeeze Moulding Machine Work Technical Parameters



Name	UNIT	Z143W	Z144W	Z145W	Z146W	Z146WB	Z148CW	Z148E
The Max. dimension of Sand Box	mm	400*400*100	400*500*180	450*500*200	500*600*200	500*600*200	630*800*320	900*800*320
Worktable/ Workbench dimension	mm	560*420	465*500	600*460	550*700	550*700	900*730	1000*820
Jarring Load / Air pressure	kgf /Mpa	0.55	0.6	300/0.6	300/0.6	0.6	0.6	0.6
Compressive stress	kgf	4000	4200	6300	7000	8300	12000	18000
Compress process	mm	100	120	160	200	160	180	200
Drawing mould process	mm	160	150	200	200	200	320	320
Distance compacting plate with worktable	mm	200-370	300-400	300-450	350-450	450-600	680	600-700
Productivity	mould/h	40-60	40-60	40-60	40-60	40-60	40-60	40-60
Out line dimension L*W*H	mm	950*680*1280	1050*1100*1410	1200*1000*1693	1380*850*1565	800*1200*1670	1600*1038*2200	2175x1600x2380











 Work mechanism



The Jolt Squeeze Moulding Machine Work principle



The worktable fall and collide with floating shock-iron,and the sand was tighted slightly, and then to compaction,get the top and bottom of sand mould are tight. The slightly shock is high frequency (500-1000 times/min), small amplitude (5-25 mm) vibration instead of low frequency (60-120 times/min), the large amplitude vibration. This kind of moulding machine made of sand mold are good quality, the basic requirement is also lower.







  The machine   feature

• The Jolt Squeeze Moulding Machine Noise Controlled


• The Jolt Squeeze Moulding Machine Combined Jolt Squeeze


• The Jolt Squeeze Moulding Machine Accurate Centreline Draw


• The Jolt Squeeze Moulding Machine Variable Jolt Timers


• The Jolt Squeeze Moulding Machine Operational Roller on Pin Lift Draw


• The Jolt Squeeze Moulding Machine Operational Safety Guards









We can design product according to your demand. Our  molding machine have stabile performance , good quality and reliable service. We allow a proper discount according to the quantity you order.If you have any question, pls dont feel any hesitate to ask me, i will try best to meet your demand,It's make our company great honour . Before the New Year to buy our machines all have discount , it will reduce the cost for you.
