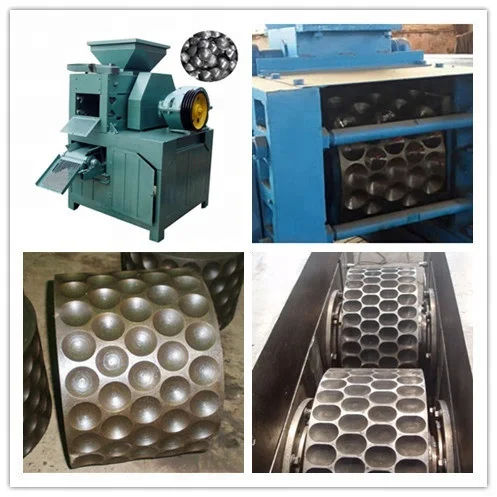

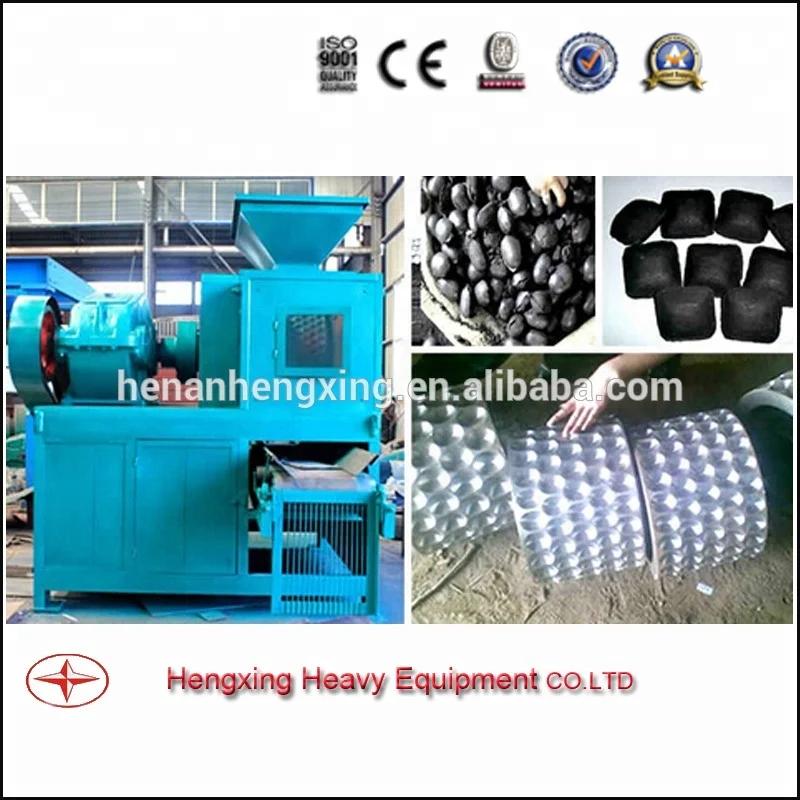

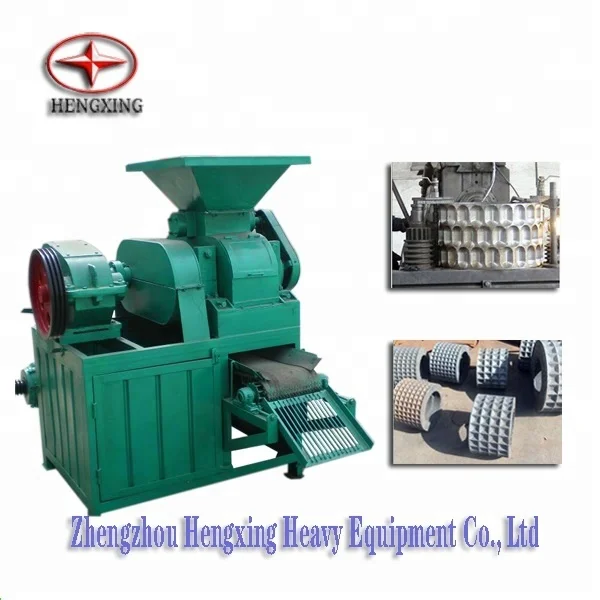

High Yield Coal Briquetting Equipment Suitable For Industrial Use Coal Briquette

Product Overview

Description



 High Yield Coal Briquetting Equipment Suitable For Industrial Use Coal Briquette

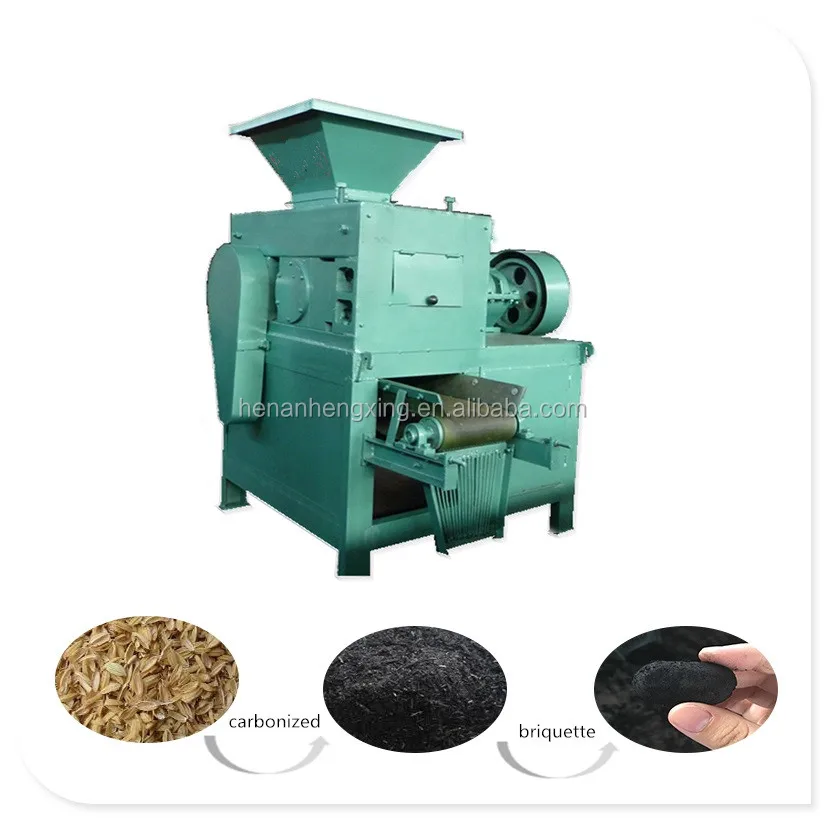

I.what is coal briquetting equipment?

coal briquetting equipment have been used to increase the particle size of and bulk densities of materials to improve their handling. In a coal briquetting equipment ,material is densified by compression between two main counter-rotating rolls. The roll surfaces have pockets to form briquettes of desired size and shape when the material passes between the rolls.

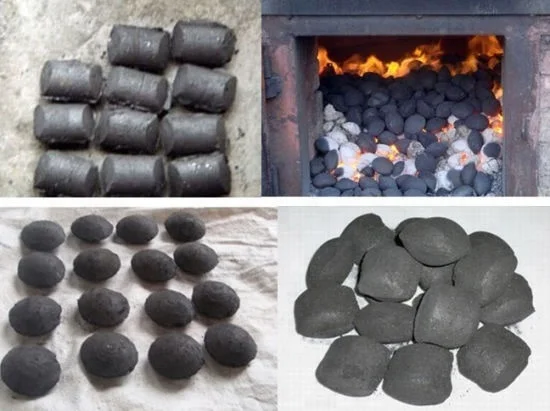

coal briquette equipment  is used for making coal fines, coke fines, charcoal powder, carbon black, iron ore fines, cast iron fines, mill scale, manganese ore fines, phospho gypsum powder into briquettes. These briquettes can be designed of oval shape, egg shape, pillow shape etc. This machine is widely used in coal industry and metallurgy industry,mining industry.

Applicable raw material:

Coal, coal powder, mineral powder,mineral fines ,coal slurry, charcoal, charcoal, charcoal dust, charcoal fine, metal powder, metal scrap, limestone, copper sludge, iron oxide, peat, mineral powder, carbon black, white coal, lignite coal, brown coal.



 2.Working Principle of the coal briquetting equipment  :

1.Main part of the coal briquette equipment  is provided with motive power by electromagnetic speed motor,through belt pulley, cylindrical gear reducer, transmit to the main drive shaft by bar pin coupling.

2. Drive shaft and driven shaft of charcoal briquetting machine use the open gear to ensure synchronous operation,behind the driven shaft bearing block, set a hydraulic device.

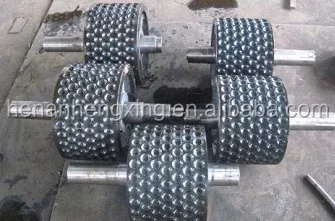

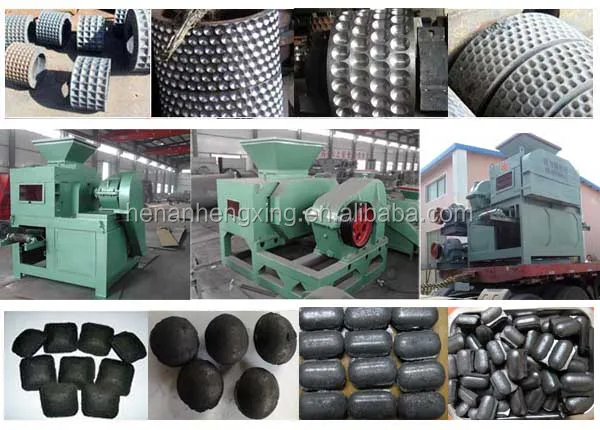

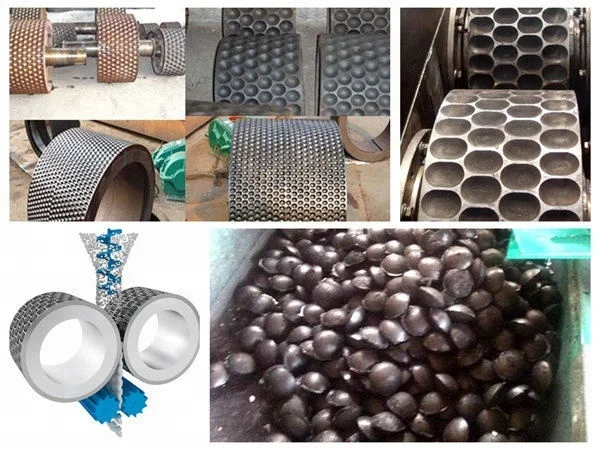

Molds for the coal briquetting equipment  :



3.coal briquetting equipment  technical data :



briquette machine Model		HXXM-360	HXXM-400	HXXM-500	HXXM-650	HXXM-750	HXXM-850	HXXM-1250	Remark
Capacity	hour	4T/h	8T/h	11T/h	18T/h	25T/h	35T/h	70T/h
	Annual	10000T	20000T	30000T	50000T	70000T	100000T	200000T
Roller width		250mm	280mm	300mm	336mm	400mm	500mm	650mm	(65Mn)
Roller diameter		360mm	400mm	500mm	650mm	750mm	850mm	1250mm
Motor Power		7.5kw	11-15kw	18.5-22kw	20-30kw	45kw	75kw	130kw	According to the material
Main shaft speed(rpm)		18	15	13	13	13	10	10
Reducer		ZQ350	ZQ400	ZQ500	ZQ650	ZQ750	ZQ850	ZQ1250	Standard type
		ZQ400	ZQ500	ZQ650	ZQ750				strengthen type
Pressure form		Wedge constant pressure	Wedge constant pressure	Wedge constant pressure	Wedge constant pressure	Wedge constant pressure	Wedge constant pressure	Wedge constant pressure	select any type
		Axle seat coupling bar	Axle seat coupling bar	Axle seat coupling bar	Axle seat coupling bar	Axle seat coupling bar	Axle seat coupling bar	Axle seat coupling bar
				Hydraulic and constant pressure interconvert	Hydraulic and constant pressure interconvert	Hydraulic and constant pressure interconvert	Hydraulic and constant pressure interconvert	Hydraulic and constant pressure interconvert
Roller Material		65Mn	65Mn	65Mn	65Mn	65Mn	65Mn	65Mn	casting	select  any type
		Alloy steel	Alloy steel	9cr2Mn	9cr2Mn	9cr2Mn	9cr2Mn	9cr2Mn	forging,
				Alloy steel	Alloy steel	Alloy steel	Alloy steel	Alloy steel	pressure casting
Structure form		double roller single pressure	double roller single pressure	double roller single pressure	double roller single pressure	double roller single pressure	double roller single pressure	double roller single pressure	select any type
		four roll double pressure	four roll double pressure	four roll double pressure	four roll double pressure	four roll double pressure	four roll double pressure	four roll double pressure
Shape		custom	custom	custom	custom	custom	custom	custom	Usually
size									30-60mm



4.coal briquetting equipment  features:

1. Good adhesiveness, good fluidity and coal particles are easily dispersed

2. Less coal ash , does not affect slagging, does not reduce the fixed carbon

3. High molding rate , good hot and cold strength

4. low cost, easy to use, add a small amount

5. Wide range of application,

6. Environment protecting, no pollution, improve gas conversion rate

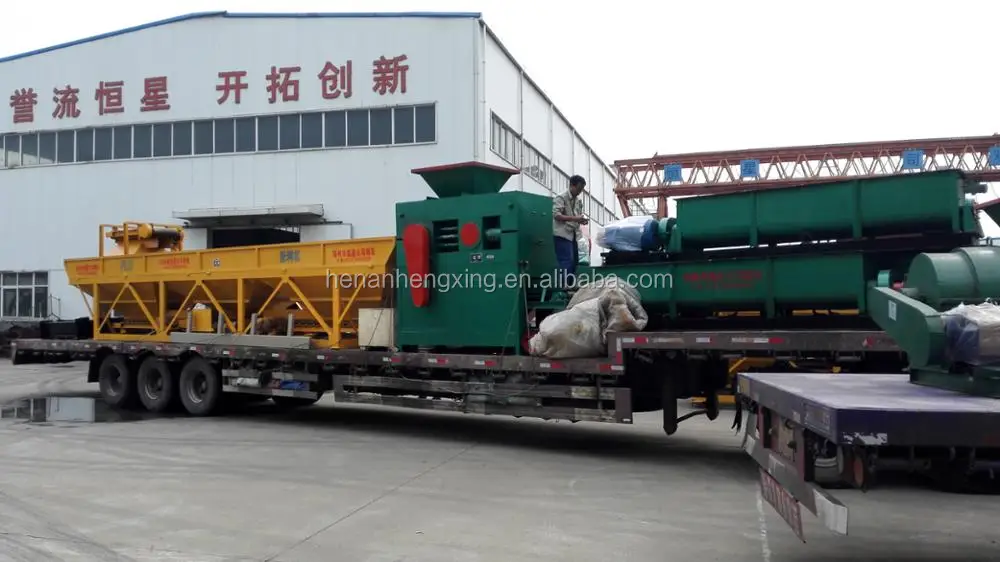

coal briquetting equipment  Package and shipping :
