QHK125 Declinable Tilting Machine Vise CNC milling vice 5' two way angle vise tilting machine vise

Product Overview

Description

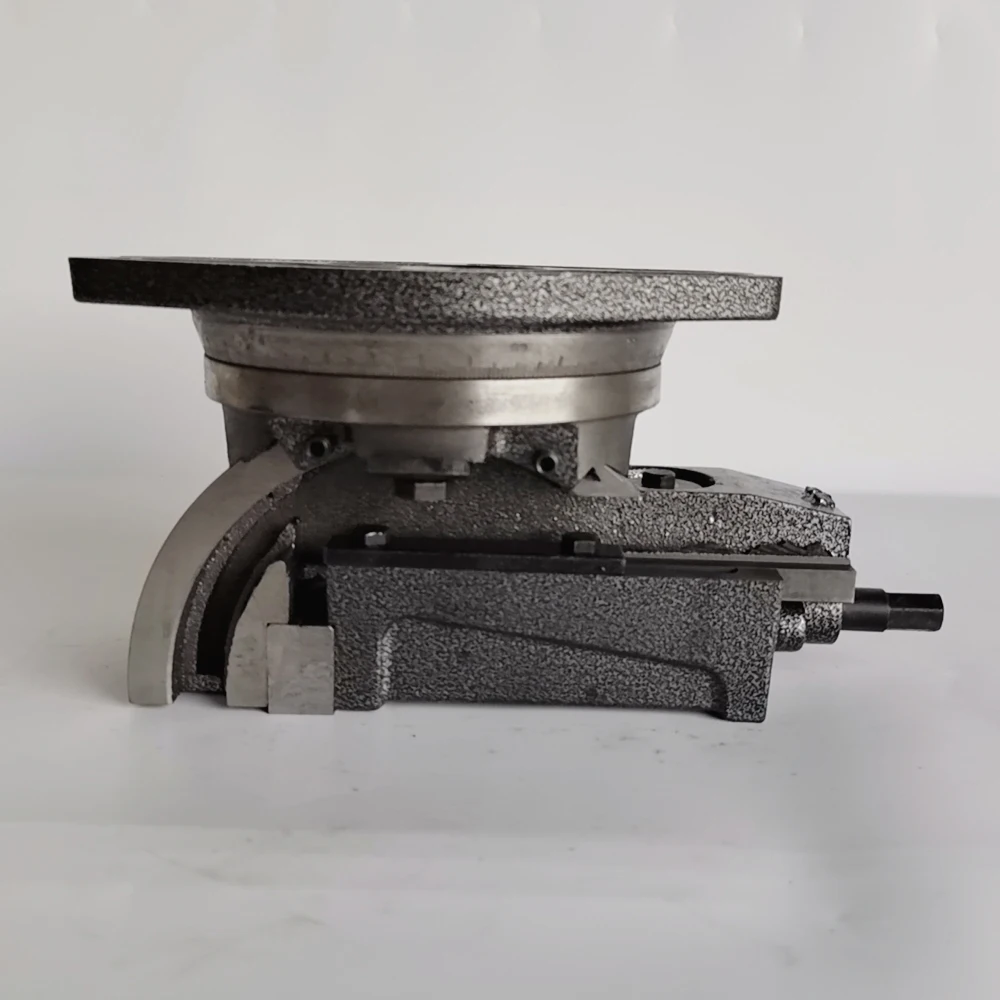

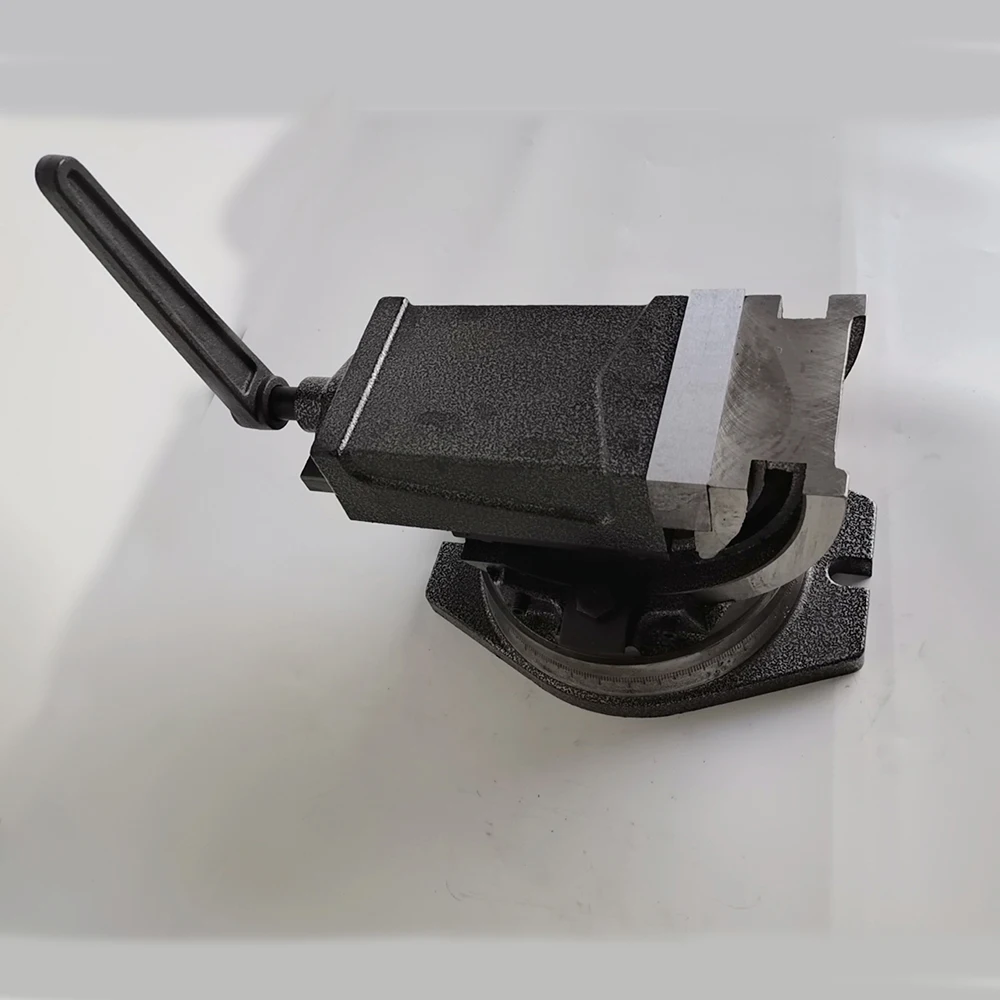

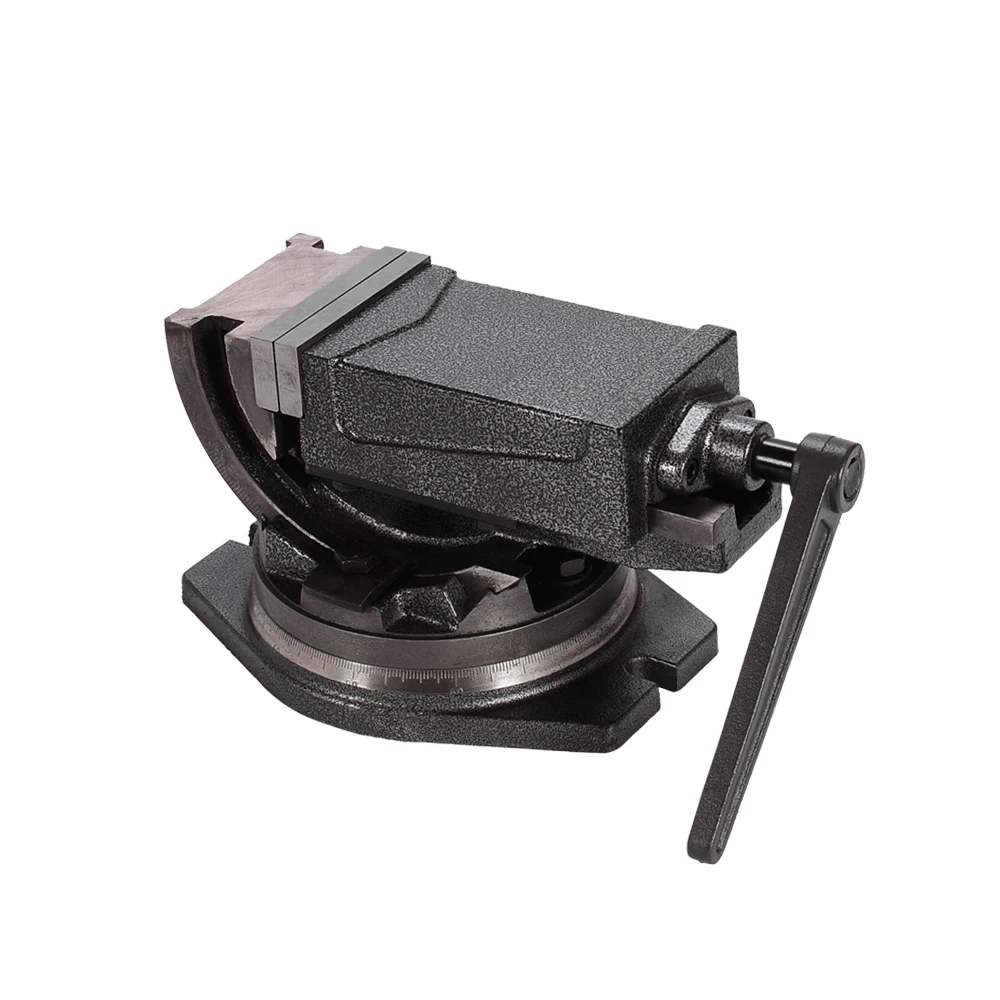

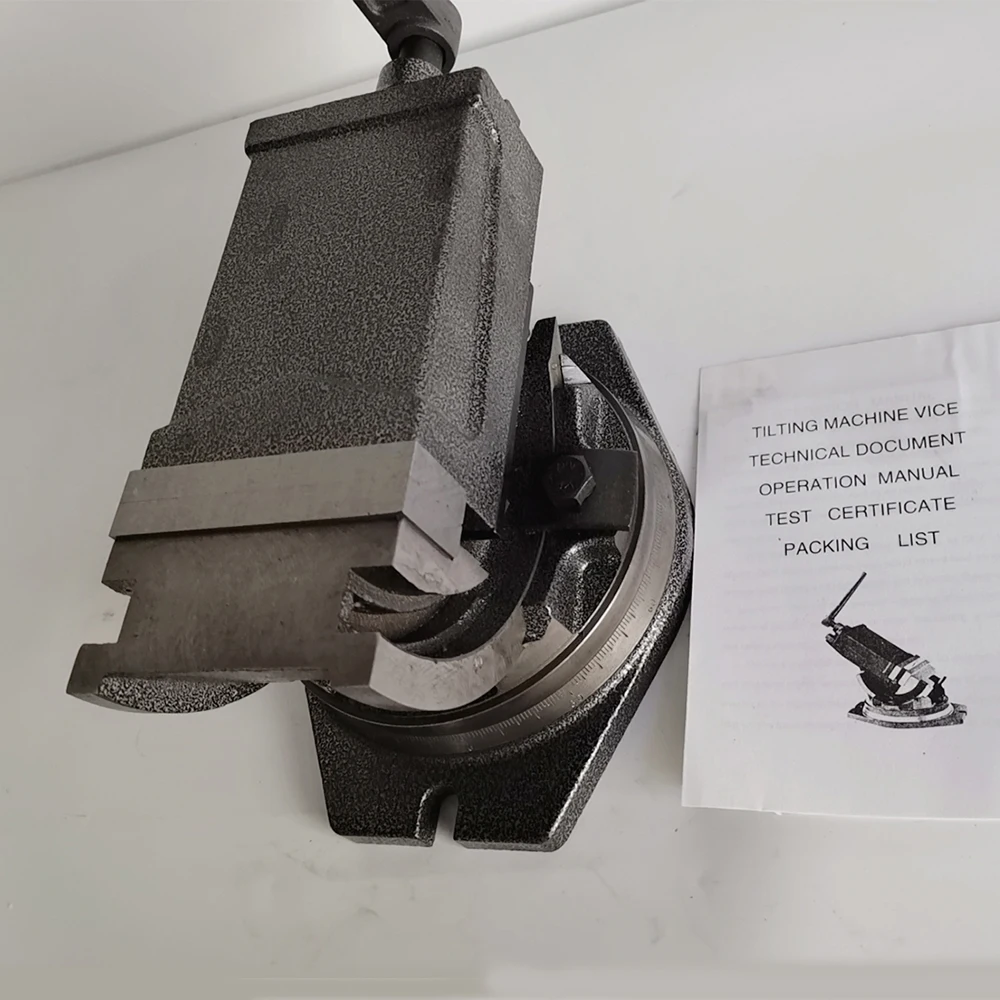

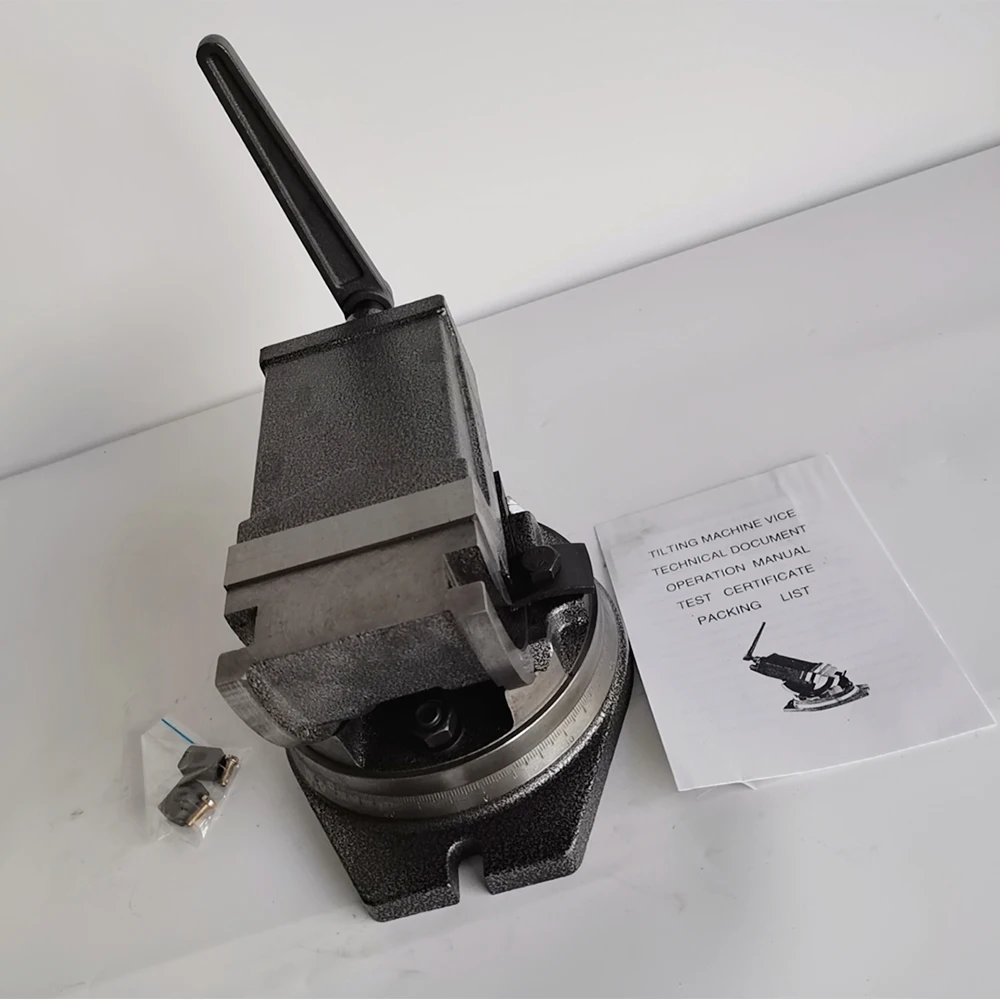

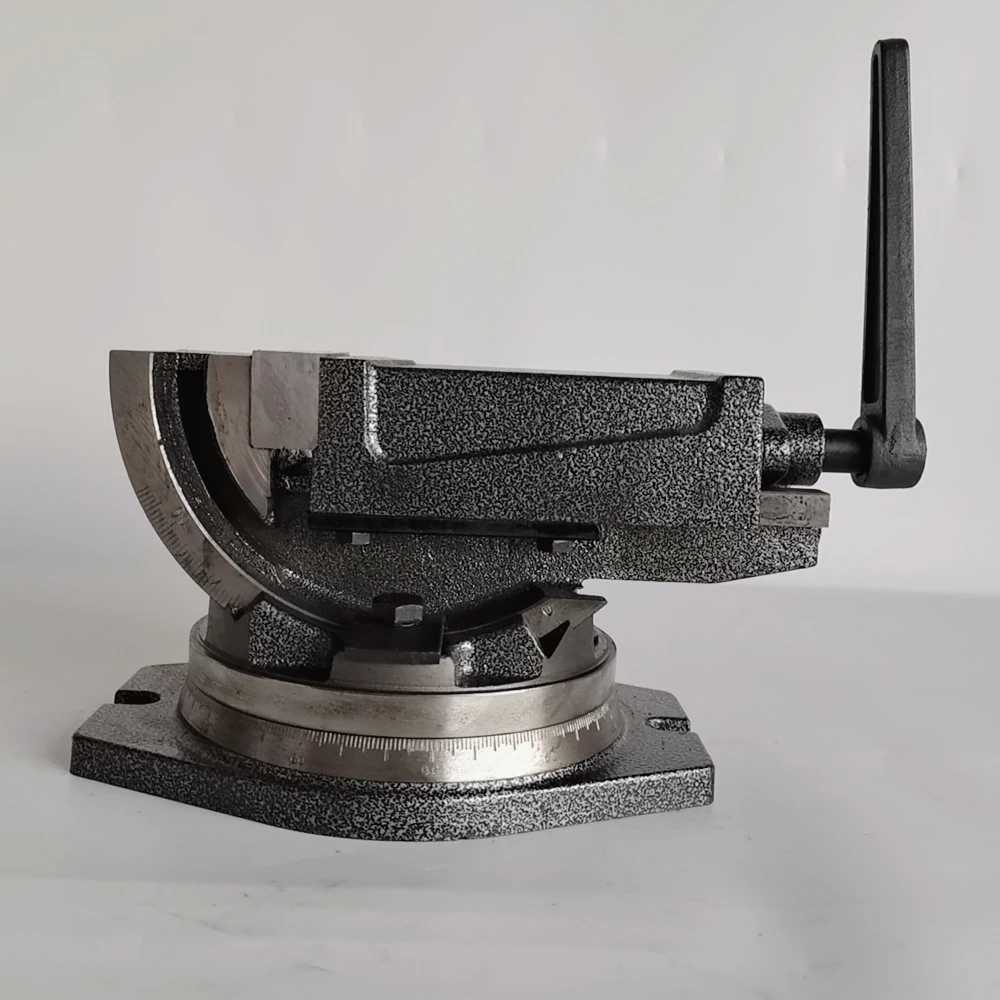

Universal tilting angle vise QHK125



1.It is made of high-quality cast iron. 2. The accuracy of vice(parallelism and squareness)is 0.025mm/100mm. 3. The vice can be tilted to any position from 0-90 and locked, and can be rotated 360% with a swivel base. 4. It is widely used on machine in making some kinds of slots, holes and faces.



Model	Width of Jaw(mm)	Height of Jaw(mm)	Max.Opening(mm)	G./N.Weight	Packing Size(mm)
QHK100	100	41	80	18/17	350*210*210
QHK125	125	45	95	28/27	410*250*220
QHK125L	125	45	135	27/26	410*250*220
QHK160	160	50	125	40/39	460*270*240
