U Channel Aluminium Profile For Glass Railing
- Category: >>>
- Supplier: Shenzhen Python Building Material Co. Ltd.
Share on (60783154982):
Product Overview
Description

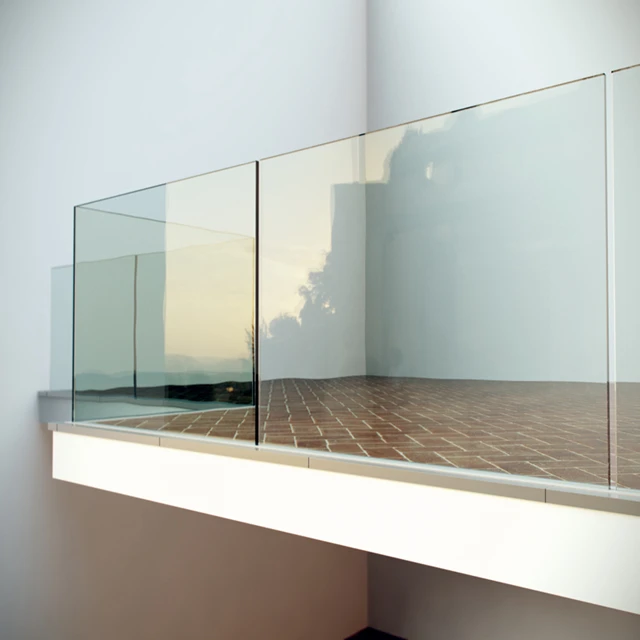

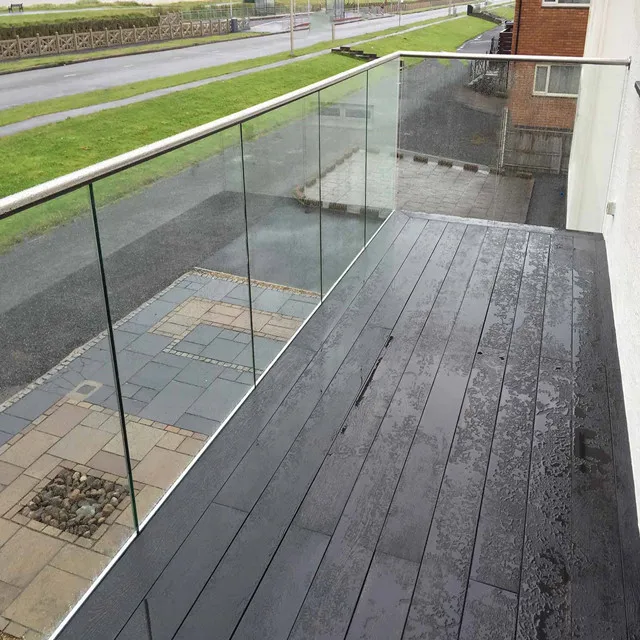

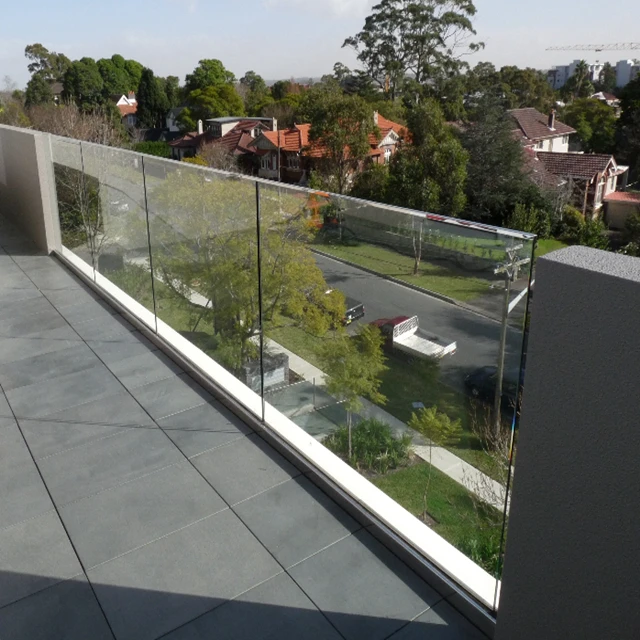

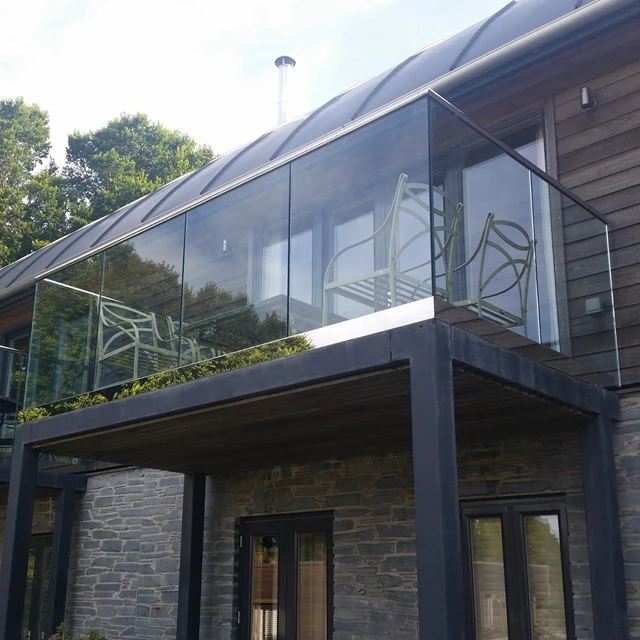

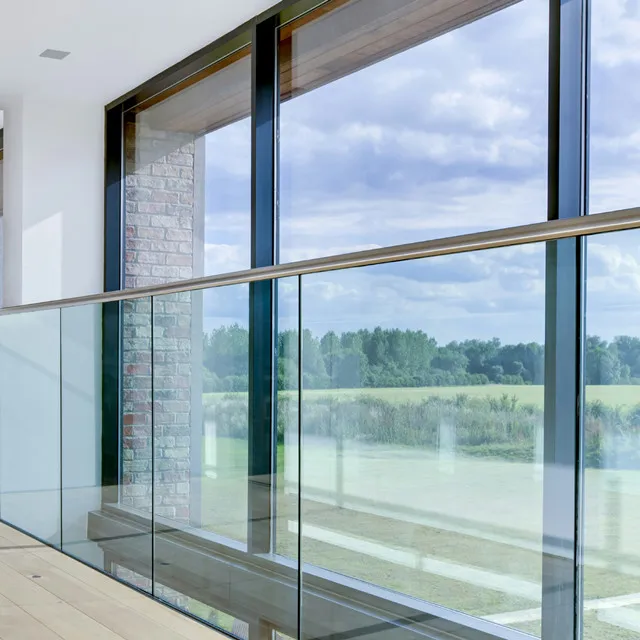

U Channel Aluminium Profile For Glass Railing
Product Description
This U Channel Railing System can be used internally or externally, featuring an aluminium channel and glass infill with the added option of attaching a top rail. We can supply you with a variety of different sizes compliant to building regulations, which you can customize with clear, frosted or tinted glass.
- Heavy Duty Extruded Aluminium Section with an naturally anodized finish
- Meet building code requirements
- Optional stainless steel handrail available
Product Spec.
| Material | SS 304/316+Aluminum | |
| Measurements | Length | bespoke as requirement |
| Height | 850-1200mm;Typically 1000mm;can be customized as request | |
| Price vary according to the measurements & requirements | ||
| Top Handrail/Side Handrail | Stainless Steel | Φ 38/42/50mm slot pipe with gasket;304/316 brushed&polished |
| 28*30mm square cap with gasket;304/316 brushed&polished | ||
| 50*10mm flat handrail with bracket;304/316 brushed&polished | ||
| 38/42/50mm pipe with bracket;304/316 brushed&polished | ||
| U Channel | Aluminum | 102*62mm for 12-13.52mm glass 102*67mm for 17.52mm glass 102*70.5mm for 21.52mm glass |
| Glass Panel | Tempered Glass | 10/12/15/19mm tempered glass 6+1.52+6mm/8+1.52+8mm/10+1.52+10mm laminated glass |
| Position | Balcony/Stair/Porch/Deck/Roof Top | |
| MOQ | 10m | |
| Delivery | 30-35 days upon receipt of the deposit&sign off shop drawing | |
| Installation | DIY installation, no welding work needed; just screws | |
| Installation structions will be provided if needed | ||
Please Note: 1. All specifications are for reference purposes only. Dimensions for guide only. Component may vary slightly from the sizes shown. 2.Customers are encouraged to ask their local city to get information about their local building codes. City building codes supersede national building codes. We provide the information in an advisory capacity only and is not liable for any code non-compliance. | ||
Product Detail
The aluminum u channel glass railing systems can be customized as per your request to match your project.

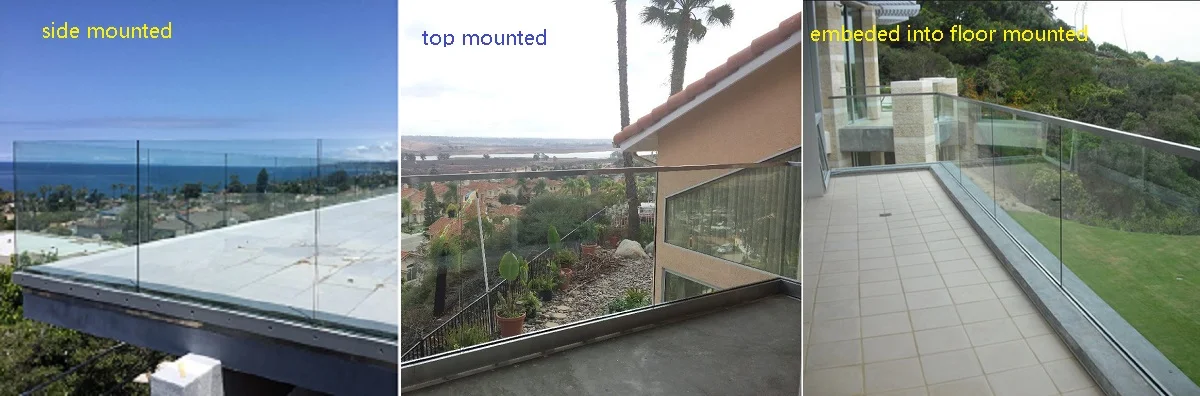

Mounting Type
| Top Mount | Fascia Mount | Embed Mount |
Installation

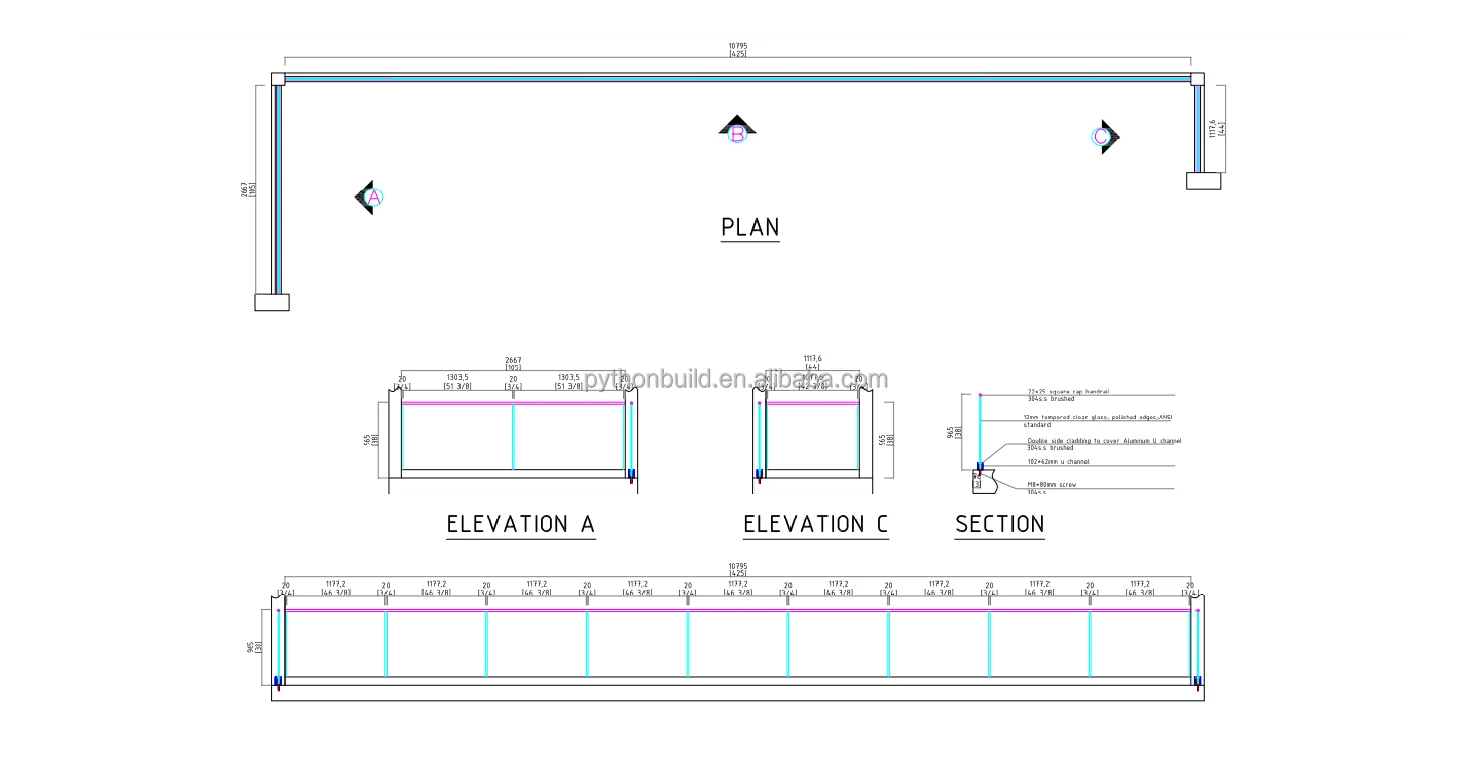

DIY install, detailed shop drawing will be provided.
For every order, we will make the detailed shop drawing based on the measurements provided for approval. You just need to send us the plans or measurements, our team will provide the price and solution for you.
Glass Choice:Glass can be customized as well, we're able to provide tempered clear glass; laminated glass;
frosted glass;ultra-clear glass; ice cracked glass&tinted glass
Main Railing Product
We also provide other railing system as below, please click the image to get more info about below railing systems.
| Cable Railing System | Standoff Pin System |
| Aluminum U Channel System | Rod Bar System |
| Glass Baluster System | Mini Post System |
Production
We have advanced CNC machine to ensure the quality and production speed.Polishing, welding, bending, the production process are handle by skilled workers.Our design team is working by Auto CAD which makes the accurate customized design.
Packaging & Shipping
Packing Details: Goods are well packed to avoid getting damage.We use carton&fully sealed plywood case to packed the goods. No fumigation required for all the plywood cases.
Payment Terms
40-50% T/T deposit, balance paid before shipment.
Delivery
35-40 days after order confirmed.
Our Services
Design Service
We provide the shop drawing for the products.
Shipping Service
Shipment arrangement (consolidate shipment, LCL, FCL).
After-sales Service
Providing installation shop drawing and manual.
If any quality issue or mistake made by us, We will be responsible for it.
FAQ
Q:What's your manufacture time?
A: 35-40 days depends upon deposit received and sign off shop drawings.
Q:Do you accept customized design and size?
A:Yes.The design and size all are according to your requirements.
Q:How to install your railing?
A:We can provide you installation solution or installation guide.
Q: What information we should offer to quote?
A: Please send us the project drawing if you have. Or please let us know the measurements. Some construction site pictures will be great helpful.
Q: Can you offer other materials for our house?
A: Yes, we offer one stop solution for your house. You just send us your house plan, we also provide cabinets&showers as well.
Q: Is any guarantee I can get from you?
A: Our products will have 5 years guarantee, fittings can be changed for free within 2 years.
A: Our products will have 5 years guarantee, fittings can be changed for free within 2 years.
Railings can be customized as per your request. Price varies from different materials. Please contact us for more accurate price. We will reply your inquiry within 12 hours.
.
