LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc
LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc

LCD Touch Monitor 19 Inch Open Frame Touchscreen LED Monitor for Kiosk, ATM, VTM etc

Share on (60783195147):


Price:$190.00 - $210.00

Quantity:


Product Overview

Description








Product Description

19-inch IR infrared open frame touch monitor -  EL0 Compatible


Model:COT190E-IWF03








IR Infrared Touch/SAW Touch optional, Dust-proof/ Water-proof optional

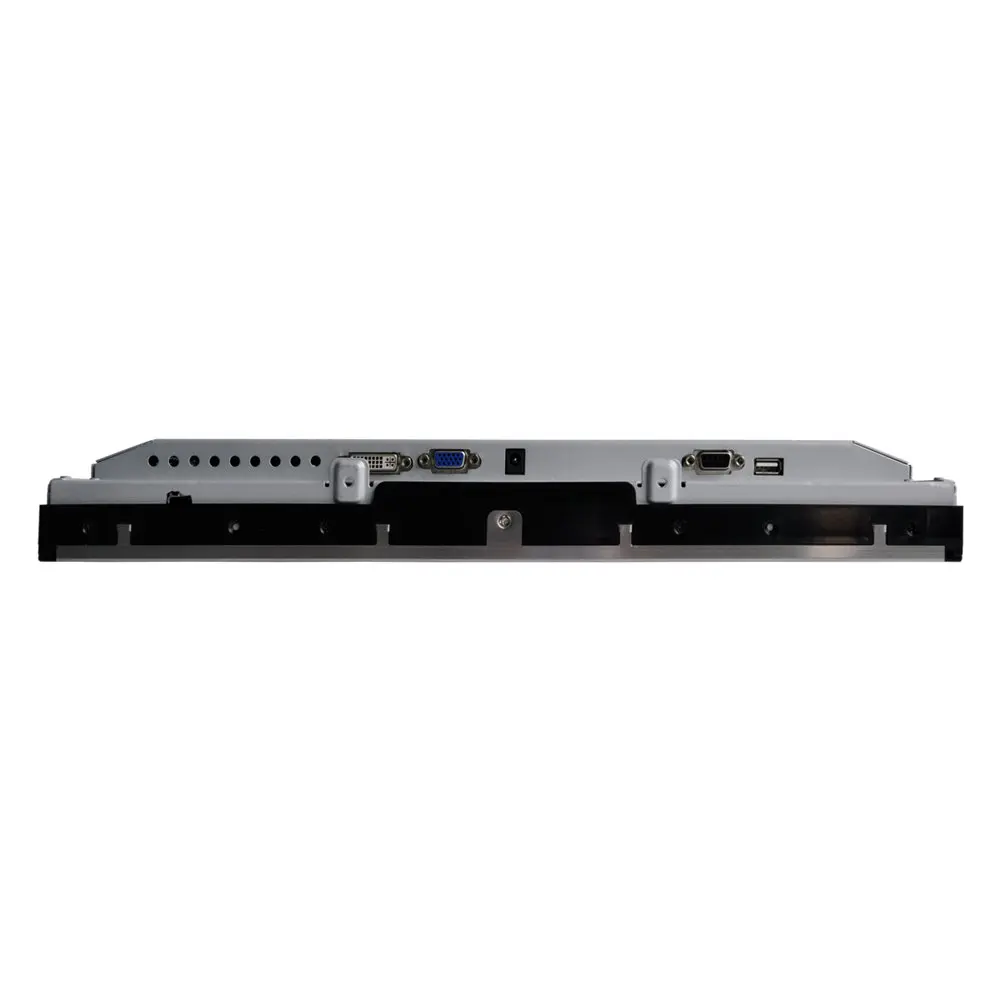

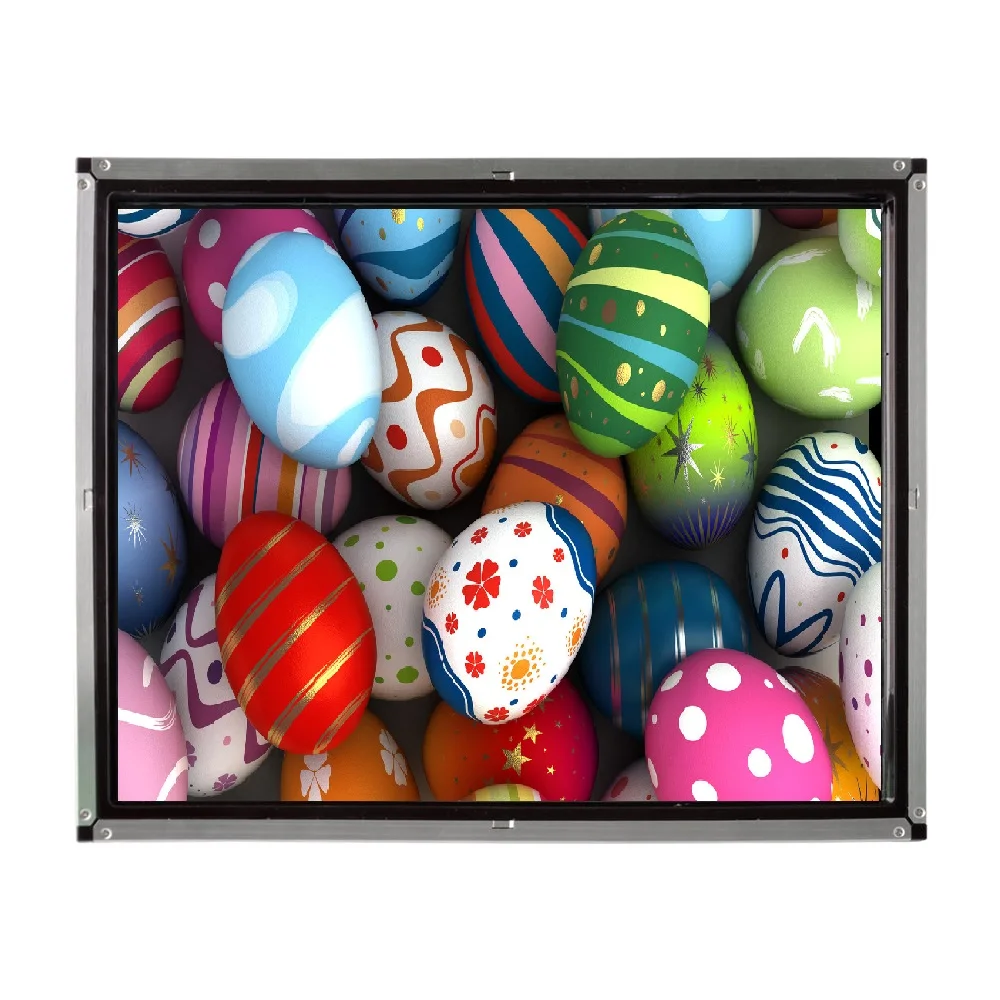

Detailed Images

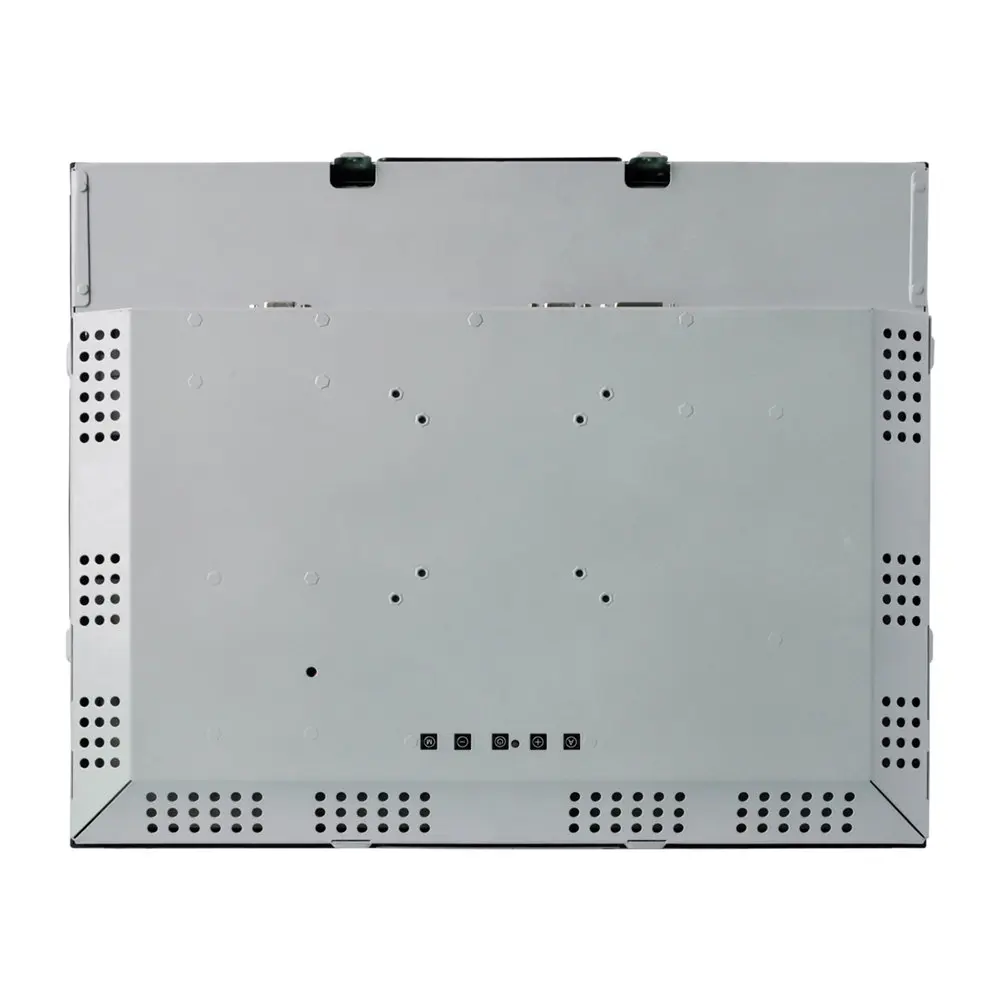

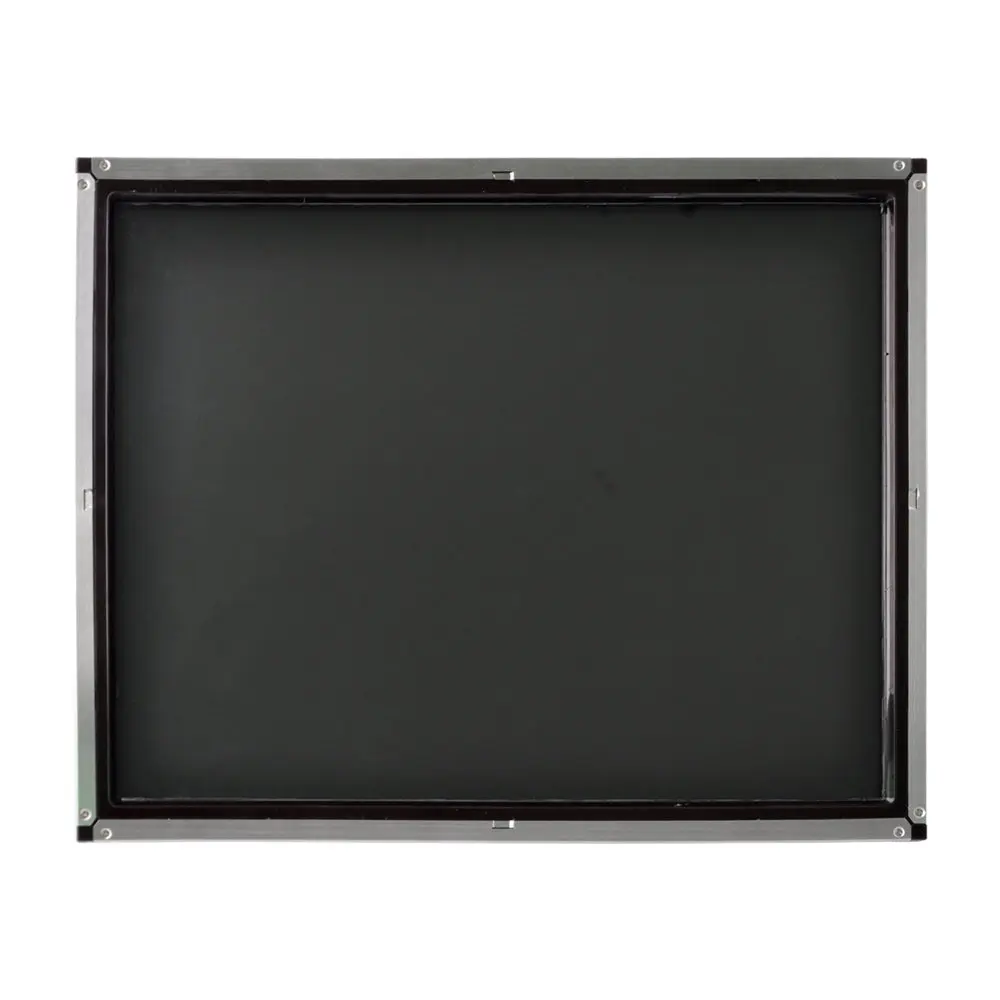

19 touch monitor (8).jpg19 touch monitor (7).jpg








Main Feature



  • Front frame sealed well to meet IP65 Waterproof standard.




  • Ideal cost-effective touch solution.




  • Long lifecycle,the upgrade or replacement of the LCD would not cause the change of the outline structure of the touch monitor.




  • Future generation panels phased-in without external changes.




  • Supporting multi-language OSD control










Technical Specification




Touch Screen Monitor



  • Series: metal-cased open frame dustproof type

  • Size: 415mm*340mm*51.4mm

  • LCD Type:SXGA Color TFT-LCD

  • OSD control: [auto]+[-]+[+]+[menu]+[power], Allow on-screen adjustments of Brightness, Contrast Ratio, Auto-adjust, Phase, Clock, H/V Location, Languages, Function, Reset

  • Mount interface: VESA 75mm and 100m + mount bracket

  • Agency Approval:CE, FCC, RoSH


19 touch monitor (6).png


Touch screen



  • Touch Technology: Infrared Touch

  • Touch points: Default 2 points ( 4/6/10 optional)

  • Light transmission: 92%

  • Touch life cycle: 60 millions

  • Touch response time: 6ms

  • Touch system interface: USB interface

  • Power consumption: +5V@80m


LCD Panel:



  • Active area: 376.320(H)×301.060(V)

  • Resolution: 1280×1024@75Hz

  • Display color: 167K

  • Luminance: 300

  • Viewing angle: 80°/85°

  • Contrast ratio: 1000:1

  • Response time: 3.6s/1.4s


Components:



  • 1.2m USB Cable+ 1.8m VGA Cable+ Power Cord+ Rear Bracket+ CD


Warranty:



  • 1 year

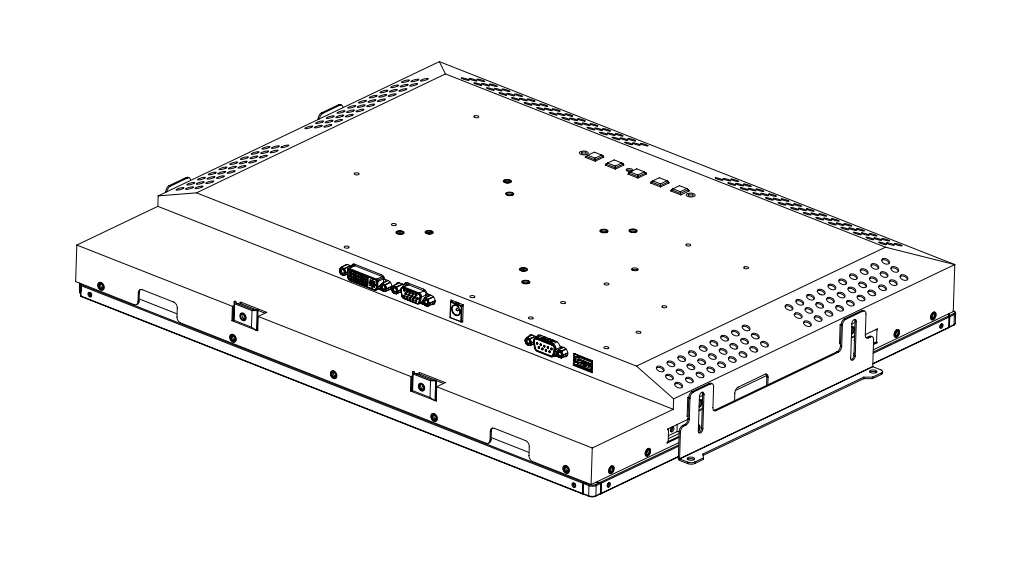

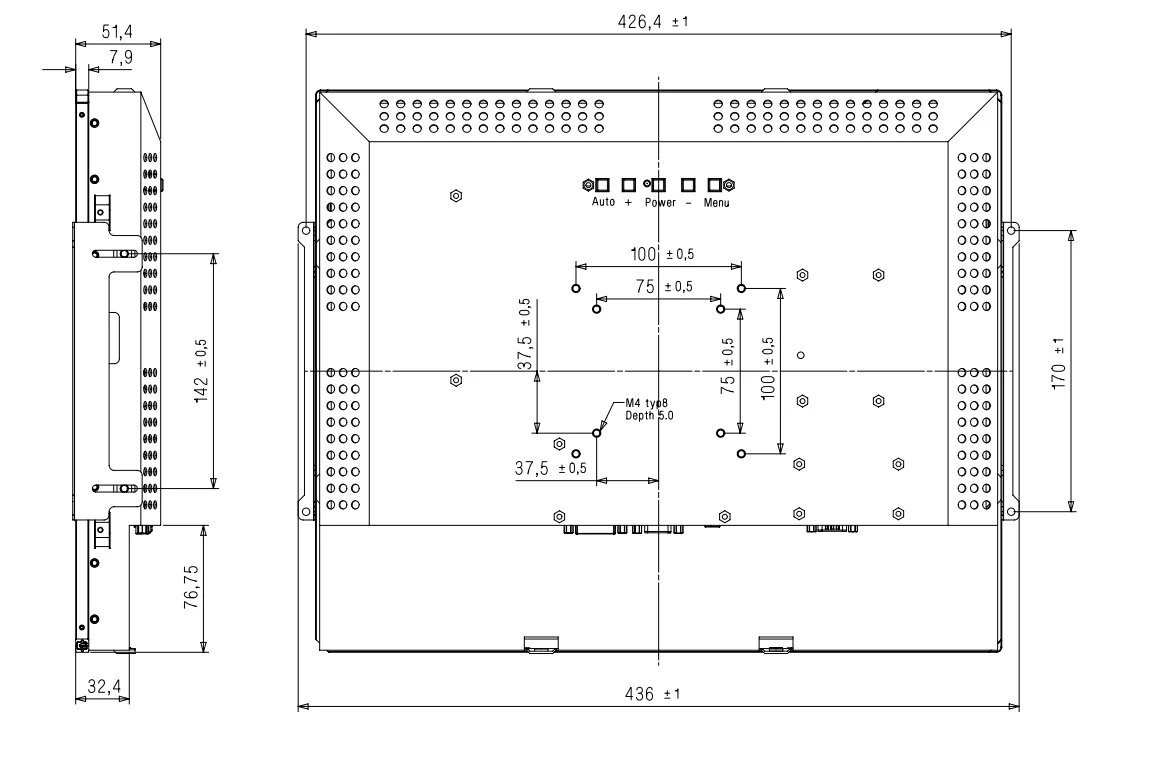

Mechanical Drawing





Product Dimensions

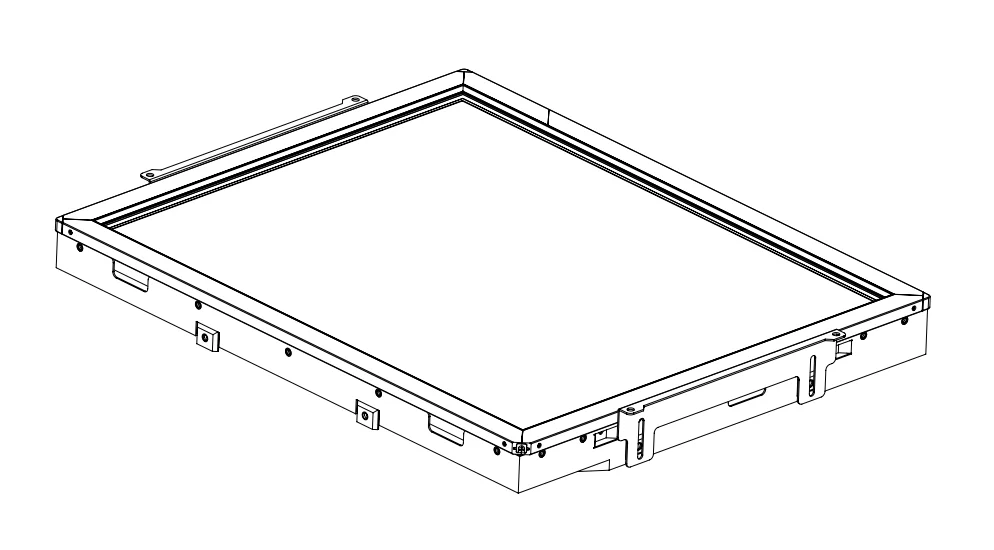

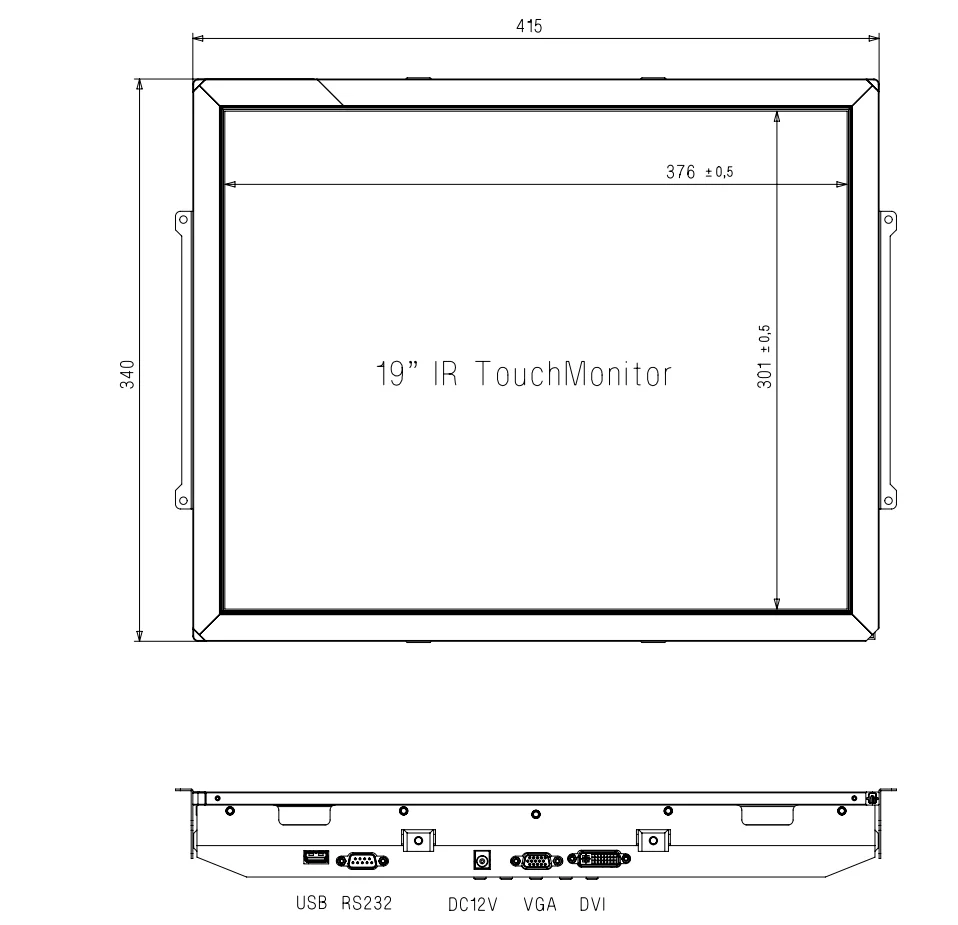

19 touch monitor (1).PNG19 touch monitor (2).PNG19 touch monitor (3).PNG19 touch monitor (4).PNG








Packing and Shipping

Packing



  • 1pc/carton or 2pcs/carton, EPE inside

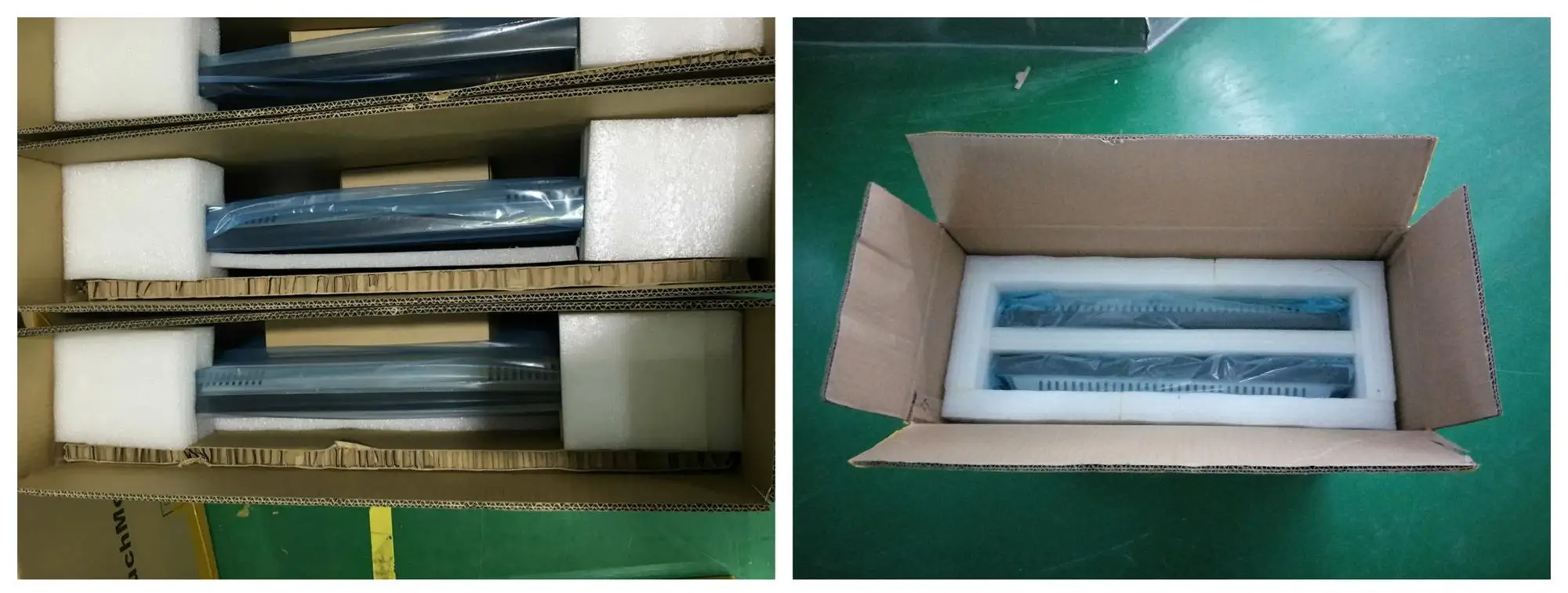

interactive monitor (16).jpg


Shipping



  • Sample or small orders shipping by Fedex, UPS, DHL, TNT Door to Door, bulk orders by sea shipment


19 touch monitor (14).jpg








Company Information


Certifications


19 touch monitor (16).JPG





Our Services



  • Over 8 years experience in Touch Solution, We offer an extensive array of services with products being widely used in industries such as finance, gaming, retail, kiosk, healthcare, education, etc.

  • OEM service: Years of experence to handel OEM orders,  independent R&D for custom-make include customized size screen or monitor, customized package, customized manual ect.

  • Quality Assurance: We have got ISO 9001 certified and has earned CE, UL, FCC, RoHS and other international certifications.1 year regular warranty for all products.

  • Sevice Team: Well-trained professional after-sales service team.Provide long term Technicial Support.
