Generator Rectifier Diode Forward Reverse 300 Amp 600 Volt D09

Share on (60783233365):


Price:

Quantity:


Product Overview

Description



Product Description

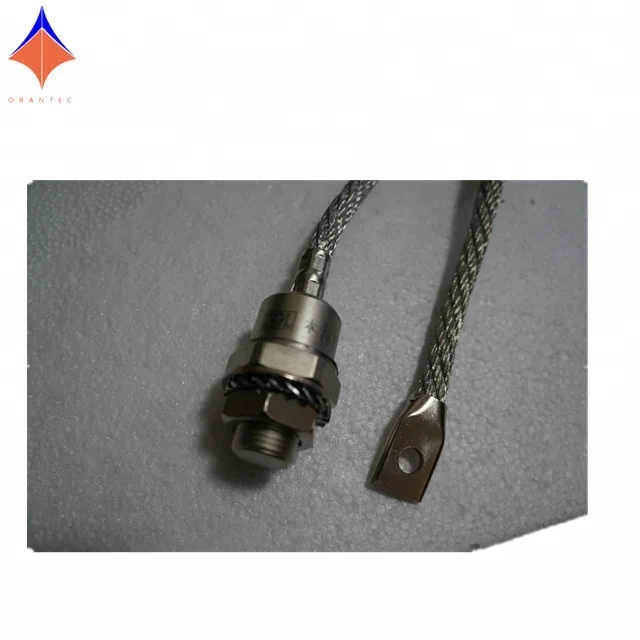

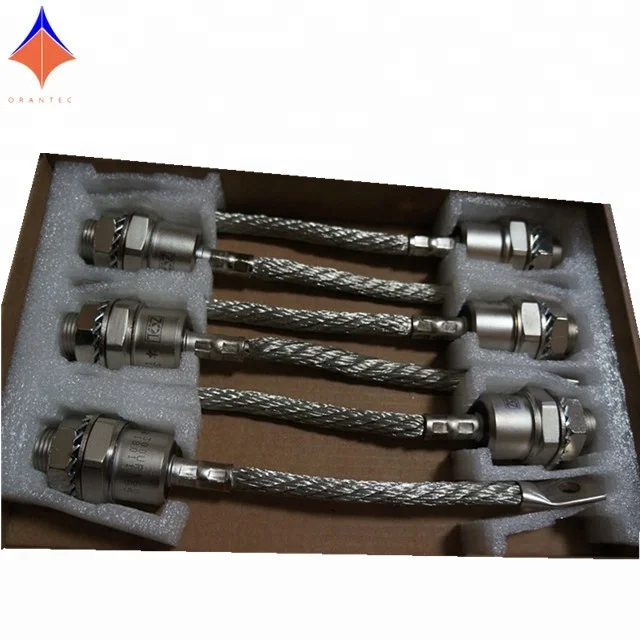

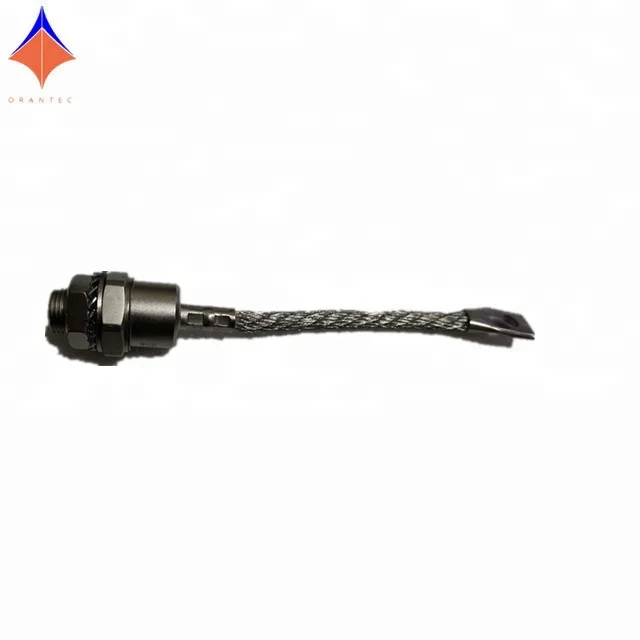

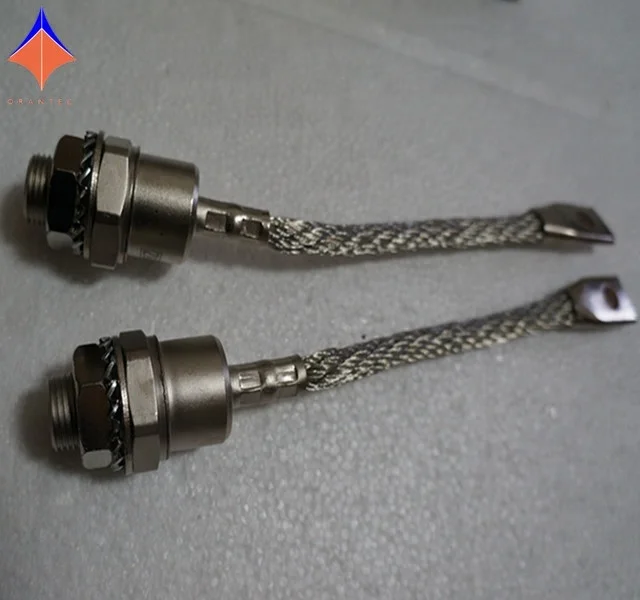

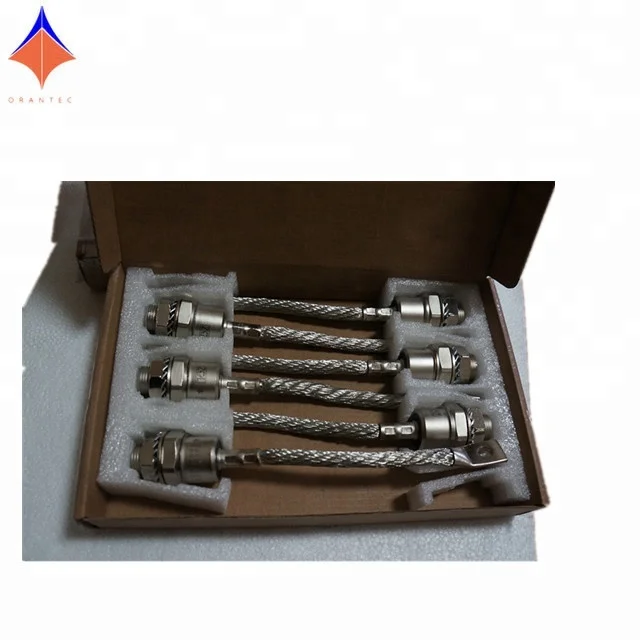

Generator Rectifier Diode Forward Reverse 300 Amp 600 Volt D09


Rectifier diode forward and reverse 300 amp 600 volt (minimum) diodes


Model
D09
IF(RMS)
480A
Current
300A
Max. Reverse Current:


20mA
Voltage
600V
Max. Forward Voltage:


1.35V
Wt(KG)
0.27KG
Max. Reverse Voltage:


2400V




Features

Alloy diode

Peak reverse voltage up to 1000V

Popular series for rough service

Standard JEDEC types

Stud cathode and stud anode version



Typical Applications


Welders

Power supplies
Motor controls
Battery chargers
General industrial current rectification




RSK1001 used for the generator of BC16/18 series

RSK2001 used for the generator of UC22/27 series

RSK5001 is designed for HC4/5 generator

RSK6001 is designed for HC7 generator

RSK1101 Used for Stamford Alternators P044, BC164 and BC184 series
