Transformer is to transform AC voltage, current and impedance of the device, when there is communication through the primary coil current, the core (or core) will produce AC magnetic flux, which makes the voltage (or current) in the secondary coil.
The transformer is composed of an iron core (or magnetic core) and a coil, and the coil has two or more windings, where in the winding of the power supply is called primary coil, and the other winding is called the secondary winding.
Transformer is a kind of device which uses electromagnetic mutual inductance, voltage, current and impedance.
Product parameters
Type
Primary voltage
Secondary voltage
filament voltage
No-load current
Idle power
Primary resistance
Secondary resistance
Insulation
(MΩ)
Terminal
Frequency
TC-9001
220V
2110V
3.3V
5.5A
85W
2.2Ω
104Ω
50HZ
#250
50HZ
Applicable scope

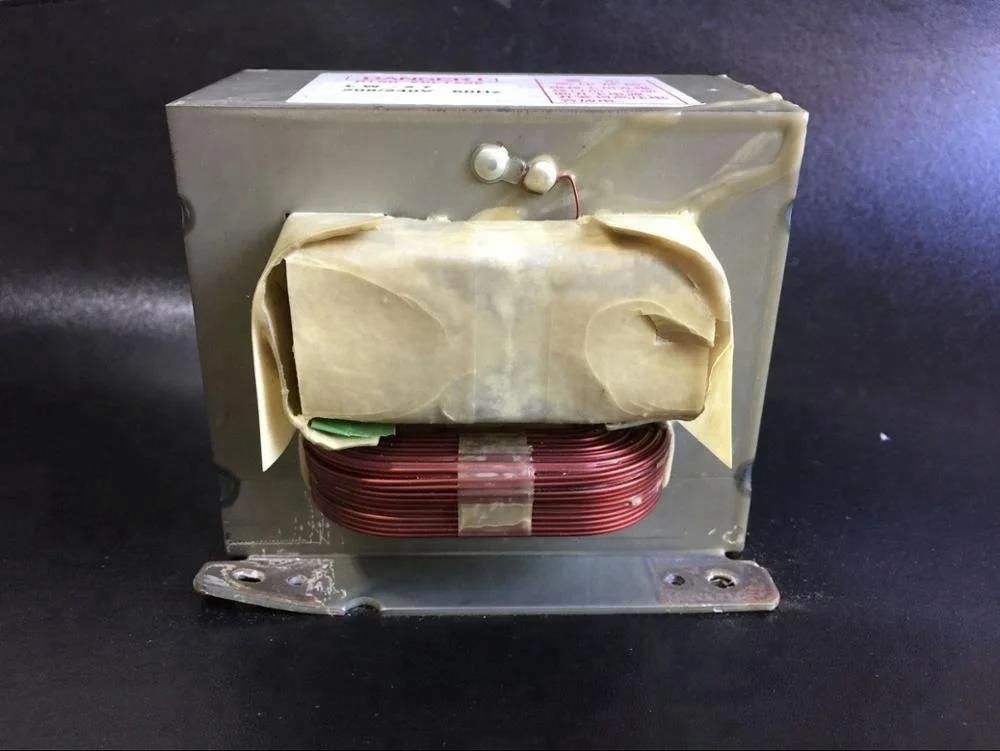

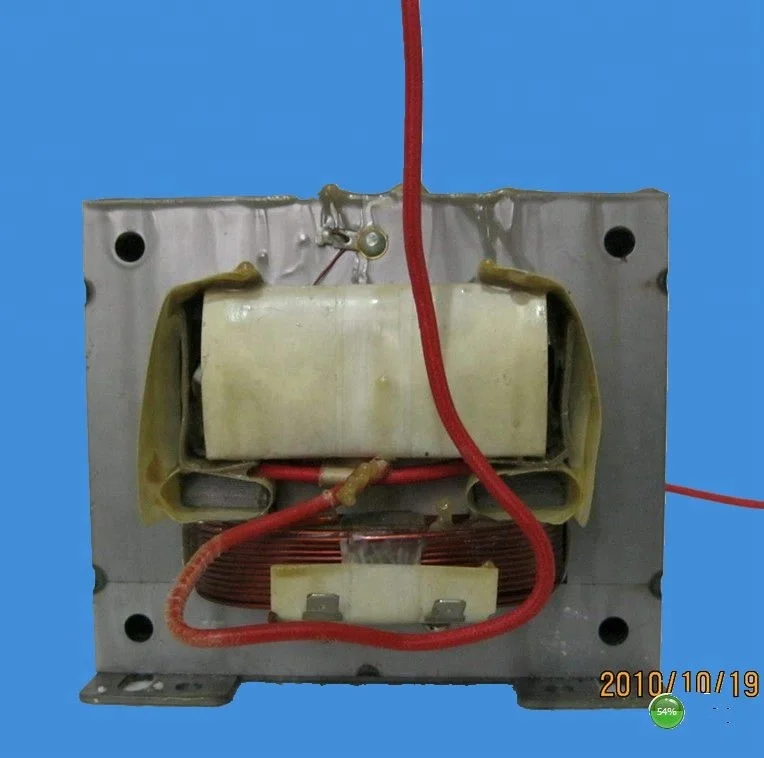

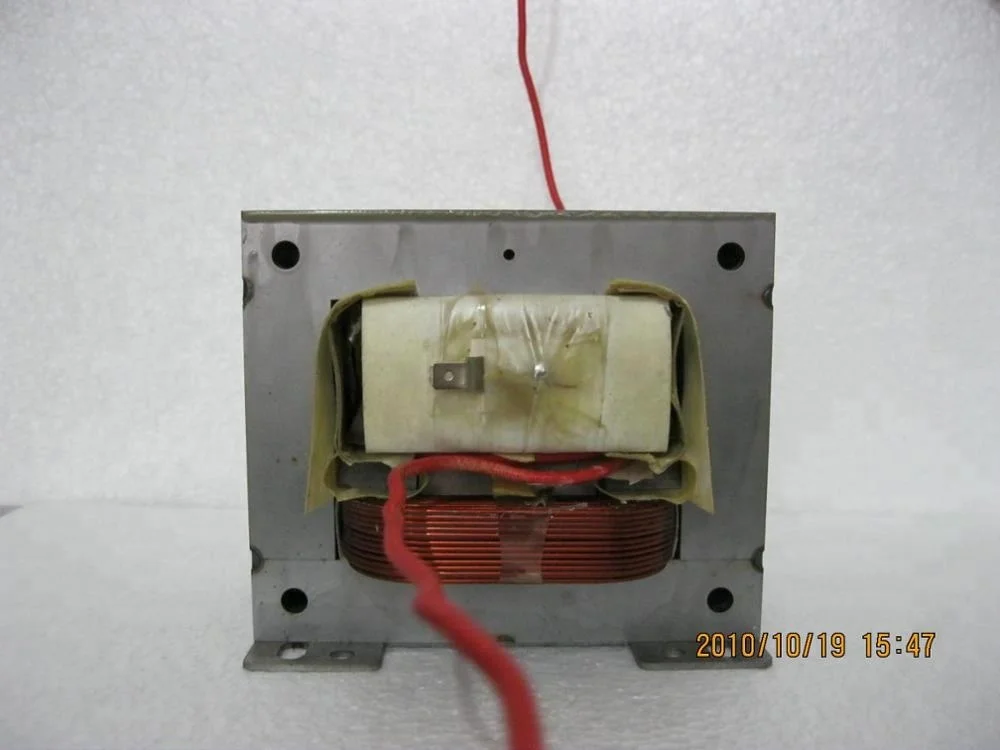

Professional high voltage transformer, double aluminum wire, secondary winding 178Ω, primary winding 2.3Ω. Air cooling,Insulation grade R, 220 degree temperature coefficient,for Galanz, the midea and other brand microwave oven use .Under the standard condition, the noise is less than 45db.
Packaging & Shipping
we can accept the international order ,we can ship to our coverage zone.
1,we can guarantee that the goods be send out within 5 working days ,if your order in stock .
2,the shipping time is depends on buyer's country customs clearance time and there are some accident; such as Force Majeure,if you don't receive the goods ,please contact your customs,and your local shipment company .so that you can get the goods quickly.
Scope of application: Suitable for all kinds of high temperature industrial microwave equipment (500-1200 degrees), conventional microwave drying/drying equipment 24 hours of continuous work for a long time.
Packaging & Shipping
72pcs of transformer per carton, 18pcs per layer ,total 4 layers. One carton of transformers will be loaded on one pallet.
