Thermal insulation material ceramic fiber blanket for flue liners
- Category: >>>
- Supplier: Zibo Jiuqiang Refractory Co. Ltd.
Share on (60783306150):
Product Overview
Description
Thermal insulation material ceramic fiber blanket for flue liners
Product Description
Product Description
Ceramic fiber blanket is made through intensive needle-punching processing. The product does not contain any bond or other compositions, and also no slag inclusion content. The intensive needle-punching techniques’ improved the fiber inter-texture and the resistance performances against delaminating as well as the tensile strength. It has good high temperature shrinkage after the heat treatment of 750-950 during the producing. Beside the characteristics in common, it have better sound insulation performance and mechanism strength, is easy to machining and install.
Product Features
1. Low thermal conductivity
2. Excellent heat insulation
3. Excellent chemical stability
4. Shock and chemical attack resistant
5. Low thermal conductivity and shrinkage
6. Low shrinkage under high temperature
7. Excellent sound insulation and resistance of folding
Product Application
1. Industrial furnace, heaters, inside wall of high temperature tube.
2. Electric power furnace, nuclear power station and heat insulation.
3. Liners of chemical industry high temperature reaction equipment and heat insulation.
4. Fire proofing and heat insulation of high building.
5. Heat insulation for kiln door and lid.
6. Filtration material of high temperature.
Technical Data
Technical Data
Type | Common | Standard | High Purity | High Aluminium | Zirconia | |
Classification temperature (°C) | 1100 | 1260 | 1260 | 1360 | 1400 | |
Working Temperature (°C) | < 1000 | 1050 | 1100 | 1260 | 1350 | |
Color | White | Pure white | Pure white | Pure white | Pure white | |
Density (kg/m3) | 96/128/160 | 96/128/160 | 96/128/160 | 128/160 | 128/160 | |
Shrinkage on heating (%) (24 hours, density as 128/m3) | -4 | -3 | -3 | -3 | -3 | |
Thermal conductivity by different temperature (w/m.k) (density as 128kg/m3) | 0.09(400°C) | 0.09(400°C) | 0.09(400°C) 0.16(800°C) | 0.12(600°C) | 0.16(800°C) | |
Tensile strength (MPa) | 0.04 | 0.04 | 0.04 | 0.04 | 0.04 | |
Chemical composition (%) | AL2O3 | 44 | 46 | 47-49 | 52-55 | 39-40 |
AL2O3+SiO2 | 96 | 97 | 99 | 99 | - | |
AL2O3+SiO2+ZrO2 | - | - | - | - | 99 | |
ZrO2 | - | - | - | - | 15-17 | |
Fe2O3 | <1.2 | <1.0 | 0.2 | 0.2 | 0.2 | |
Na2O+K2O | ≤0.5 | ≤0.5 | 0.2 | 0.2 | 0.2 | |
Size (mm) | 14640/7200/3600×1220/610×6-50; Other sizes can be available.
| |||||
Packaging & Shipping
Packaging & Shipping

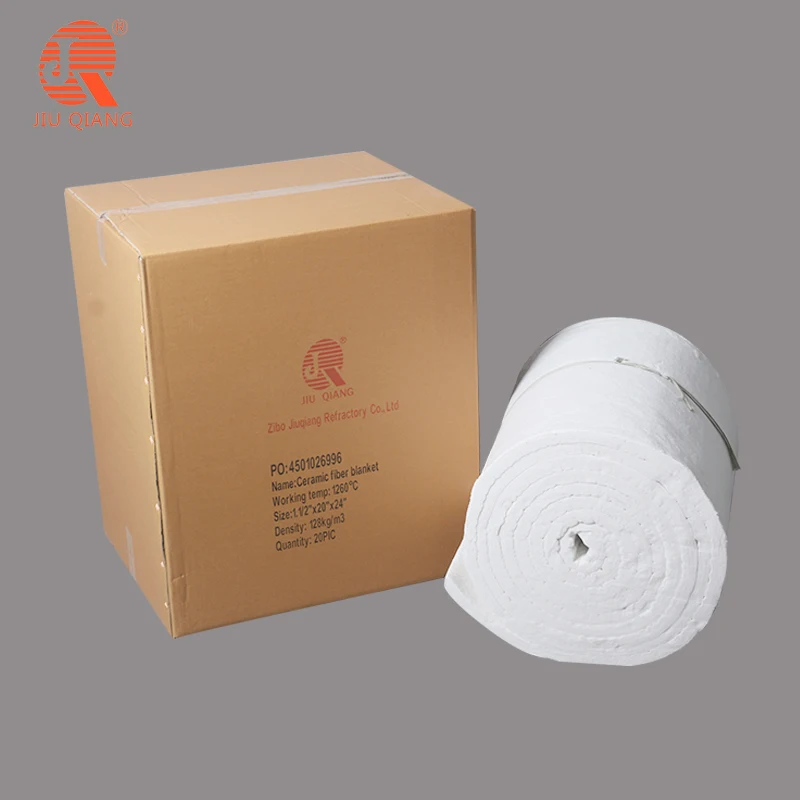

We often adopt carton packages or woven bags for our products, but for load and unload consideration, you can also adopt pallet package.
Company Information
Company Information
ZiBo Jiuqiang Refractory Co.,Ltd is a professional ceramic fiber paper, board, blanket, textiles(cloth, tape, rope) manufacture, the ceramic fiber paper (cotton fiber paper) we produced has been exported to all over the world and won a very good reputation. Ceramic fiber paper, ceramic fiber board, ceramic fiber blankets and felts, ceramic fiber bulk, ceramic fiber modules, with kinds of mechanical anchor fixings, ceramic fiber textiles (ceramic fiber yarn, cloth, tape, twisted rope & braided rope),special shaped ceramic fiber products/vacuum formed ceramic fiber products.
Exhibition information
ZiBo Jiuqing has been in international exhibition. Stable quality and good credit make our brand be highly recommended by customers all over the world.
Related Products
Related Products
We can also supply ceramic fiber paper/board/blanket/module/Vaccum formed shapes/gasket/tape/cloth/rope.
More related information, pls click on below product name!
| Ceramic fiber paper | Ceramic fiber board | Ceramic fiber blanket | Ceramic fiber module |
| Vacuum Formed shapes | ceramic fiber gasket | ceramic fiber cloth/tape | ceramic fiber rope |
Certifications
Certifications
Our ceramic fiber products passed CE certificate. At the same time, we passed ISO, MSDS.
FAQ
FAQ
Q: Are you trading company or manufacturer ?
A: We are a professional manufacturer of various heat-resistant materials, such as fireproof series, sealed series, gasket series.
Q: How long is your delivery time?
A: Generally we will within 30 days of delivery to you.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What items is needed for a quotation?
A: Size, length, thickness.
