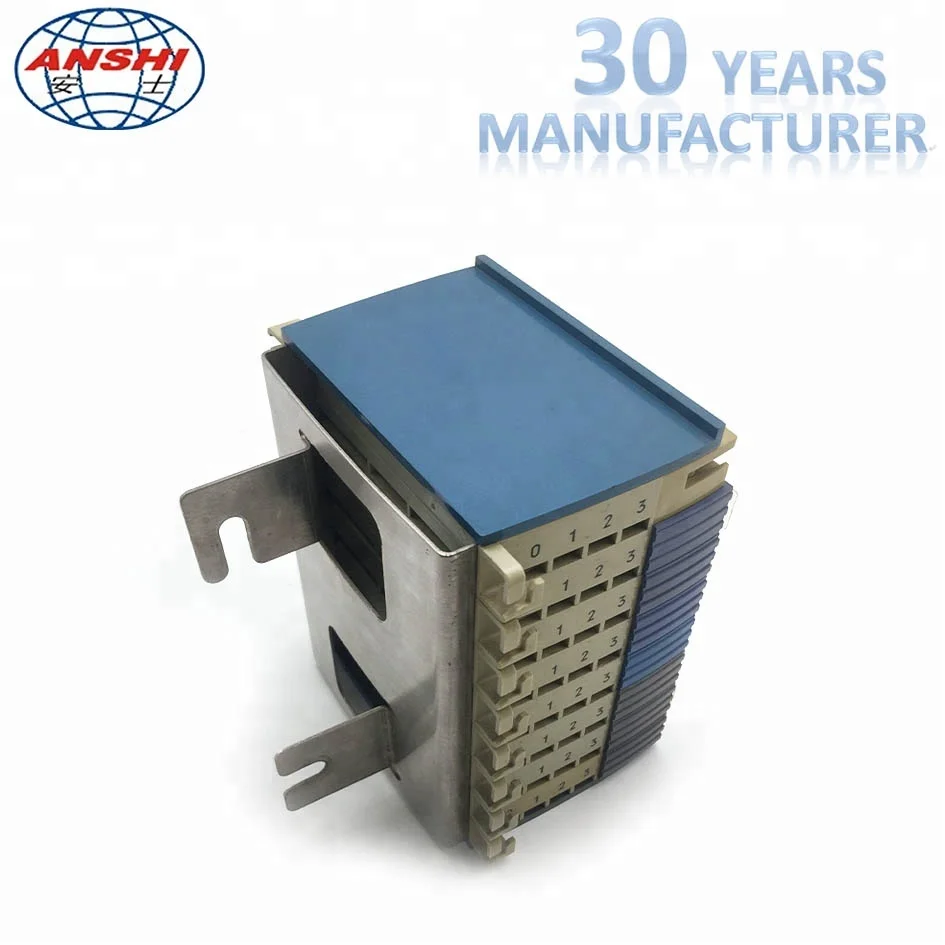

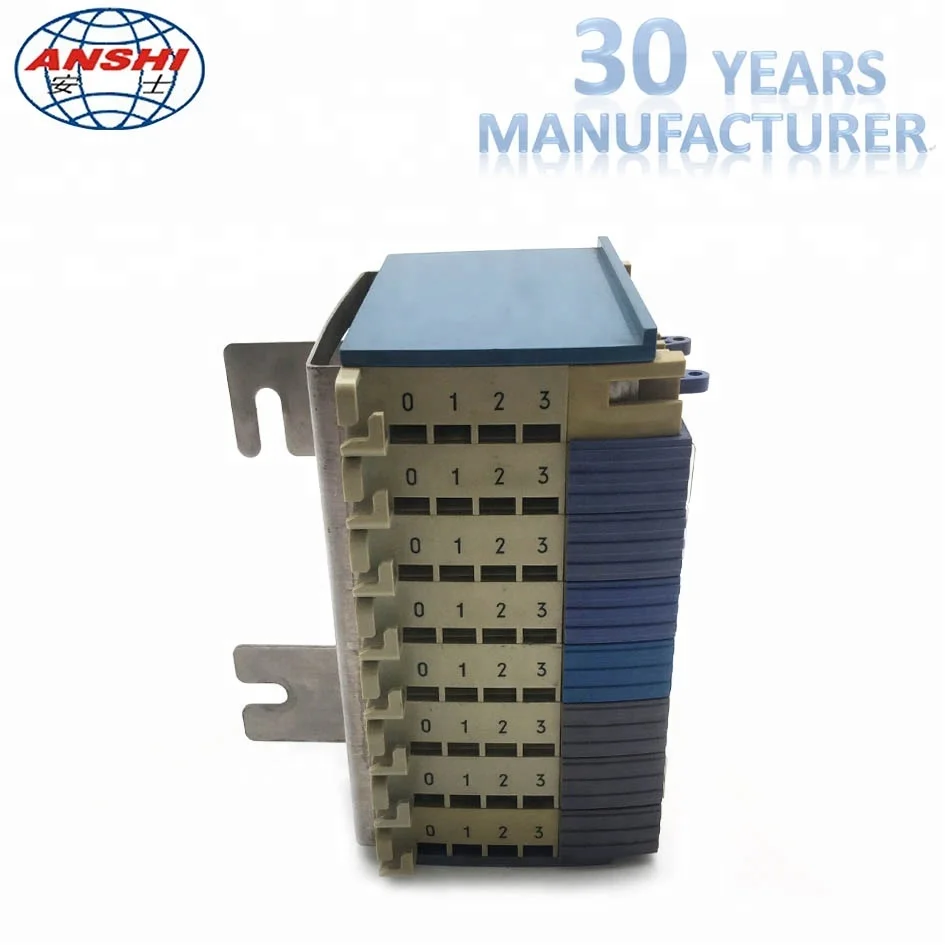

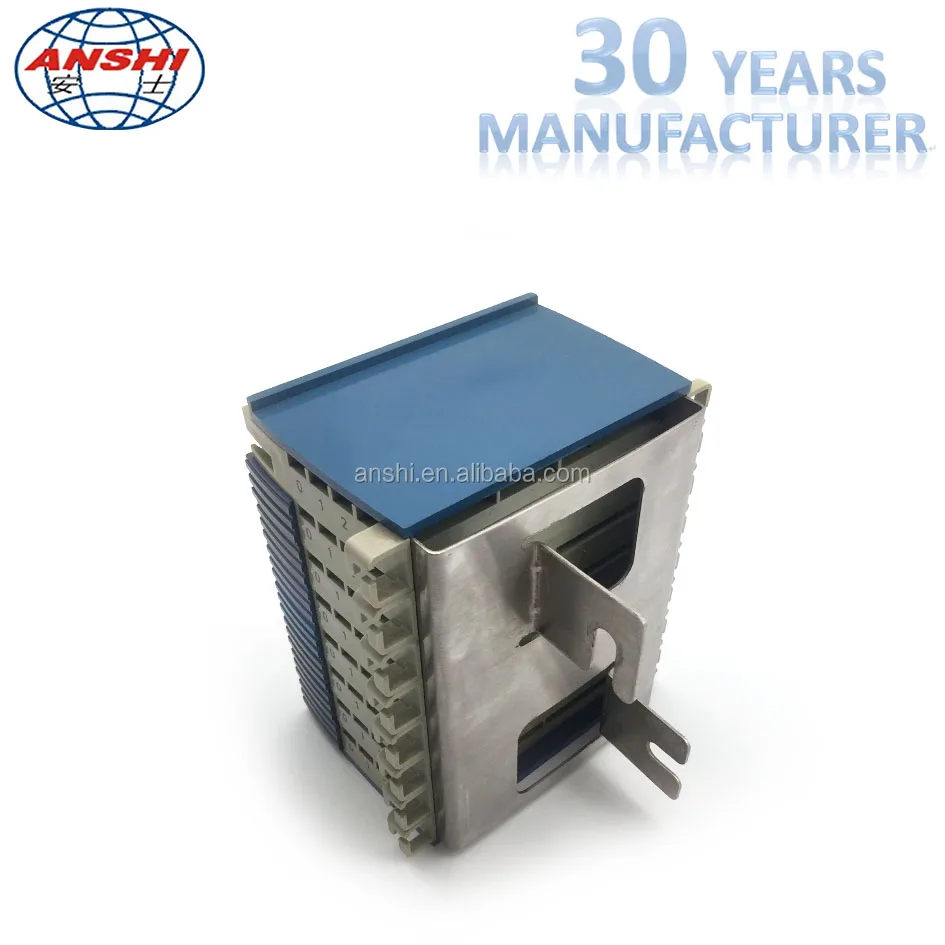

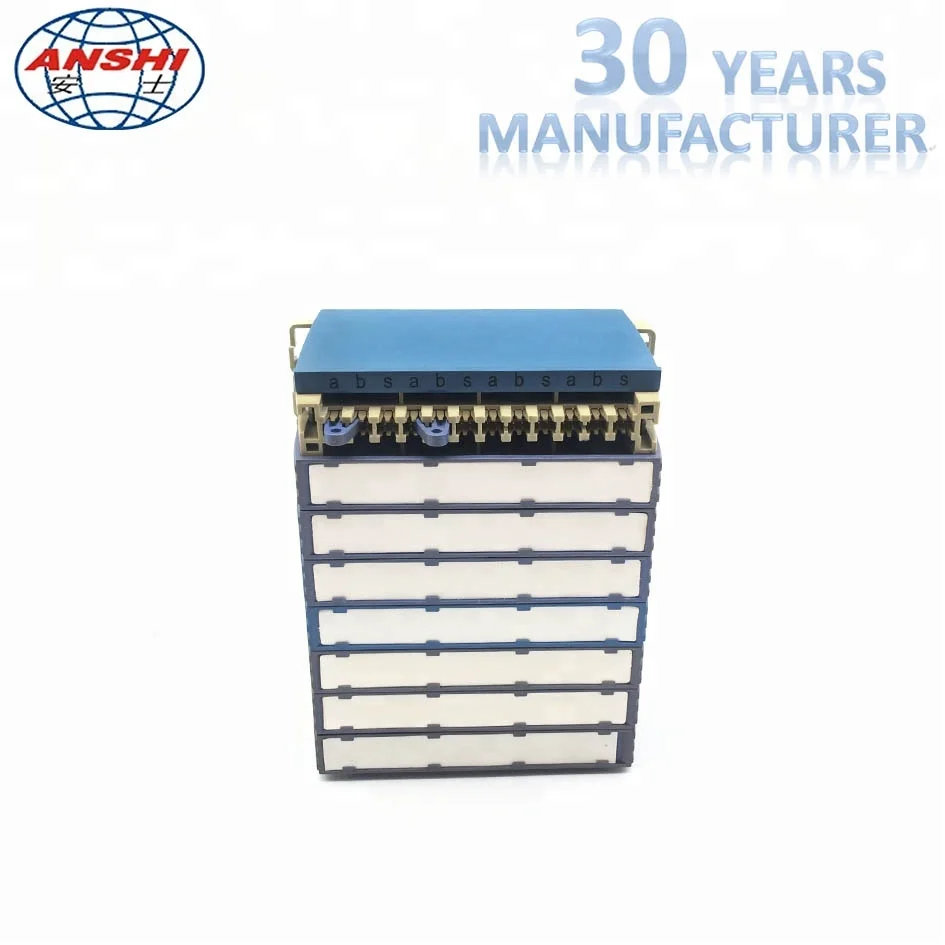

ANSHI MPX286 120 OHM 16 / 32 /64 Systems DDF Digital Distribution Frame Module

Feature:

AS-DDF-MK16 Digital Distribution Frame (DDF) works as the interface for E1/T1 (2Mbps) where the 120ohm shielded twisted pair cable has to be interconnected, cross-connected and organized. It also features monitoring of signals for supervising digital transmission equipment.

In fixed networks the DDF should be placed in a centralized location and serve as the interface between the exchange and transmission equipment

In mobile networks, the DDF serves as the interface between a MSC (Mobile Service Switching Center) or BSC (Base Station Controller) and the transmission equipment.

MAIN FEATURES

Insulation Displacement Connection

No Wire-stripping, screw and solder free

Reliable connections

Clear labeling

Flame retardant performance

Modular design and installations

Gas tight connection

One push wire insertion

Only one inexpensive tool required

High density

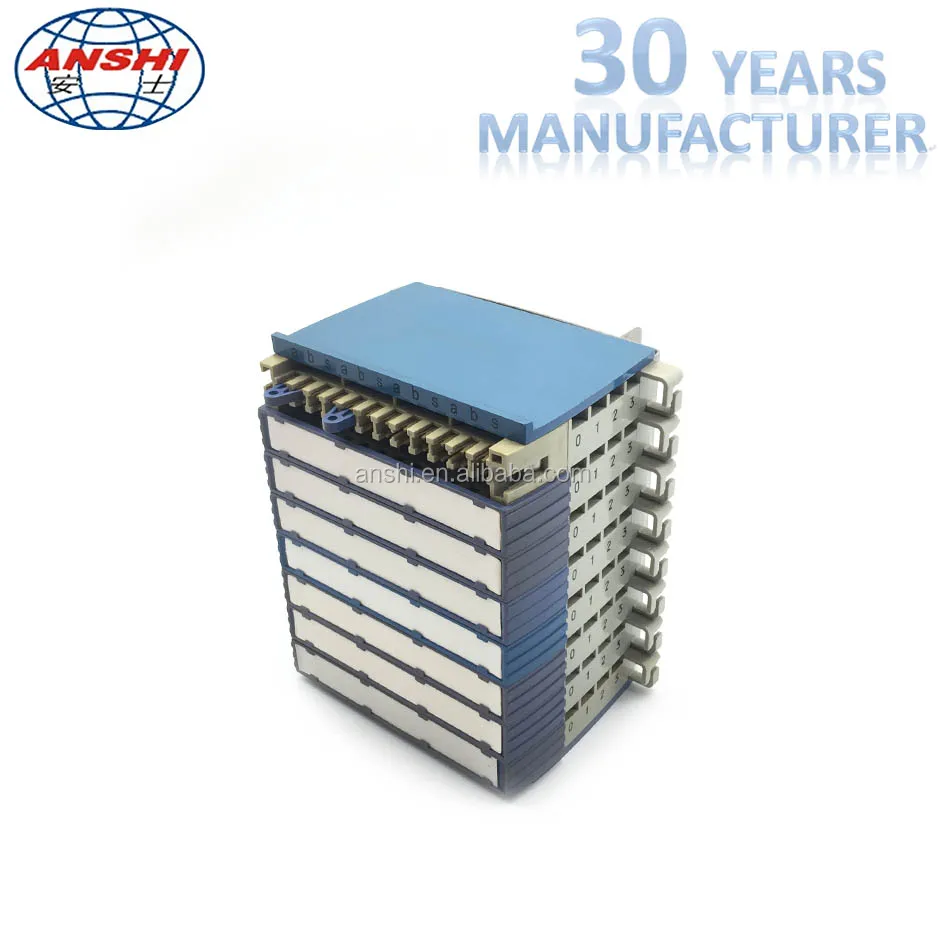

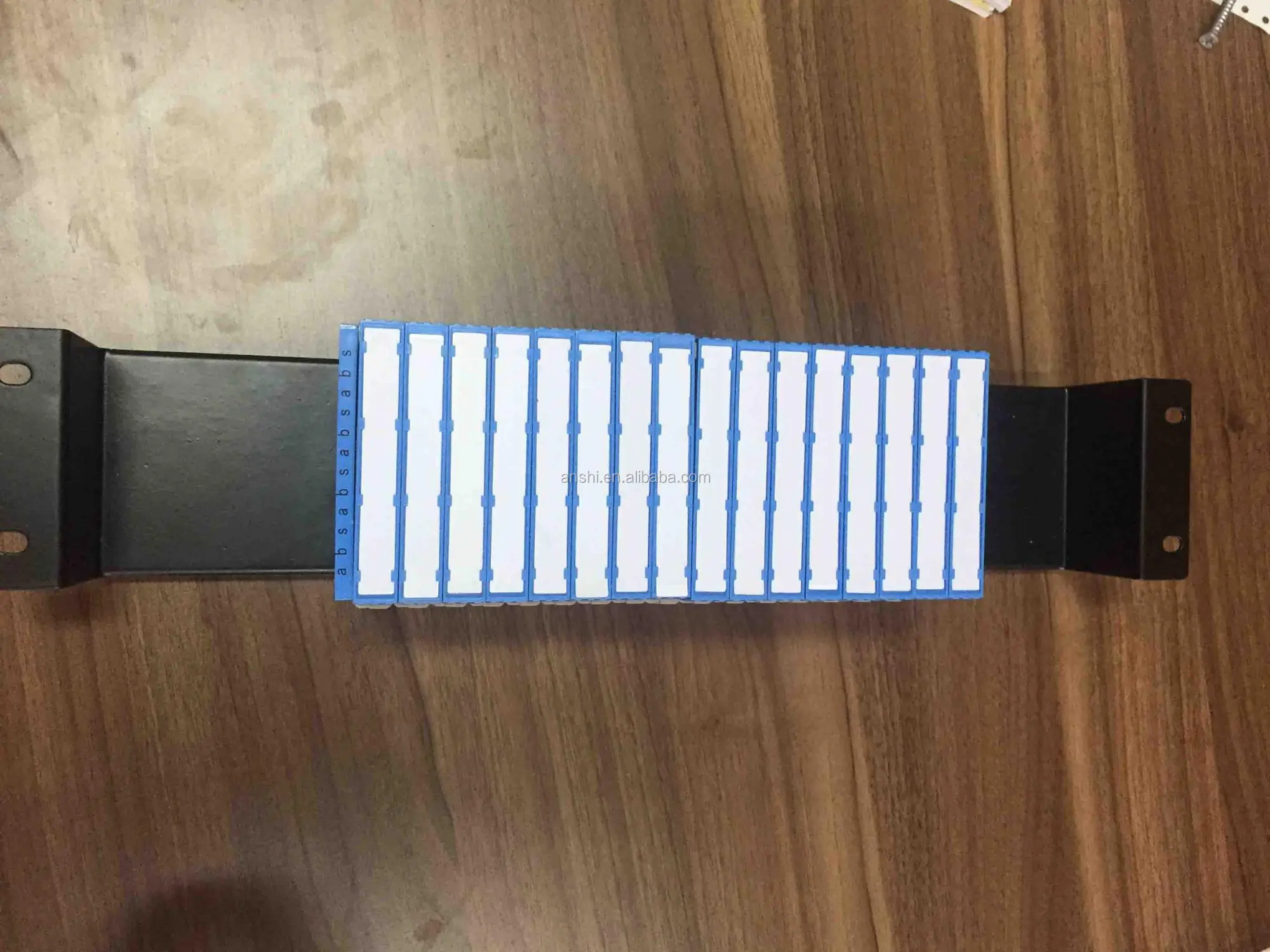

120 OHM 32 SYSTEMS MODULE

Accessory

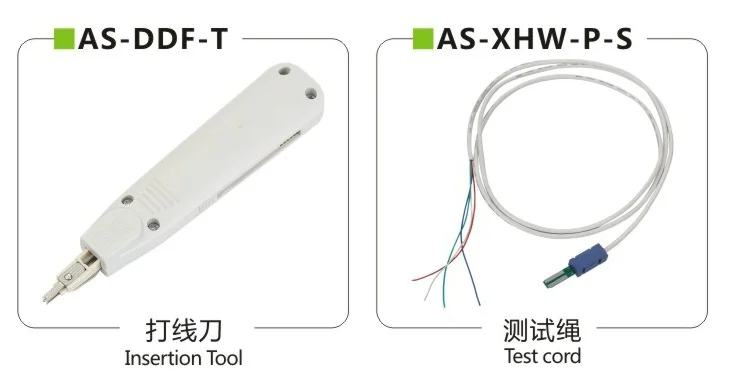

Insertion Tool and Test cord
