Efficient Mast Climbing Work Platform Climbing Scaffold Facade Protection System
- Category: >>>
- Supplier: Kitsen Technologies Co. Ltd.
Share on (60783360962):
Product Overview
Description
Product Description
| Category | Climbing Scaffold | Application | High-rise building construction and shear wall structure |
| Climbing Scaffolding Unit Width | 0.6m | Climbing Scaffolding Unit Height | ≤5 floors |
| Guide Rail Span | ≤7.0m(broken line & curve ≤5.4m) | Span&Height | ≤110m2 |
| Weight | 2.0-2.8 tons | Allowance Loading Capacity | 3x2& 2x3 KN/m2 |
| Elevation speed | 120mm/min | Elevation Hoist Rated Tonnage | 7.5 tons |
All KITSEN scaffolding and formwork products will be covered by RMB10,000,000.00 product liability insurance.

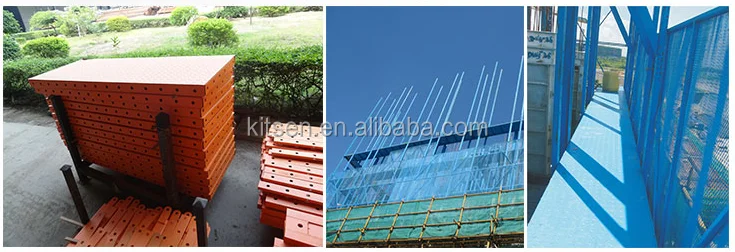

KITSEN Climbing Scaffold is suitable for high-rise buildings and super high-rise shear wall structures. This system integrated with the climbing mechanism makes for one-time installation and lifting. Also its built-in safety screen design can effectively prevent workers and objects falling when operating.

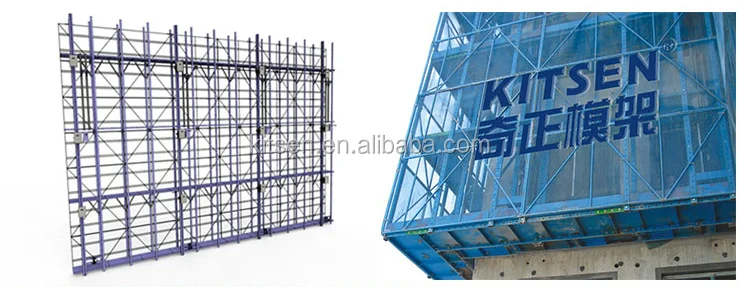

- Modular Structure. Main climbing frame composed of metal screen, adjustable vertical frame and keel plate.
- Standard structure integrated with full protection mechanism and excellent fire proof function. Easy to install and dismantle.
- Wide ranges of applications. Great saving on Labor and material.
- Trapdoor platform ensures safe and easy stair access.
- Wall attached device integrates anti-drop function, tilt prevention and guide into one. Good of fall protection and tilt prevention performance.
- Computerized control system offers an easy and clear on-site control manament.
- Control system is designed with overloading auto alarm and stop functions.

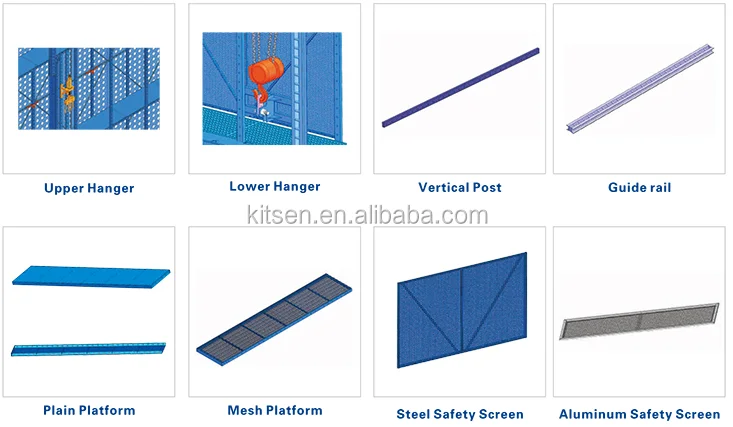

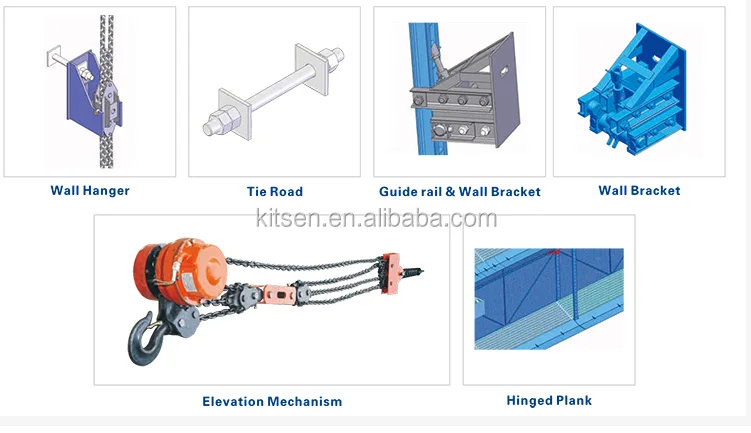

Components:

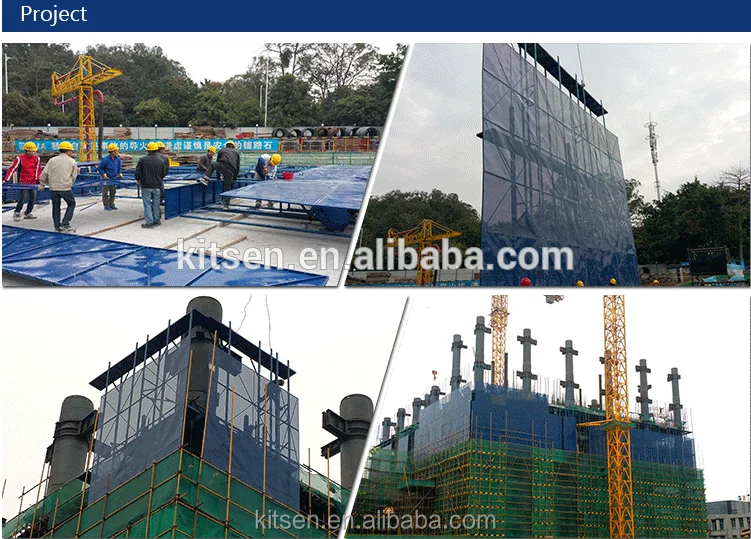

Project

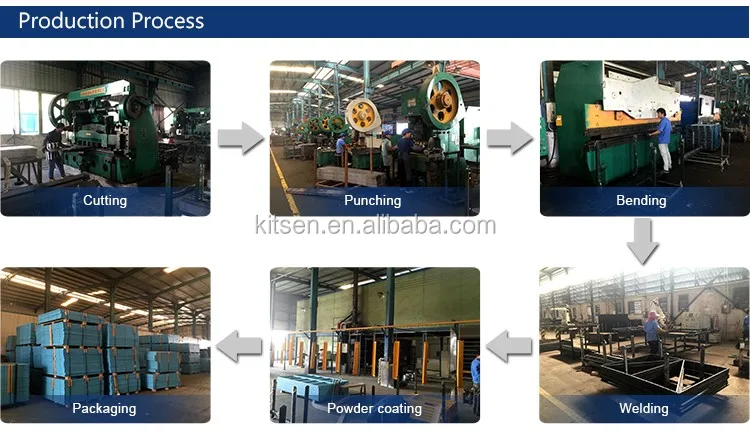

Production Process

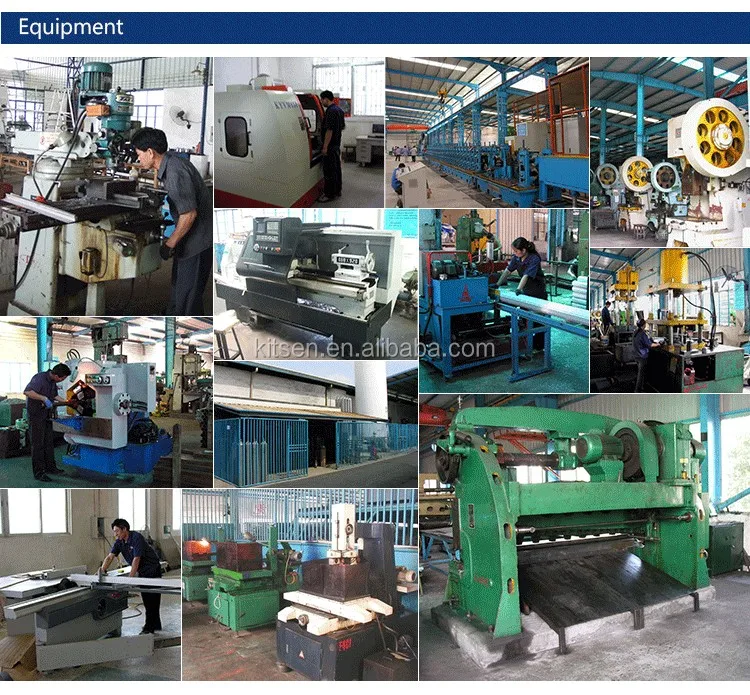

Equipment
Exhibitions
Certifications
