Product Overview
Description
China ecg simulator equipment
Product Description
Overview | ||||||||||||||||||||||||||||||||||||||||||||||||||||||

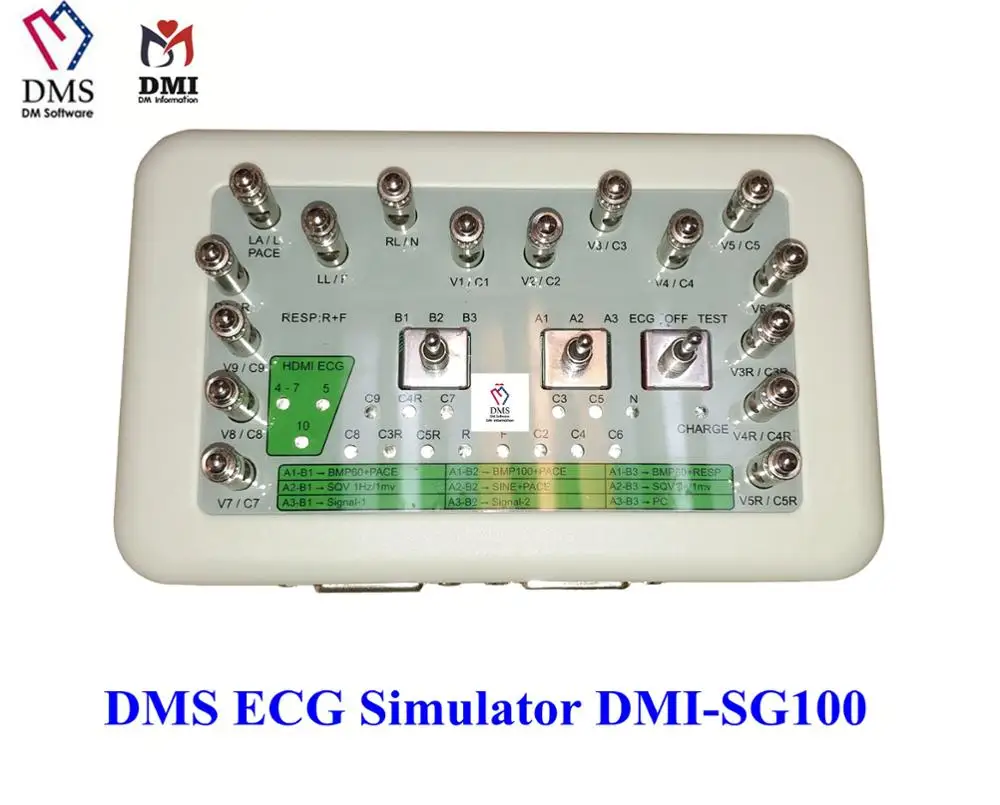

DMI-SG100 PC based ECG Simulator is a portable, light and multifunction ECG Simulator. It can output ECG, RESP, pace-maker or user-defined signal, can be used in the device test and teaching research. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||

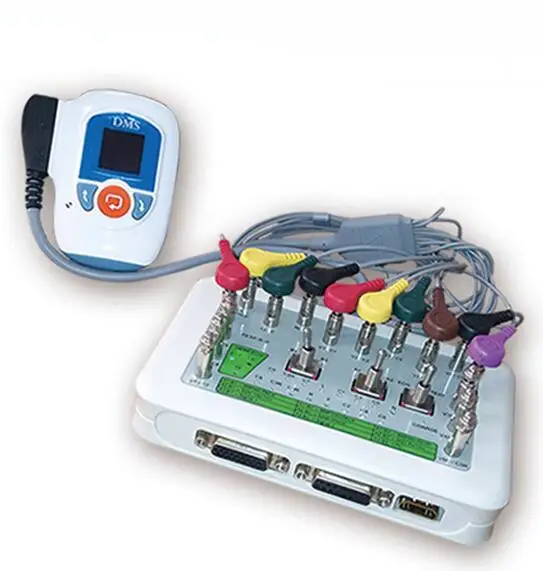

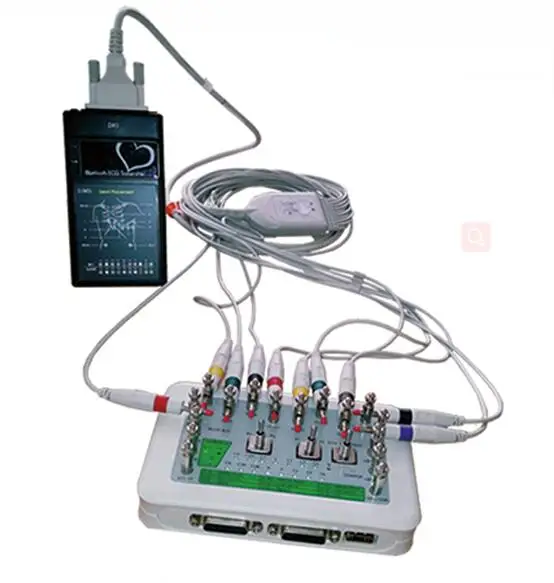

Test of ECG Cable | ||||||||||||||||||||||||||||||||||||||||||||||||||||||

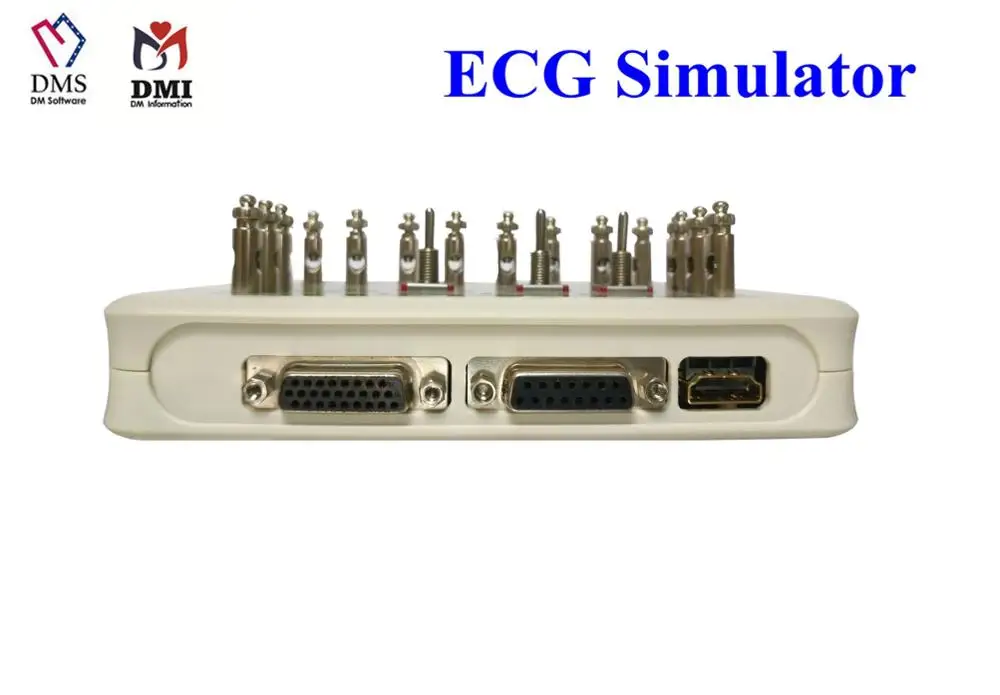

1. Button “ECG/OFF/TEST” choose “TEST”. 2. Connect the 18 lead (12 lead, HDMI) cable to the Simulator DB26 (DB15, HDMI) port. 3. Connect the 18 lead (12 lead, HDMI) cable to the matched terminal. Check the led light of the matched terminal, if the led light is on, it means the cable is working. 4. HDMI testing, HDMI cable include 10 lead, 7 lead,5 lead 3 kinds, When you test the 10 lead cable, the 10 led light in the HDMI ECG area will be on; when test 7lead cable, the 4-7 led light will be on; when test 5 lead cable, the 5 led light in the HDMI ECG area will be on.(Mark: Connect the White cable, all 3 led light will be on) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation of Signal Output | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Button “ECG/OFF/TEST” choose “ECG”,assisted with button A and B, Simulator will output 9 sets different signal to the 16 terminals, specific signal as below.
Mark:More operations of Signal-1 and Signal-2 waveform refer to Manual. | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Product Parameter | ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Input: USB2.0(HDMI interface) 5V DC | Working Time: 10 days, Charging Time 4 Hours | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimension: 15.5×9.5×2.9 cm | Weight: 355g | |||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal Electric Source: 4.2V, 1500mAh Li-polymer Battery | Storage: Temperature-10°C~50°C,Humidity10%~80% | |||||||||||||||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
1. When testing the HDMI cable, the buzzer warning, at the same time three led light in the HDMI ECG area all turn on, It means there are faults on the cable encryption chip or its not the DMS produced cable, you need to change cable asap. 2. In the case of PC control,the simulator should be connected to the PC through HDMI-USB cable and USB cable, then the PC software will send out data. 3. Charging warning: (1) Buzzer Warning means the simulator should be charged, charging time should less than 4 hours. (2) When the Charge Lamb is off, it means completed. 4. You should turn off the device when it is non-use.
| ||||||||||||||||||||||||||||||||||||||||||||||||||||||
Certifications
The world famous ECG product manufacturer
The biggest supplier of American ECG Service Center
CE certified
ISO13485 certified
Our Services
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer the solve way for you.
Packaging & Shipping
Packaging: Standard Carton Packaged
Wooden Cases to protect items
Company Information
DM Software Inc. USA (DMS) headquarter is located in California USA, a company that Mr. Bill Parsons built in 1975 in Electrocardiography products. DMS has owened Holter analysis techniques for 30 years, and has a lot of experience in about 100,000 hospitals globally and about billions of illness cases. DMS' sells product to the whole world. The product are not only popular in European countries, but also the best selling in Asia and American countries. So if any interests, please do not hesitate to contact us!
