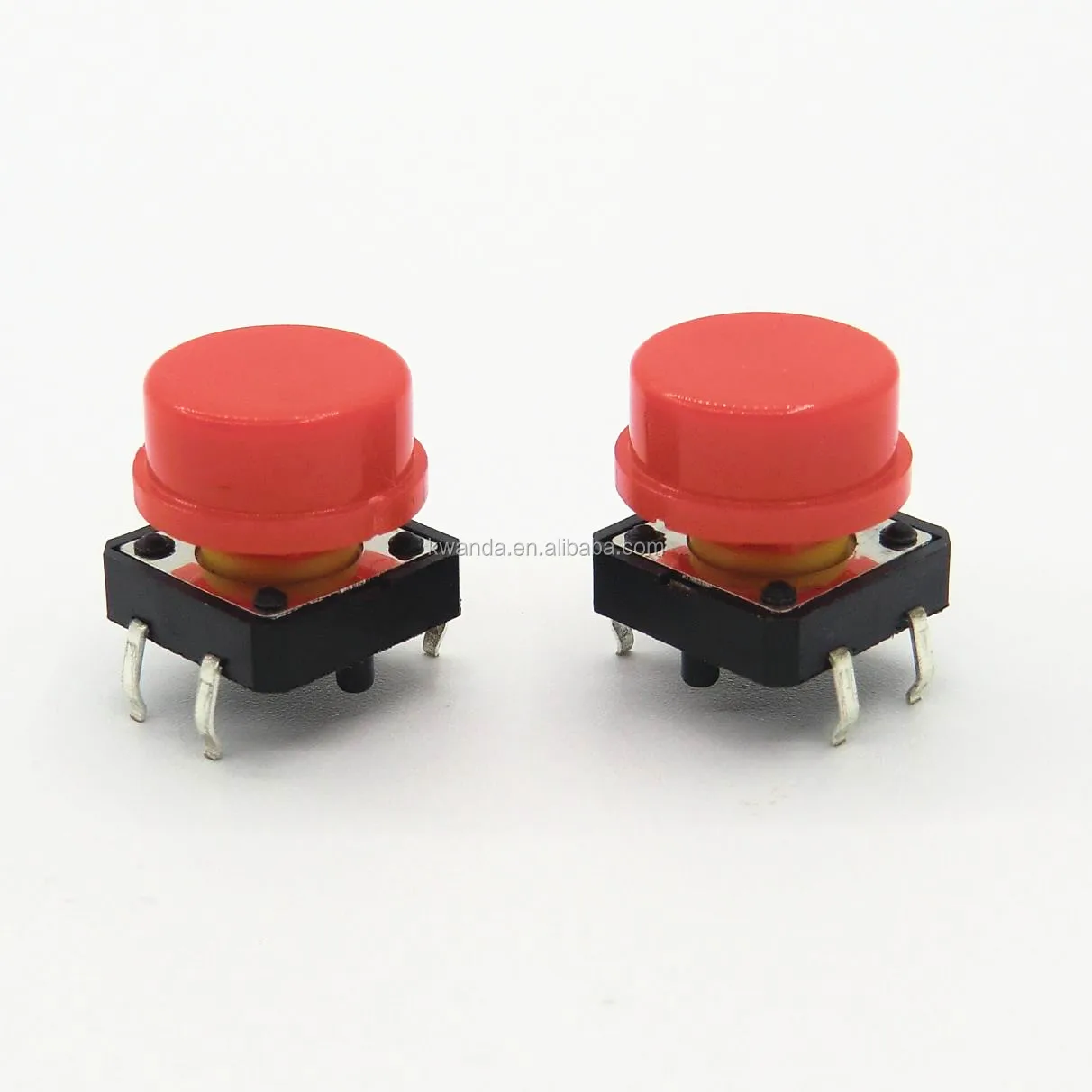

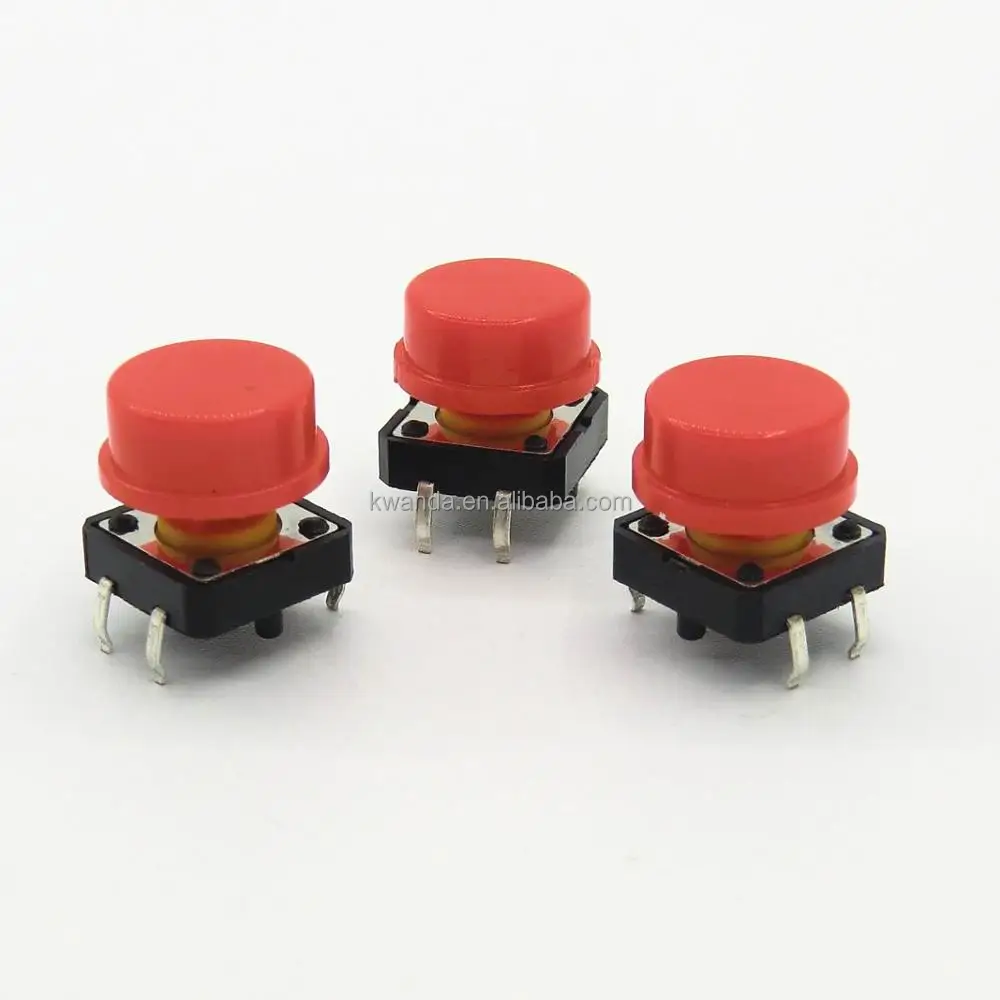

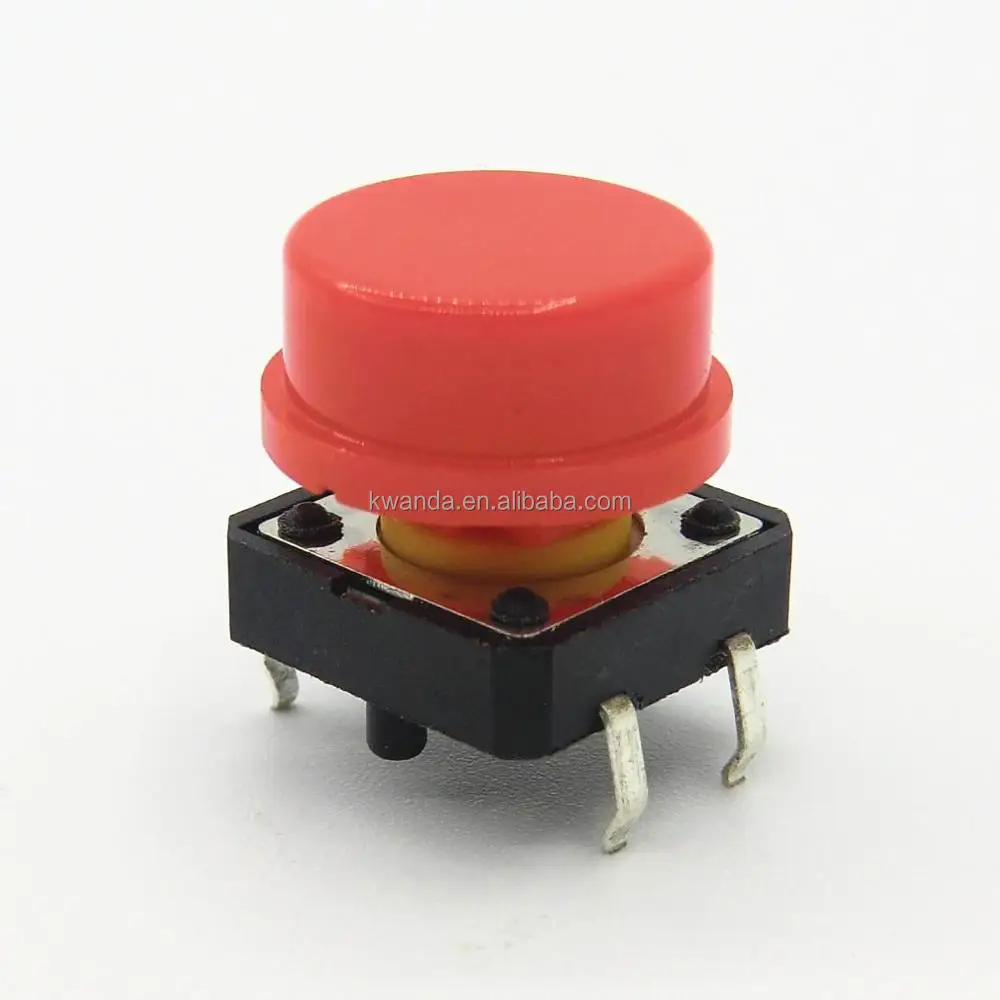

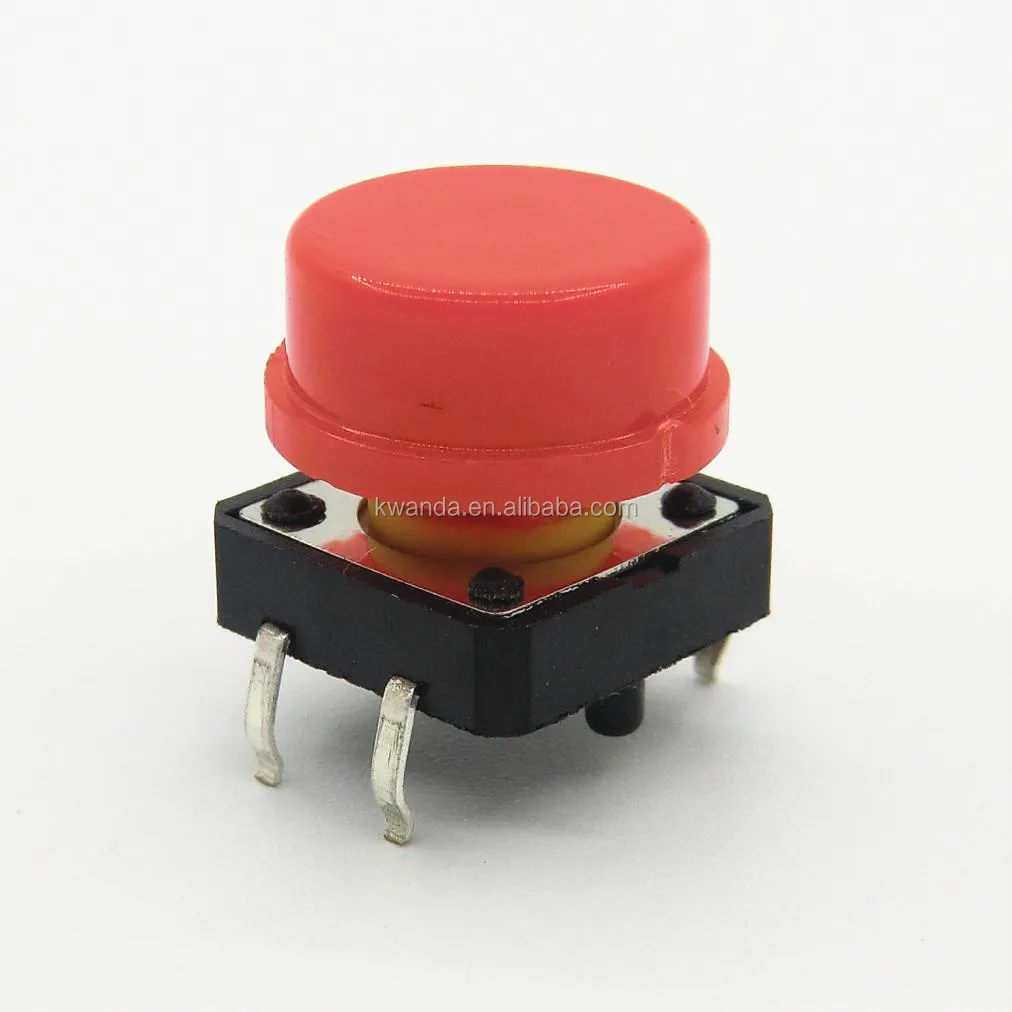

12x12x7.3(H) DIP Tact Switch 4 Pin tactile switch caps

Product Overview

Description

Specification
Tact Switch	Specification
Rating	0.1A 12V DC
Contact resistance	100MΩ max
Insulation resistance	100MΩ 1min at 500V DC
Dielectric strength	AC 500V for 1 min
Lifespan	100,000 Cycles
Practical temperature range	-16 to 60 degrees Celsius
RoHS	Yes



Regarding to our products:



u        More than 2,000 models of switches and sockets.

u        Monthly production capacity: 30 million pieces.

u        MOQ: 5,000pcs, it’s negotiable.

u        Good quality with competitive price.

u        We can offer free samples with shipping and taxes pay by the buyer.

u        Various operation force, height, and color for your choice.

u        The discount depends on your order quantity.

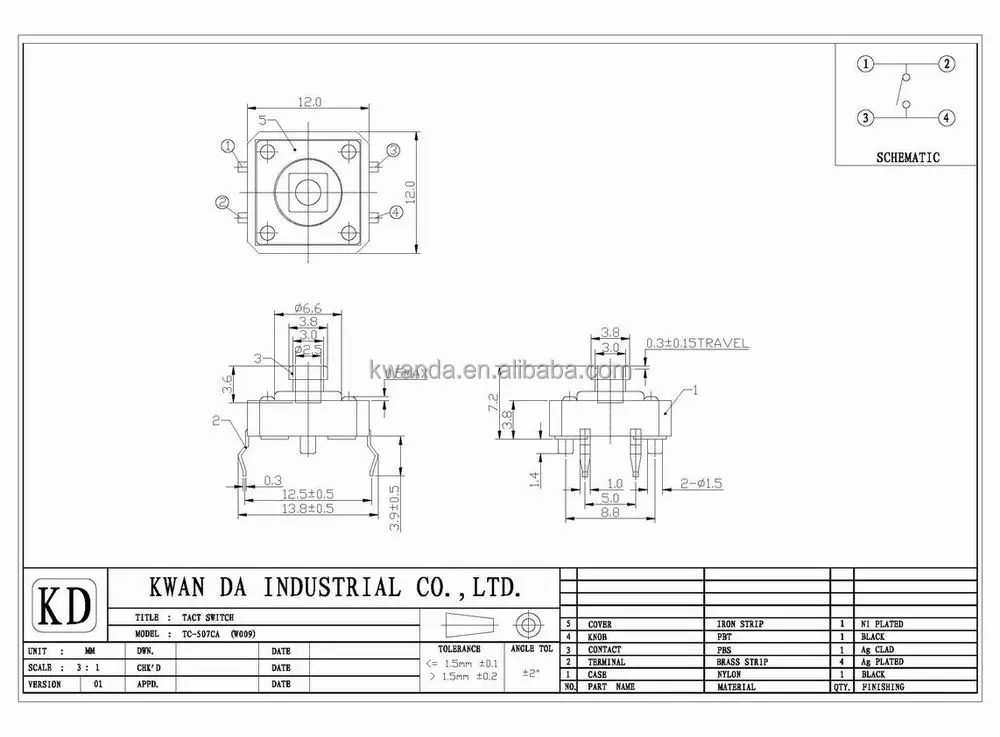

Drawing:
