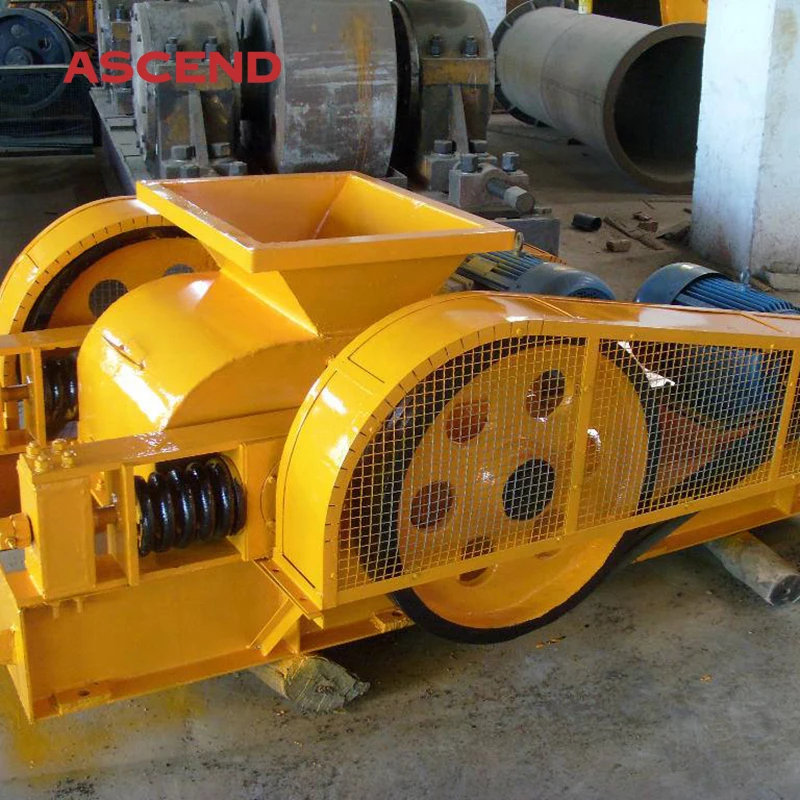

High quality choke coal smooth double roller crusher for concrete, clay and feldsaprt
- Category: Crusher >>>
- Supplier: Henan Ascend Machinery & Equipment Co. Ltd.
Share on (60783454639):
Product Overview
Description
Product Description
Smooth and teeth type double roller crusher
Henan Ascend machinery is the leading enterprise which is professional manufacture double roller coal crusher, double teeth coal crusher, roller coal crusher etc for more than 10 years,our double teeth roller coal crusher with new design(chain&v-belt driven)
Working principle

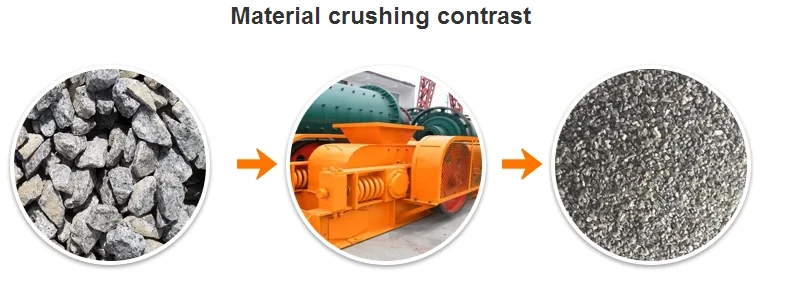

There are two cylindrical rollers horizontally installing on mutually parallel racks, where one of the roller bearing is movable and the other roller bearing is fixed. Driven by electric motor, the two rollers do opposite rotation, which produces downward acting force to crush materials between two crushing rollers; broken materials that are in line with the required size are pushed out by roller and discharged from the discharging port.
![H04~2PIJ1Z07R]SK}W2R7)1.png](http://sc01.alicdn.com/kf/HTB1m5.pHH9YBuNjy0Fg763xcXXa3/234299085/HTB1m5.pHH9YBuNjy0Fg763xcXXa3.png)
Main structure overview

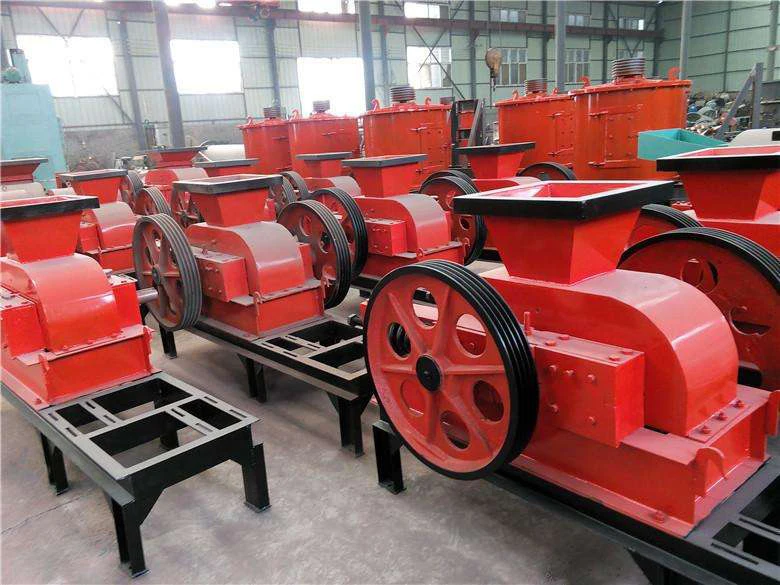

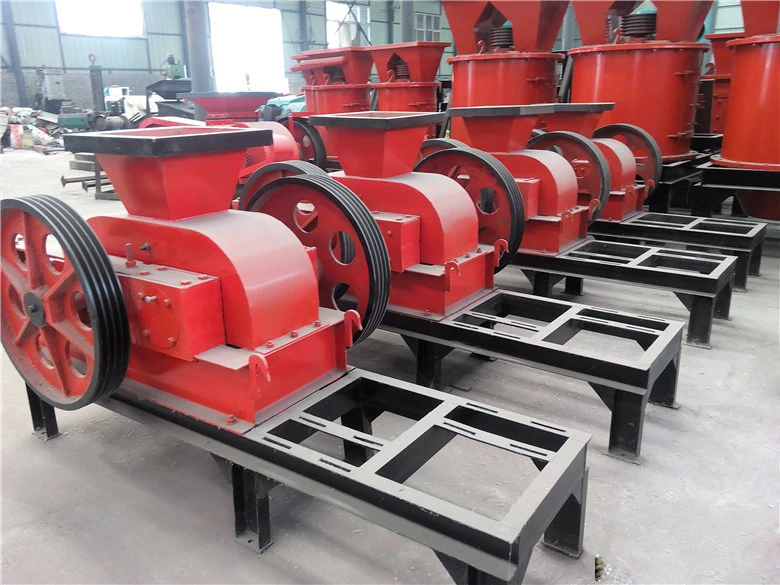

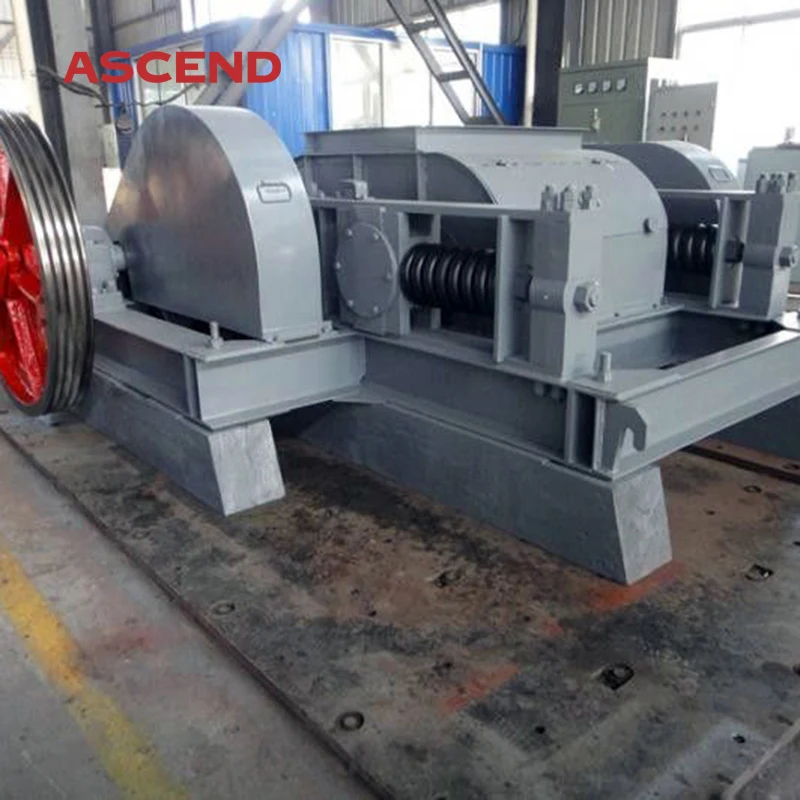

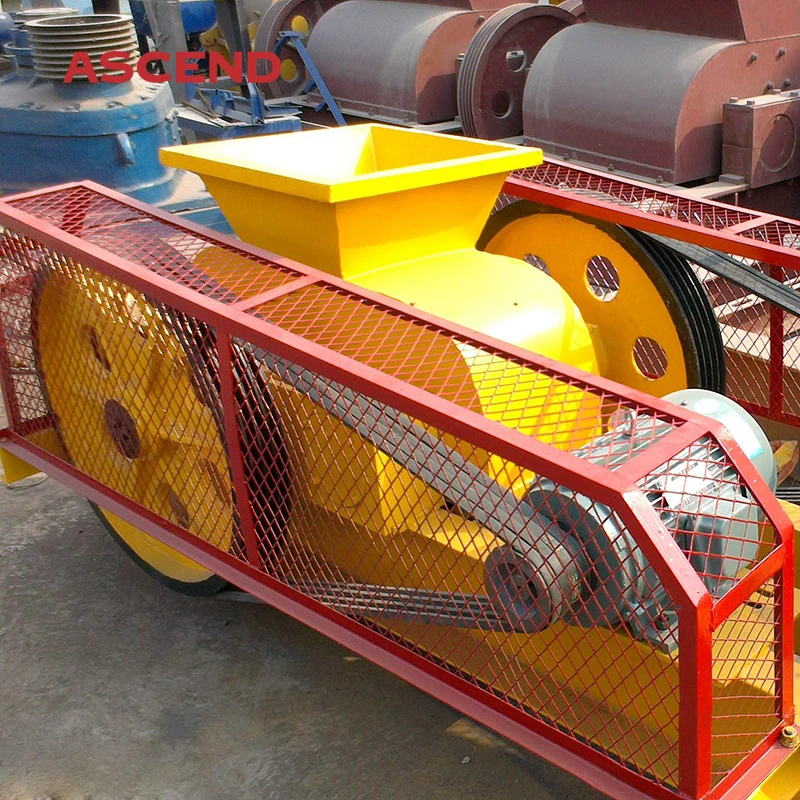

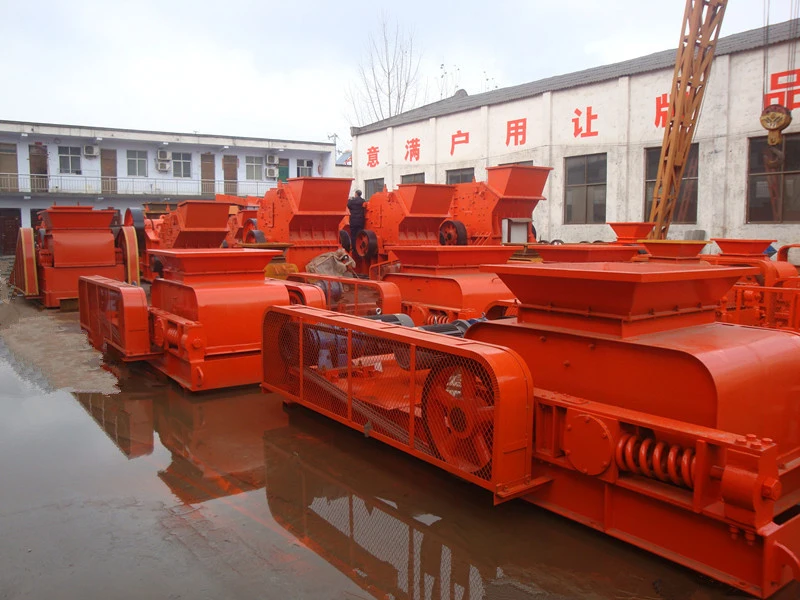

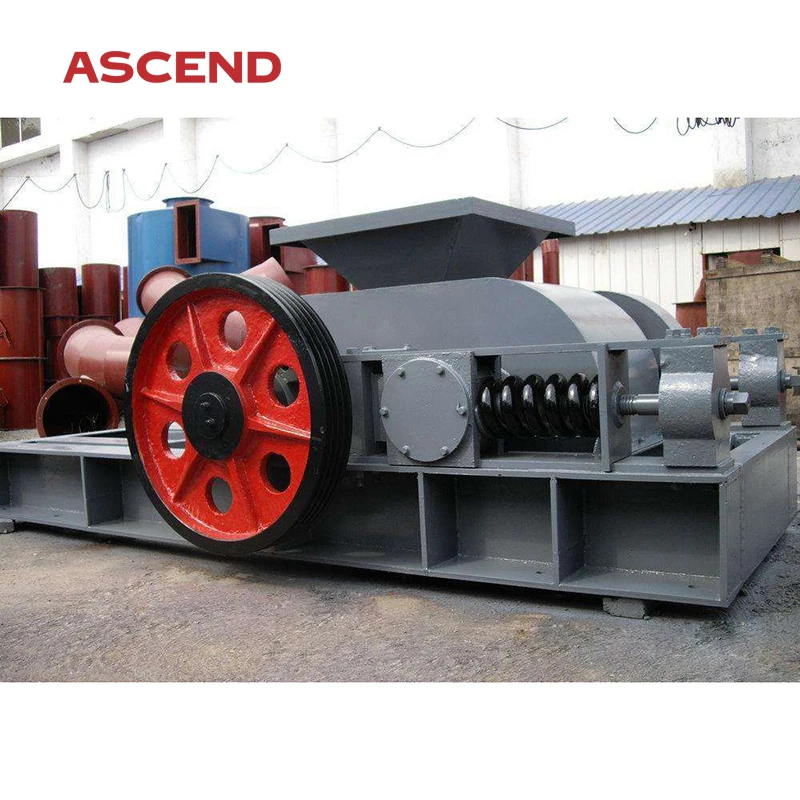

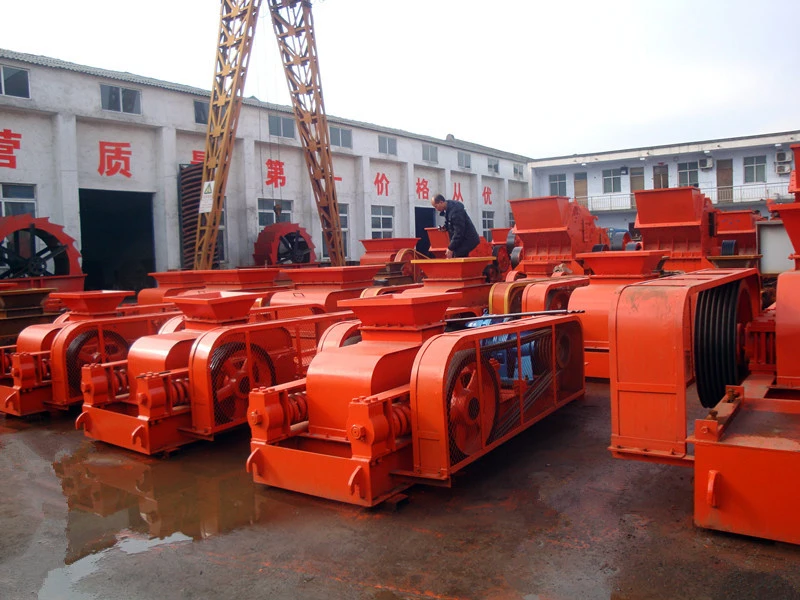

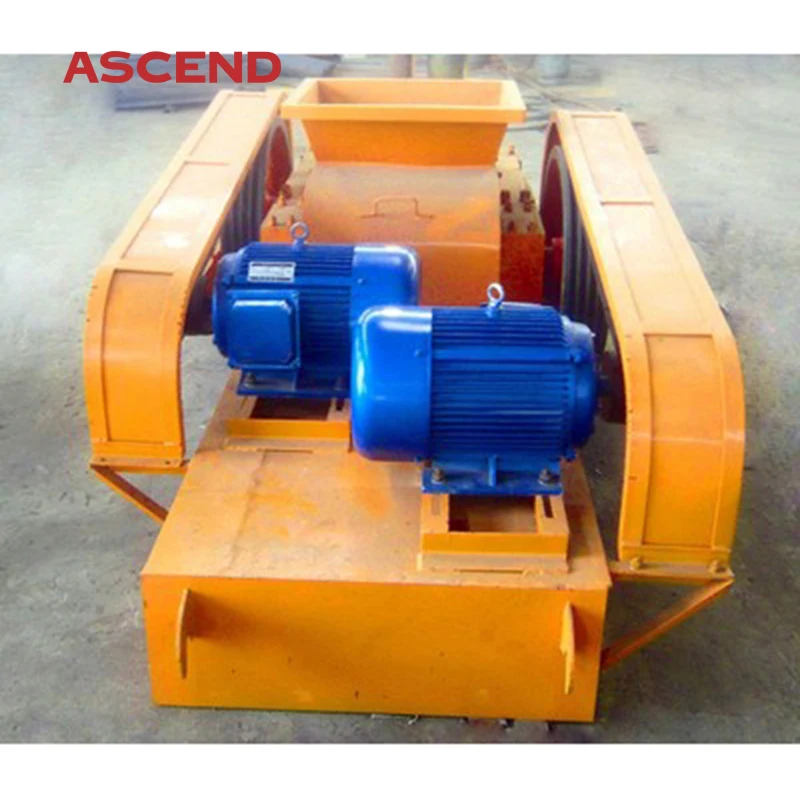

Product pictures

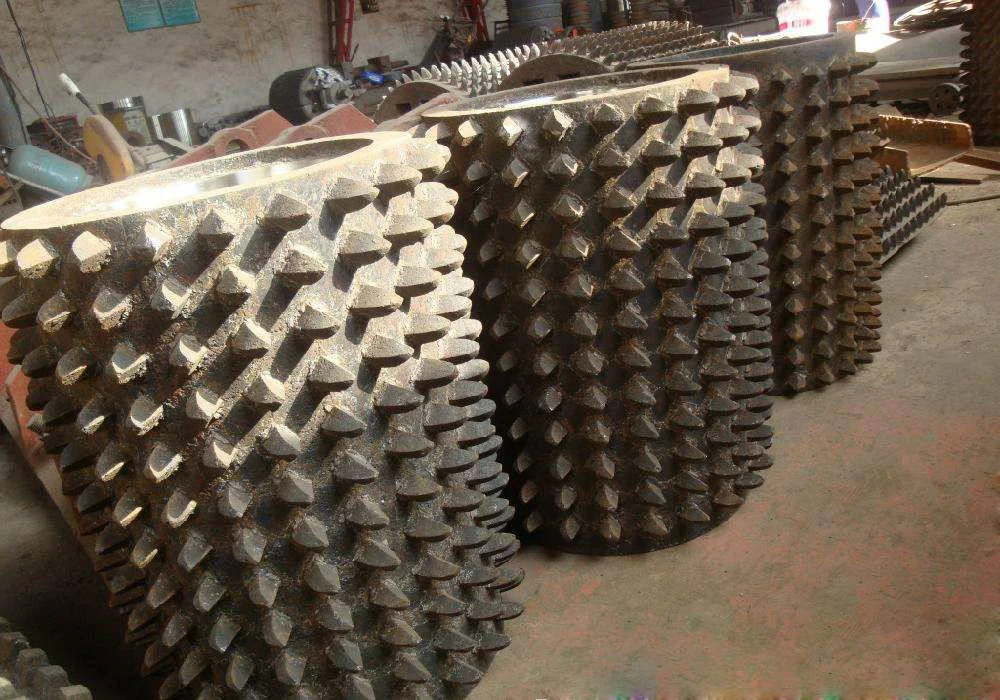

Spare parts

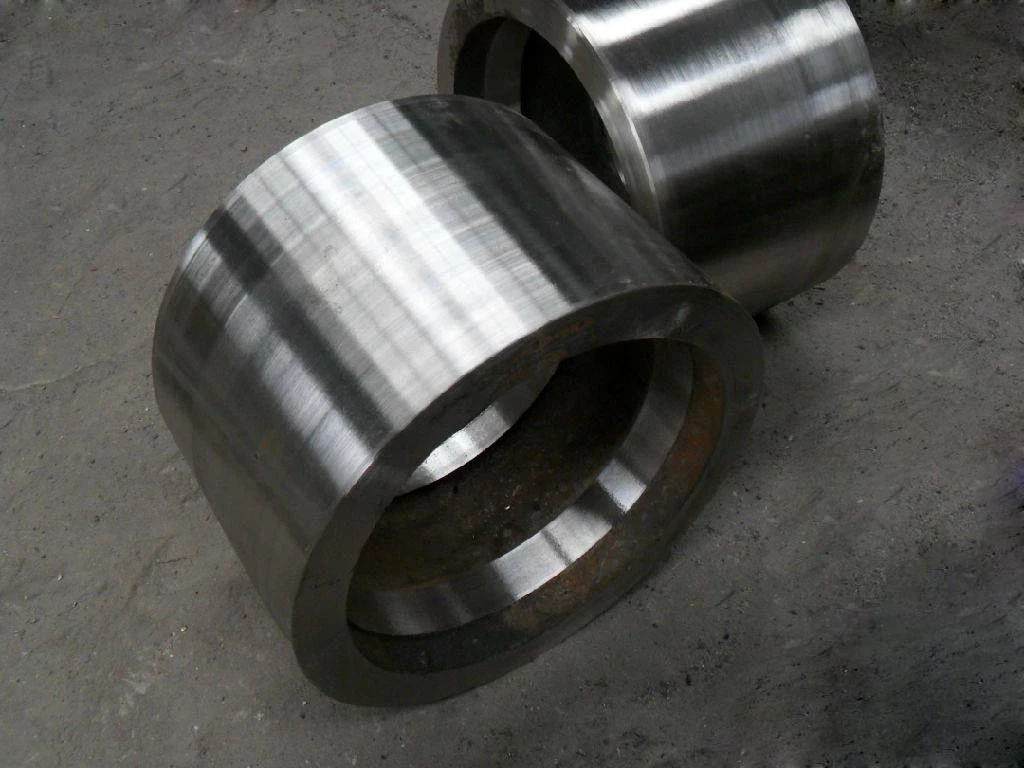

Besides producing the complete set of roller crusher, we also keep a large quantity of spare parts in the warehouse. The main wearing part of roller crusher is the roller plate, which is made of High manganese Mn13Cr2 alloy.
Specifications
Model | Feeding size(mm) | Discharging granularity (mm) | Output (t/h) | Motor Power (t/h) | Dimensions(L×W×H) (mm) | Weight (kg) |
2PG-400*250 | <=25 | 2-8 | 5-10 | 11 | 1215×834×830 | 1100 |
2PG-610*400 | <=40 | 1-20 | 13-40 | 30 | 3700×1600×1100 | 3500 |
2PG-750*500 | <=40 | 2-20 | 20-55 | 37 | 2530×3265×1316 | 12250 |
2PG-900*500 | <=40 | 3-40 | 60-125 | 44 | 2750x1790x2065 | 14000 |

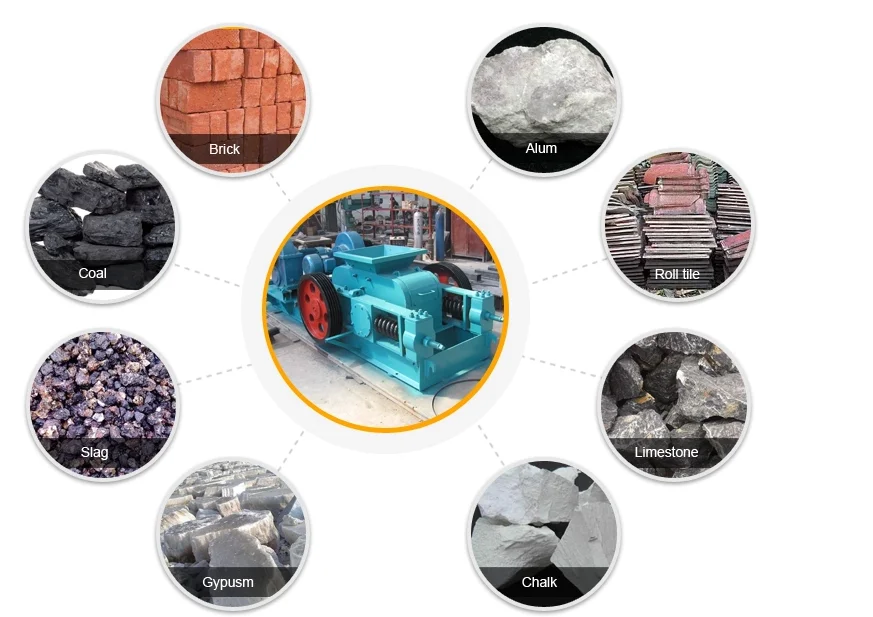

Application
![T5UPUFZ1O]T~G)U{W2`S73G.png](http://sc01.alicdn.com/kf/HTB1ecfNHQOWBuNjSspp760PgpXaA/234299085/HTB1ecfNHQOWBuNjSspp760PgpXaA.png)

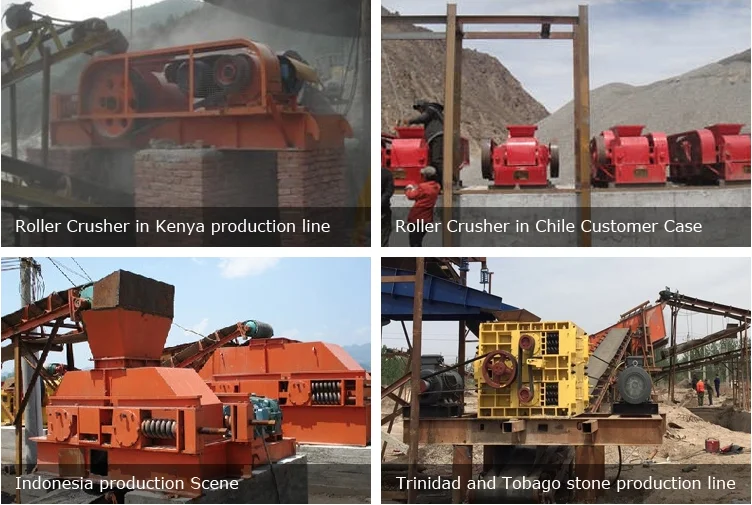

Customer site
Our Services
Questions & Answers
Q1: Are you trading company or manufacturer?
A: We are factory.
Q2: How long is your delivery time?
A: Generally it is 7-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity.
Q3: What is your payment method?
A: 30% of total price should be paid by T/T as down payment; 70% balance payment should be paid by T/T before delivery.
Q4: What Information should customers give us, So that we can be able to provide you suitable quotation and service.
What minerals are you separating?
What's the maximum size of your raw minerals?
How much capacity do you need per hour for your project?
Q5: How long is the warrenty of your equipments? Does your company supply the spare parts?
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
A: The warranty period of crusher equipments is one year. and we will supply the spare parts for you at lowest cost.
Q6: If I need the complete crushing plant can you help us to build it?
A: Yes, we can help you combine a complete crushing line and give you related professional advices as long as you need. We had already build many mining projects in China & Overseas.
Q7:what's your motor brand?what bearing do you use?
For Motor-China top brand, also can use Siemens as per request .
For Bearing China top brand ZWZ, also can use SKF/NSK etc as per request
