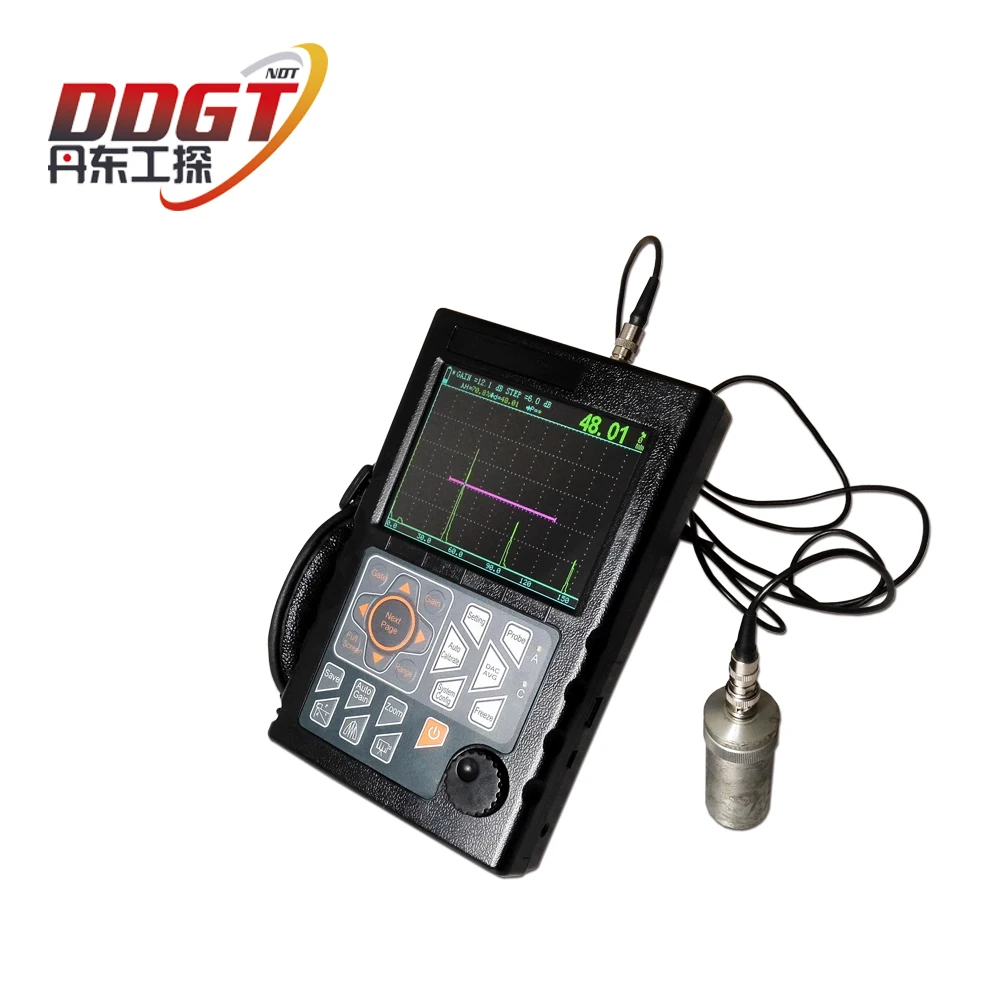

DDGT Industrial NDT Weld Inspection Testing Machine Ultrasonic Testing UT Flaw Detector DGT FD800 Instrument
- Category: >>>
- Supplier: Dandong Flaw Detector Equipment Co. Ltd.
Share on (60783489171):
Product Overview
Description
Related Products
You May Like
Our Company
Product Description

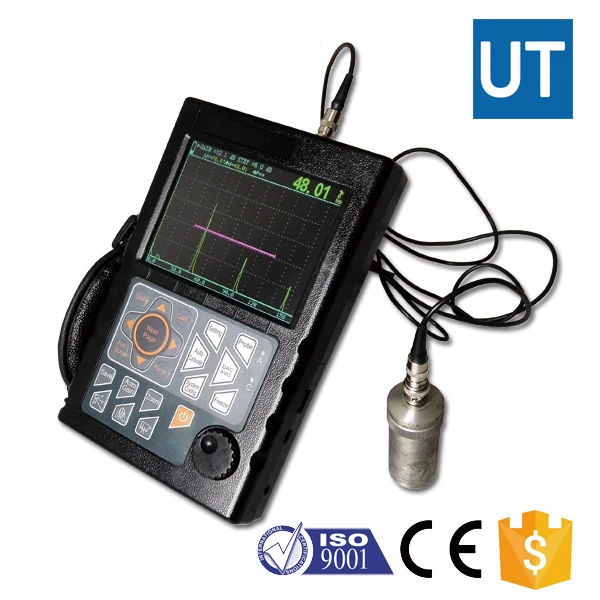

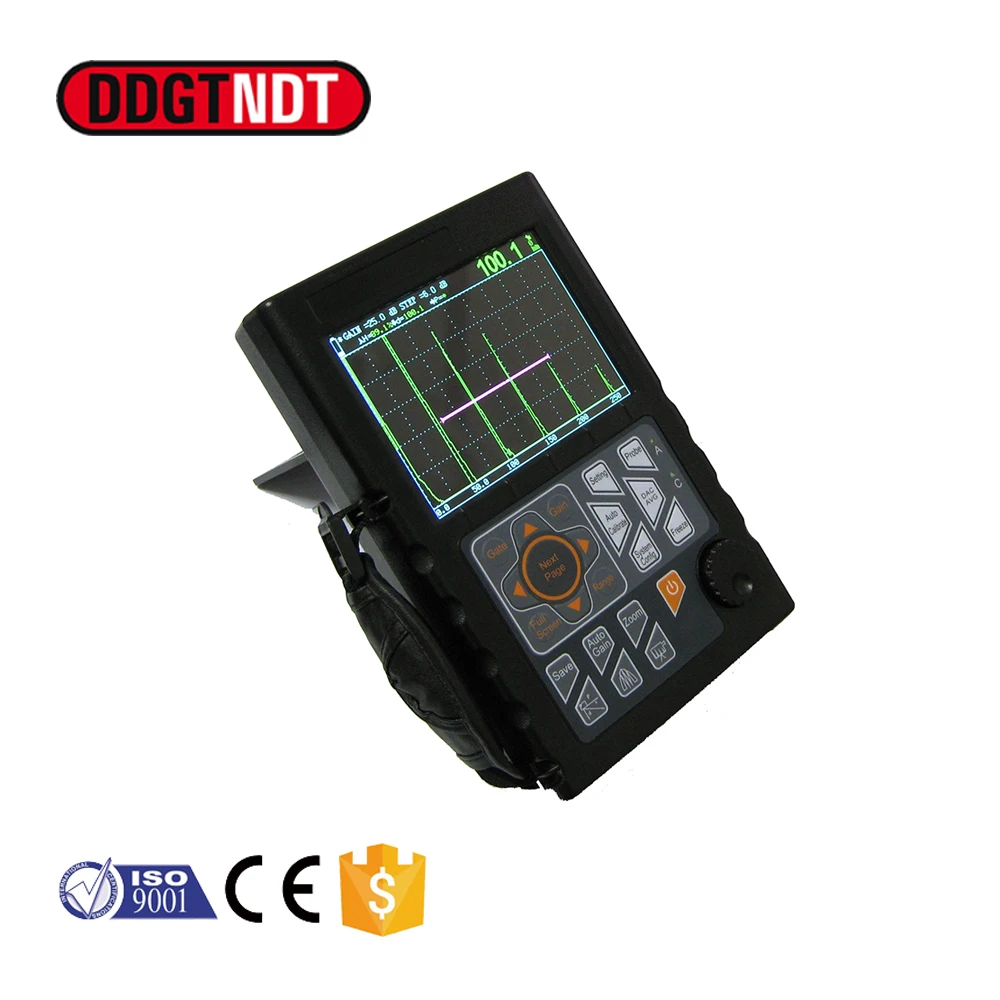

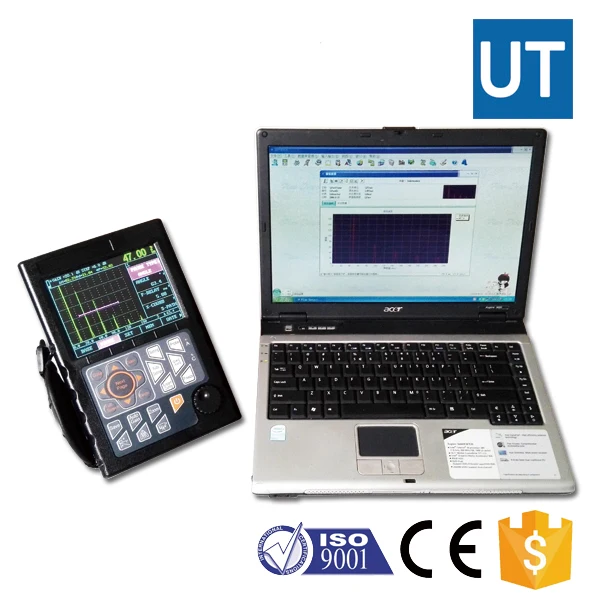

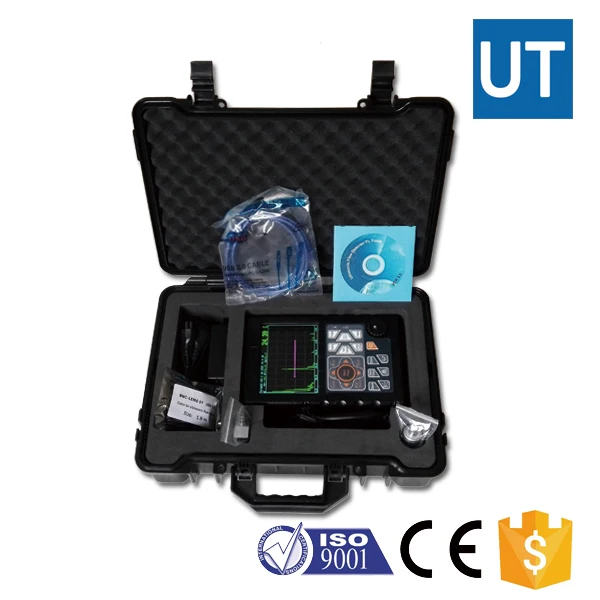

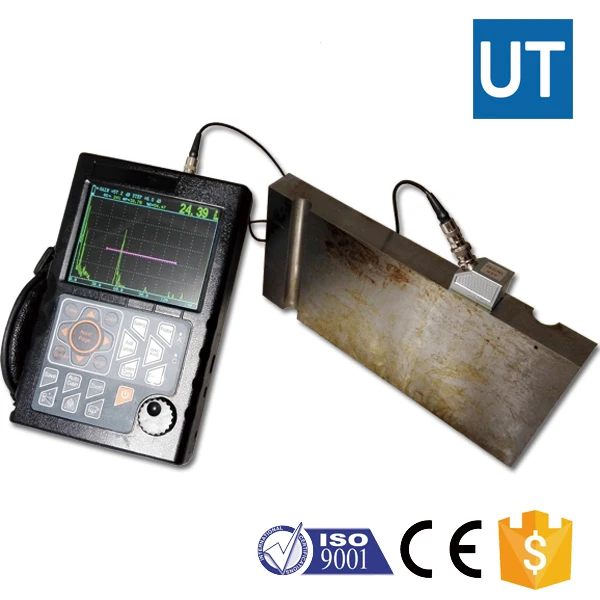

DDGT Industrial NDT Weld Inspection Testing Machine Ultrasonic Testing UT Flaw Detector DGT-FD800 Instrument
Function
1. Display freeze;
2. Automated echo degree;
3. Angles and K-value;
4. Lock and unlock function of system parameters;
5. Electronic clock calendar ;
6. Two gates setting and alarm indication;
7. Gate and DAC alarm;
Technical Specifications Ultrasonic Flaw Detector DGT-FD800 | ||
Measuring range(mm) | 0--10000 | |
Vertical linearity error | ≤3% | |
Horizontal linearity error | ≤0.1% | |
Sensitivity margin | ≥62dB | |
Dynamic scope | ≥34dB | |
Resolution | ≥36dB | |
Frequency range(MHz) | 0.5 --20 | |
Gain(dB) | 0 --120 | |
Velocity | 1000 --15000 | |
Measurement mode | single,dual, THRU | |
Reject | 0-80% | |
Pulse shift(μs) | -20--+3400 | |
Zero | (μs) 0.0--99.99 | |
Port type | BNC | |
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
* Freely provide project designing, process designing, choosing suitable equipment for you.
After-Sales Service
* The quality guarantee period of our machine is 12 months.
* Within the quality guarantee period, free parts replacement and corresponding service are available.
Packing & Delivery
DDGT Industrial NDT Weld Inspection Testing Machine Ultrasonic Testing UT Flaw Detector DGT-FD800 Instrument
FAQ
DDGT Industrial NDT Weld Inspection Testing Machine Ultrasonic Testing UT Flaw Detector DGT-FD800 Instrument
Q: How long will you give customer the reply? | ||||||
A: We will contact you soon. The latest will not exceed 10 hours. | ||||||
Q: How about the quality of the products? | ||||||
A: We have the certificates of ISO and CE. We can send our certificates to you for your reference. | ||||||
Q: What is the price of the product? | ||||||
A: As we all believe the quality is the most important. We will provide the best quality machines with best price. | ||||||
Q: How about delivery time? | ||||||
A: Most of our products are in stock, after testing to your delivery, delivery time is about 5-7 days. | ||||||
Q: Can we visit your factory? | ||||||
A: Of course, please feel free to visit our factory. | ||||||
Q: How long is the warranty? | ||||||
A: 12 months. Warranty period free maintenance. | ||||||
