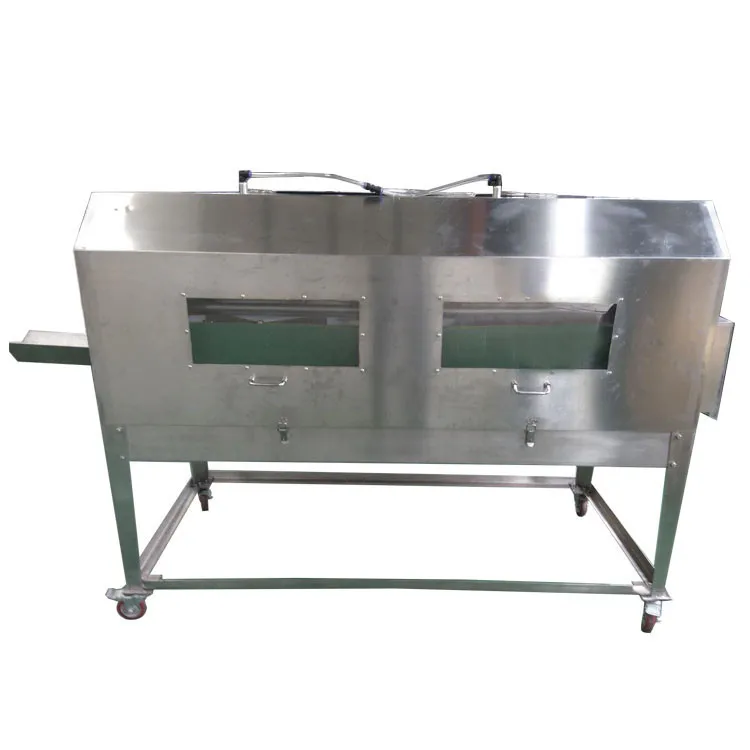

                                                  Fish fillet processing plant

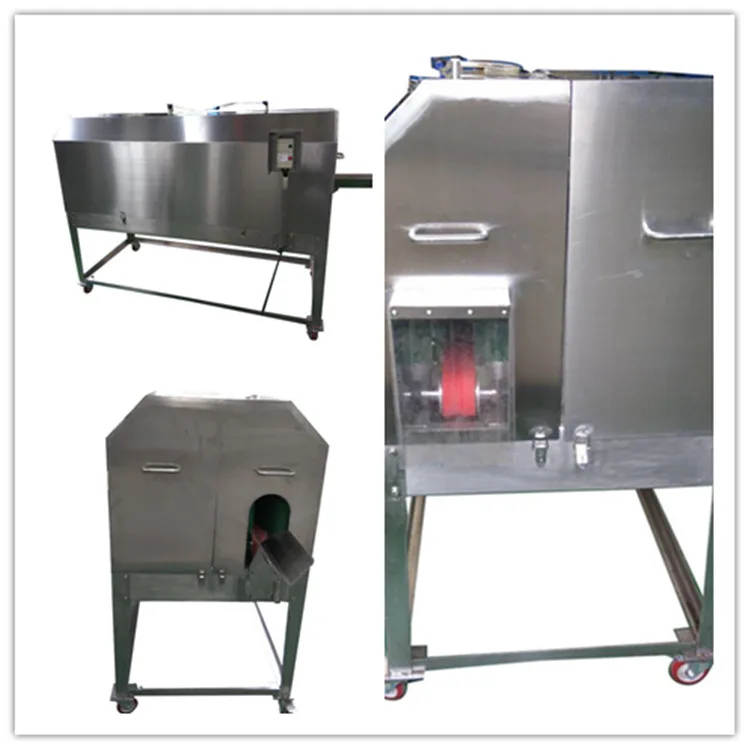

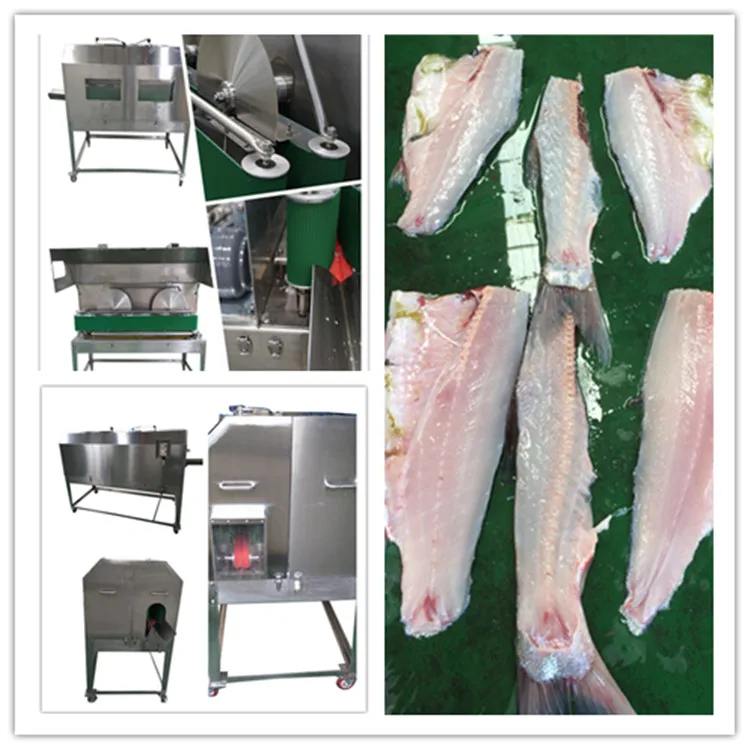

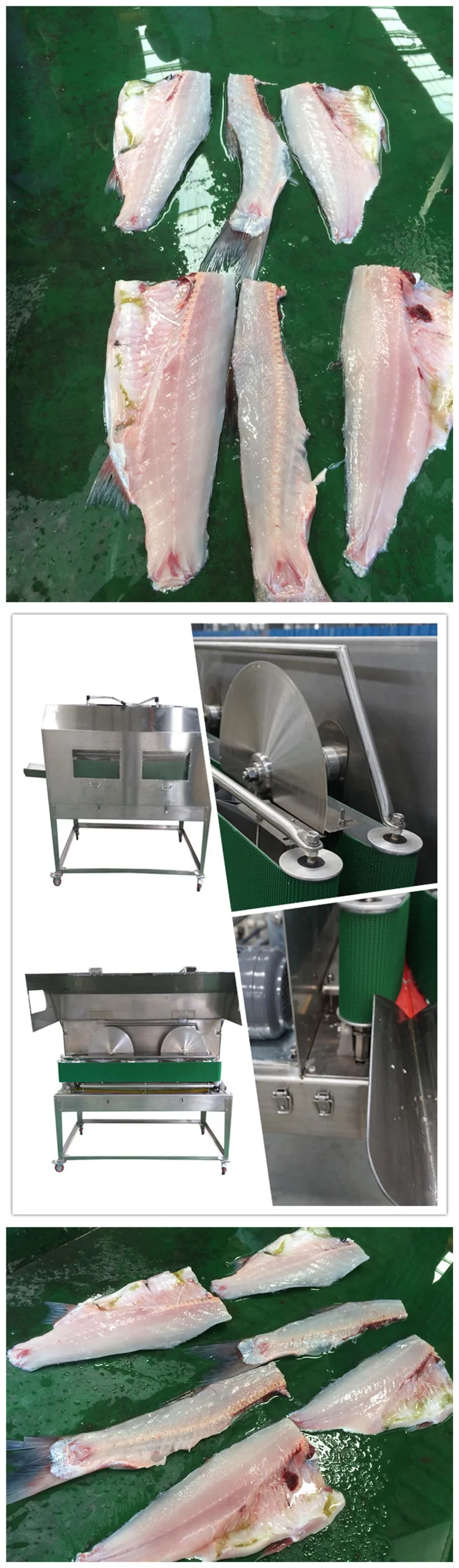

         fish Fillet and back bone removing machine



SPECIFICATION

Fish Filleting Machine is an automatic cutting machine which is developed by SSS. It is more convenient than traditional method by manual and can reduce the cutting time to relieve labor intensity. Fish with different kinds and sizes can be processed by this machine.





TECHNICAL DATA



Model	SSS-521
Dimension(MM)	1400*750*1300
Power	0.75kw
Capacity/minute	30 pcs

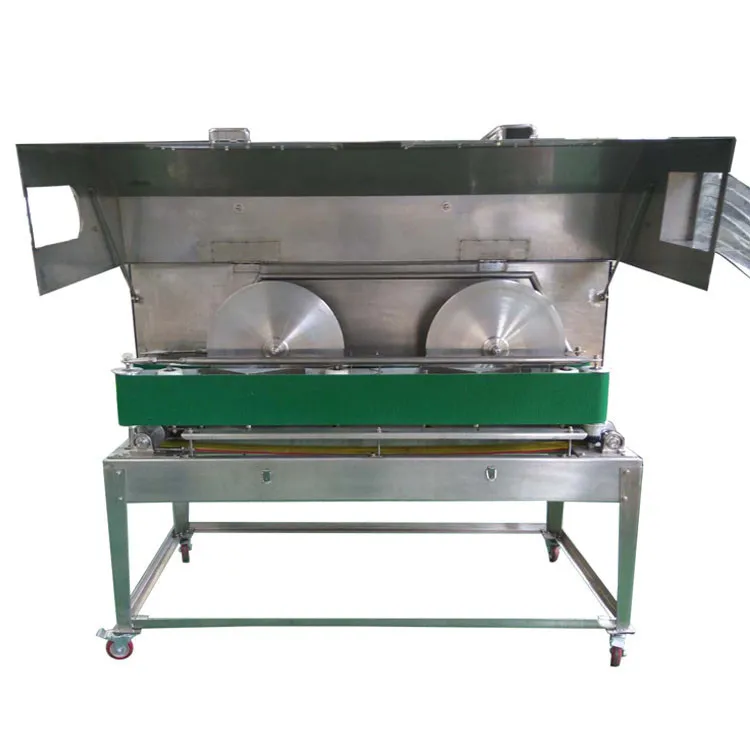

Quantity of blade	2 pcs
Blade size (diameter)	254mm
Min thickness /Max width of fish	20mm/100mm

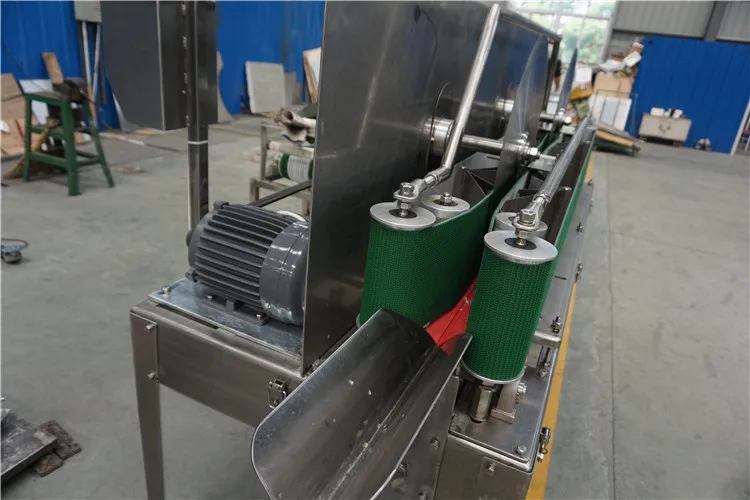

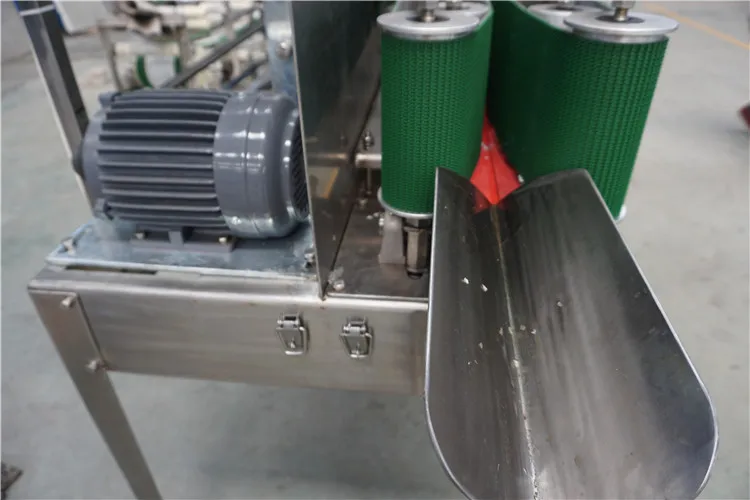

Conveying type	Two-sides belt and bottom belt synchronously



Model	SSS-522
Dimension(MM)	1500*750*1300
Power	0.75kw
Capacity/minute	30 pcs
Quantity of blade	2 pcs
Blade size (diameter)	375mm
Min thickness /Max width of fish	30mm/160mm
Conveying type	Two-sides belt and bottom belt synchronously



Model	SSS-523
Dimension(MM)	1900*750*1400
Power	1.5kw
Capacity/minute	30-40 pcs
Quantity of blade	2 pcs
Blade size (diameter)	500mm
Min thickness /Max width of fish	40mm/230mm
Conveying type	Two-sides belt and bottom belt synchronously





NOTICE



1) Don’t use water-cannon to wash, it may cause functional failure if water sink into motor and appliance.



     2) Please coat food oil on blades after cleaning.







PRICE

SSS-521  USD8500/SET, FOB SHANGHAI

SSS-522  USD9500/SET, FOB SHANGHAI

SSS-523  USD12000/SET, FOB SHANGHAI





REMARKS

1) Price Validity:within 30 days;

2) Payment terms: 30% T/T down payment and balance 70% before shipment;

3) Delivery time: 30 days after receipt of down payment;

4) Warranty: 1 year from date of shipment.
