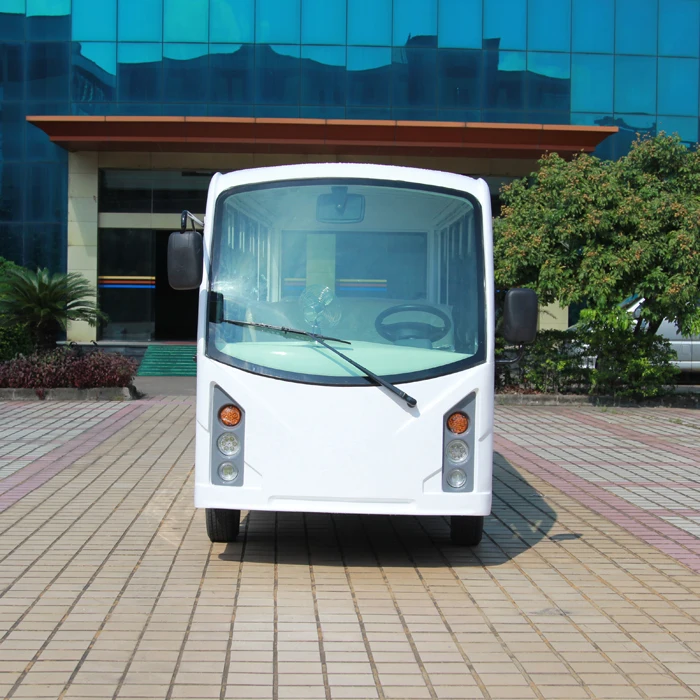

China made 14 seats electric city bus with CE certificate

Product Overview

Description

Passenger capacity	14  seats
Max.Speed	28km/h
Range(loaded)	90km
Climbing Ability(loaded)	15%
Braking Distance	≤4.5m
Min.Turning Radius	6.5m
Min.Clearance	150mm
Recharge time	8~10h

L×W×H	5000×1480×1988mm
F/R Tread	1210/1200mm
Axle Distance	2800mm
Curb Weight	1350kg
Max. loading	1140kg

Motor	72V/5KW DC motor
Controller	72V/400A  controller
Body & Roof	High impact fiber glass + High impact ABS Plastic
Batteries	Free-maintenance Batteries 6V/170Ah*12 pcs
Windshield	See-through Laminated glass

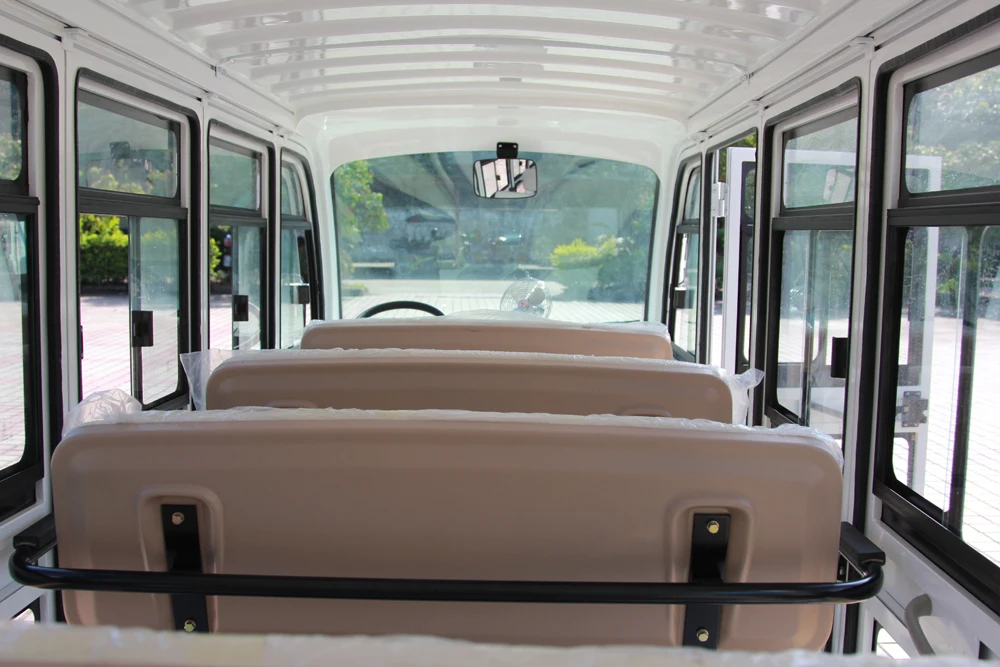

Seats	Sponge + artificial leather
Rear view mirror	2pcs
Bumper	Front and rear Bumper
Tire	155/80 R12 Radial tire (Auto tire)
Chassis	Welded tubular steel with rust-proof powder coated paint
Steering	Rack-and-pinion steering + power assistant
Front Suspension	The MacPherson Strut suspension system, coil spring+shock absorber
Rear suspension	Leaf spring+shock absorber non-independent suspension
Lighting system	headlights, dipped headlights, turn signals, rear brake lights,lamplet,
Sound system	Radio and MP3 player; Speaker
Brake system	4-wheel hydraulic drum brake system + handbrake
Charger	Output:72V/25A, Input AC  220V/50HZ

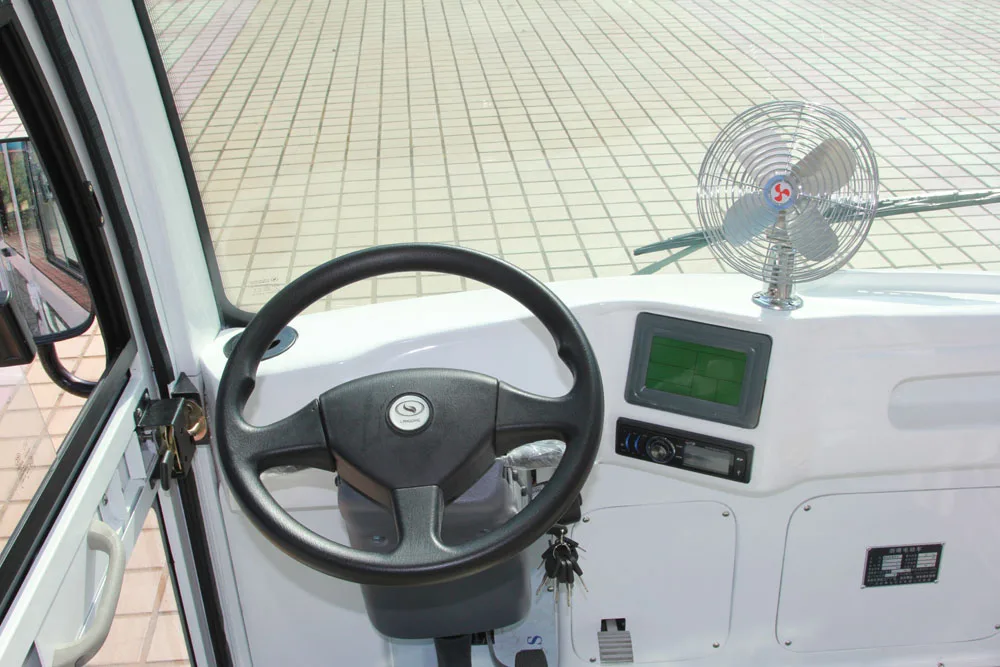

Dashboard	Combined meters(Voltameter, ammeter, turn signal indicator, speedometer), fiberglass dashboard
